NGK15R-AEMRKX (2010)

Toyota Etios/Liva/Cross

Production Dec 2010 - Mar 2013
Engine 2NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

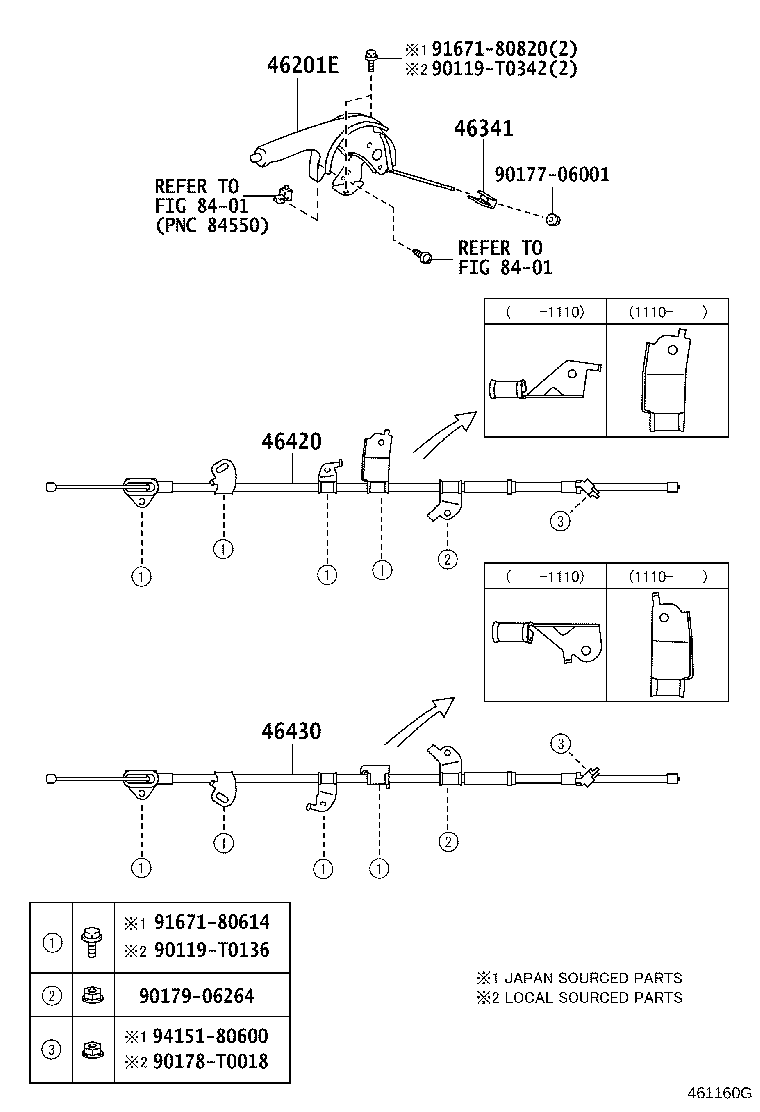

Click highlighted areas on diagram

diagram 46201E 46341 46420 46430 8401 8401 90119T0136 90119T0342 9017706001 90178T0018 9017906264 9167180614 9167180820 9415180600
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-0D160C0

NGK1#..STD;NGK15..G..SA

BLACK,TRIM1#

 1
46201-0D160C0

NGK1#,NUK1#..(G,V)..IND

BLACK,TRIM1#,4#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-0D100

NGK1#,NUK1#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-0D171

NGK15,NUK15..4D

 1
46420-0D170

NGK15,NUK15

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-0D170

NGK15,NUK15

 1
46430-0D171

NGK15,NUK15..4D

 1
Common parts
90119-T0136
90119-T0342
90177-06001
90178-T0018
90179-06264
91671-80614
91671-80820
94151-80600
Linked diagrams
8401
