NGK15R-AEMGKX (2010)

Toyota Etios/Liva/Cross

Production Dec 2010 - Mar 2013
Engine 2NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )4D

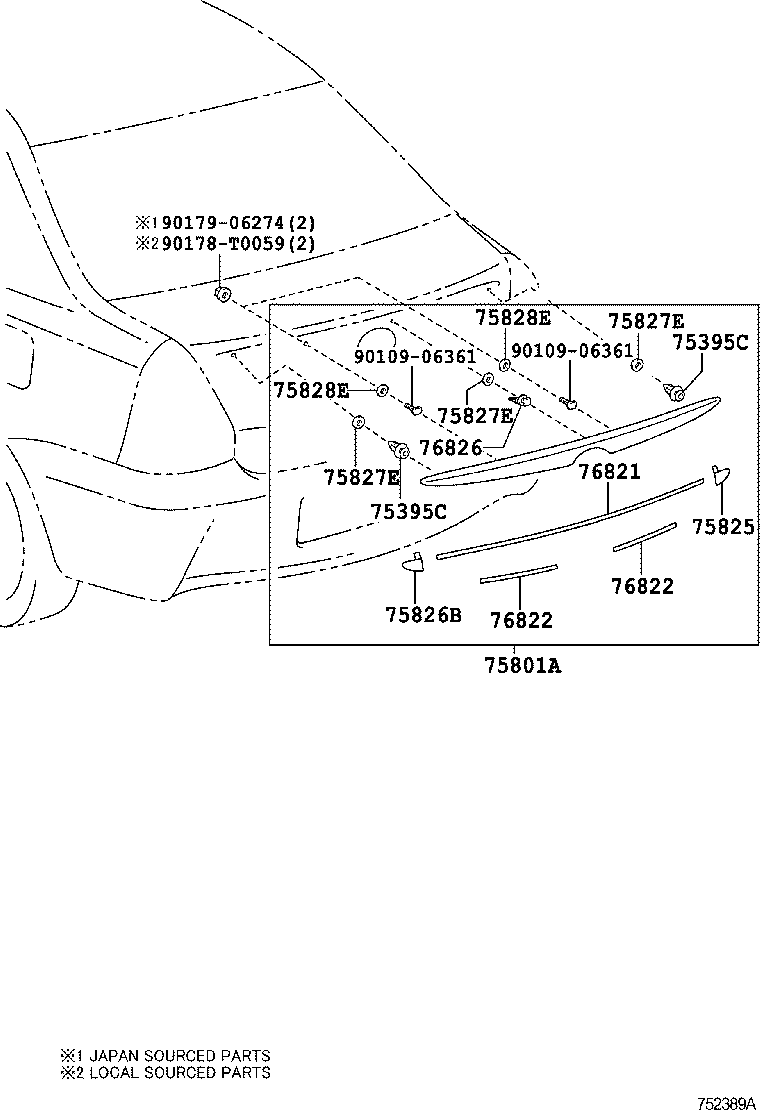

Click highlighted areas on diagram

diagram 75395C 75395C 75801A 75825 75826B 75827E 75827E 75827E 75828E 75828E 76821 76822 76822 76826 9010906361 9010906361 90178T0059 9017906274
Part # Description Qty Price
75395C - CLIP, OUTSIDE MOULDING, NO.1
90467-10162

NGK10..V;NGK15,NUK15..G,V

 2
75395C - CLIP, OUTSIDE MOULDING, NO.1
90467-10162

NGK10..V;NGK15,NUK15..G,V

 2
75801A - MOULDING SUB-ASSY, LUGGAGE COMPARTMENT DOOR
75801-0D010

NGK15,NUK15..4D..(G,V)

 1
75825 - PAD, LUGGAGE COMPARTMENT DOOR MOULDING
75825-0D010

NGK15,NUK15..4D..(G,V)

 1
75826B - PAD, LUGGAGE COMPARTMENT DOOR MOULDING, NO.2
75826-0D010

NGK15,NUK15..4D..(G,V)

 1
75827E - PROTECTOR, LUGGAGE DOOR MOULDING
75827-0D010

NGK10..V;NGK15,NUK15..G,V

 3
75827E - PROTECTOR, LUGGAGE DOOR MOULDING
75827-0D010

NGK10..V;NGK15,NUK15..G,V

 3
75827E - PROTECTOR, LUGGAGE DOOR MOULDING
75827-0D010

NGK10..V;NGK15,NUK15..G,V

 3
75828E - PROTECTOR, LUGGAGE DOOR MOULDING, NO.2
75828-0D010

NGK10..V;NGK15,NUK15..G,V

 2
75828E - PROTECTOR, LUGGAGE DOOR MOULDING, NO.2
75828-0D010

NGK10..V;NGK15,NUK15..G,V

 2
76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821-0D060

NGK15,NUK15..4D..(G,V)

 1
76822 - PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER
76822-0D020

NGK15,NUK15..4D..(G,V)

 2
76822 - PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER
76822-0D020

NGK15,NUK15..4D..(G,V)

 2
76826 - RETAINER, BACK DOOR GARNISH, NO.1
76826-0D010

NGK15,NUK15..4D..(G,V)

 1
Common parts
90109-06361
90178-T0059
90179-06274
