NGK10R-AHMRKD (2013)

Toyota Etios/Liva/Cross

Production Mar 2013 - Dec 2017
Engine 3NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1303- )IDN

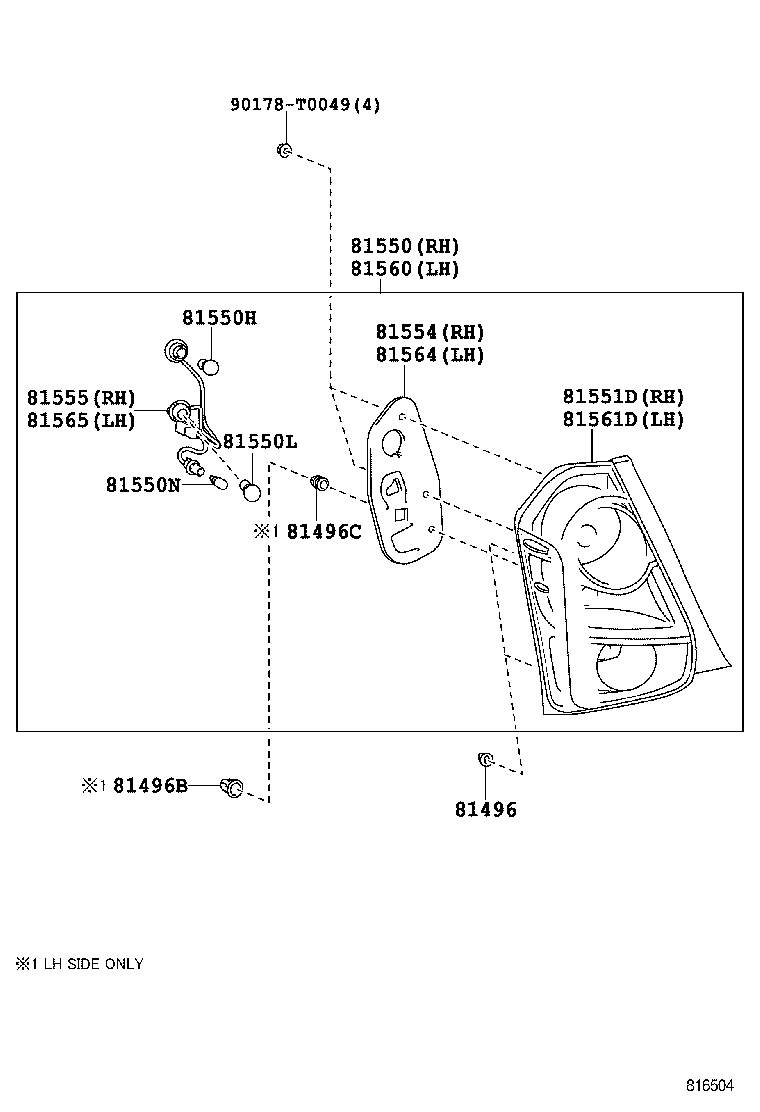

Click highlighted areas on diagram

diagram 81496 81496B 81496C 81550 81550H 81550L 81550N 81551D 81554 81555 81560 81561D 81564 81565 90178T0049
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-52020

NUK10..G;NGK10,15..5D..(G,STD,V)

 4
81496-0D060

NGK10..IDN

 4
81496B - GUIDE, REAR LAMP
81496-33010

NGK10..IDN

 1
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-33020

NGK10..IDN

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-0D400

NGK10..IDN

 1
81550H - BULB, TAIL & STOP LAMP
99132-21210

NGK1#,NUK1#

12V 21/5W

 2
99132-21210

NGK10..IDN

12V 21/5W

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15020

NGK10..IDN

12V 21W,AMBER

 2
99132-11210

NGK1#,NUK10..5D

12V 21W

 2
81550N - BULB, BACK UP LAMP
90981-11059

NGK10..IDN

12V 16W

 2
99132-11210

NGK1#,NUK1#

12V 21W

 1
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-0D400

NGK10..IDN

 1
81551-0D320

NGK1#,NUK10..5D

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81552-0D320

NGK1#,NUK10..5D

 1
81552-0D400

NGK10..IDN

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-0D320

NGK1#,NUK10..5D

 1
81555-0D400

NGK10..IDN

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-0D400

NGK10..IDN

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-0D400

NGK10..IDN

 1
81561-0D320

NGK1#,NUK10..5D

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81562-0D400

NGK10..IDN

 1
81562-0D320

NGK1#,NUK10..5D

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-0D400

NGK10..IDN

 1
81565-0D320

NGK1#,NUK10..5D

 1
Common parts
90178-T0049
