NGK10R-AHMNKX (2010)

Toyota Etios/Liva/Cross

Production Dec 2010 - Mar 2013
Engine 3NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

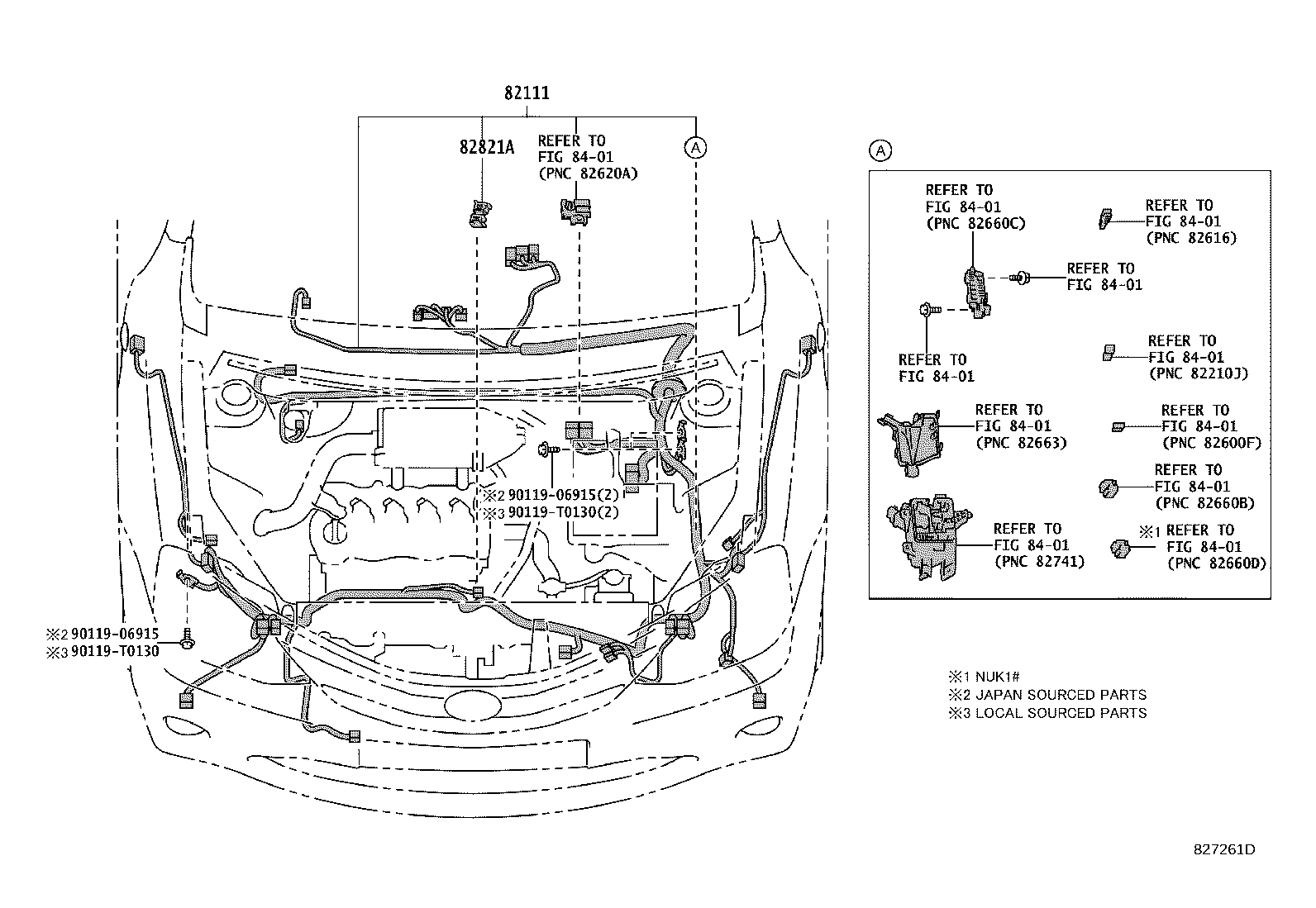

ILLUST NO. 1 OF 7(1012- )

Click highlighted areas on diagram

ENGINE ROOM

diagram 82111 82821A 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 9011906915 9011906915 90119T0130 90119T0130
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-0DR80

NGK1#..G..IND

SAFTY PACKAGE

 1
82111-0DR61

NGK1#..(G,STD)..IND

 1
82111-0DR60

NGK1#..G..IND

 1
82821A - COVER, CONNECTOR
82821-30650

NGK1#..G..IND

SAFTY PACKAGE

 1
Common parts
90119-06915
90119-T0130
Linked diagrams
8401

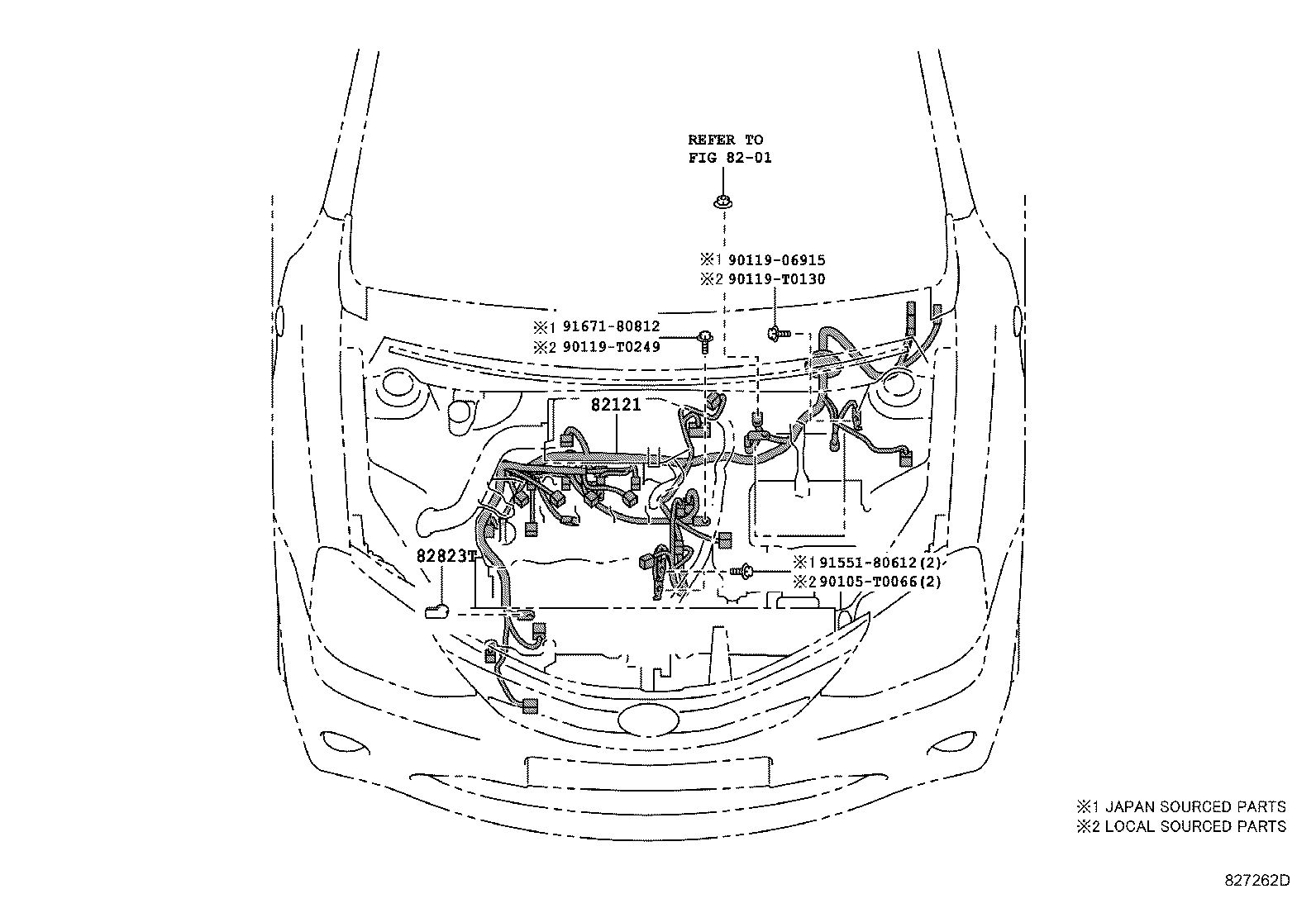

ILLUST NO. 2 OF 7(1012- )NGK1#

Click highlighted areas on diagram

ENGINE

diagram 8201 82121 82823T 90105T0066 9011906915 90119T0130 90119T0249 9155180612 9167180812
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-0DC40

NGK1#..G,STD

 1
82121-0DC41

NGK1#..(G,STD)..IND

 1
82121-0DC60

NGK1#..G

SAFTY PACKAGE

 1
82121-0DC61

NGK1#..G..IND

SAFTY PACKAGE

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

NUK10..G;NUK15..G,V;NGK10..V..IDN;NGK10,15..G,STD

 1
Common parts
90105-T0066
90119-06915
90119-T0130
90119-T0249
91551-80612
91671-80812
Linked diagrams
8201

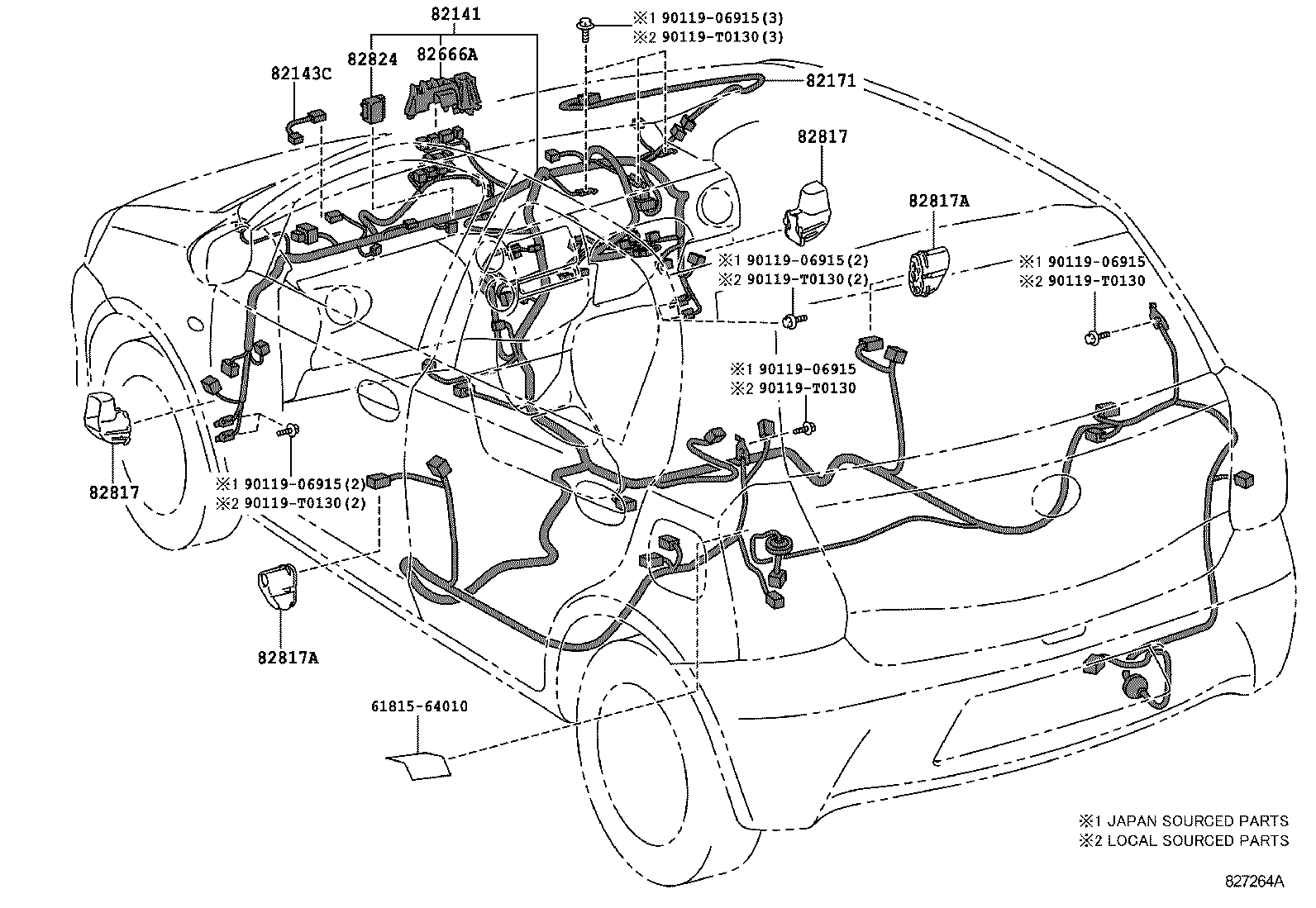

ILLUST NO. 3 OF 7(1012- )5D

Click highlighted areas on diagram

INSTRUMENT PANEL & FLOOR & ROOF

diagram 6181564010 82141 82143C 82171 82666A 82817 82817 82817A 82817A 82824 9011906915 9011906915 9011906915 9011906915 9011906915 90119T0130 90119T0130 90119T0130 90119T0130 90119T0130
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82141-0UD31

NGK10..G

 1
82141-0UD32

NGK10..G

 1
82141-0UR71

NGK10..G

SAFTY PACKAGE

 1
82141-0UR72

NGK10..G

SAFTY PACKAGE

 1
82143C - WIRE, INSTRUMENT PANEL, NO.3
82143-0D010

NGK1#,NUK1#..G..IND

SAFTY PACKAGE

 1
82171 - WIRE, ROOF, NO.1
82171-0D170

NGK1#,NUK1#

 1
82666A - HOLDER, CONNECTOR NO.2
82666-0D040

NGK1#,NUK1#

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-0D260

NGK1#,NUK1#..G,V

 2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-0D260

NGK1#,NUK1#..G,V

 2
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-52810

NUK10..G;NGK10,15,NUK15..G,V

 2
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-52810

NUK10..G;NGK10,15,NUK15..G,V

 2
82824 - CONNECTOR, WIRING HARNESS
82824-52270

NGK15;NUK10..G;NGK10..IDN;NGK10,NUK15..(G,V)..IND

 1
Common parts
61815-64010
90119-06915
90119-T0130

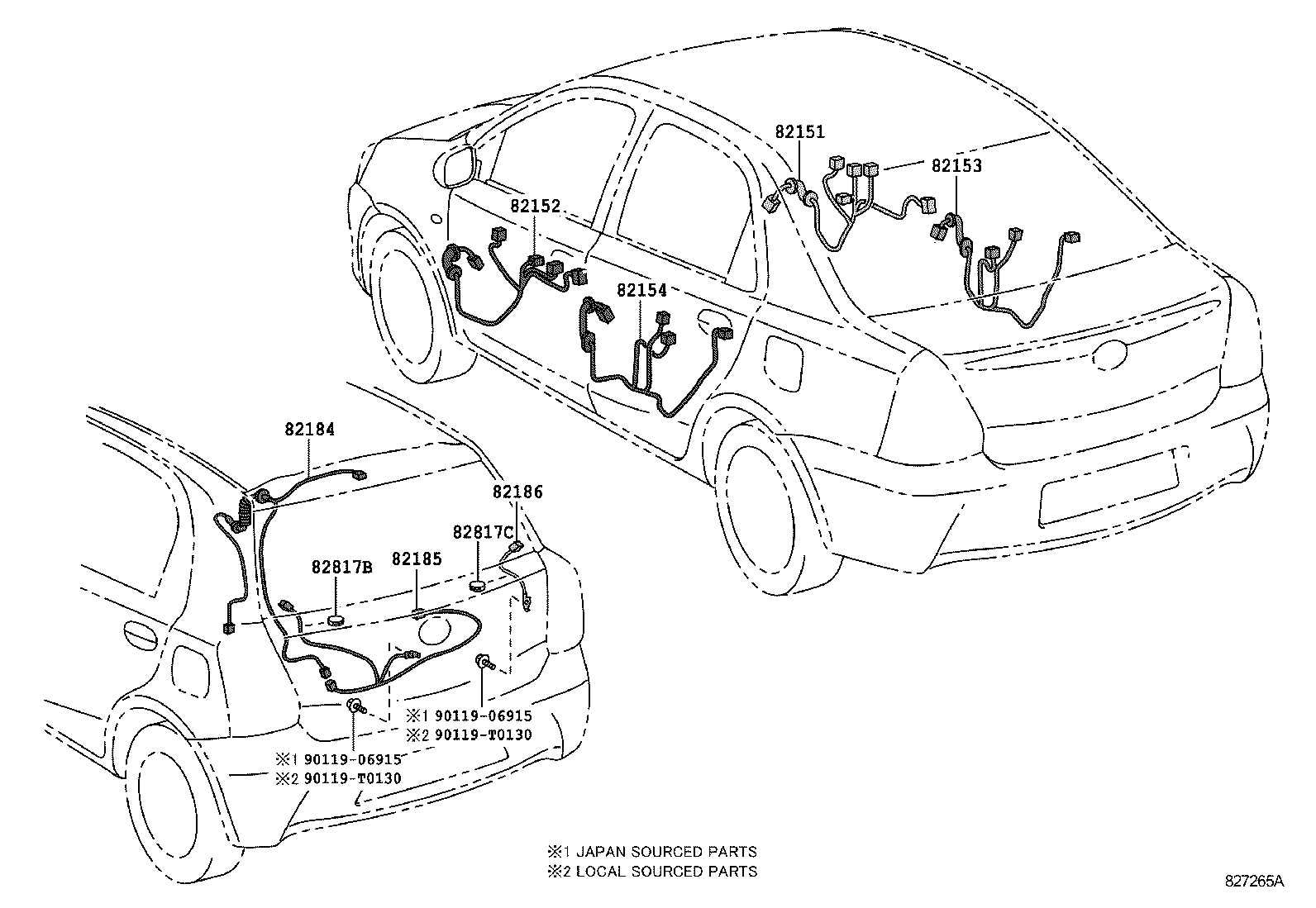

ILLUST NO. 4 OF 7(1012- )

Click highlighted areas on diagram

DOOR

diagram 82151 82152 82153 82154 82184 82185 82186 82817B 82817C 9011906915 9011906915 90119T0130 90119T0130
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-0DB10

NGK1#,NUK1#..(G,V)..IND

 1
82152 - WIRE, FRONT DOOR, LH
82152-0DB00

NGK1#..(G,V)..IND

 1
82152-0DB00

NGK1#..G,V

 1
82153 - WIRE, REAR DOOR, NO.1
82153-0D270

NGK1#,NUK1#..G,V

 1
82154 - WIRE, REAR DOOR, NO.2
82154-0D160

NGK1#,NUK1#..G,V

 1
82184 - WIRE, BACK DOOR, NO.1
82184-0D090

NGK15..5D..STD;NGK10,NUK10..G,STD

 1
Common parts
90119-06915
90119-T0130

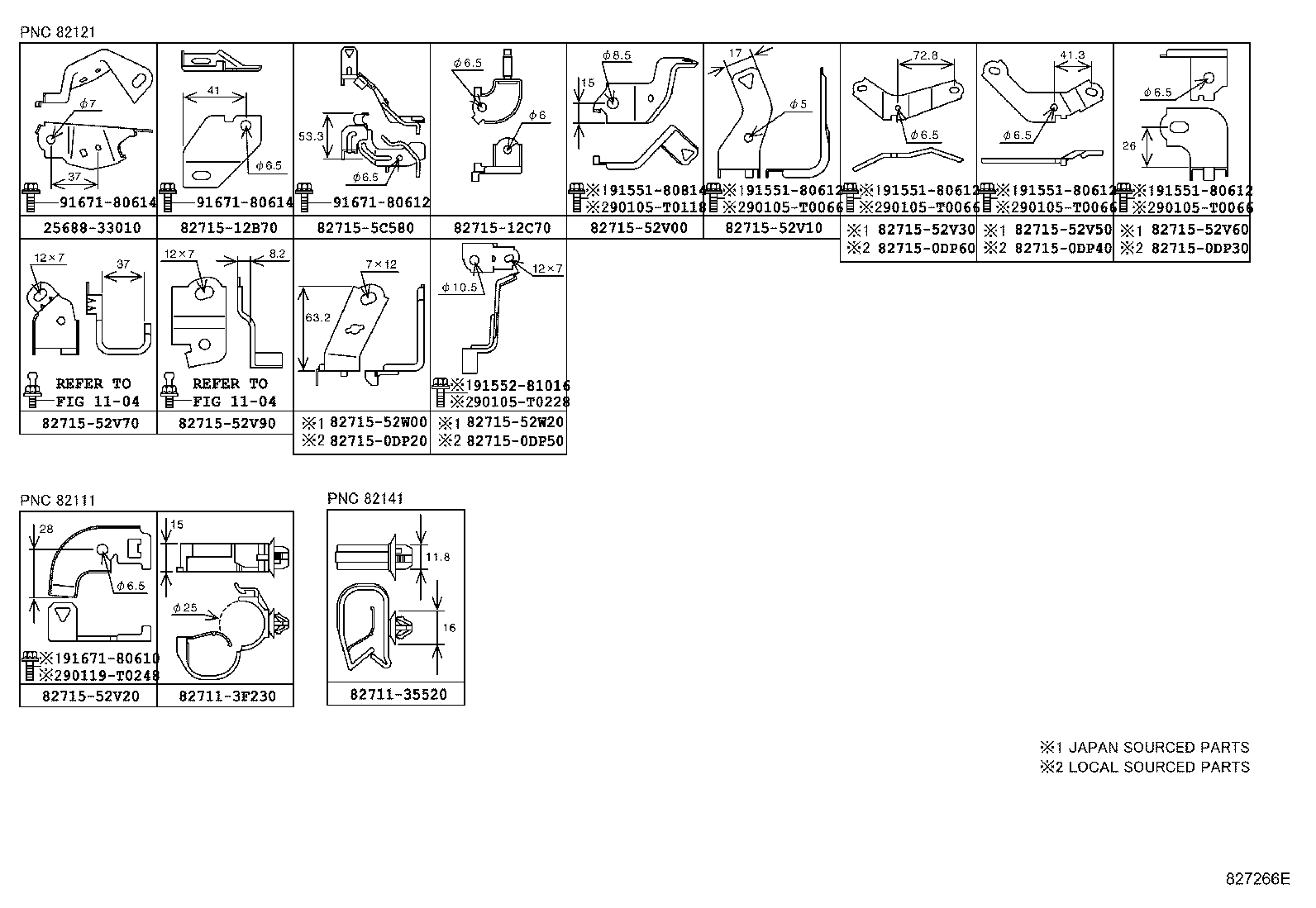

ILLUST NO. 5 OF 7(1012- )

Click highlighted areas on diagram

CLAMP & BRACKET

diagram 1104 1104 2568833010 8271135520 827113F230 827150DP20 827150DP30 827150DP40 827150DP50 827150DP60 8271512B70 8271512C70 8271552V00 8271552V10 8271552V20 8271552V30 8271552V50 8271552V60 8271552V70 8271552V90 8271552W00 8271552W20 827155C580 90105T0066 90105T0066 90105T0066 90105T0066 90105T0118 90105T0228 90119T0248 9155180612 9155180612 9155180612 9155180612 9155180814 9155281016 9167180610 9167180612 9167180614 9167180614
Part # Description Qty Price
Common parts
25688-33010
82711-35520
82711-3F230
82715-0DP20
82715-0DP30
82715-0DP40
82715-0DP50
82715-0DP60
82715-12B70
82715-12C70
82715-52V00
82715-52V10
82715-52V20
82715-52V30
82715-52V50
82715-52V60
82715-52V70
82715-52V90
82715-52W00
82715-52W20
82715-5C580
90105-T0066
90105-T0118
90105-T0228
90119-T0248
91551-80612
91551-80814
91552-81016
91671-80610
91671-80612
91671-80614
Linked diagrams
1104

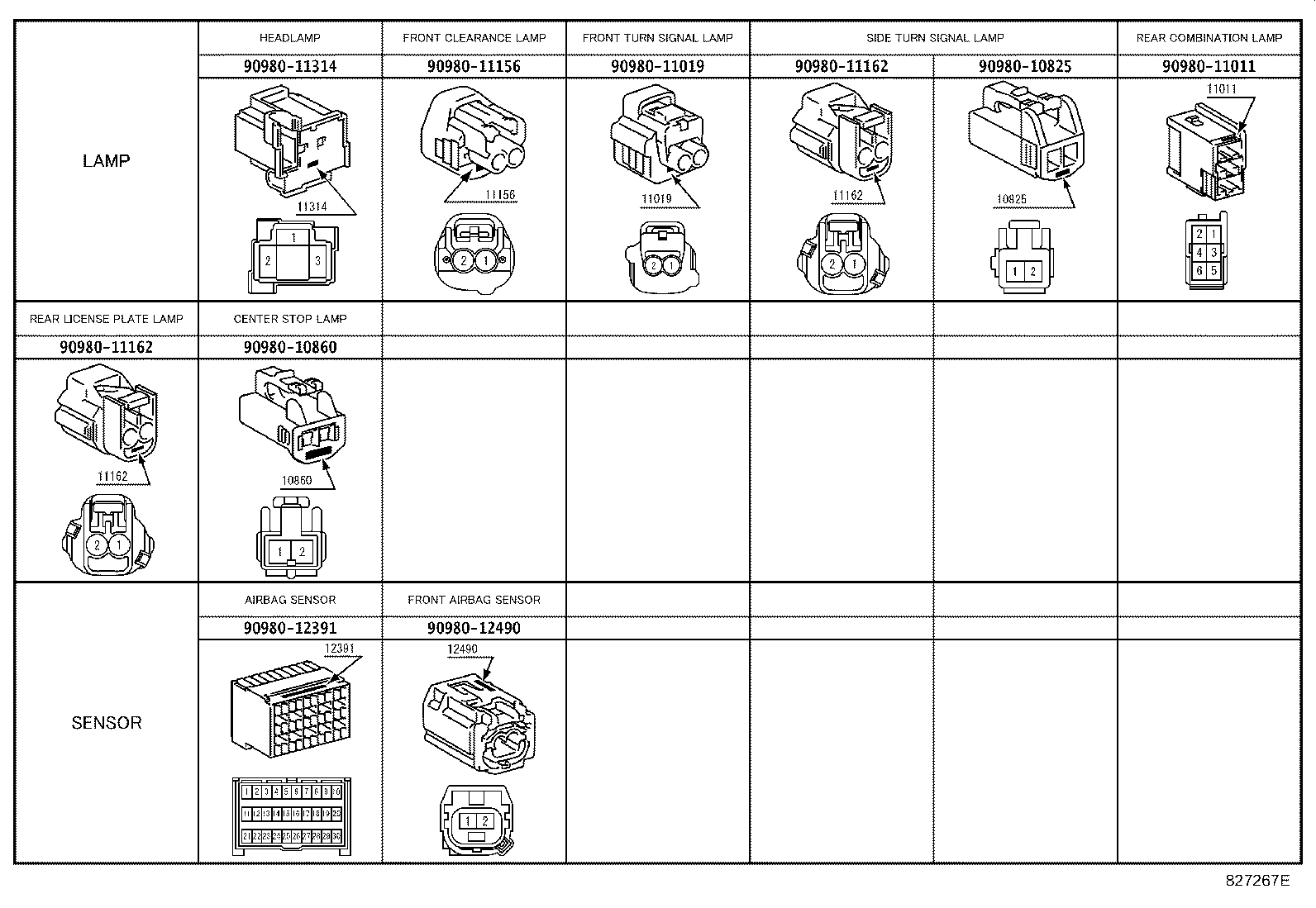

ILLUST NO. 6 OF 7(1012- )

Click highlighted areas on diagram

CONNECTOR 1/2

diagram 9098010825 9098010860 9098011011 9098011019 9098011156 9098011162 9098011162 9098011314 9098012391 9098012490
Part # Description Qty Price
Common parts
90980-10825
90980-10860
90980-11011
90980-11019
90980-11156
90980-11162
90980-11314
90980-12391
90980-12490

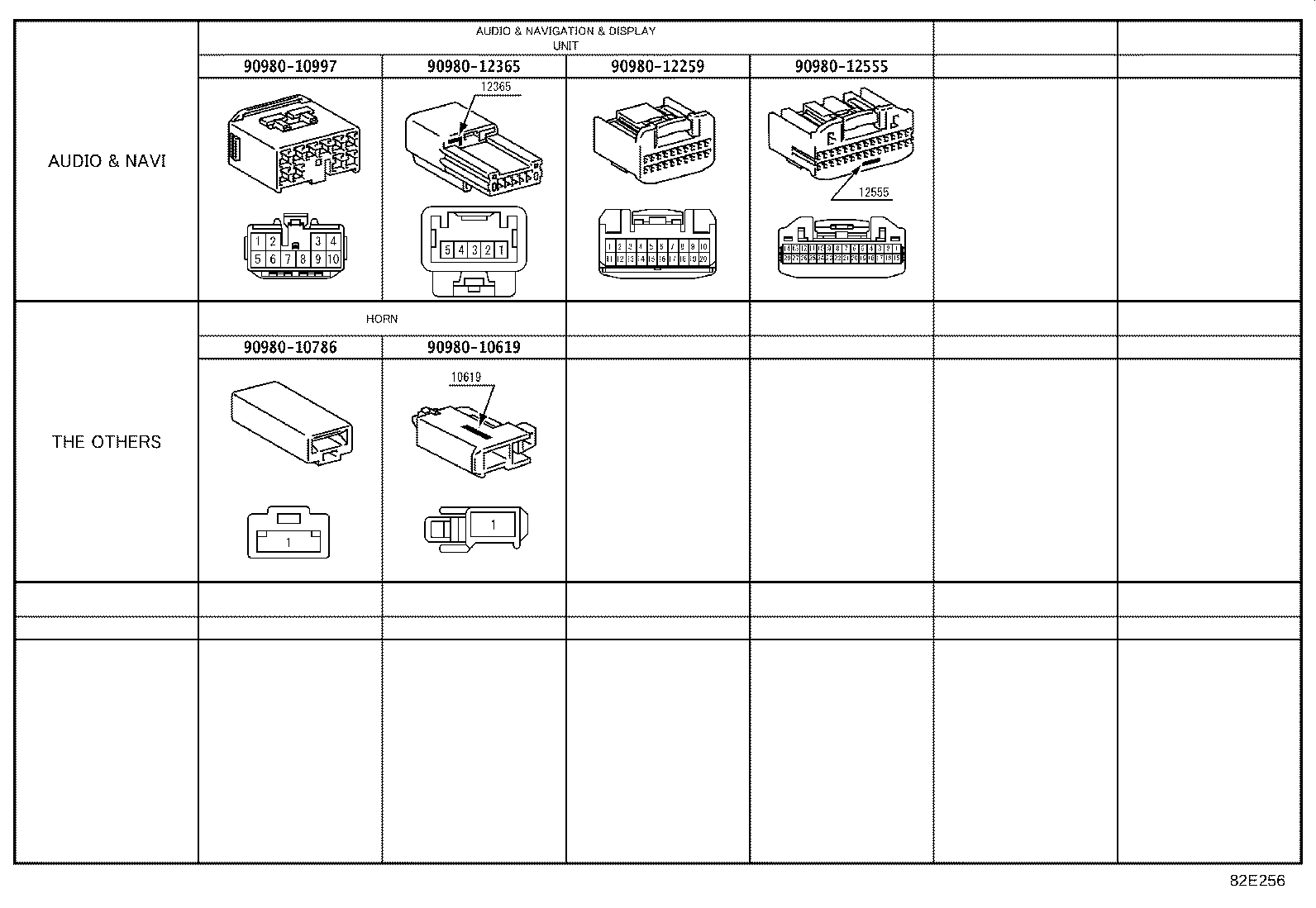

ILLUST NO. 7 OF 7(1012- )

Click highlighted areas on diagram

CONNECTOR 2/2

diagram 9098010619 9098010786 9098010997 9098012259 9098012365 9098012555
Part # Description Qty Price
Common parts
90980-10619
90980-10786
90980-10997
90980-12259
90980-12365
90980-12555
