NGK10R-AHMNKX (2010)

Toyota Etios/Liva/Cross

Production Dec 2010 - Mar 2013
Engine 3NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

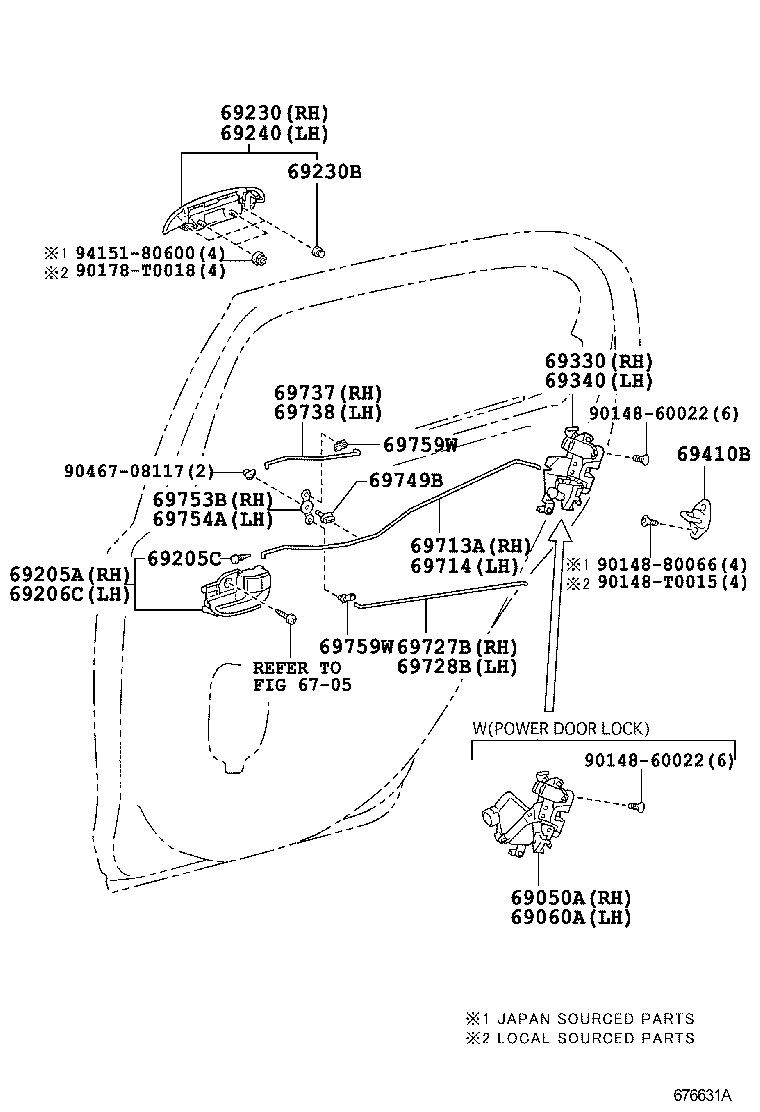

Click highlighted areas on diagram

diagram 6705 69050A 69060A 69205A 69205C 69206C 69230 69230B 69240 69330 69340 69410B 69713A 69714 69727B 69728B 69737 69738 69749B 69753B 69754A 69759W 69759W 9014860022 9014860022 9014880066 90148T0015 90178T0018 9046708117 9415180600
Part # Description Qty Price
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-0D160

NGK1#,NUK1#..G,V

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-0D160

NGK1#,NUK1#..G,V

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-0D220B1

NGK1#,NUK1#..G,STD

MD.GRAY,TRIM1#

 1
69205-0D220

NGK1#,NUK1#..G,STD

 1
69205-0D230E0

NGK1#,NUK1#..G..IND

SAFTY PACKAGE,GREGE,TRIM4#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04027

NGK1#,NUK1#

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-0D210B1

NGK1#,NUK1#..G,STD

MD.GRAY,TRIM1#

 1
69206-0D210

NGK1#,NUK1#..G,STD

 1
69206-0D220E0

NGK1#,NUK1#..G..IND

SAFTY PACKAGE,GREGE,TRIM4#

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-0D050

NGK1#,NUK1#..IND

NO PAINT REQ.

 1
69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE)
90541-04028

NUK10..G;NUK15..G,V;NGK10,15..G,STD,V

 4
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-0D050

NGK1#,NUK1#..IND

NO PAINT REQ.

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-0D050

NGK1#,NUK1#

 2
69713A - LINK, REAR DOOR LOCK REMOTE CONTROL, RH
69713-0D010

NGK1#,NUK1#

 1
69714 - LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69714-0D010

NGK1#,NUK1#

 1
69727B - LINK, REAR DOOR INSIDE LOCKING, NO.2 RH
69727-0D010

NGK1#,NUK1#

 1
69728B - LINK, REAR DOOR INSIDE LOCKING, NO.2 LH
69727-0D010

NGK1#,NUK1#

 1
69737 - LINK, REAR DOOR INSIDE LOCKING, RH
69737-0D020

NGK1#,NUK1#

 1
69738 - LINK, REAR DOOR INSIDE LOCKING, LH
69738-0D020

NGK1#,NUK1#

 1
69749B - CLAMP, REAR DOOR LOCK LINK
69749-12060

NGK1#,NUK1#

 2
69753B - BELLCRANK, REAR DOOR LOCK CONTROL, RH
69753-0D010

NGK1#,NUK1#

 1
69754A - BELLCRANK, REAR DOOR LOCK CONTROL, LH
69753-0D010

NGK1#,NUK1#

 1
69759W - SNAP, REAR DOOR LOCK CONTROL LINK
69759-12070

NGK1#,NUK1#

CREAM

 1
69759-20040

NGK1#,NUK1#

YELLOW

 2
69759-20050

NGK1#,NUK1#

BROWN

 1
69759W - SNAP, REAR DOOR LOCK CONTROL LINK
69759-12070

NGK1#,NUK1#

CREAM

 1
69759-20040

NGK1#,NUK1#

YELLOW

 2
69759-20050

NGK1#,NUK1#

BROWN

 1
Common parts
90148-60022
90148-80066
90148-T0015
90178-T0018
90467-08117
94151-80600
