NGK10R-AHMNKX (2010)

Toyota Etios/Liva/Cross

Production Dec 2010 - Mar 2013
Engine 3NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

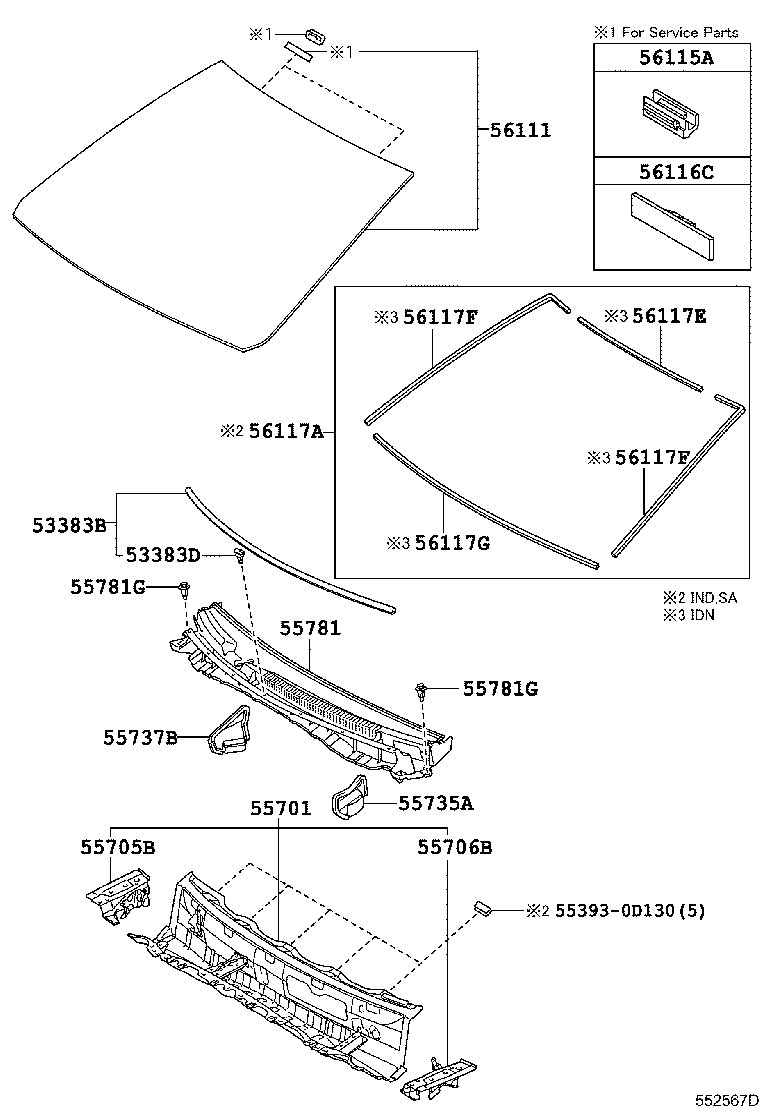

Click highlighted areas on diagram

diagram 53383B 53383D 553930D130 55701 55705B 55706B 55735A 55737B 55781 55781G 55781G 56111 56115A 56116C 56117A 56117E 56117F 56117F 56117G
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-0D080

NGK1#,NUK1#

 1
53383D - CLIP(FOR HOOD TO COWL TOP SEAL)
67867-0D090

NGK1#,NUK1#

 7
55701 - PANEL SUB-ASSY, COWL
55700-0D100

NGK1#

 1
55700-0D101

NGK1#

 1
55700-0D102

NGK1#,NUK1#

 1
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55705-0D070

NGK1#,NUK1#

 1
55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-0D080

NGK1#,NUK1#

 1
55735A - PLATE, WATER GUARD, LH
55734-0D020

NGK1#,NUK1#

 1
55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55737-0D060

NGK1#,NUK1#

 1
55781 - LOUVER, COWL VENTILATOR
55708-0D050

NGK1#,NUK1#

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
52161-16010

NUK10..G;NUK15..G,V;NGK10,15..G,STD,V

 2
55781G - CLIP, COWL TOP VENTILATOR LOUVER
52161-16010

NUK10..G;NUK15..G,V;NGK10,15..G,STD,V

 2
56111 - GLASS, WINDSHIELD
56101-0D210

NGK1#,NUK1#..IND

*LAM,T=4.76,GREEN

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30120

NGK1#,NUK1#

 1
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-02020

NGK1#,NUK1#

 1
56117A - DAM, WINDOW GLASS ADHESIVE
56117-50130

NGK1#,NUK1#

*D,L=815OR610OR1265

 1
Common parts
55393-0D130
