NGK10R-AHMNKX (2010)
Toyota Etios/Liva/Cross
Production
Dec 2010
-
Mar 2013
Engine
3NRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

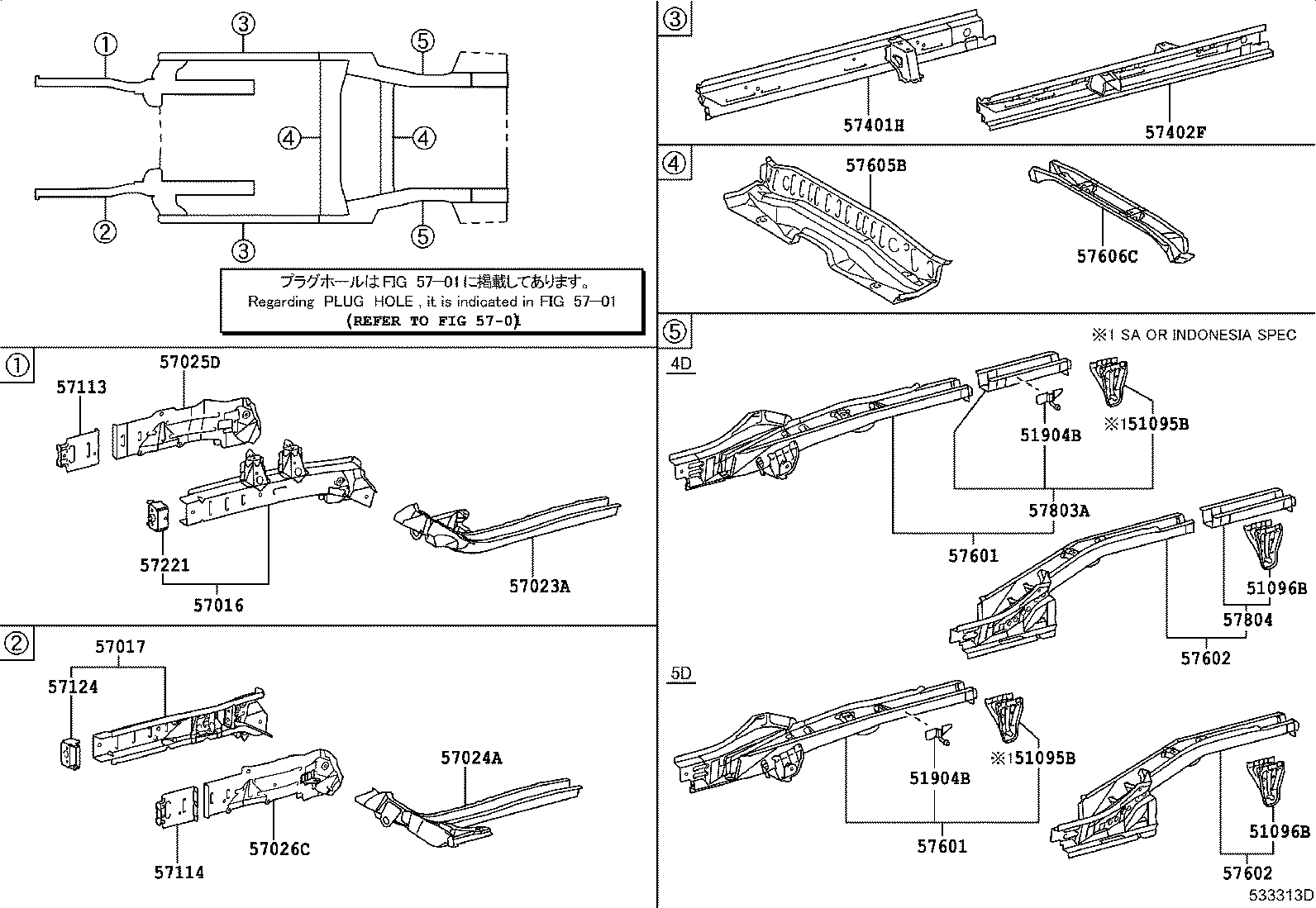

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51096B - HOOK SUB-ASSY, TRANSPORT, REAR LH | ||||
| 51095-0D030 |
NGK1#,NUK1# |
1 | ||
| 51096B - HOOK SUB-ASSY, TRANSPORT, REAR LH | ||||
| 51095-0D030 |
NGK1#,NUK1# |
1 | ||
| 51904B - HANGER SUB-ASSY, EXHAUST PIPE, NO.4 | ||||
| 51904-0D030 |
NGK1#,NUK1# |
1 | ||
| 51904B - HANGER SUB-ASSY, EXHAUST PIPE, NO.4 | ||||
| 51904-0D030 |
NGK1#,NUK1# |
1 | ||
| 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-0D080 |
NGK1#,NUK1# |
1 | ||
| 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-0D150 |
NGK1#,NUK1# |
1 | ||
| 57023A - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-0D100 |
NGK1#,NUK1# |
1 | ||
| 57024A - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-0D120 |
NGK1#,NUK1# |
1 | ||
| 57025D - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH | ||||
| 57025-0D040 |
NGK1#,NUK1# |
1 | ||
| 57026C - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH | ||||
| 57026-0D040 |
NGK1#,NUK1# |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-0D010 |
NUK10..G;NUK15..G,V;NGK10,15..G,STD,V |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-0D010 |
NUK10..G;NUK15..G,V;NGK10,15..G,STD,V |
1 | ||
| 57124 - SUPPORT, FRONT SIDE MEMBER, LH | ||||
| 57124-0D030 |
NGK1#,NUK1# |
1 | ||
| 57221 - BRACKET, FRONT SIDE MEMBER, RH | ||||
| 57013-0D030 |
NGK1#,NUK1# |
1 | ||
| 57401H - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH | ||||
| 57401-0D150 |
NGK1#,NUK10..5D |
1 | ||
| 57402F - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH | ||||
| 57402-0D150 |
NGK1#,NUK10..5D |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-0D100 |
NGK10,NUK10 |
1 | ||
| 57601-0D101 |
NGK10,NUK10 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-0D100 |
NGK10,NUK10 |
1 | ||
| 57601-0D101 |
NGK10,NUK10 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-0D101 |
NGK1#,NUK10..5D |
1 | ||
| 57602-0D100 |
NGK10,NUK10 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-0D101 |
NGK1#,NUK10..5D |
1 | ||
| 57602-0D100 |
NGK10,NUK10 |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-0D070 |
NGK1#,NUK1# |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-0D080 |
NGK1#,NUK1# |
1 | ||
| Linked diagrams | ||||
| 5701 | ||||
