NGK10R-AHMNKD (2013)

Toyota Etios/Liva/Cross

Production Mar 2013 - Dec 2017
Engine 3NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1303- )3NRFE..IDN

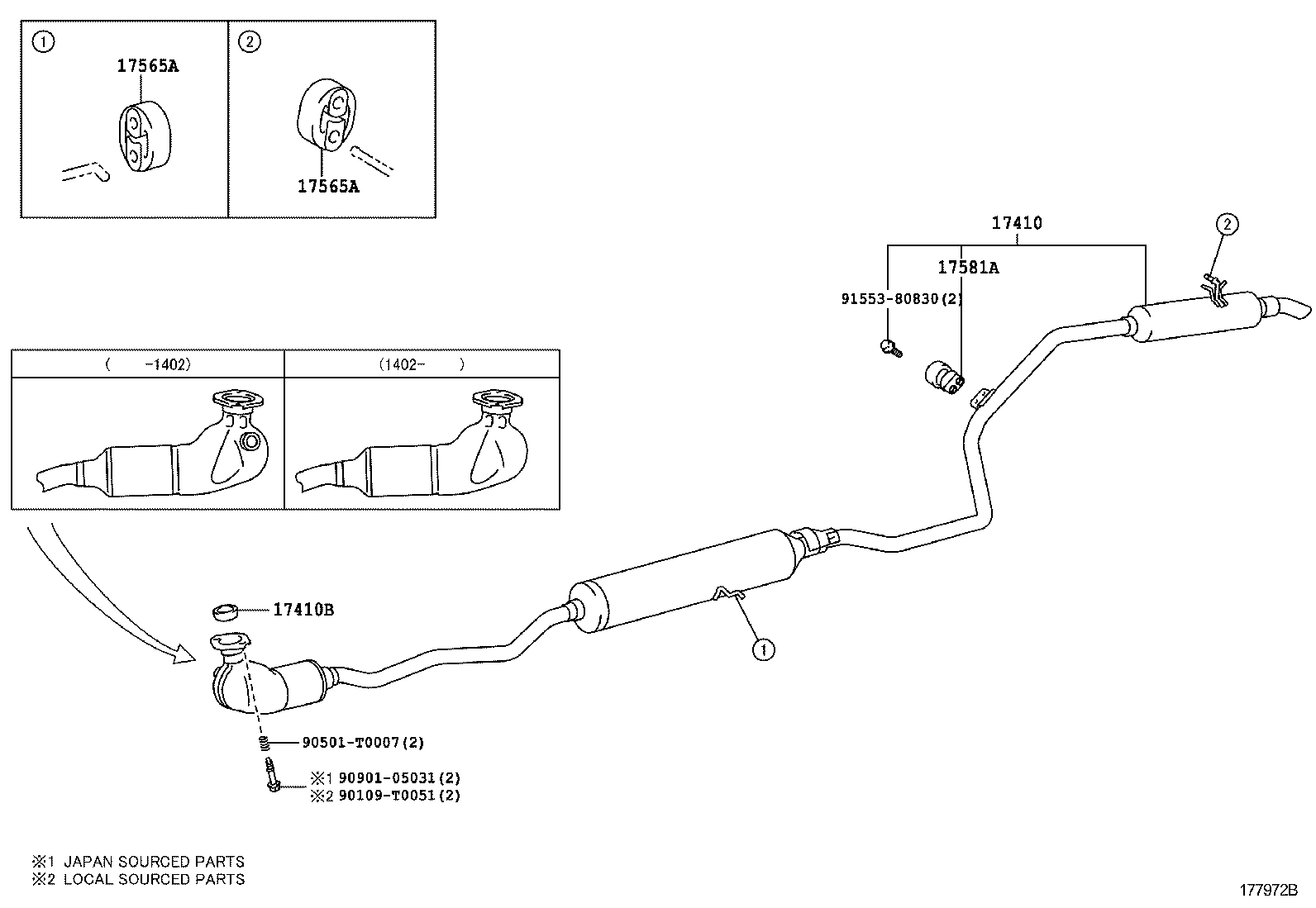

Click highlighted areas on diagram

diagram 17410 17410B 17565A 17565A 17581A 90109T0051 90501T0007 9090105031 9155380830
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0Y260

3NRFE..NGK10..IDN

 1
17410-0Y290

3NRFE..NGK10..IDN

 1
17410-0Y160

3NRFE..NGK10

 1
17410B - GASKET, EXHAUST PIPE
17451-0M020

1NDTV,2NRFE,3NRFE..NGK1#,NUK1#

 1
17451-0M020

3NRFE..NGK10..IDN

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0M040

3NRFE..NGK10..IDN

 2
17565-0Y010

1NDTV..NUK10..G;1NDTV..NUK15..G,V;2NRFE,3NRFE..NGK10,15..G,STD,V

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0M040

3NRFE..NGK10..IDN

 2
17565-0Y010

1NDTV..NUK10..G;1NDTV..NUK15..G,V;2NRFE,3NRFE..NGK10,15..G,STD,V

 2
17581A - DAMPER, EXHAUST PIPE
17581-50090

3NRFE..NGK10..IDN

 1
Common parts
90109-T0051
90501-T0007
90901-05031
91553-80830
