NGK10R-AHMGKX (2010)

Toyota Etios/Liva/Cross

Production Dec 2010 - Mar 2013
Engine 3NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1012- )5D

Click highlighted areas on diagram

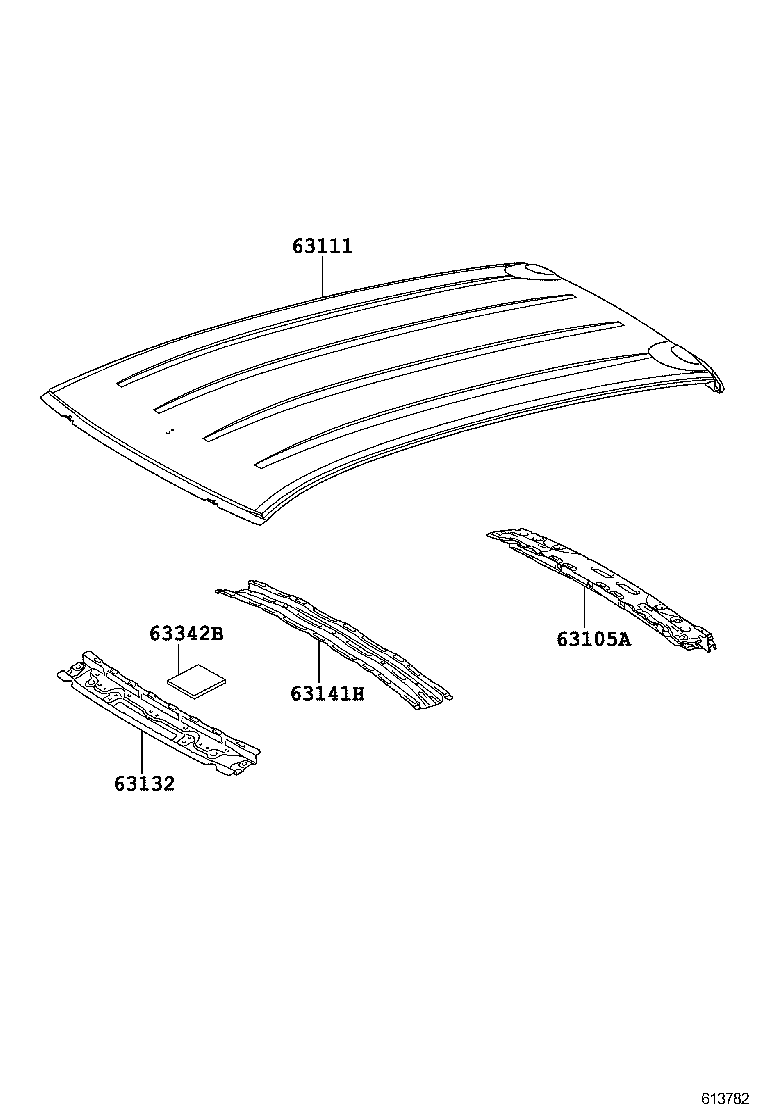

ROOF PANEL

diagram 63105A 63111 63132 63141H 63342B
Part # Description Qty Price
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-0D020

NGK1#,NUK10..5D

 1
63111 - PANEL, ROOF
63111-0D130

NGK1#,NUK10..5D

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-0D070

NGK1#,NUK1#

 1
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63141-0D060

NGK1#,NUK1#

 1
63342B - PAD, ROOF SILENCER, NO.2
63342-0D060

NGK1#,NUK1#

 1
