NGK10R-AHMGKX (2010)

Toyota Etios/Liva/Cross

Production Dec 2010 - Mar 2013
Engine 3NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )NGK1#

Click highlighted areas on diagram

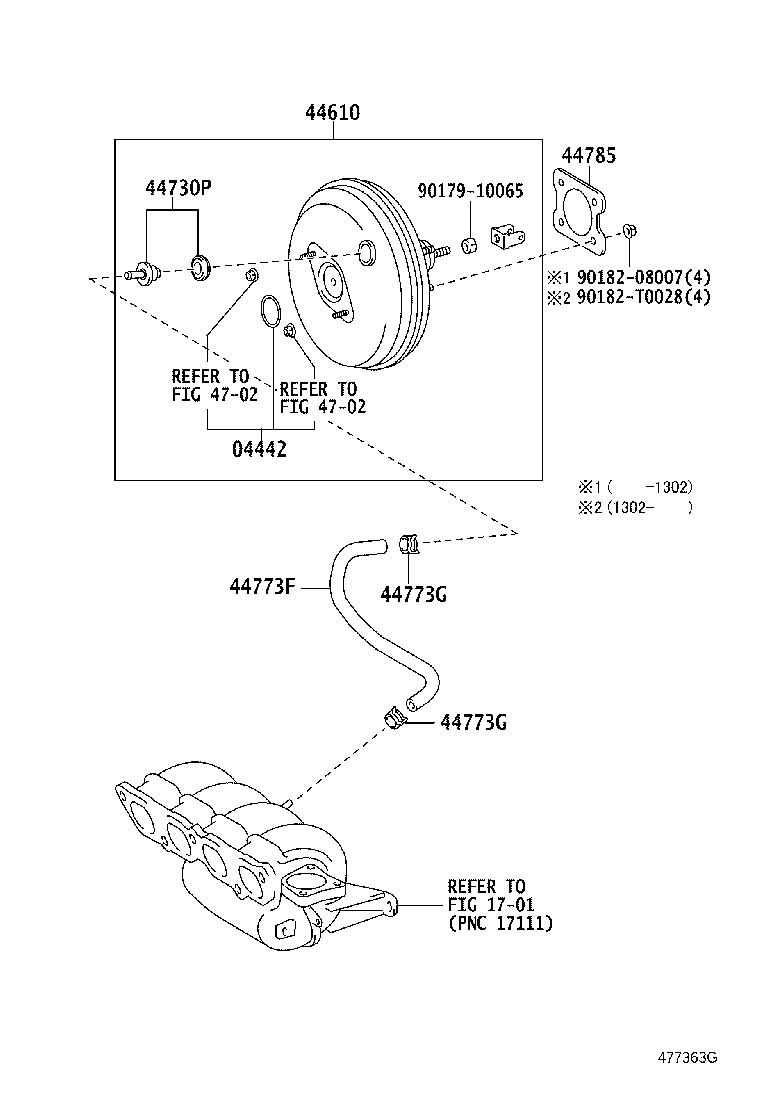

diagram 04442 1701 44610 44730P 44773F 44773G 44773G 44785 4702 4702 9017910065 9018208007 90182T0028
Part # Description Qty Price
04442 - FITTING KIT, BRAKE BOOSTER
04442-0D020

NUK10..G;NUK15..G,V;NGK10,15..G,STD,V

 1
44610 - BOOSTER ASSY, BRAKE
44610-09790

NGK10,15..G,STD,V

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-09040

NGK1#,NUK1#

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-0D050

NGK1#

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
96133-41500

NUK10..G;NUK15..G,V;NGK10,15..G,STD,V

 2
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
96133-41500

NUK10..G;NUK15..G,V;NGK10,15..G,STD,V

 2
44785 - GASKET, BRAKE BOOSTER
44785-12040

NUK10..G;NUK15..G,V;NGK10,15..G,STD,V

 1
Common parts
90179-10065
90182-08007
90182-T0028
Linked diagrams
1701
4702
