NGK10R-AHMGKX (2010)
Toyota Etios/Liva/Cross
Production
Dec 2010
-
Mar 2013
Engine
3NRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )2NRFE,3NRFE

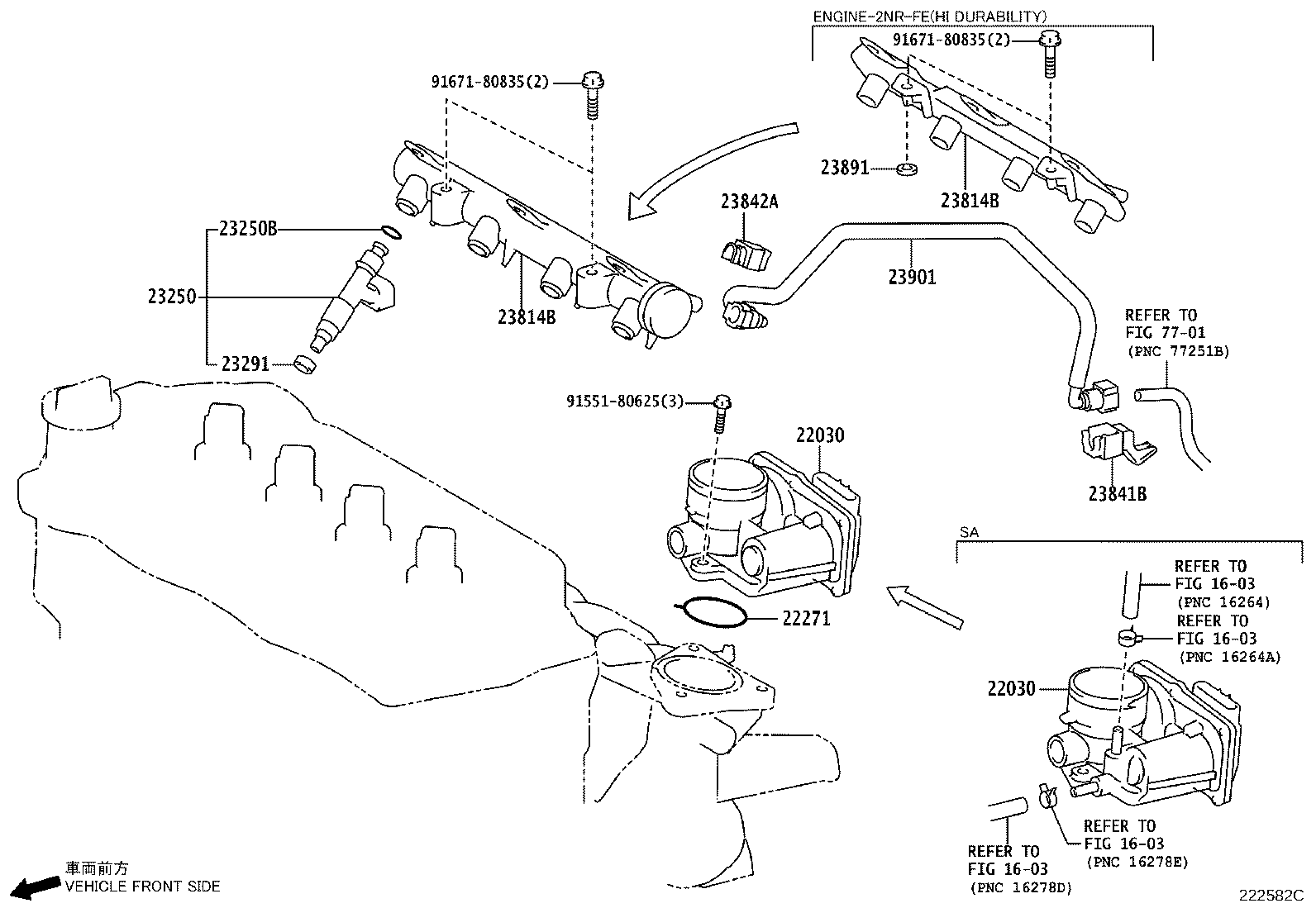

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-47030 |
2NRFE,3NRFE..NGK1#..IND *288 |
1 | ||
| 22030-0Y010 |
2NRFE,3NRFE..NGK1#..IND *289 |
1 | ||
| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-47030 |
2NRFE,3NRFE..NGK1#..IND *288 |
1 | ||
| 22030-0Y010 |
2NRFE,3NRFE..NGK1#..IND *289 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-47030 |
2NRFE,3NRFE..NGK1# *288 |
1 | ||
| 22271-47030 |
2NRFE,3NRFE..NGK1# *289 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-49215 |
2NRFE,3NRFE..NGK1# *288 |
4 | ||
| 23209-09220 |
2NRFE,3NRFE..NGK1# *289 |
4 | ||
| 23209-49215 |
2NRFE,3NRFE..NGK1# *289 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07033 |
2NRFE,3NRFE..NGK1# *289 |
4 | ||
| 90301-07033 |
2NRFE,3NRFE..NGK1# *288 |
4 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-47010 |
2NRFE,3NRFE..NGK1# *288 |
4 | ||
| 23291-0Y010 |
2NRFE,3NRFE..NGK1# *289 |
4 | ||
| 23814B - PIPE, FUEL DELIVERY | ||||
| 23814-47030 |
2NRFE,3NRFE..NGK1# *288 |
1 | ||
| 23814-47030 |
2NRFE,3NRFE..NGK1# *289 |
1 | ||
| 23814B - PIPE, FUEL DELIVERY | ||||
| 23814-47030 |
2NRFE,3NRFE..NGK1# *288 |
1 | ||
| 23814-47030 |
2NRFE,3NRFE..NGK1# *289 |
1 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-21050 |
2NRFE,3NRFE..NGK10,15..G,STD,V |
1 | ||
| 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) | ||||
| 23842-47020 |
2NRFE,3NRFE..NGK1# |
1 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-0Y030 |
2NRFE,3NRFE..NGK10,15..G,STD,V |
1 | ||
| Common parts | ||||
| 91551-80625 | ||||
| 91671-80835 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 7701 | ||||
