ZGR22L-GRXGKC (2011)

Toyota E'Z

Production Jun 2011 - Sep 2013
Engine 3ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1106- )

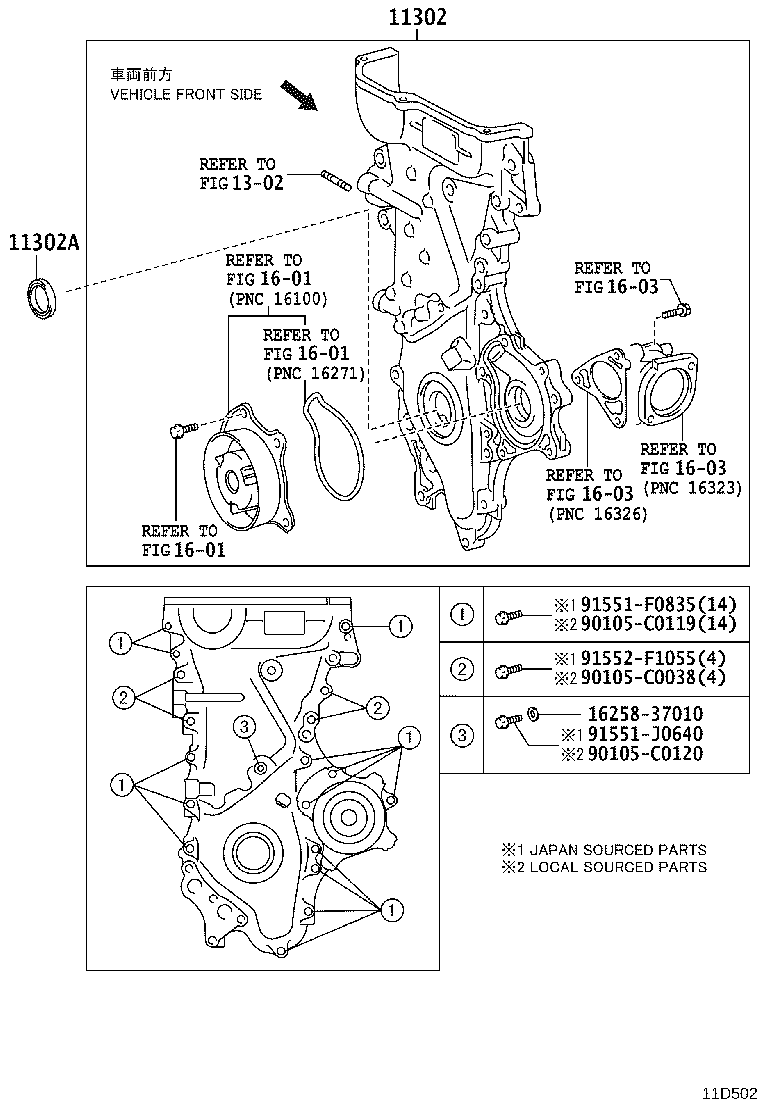

Click highlighted areas on diagram

diagram 11302 11302A 1302 1601 1601 1601 1603 1603 1603 1625837010 90105C0038 90105C0119 90105C0120 91551F0835 91551J0640 91552F1055
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-37032

3ZRFE..ZGR22

 1
11310-37031

3ZRFE..ZGR22

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38096

3ZRFE..ZGR22

 1
90311-38089

3ZRFE..ZGR22

 1
Common parts
16258-37010
90105-C0038
90105-C0119
90105-C0120
91551-F0835
91551-J0640
91552-F1055
Linked diagrams
1302
1601
1603
