ZGR21L-GWXGKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

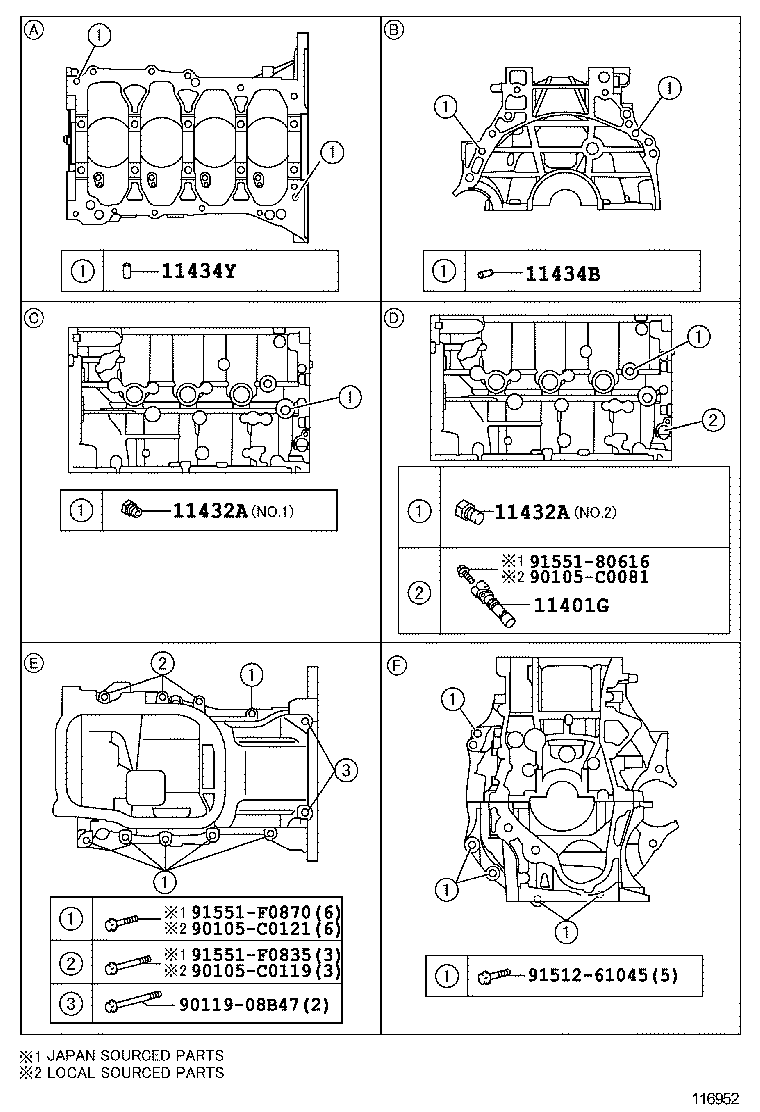

ILLUST NO. 2 OF 2(1106- )

Click highlighted areas on diagram

diagram 11401G 11432A 11432A 11434B 11434Y 90105C0081 90105C0119 90105C0121 9011908B47 9151261045 9155180616 91551F0835 91551F0870
Part # Description Qty Price
11401G - SENSOR, CRANK POSITION
90919-05070

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-52001

1ZRFE,2ZRFE..ZGR20,21

NO.2

 1
90345-53006

1ZRFE,2ZRFE,3ZRFE..ZGR2#

NO.1

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-52001

1ZRFE,2ZRFE..ZGR20,21

NO.2

 1
90345-53006

1ZRFE,2ZRFE,3ZRFE..ZGR2#

NO.1

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

1ZRFE,2ZRFE,3ZRFE..ZGR2#

L=22,OD=10

 2
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-08120

1ZRFE,2ZRFE..ZGR20,21

(J),L=18

 2
90250-C0011

1ZRFE,2ZRFE..ZGR20,21

(L),L=18

 2
Common parts
90105-C0081
90105-C0119
90105-C0121
90119-08B47
91512-61045
91551-80616
91551-F0835
91551-F0870

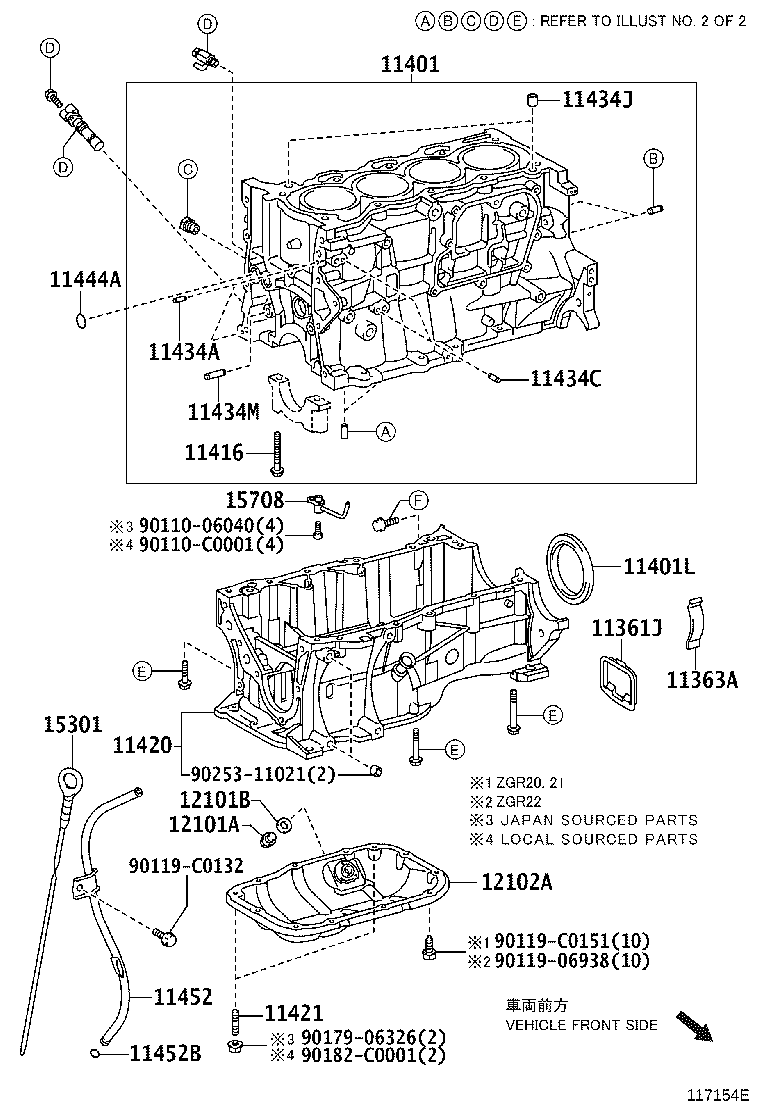

ILLUST NO. 1 OF 2(1106- )

Click highlighted areas on diagram

diagram 11361J 11363A 11401 11401L 11416 11420 11421 11434A 11434C 11434J 11434M 11444A 11452 11452B 12101A 12101B 12102A 15301 15708 9011006040 90110C0001 9011906938 90119C0132 90119C0151 9017906326 90182C0001 9025311021
Part # Description Qty Price
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-0T020

1ZRFE,2ZRFE..ZGR2#

(L)

 1
11361-21011

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
11361-21011

1ZRFE,2ZRFE..ZGR2#

(J)

 1
11363A - COVER, FLYWHEEL HOUSING SIDE
11363-21010

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
11363-0T020

1ZRFE,2ZRFE..ZGR2#

(L)

 1
11363-21010

1ZRFE,2ZRFE..ZGR2#

(J)

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11410-39057

2ZRFE..ZGR21

(J)

 1
11410-09510

2ZRFE..ZGR21

(L)

 1
11401L - SEAL, ENGINE REAR OIL
90311-C0029

1ZRFE,2ZRFE..ZGR20,21

(L)

 1
90311-C0007

1ZRFE,2ZRFE..ZGR20,21

(L),NOK

 1
90311-76002

1ZRFE,2ZRFE..ZGR20,21

(J)

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02163

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 10
11420 - CRANKCASE ASSY, STIFFENING
11420-37010

1ZRFE,2ZRFE..ZGR20,21

(J)

 1
11420-0T020

1ZRFE,2ZRFE..ZGR20,21

(L)

 1
11421 - BOLT, STUD(FOR OIL PAN)
90126-06028

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 2
90126-C0001

1ZRFE,2ZRFE..ZGR2#

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-04097

1ZRFE,2ZRFE..ZGR20,21

L=12,OD=4.0,(J)

 2
90250-C0009

1ZRFE,2ZRFE..ZGR20,21

L=12,OD=4.0,(L)

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-04097

1ZRFE,2ZRFE..ZGR20,21

L=12,OD=4.0,(J)

 2
90250-C0009

1ZRFE,2ZRFE..ZGR20,21

L=12,OD=4.0,(L)

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13001

1ZRFE,2ZRFE..ZGR20,21

(J)

 2
90253-C0003

1ZRFE,2ZRFE..ZGR20,21

(L)

 2
11434M - PIN, STRAIGHT(FOR CHAIN TENSIONER)
90250-C0006

1ZRFE,2ZRFE..ZGR20,21

(L)

 1
90250-10030

1ZRFE,2ZRFE..ZGR20,21

(J)

 1
11444A - RING, O
96723-24020

1ZRFE,2ZRFE..ZGR20,21

(J)

 1
90301-C0033

1ZRFE,2ZRFE..ZGR20,21

(L)

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-37011

1ZRFE,2ZRFE..ZGR20,21

 1
11452-0T020

1ZRFE,2ZRFE..ZGR2#

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010

1ZRFE,2ZRFE..ZGR20,21

(J)

 1
90301-C0007

1ZRFE,2ZRFE..ZGR20,21

(L)

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
90341-C0013

1ZRFE,2ZRFE..ZGR2#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

1ZRFE,2ZRFE..ZGR20,21

(J)

 1
90430-C0005

1ZRFE,2ZRFE..ZGR20,21

(L)

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-0T010

1ZRFE,2ZRFE..ZGR20,21

(L)

 1
12102-37010

1ZRFE,2ZRFE..ZGR20,21

(J)

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-0T030

1ZRFE,2ZRFE..ZGR20,21

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-37011

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 4
15708-37012

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 4
Common parts
90110-06040
90110-C0001
90119-06938
90119-C0132
90119-C0151
90179-06326
90182-C0001
90253-11021
