ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

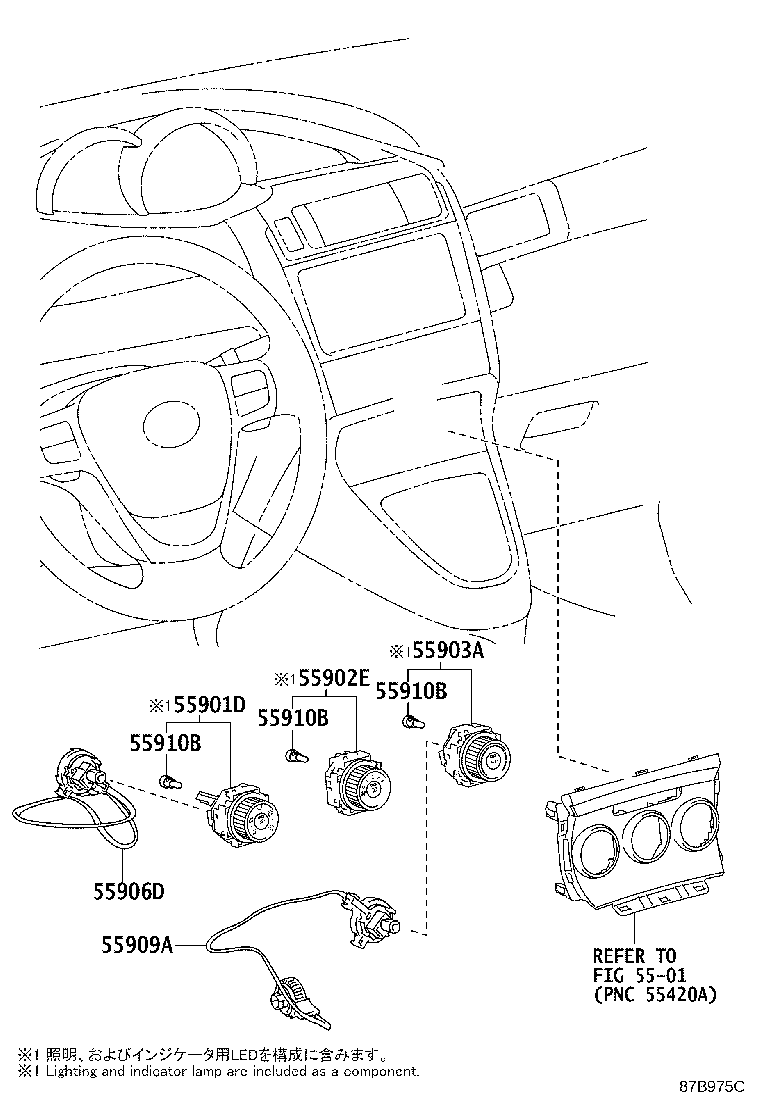

ILLUST NO. 1 OF 3(1106- )E

Click highlighted areas on diagram

CONTORL PANEL---MANUAL

diagram 5501 55901D 55902E 55903A 55906D 55909A 55910B 55910B 55910B
Part # Description Qty Price
55901D - CONTROL SUB-ASSY, HEATER, NO.1
55901-02041

ZGR20,21..E

 1
55902E - CONTROL SUB-ASSY, HEATER, NO.2
55902-02050

ZGR20,21..E

 1
55903A - CONTROL SUB-ASSY, HEATER, NO.3
55903-02091

ZGR20,21..E

 1
55903-02091

ZGR2#..E

HEATER-WITH(PTC HEATER)

 1
55903-0F050

ZGR2#..E

 1
55906D - CABLE SUB-ASSY, HEATER CONTROL, NO.2
55906-0K010

ZGR20,21..E

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-0K010

ZGR20,21..E

 1
55910B - BULB, HEATER CONTROL
90010-01122

ZGR20,21..E

 1
55910B - BULB, HEATER CONTROL
90010-01122

ZGR20,21..E

 1
55910B - BULB, HEATER CONTROL
90010-01122

ZGR20,21..E

 1
Linked diagrams
5501

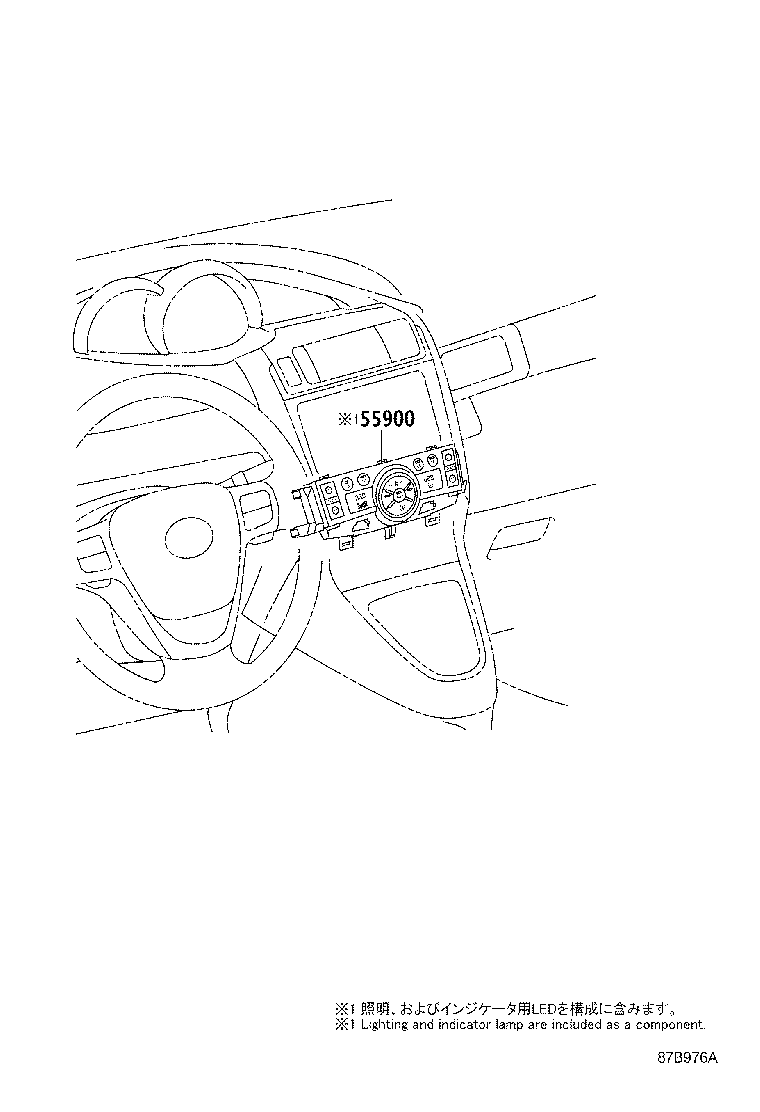

ILLUST NO. 1 OF 3(1106- )G,V

Click highlighted areas on diagram

CONTROL PANEL---AUTO

diagram 55900
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-0F100

ZGR2#..G,V

 1

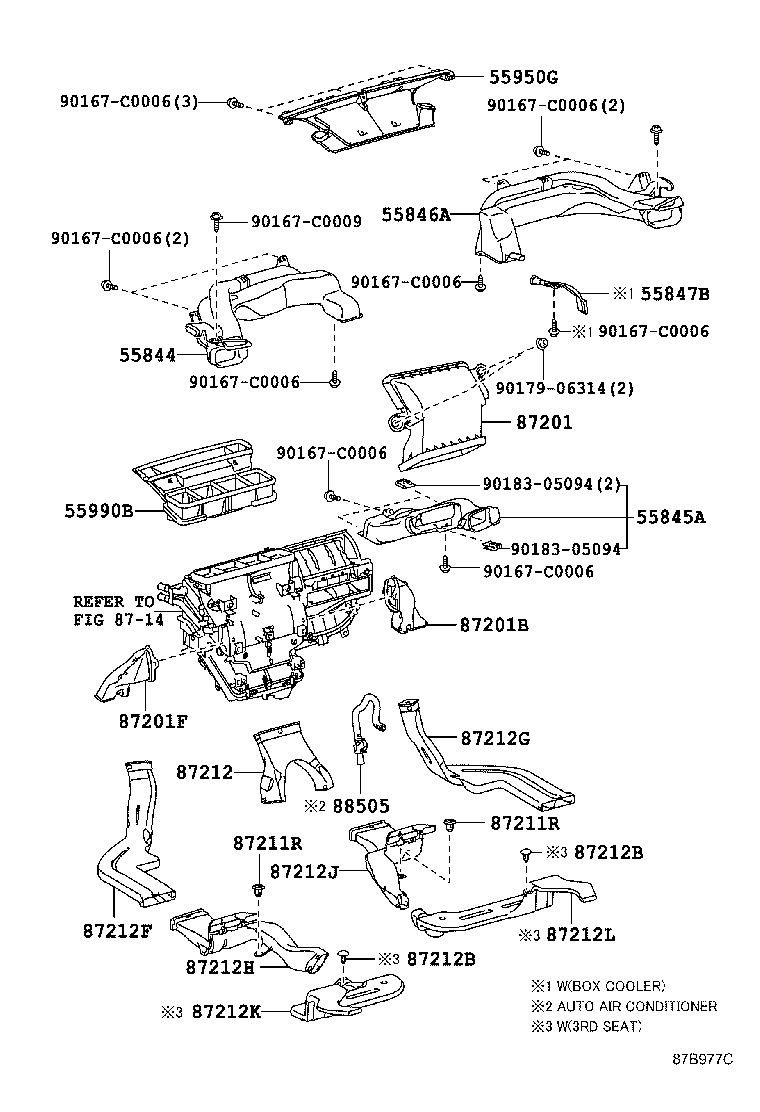

ILLUST NO. 2 OF 3(1106- )

Click highlighted areas on diagram

AIR DUCT

diagram 55844 55845A 55846A 55847B 55950G 55990B 8714 87201 87201B 87201F 87211R 87211R 87212 87212B 87212B 87212F 87212G 87212H 87212J 87212K 87212L 88505 90167C0006 90167C0006 90167C0006 90167C0006 90167C0006 90167C0006 90167C0006 90167C0006 90167C0009 9017906314 9018305094 9018305094
Part # Description Qty Price
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-0F050

ZGR2#

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-0F040

ZGR2#

 1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-0F060

ZGR2#

 1
55847B - DUCT, HEATER TO REGISTER, NO.5
55847-0F030

ZGR21,22..V

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-0F040

ZGR2#

 1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-0F020

ZGR2#

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87220-0F030

ZGR2#

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
87211-0F060

ZGR2#

 1
87201F - DUCT SUB-ASSY, AIR, NO.3
87211-0F050

ZGR2#

 1
87211R - CLIP, AIR DUCT
90467-13083C0

ZGR2#

BLACK

 2
87211R - CLIP, AIR DUCT
90467-13083C0

ZGR2#

BLACK

 2
87212 - DUCT, AIR, REAR NO.1
87215-02080

ZGR2#

 1
87212F - DUCT, AIR, REAR NO.2
87213-02100

ZGR2#

 1
87212G - DUCT, AIR, REAR NO.3
87212-02100

ZGR2#

 1
87212H - DUCT, AIR, REAR NO.4
87203-0F030

ZGR20,21..05S

 1
87212J - DUCT, AIR, REAR NO.5
87202-0F030

ZGR20,21..05S

 1
88505 - DUCT SUB-ASSY,AIR CONDITIONER
88505-0F030

ZGR2#..G,V

 1
Common parts
90167-C0006
90167-C0009
90179-06314
90183-05094
Linked diagrams
8714

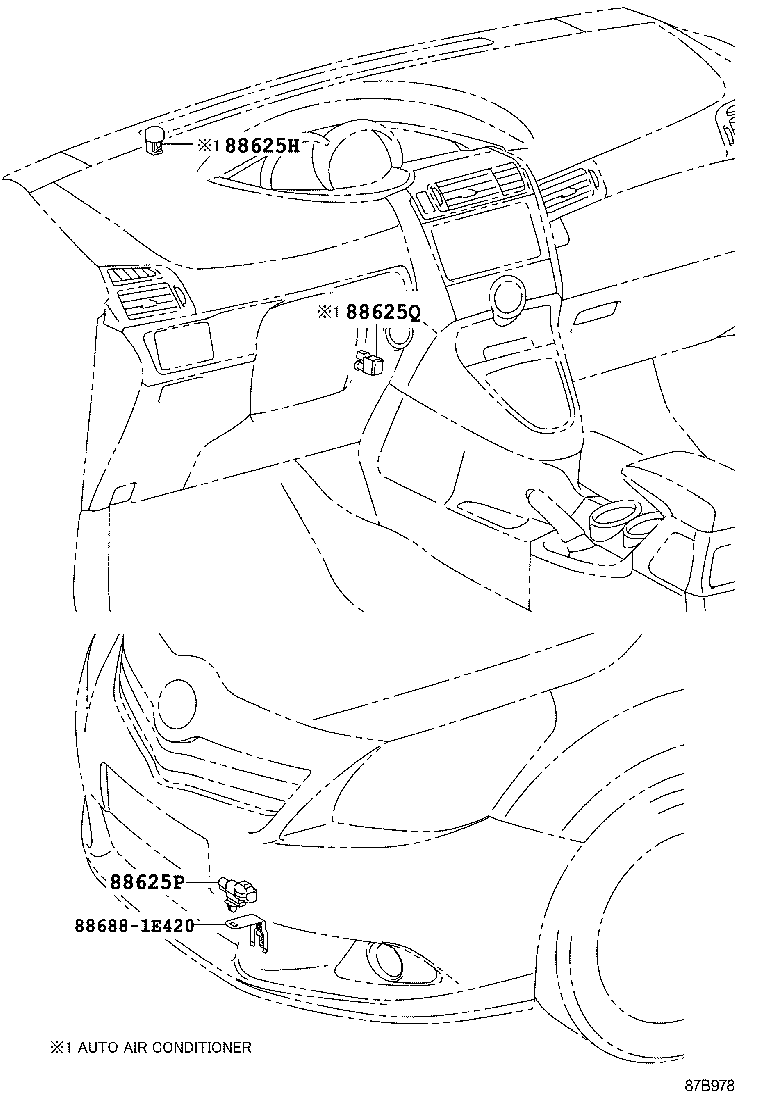

ILLUST NO. 3 OF 3(1106- )

Click highlighted areas on diagram

SENSOR

diagram 88625H 88625P 88625Q 886881E420
Part # Description Qty Price
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-51010

ZGR2#..G,V

 1
88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)
88790-02010

ZGR2#

 1
88790-22131

ZGR2#

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

ZGR2#..G,V

 1
Common parts
88688-1E420
