ZGR21L-GWXEKC (2011)
Toyota E'Z
ILLUST NO. 2 OF 2(1106- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||

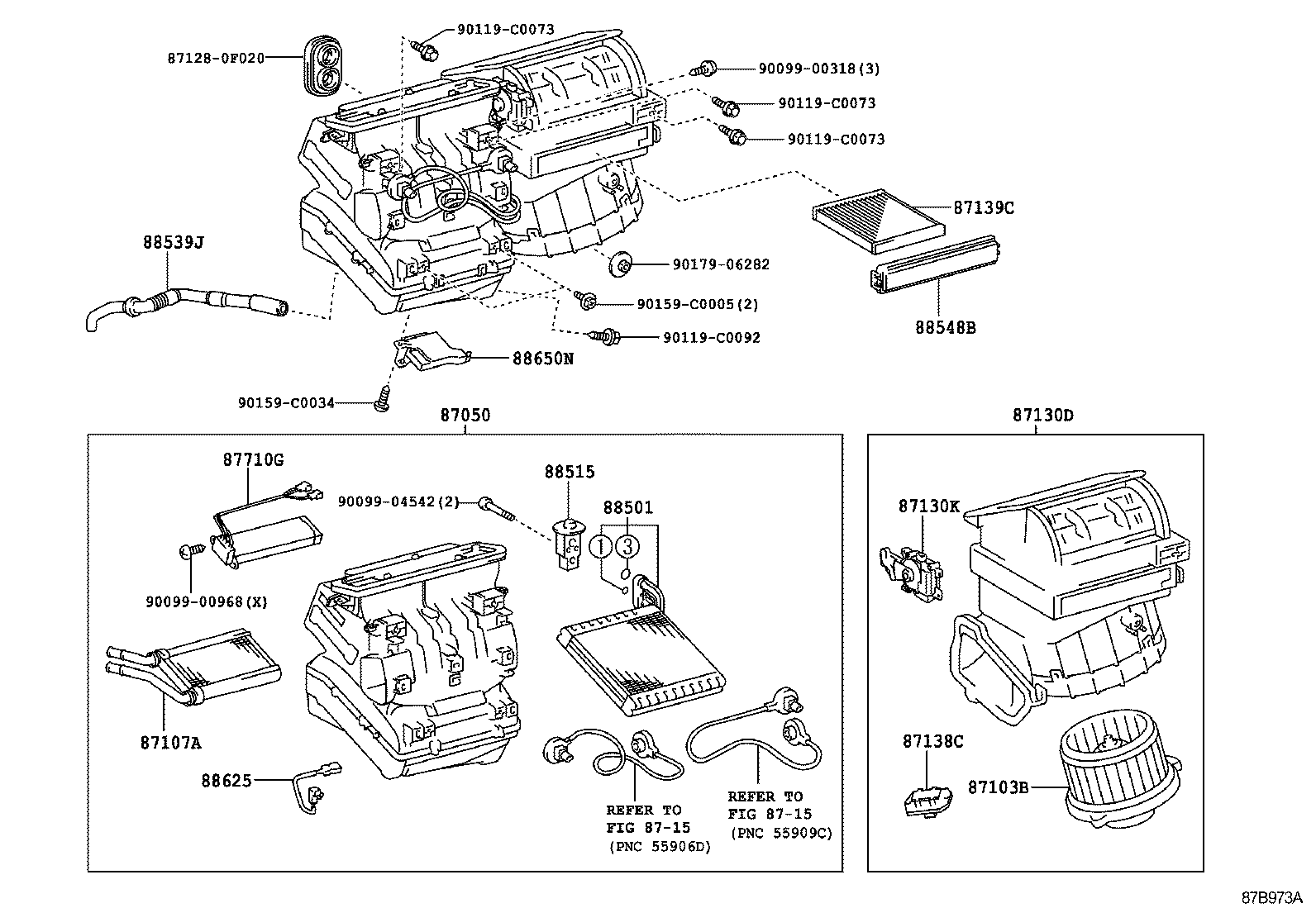

ILLUST NO. 1 OF 2(1106- )E
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0F270 |
ZGR2#..G,V |
1 | ||
| 87050-02R00 |
ZGR2#..E HEATER-WITH(PTC HEATER) |
1 | ||
| 87050-0F300 |
ZGR2#..G,V |
1 | ||
| 87050-0F270 |
ZGR2#..G,V HEATER-WITH(PTC HEATER) |
1 | ||
| 87050-0F250 |
ZGR2#..E HEATER-WITH(PTC HEATER) |
1 | ||
| 87050-0F290 |
ZGR2#..E |
1 | ||
| 87050-0F250 |
ZGR20,21..E |
1 | ||
| 87050-02P90 |
ZGR2#..E |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0F020 |
ZGR2#..G,V |
1 | ||
| 87103-0F010 |
ZGR20,21..E |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0F050 |
ZGR2# |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0F070 |
ZGR20,21..E |
1 | ||
| 87130-0F100 |
ZGR2#..G,V |
1 | ||
| 87130-02850 |
ZGR2#..E |
1 | ||
| 87130-0F070 |
ZGR2#..E HEATER-WITH(PTC HEATER) |
1 | ||
| 87130-0F080 |
ZGR2#..G,V HEATER-WITH(PTC HEATER) |
1 | ||
| 87130-02A50 |
ZGR2#..E HEATER-WITH(PTC HEATER) |
1 | ||
| 87130-0F080 |
ZGR2#..G,V |
1 | ||
| 87130-0F090 |
ZGR2#..E |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-0F010 |
ZGR20,21..E |
1 | ||
| 87106-0F050 |
ZGR2#..G,V |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0F010 |
ZGR20,21..E |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50100 |
ZGR20,21 *DPF |
1 | ||
| 87139-06060 |
ZGR2# STANDARD |
1 | ||
| 87139-06140 |
ZGR2# MICRO DUST FILTER |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-0F010 |
ZGR2# |
1 | ||
| 87710-0F010 |
ZGR2# HEATER-WITH(PTC HEATER) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0F050 |
ZGR2# |
1 | ||
| 88501-0F051 |
ZGR20,21..E |
1 | ||
| 88501-0F051 |
ZGR2#..E |
1 | ||
| 88501-0F051 |
ZGR2#..G,V |
1 | ||
| 88501-0F051 |
ZGR2#..E HEATER-WITH(PTC HEATER) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0F010 |
ZGR2# |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0F010 |
ZGR2# |
1 | ||
| 88539-0F020 |
ZGR2# |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0F040 |
ZGR2# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-0D100 |
ZGR2# |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0F180 |
ZGR2#..G,V |
1 | ||
| 88650-0F130 |
ZGR2#..E HEATER-WITH(PTC HEATER) |
1 | ||
| 88650-0F130 |
ZGR20,21..E |
1 | ||
| 88650-0F170 |
ZGR2#..E |
1 | ||
| 88650-0F140 |
ZGR2#..G,V HEATER-WITH(PTC HEATER) |
1 | ||
| 88650-0F140 |
ZGR2#..G,V |
1 | ||
| Common parts | ||||
| 87128-0F020 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90119-C0073 | ||||
| 90119-C0092 | ||||
| 90159-C0005 | ||||
| 90159-C0034 | ||||
| 90179-06282 | ||||
| Linked diagrams | ||||
| 8715 | ||||

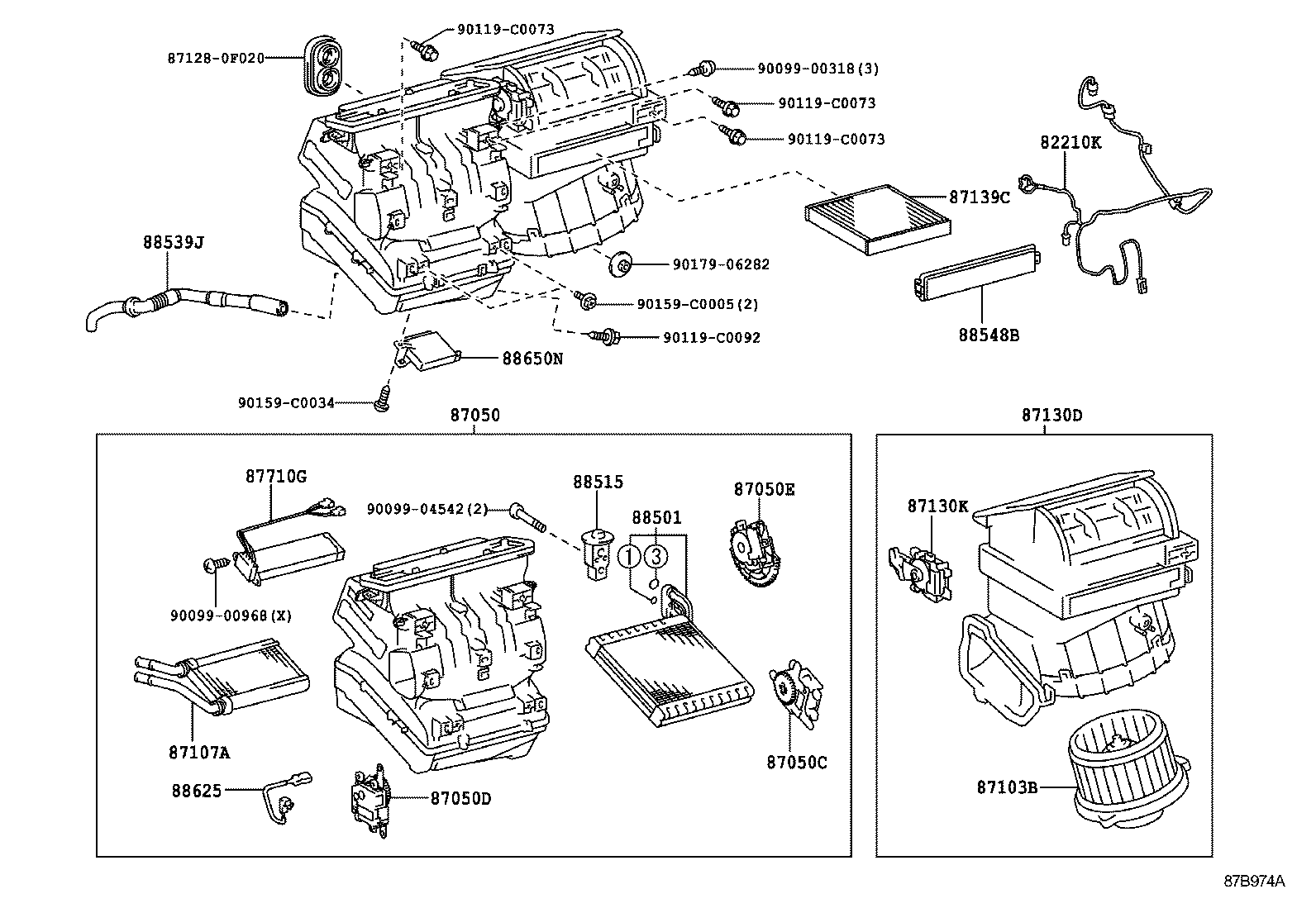

ILLUST NO. 1 OF 2(1106- )G,V
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-0R030 |
ZGR2#..G,V |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0F270 |
ZGR2#..G,V |
1 | ||
| 87050-02R00 |
ZGR2#..E HEATER-WITH(PTC HEATER) |
1 | ||
| 87050-0F300 |
ZGR2#..G,V |
1 | ||
| 87050-0F270 |
ZGR2#..G,V HEATER-WITH(PTC HEATER) |
1 | ||
| 87050-0F250 |
ZGR2#..E HEATER-WITH(PTC HEATER) |
1 | ||
| 87050-0F290 |
ZGR2#..E |
1 | ||
| 87050-0F250 |
ZGR20,21..E |
1 | ||
| 87050-02P90 |
ZGR2#..E |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-0F020 |
ZGR2#..G,V |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-0F030 |
ZGR2#..G,V |
1 | ||
| 87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3 | ||||
| 87106-0F040 |
ZGR2#..G,V |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0F020 |
ZGR2#..G,V |
1 | ||
| 87103-0F010 |
ZGR20,21..E |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0F050 |
ZGR2# |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0F070 |
ZGR20,21..E |
1 | ||
| 87130-0F100 |
ZGR2#..G,V |
1 | ||
| 87130-02850 |
ZGR2#..E |
1 | ||
| 87130-0F070 |
ZGR2#..E HEATER-WITH(PTC HEATER) |
1 | ||
| 87130-0F080 |
ZGR2#..G,V HEATER-WITH(PTC HEATER) |
1 | ||
| 87130-02A50 |
ZGR2#..E HEATER-WITH(PTC HEATER) |
1 | ||
| 87130-0F080 |
ZGR2#..G,V |
1 | ||
| 87130-0F090 |
ZGR2#..E |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-0F010 |
ZGR20,21..E |
1 | ||
| 87106-0F050 |
ZGR2#..G,V |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50100 |
ZGR20,21 *DPF |
1 | ||
| 87139-06060 |
ZGR2# STANDARD |
1 | ||
| 87139-06140 |
ZGR2# MICRO DUST FILTER |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-0F010 |
ZGR2# |
1 | ||
| 87710-0F010 |
ZGR2# HEATER-WITH(PTC HEATER) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0F050 |
ZGR2# |
1 | ||
| 88501-0F051 |
ZGR20,21..E |
1 | ||
| 88501-0F051 |
ZGR2#..E |
1 | ||
| 88501-0F051 |
ZGR2#..G,V |
1 | ||
| 88501-0F051 |
ZGR2#..E HEATER-WITH(PTC HEATER) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0F010 |
ZGR2# |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0F010 |
ZGR2# |
1 | ||
| 88539-0F020 |
ZGR2# |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0F040 |
ZGR2# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-0D100 |
ZGR2# |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0F180 |
ZGR2#..G,V |
1 | ||
| 88650-0F130 |
ZGR2#..E HEATER-WITH(PTC HEATER) |
1 | ||
| 88650-0F130 |
ZGR20,21..E |
1 | ||
| 88650-0F170 |
ZGR2#..E |
1 | ||
| 88650-0F140 |
ZGR2#..G,V HEATER-WITH(PTC HEATER) |
1 | ||
| 88650-0F140 |
ZGR2#..G,V |
1 | ||
| Common parts | ||||
| 87128-0F020 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90119-C0073 | ||||
| 90119-C0092 | ||||
| 90159-C0005 | ||||
| 90159-C0034 | ||||
| 90179-06282 | ||||
