ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016

Engine 2ZRFE

Transmission CVFC ATM

Displacement 2500cc

Power 168 HP (125 kW)

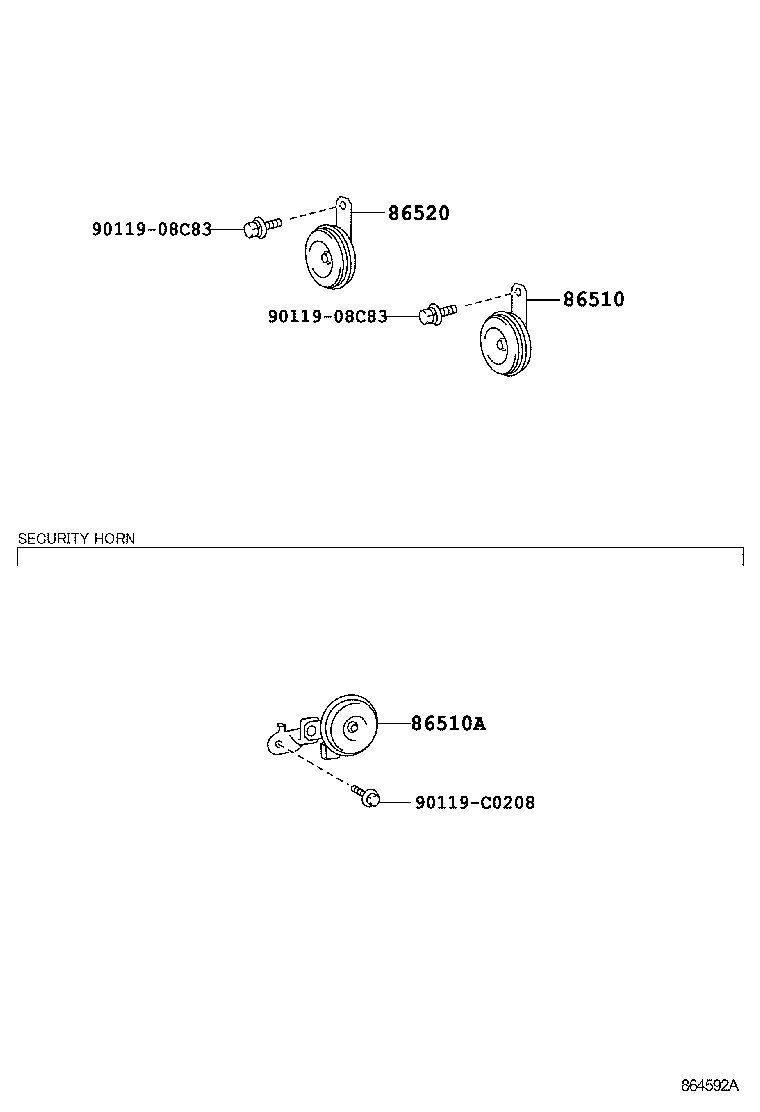

Click highlighted areas on diagram

Part #	Description	Period	Qty
86510 - HORN ASSY, HIGH PITCHED
86510-0R040	ZGR2#	05/2013 - 04/2015	1
86510-0R020	ZGR2#	06/2011 - 04/2013	1
86510-0R041	ZGR2#	05/2015 - 12/2999	1
86510A - HORN ASSY, SECURITY
86560-02060	ZGR2#	06/2011 - 12/2999	1
86520 - HORN ASSY, LOW PITCHED
86520-06120	ZGR2#	06/2011 - 05/2013	1
86520-06161	ZGR2#	05/2015 - 12/2999	1
86520-06160	ZGR2#	05/2013 - 04/2015	1
Common parts
90119-08C83
90119-C0208
