ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1106- )CVFC..G,V

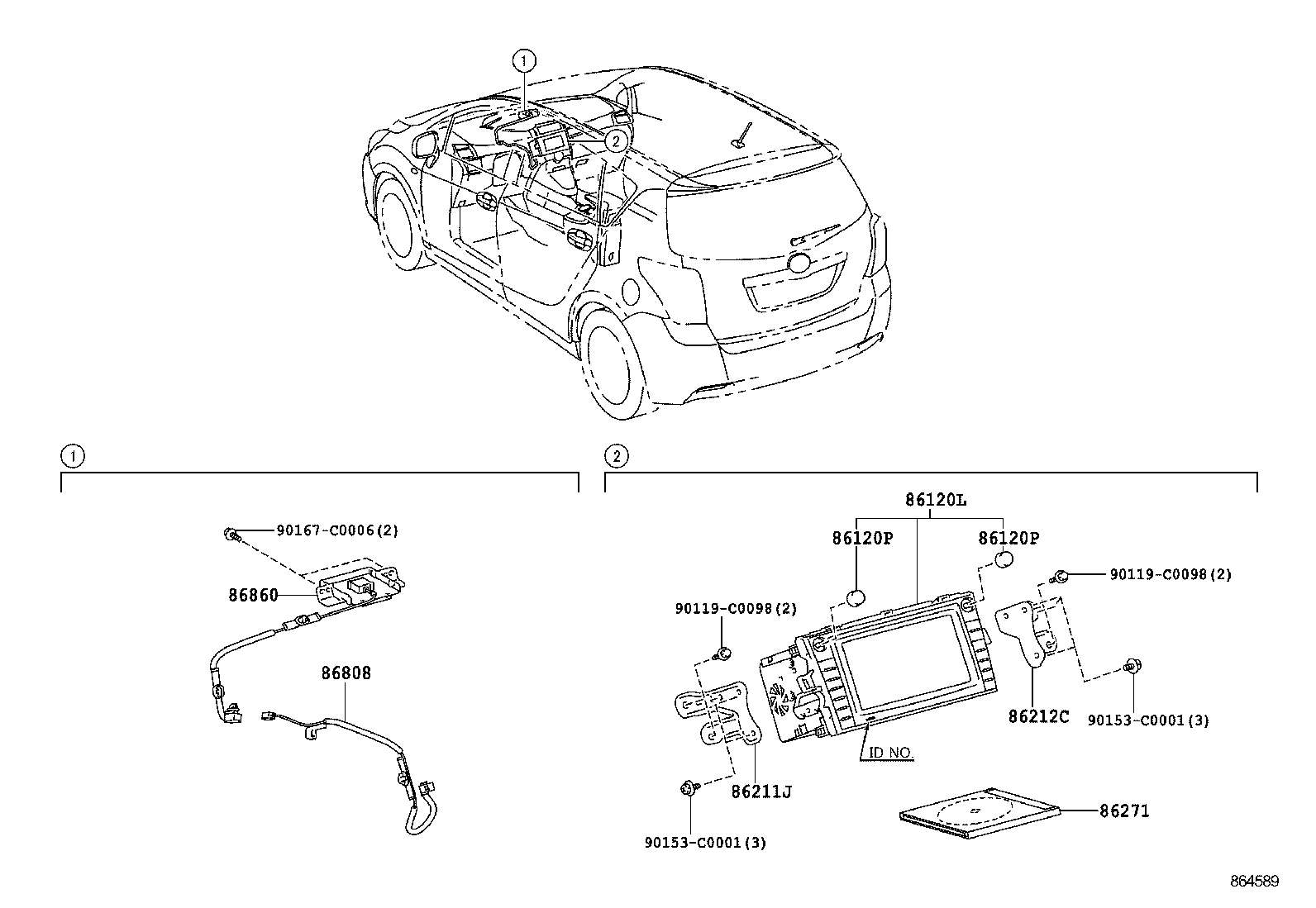

Click highlighted areas on diagram

diagram 86120L 86120P 86120P 86211J 86212C 86271 86808 86860 90119C0098 90119C0098 90153C0001 90153C0001 90167C0006
Part # Description Qty Price
86120L - RECEIVER ASSY, NAVIGATION
86120-0F130

ZGR21,22..CVFC..(G,V)

DENSO, ID=E8032,AUDIO-NAVIGATION 6SPEAKER BLUETOOTH

 1
86120P - KNOB, NAVIGATION RECEIVER SWITCH
90010-26015

ZGR21,22..CVFC..(G,V)

AUDIO-NAVIGATION 6SPEAKER BLUETOOTH

 2
86120P - KNOB, NAVIGATION RECEIVER SWITCH
90010-26015

ZGR21,22..CVFC..(G,V)

AUDIO-NAVIGATION 6SPEAKER BLUETOOTH

 2
86211J - BRACKET, RADIO RECEIVER, NO.1
86211-0F050

ZGR21,22..CVFC..(G,V)

AUDIO-NAVIGATION 6SPEAKER BLUETOOTH

 1
86212C - BRACKET, RADIO RECEIVER, NO.2
86212-0F050

ZGR21,22..CVFC..(G,V)

AUDIO-NAVIGATION 6SPEAKER BLUETOOTH

 1
86271 - DISC, DISC PLAYER
86807-0W194

ZGR21..CVFC..(G,V)

AUDIO-NAVIGATION 6SPEAKER BLUETOOTH

 1
86807-0W193

ZGR21,22..CVFC..(G,V)

AUDIO-NAVIGATION 6SPEAKER BLUETOOTH

 1
86807-0W190

ZGR21,22..CVFC..(G,V)

AUDIO-NAVIGATION 6SPEAKER BLUETOOTH

 1
86807-0W191

ZGR21,22..CVFC..(G,V)

AUDIO-NAVIGATION 6SPEAKER BLUETOOTH

 1
86807-0W196

ZGR21..CVFC..(G,V)

AUDIO-NAVIGATION 6SPEAKER BLUETOOTH

 1
86807-0W195

ZGR21..CVFC..(G,V)

AUDIO-NAVIGATION 6SPEAKER BLUETOOTH

 1
86807-0W192

ZGR21,22..CVFC..(G,V)

AUDIO-NAVIGATION 6SPEAKER BLUETOOTH

 1
86808 - CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1
86808-0F040

ZGR21,22..CVFC..(G,V)

AUDIO-NAVIGATION 6SPEAKER BLUETOOTH

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-64020

ZGR21,22..CVFC..(G,V)

AUDIO-NAVIGATION 6SPEAKER BLUETOOTH

 1
86860-0F030

ZGR21,22..CVFC..(G,V)

AUDIO-NAVIGATION 6SPEAKER BLUETOOTH

 1
Common parts
90119-C0098
90153-C0001
90167-C0006
