ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

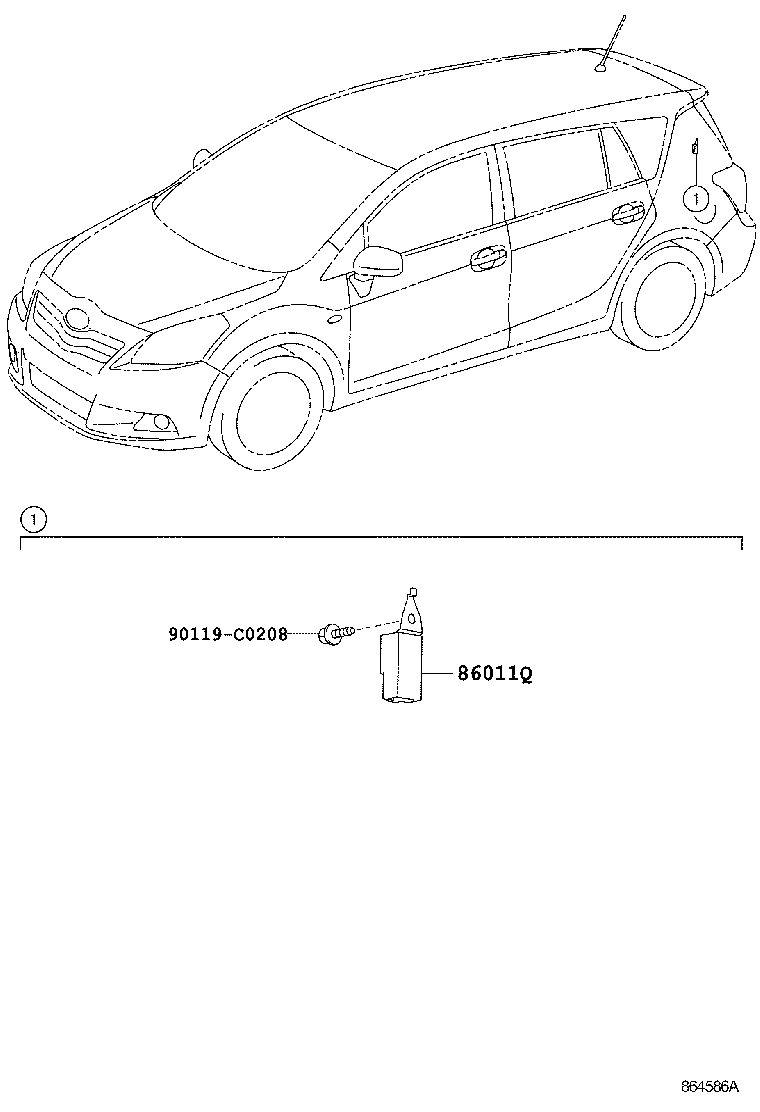

ILLUST NO. 2 OF 2(1106- )

Click highlighted areas on diagram

CONDENSER

diagram 86011Q 90119C0208
Part # Description Qty Price
86011Q - CONDENSER, RADIO SETTING
90980-04148

ZGR2#

 1
90980-04148

ZGR2#

(J)

 1
90980-C4001

ZGR2#

(L)

 1
Common parts
90119-C0208

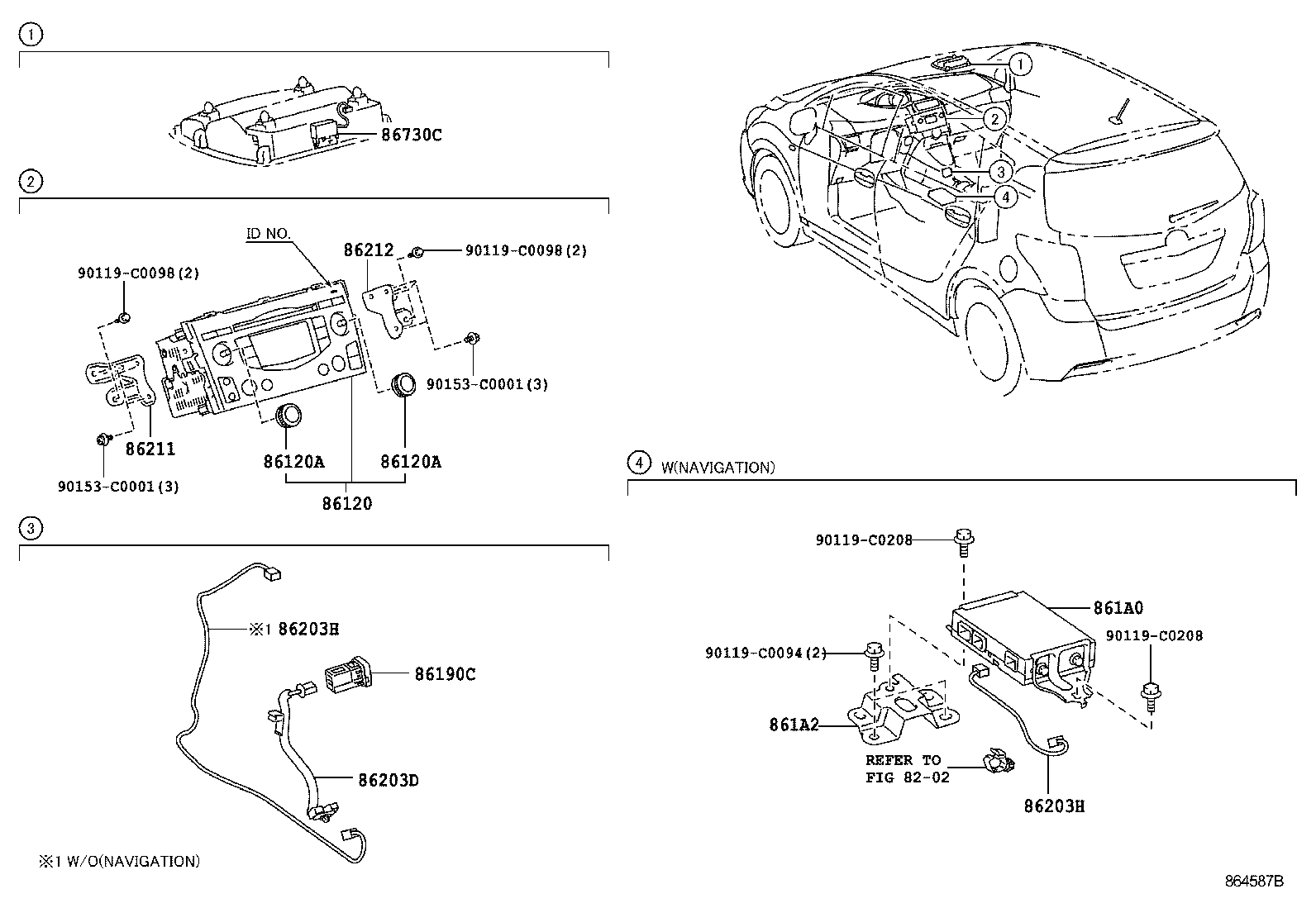

ILLUST NO. 1 OF 2(1106- )

Click highlighted areas on diagram

diagram 8202 86120 86120A 86120A 86190C 861A0 861A2 86203D 86203H 86203H 86211 86212 86730C 90119C0094 90119C0098 90119C0098 90119C0208 90119C0208 90153C0001 90153C0001
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-0F110

ZGR2#

PANASONIC,ID=52894

 1
86120-0F110

ZGR21,22..CVFC..(G,V)

PANASONIC,ID=52894,AUDIO-NAVIGATION 6SPEAKER BLUETOOTH

 1
86120A - KNOB, RADIO RECEIVER SWITCH
90010-24147

ZGR21,22..CVFC..(G,V)

AUDIO-NAVIGATION 6SPEAKER BLUETOOTH

 2
90010-24147

ZGR2#

 2
86120A - KNOB, RADIO RECEIVER SWITCH
90010-24147

ZGR21,22..CVFC..(G,V)

AUDIO-NAVIGATION 6SPEAKER BLUETOOTH

 2
90010-24147

ZGR2#

 2
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-0F010

ZGR2#

 1
861A0 - COMPUTER ASSY, MULTI-MEDIA INTERFACE
861A0-0F010

ZGR21,22..CVFC..(G,V)

AUDIO-NAVIGATION 6SPEAKER BLUETOOTH

 1
861A2 - BRACKET, MULTI-MEDIA INTERFACE, NO.1
861A2-0F010

ZGR21,22..CVFC..(G,V)

AUDIO-NAVIGATION 6SPEAKER BLUETOOTH

 1
86203D - WIRE, STEREO COMPONENT, NO.1
86203-64010

ZGR2#

 1
86203H - WIRE, STEREO COMPONENT, NO.2
86203-64030

ZGR2#

 1
86203-64020

ZGR21,22..CVFC..(G,V)

AUDIO-NAVIGATION 6SPEAKER BLUETOOTH

 1
86203H - WIRE, STEREO COMPONENT, NO.2
86203-64030

ZGR2#

 1
86203-64020

ZGR21,22..CVFC..(G,V)

AUDIO-NAVIGATION 6SPEAKER BLUETOOTH

 1
86211 - BRACKET, RADIO, NO.1
86211-0F040

ZGR2#

 1
86212 - BRACKET, RADIO, NO.2
86212-0F040

ZGR2#

 1
86730C - MICROPHONE ASSY, TELEPHONE
86730-28040

ZGR21,22..CVFC..(G,V)

AUDIO-NAVIGATION 6SPEAKER BLUETOOTH

 1
Common parts
90119-C0094
90119-C0098
90119-C0208
90153-C0001
Linked diagrams
8202
