ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1106-1612)V ; (1404-1612)E,G

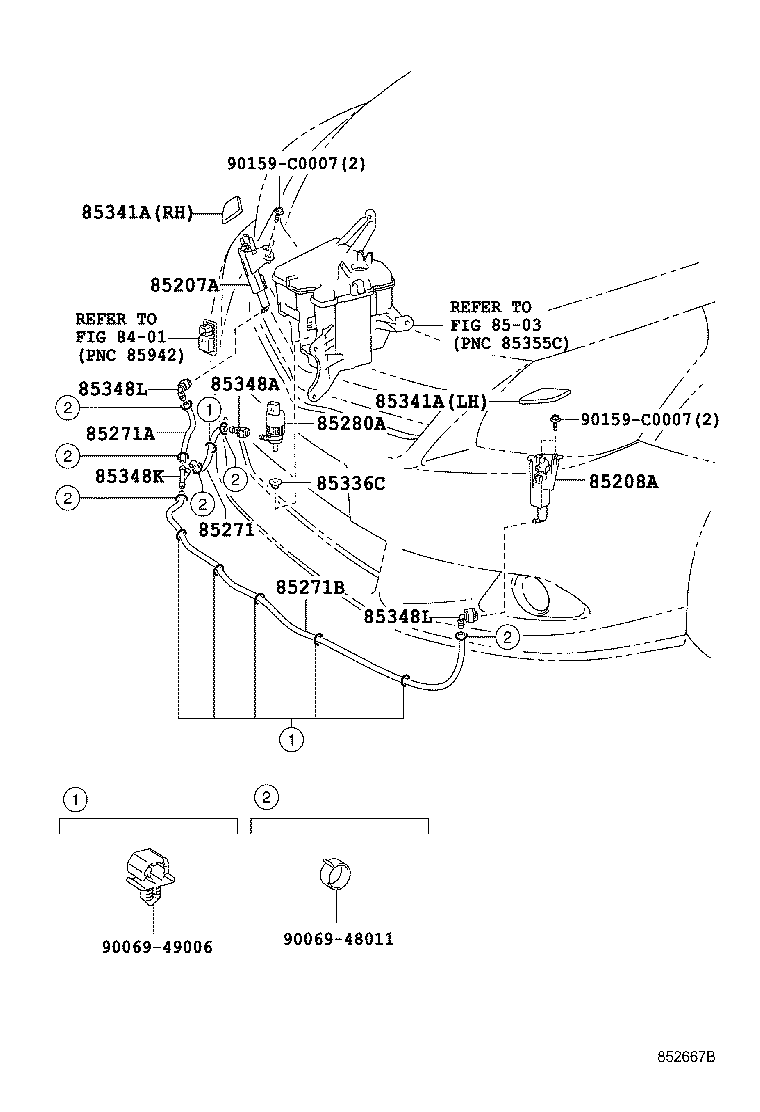

Click highlighted areas on diagram

diagram 8401 8503 85207A 85208A 85271 85271A 85271B 85280A 85336C 85341A 85341A 85348A 85348K 85348L 85348L 9006948011 9006949006 90159C0007 90159C0007
Part # Description Qty Price
85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85207-0F030

ZGR21,22..V

 1
85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85208-0F030

ZGR21,22..V

 1
85271 - HOSE, HEADLAMP CLEANER, NO.1
85275-0F040

ZGR21,22..V

L=256

 1
85271A - HOSE, HEADLAMP CLEANER, NO.2
85276-0F030

ZGR21,22..V

L=170

 1
85271B - HOSE, HEADLAMP CLEANER, NO.3
85277-0F030

ZGR21,22..V

L=1473

 1
85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER
85280-0F010

ZGR2#..E,G

 1
85280-0F010

ZGR21,22..V

 1
85336C - PACKING, HEADLAMP CLEANER MOTOR
85365-0F022

ZGR21,22..V

 1
85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE
85354-0F010C0

ZGR21,22..V

BLACK,202,LH

 1
85353-0F010E0

ZGR21,22..V

BEIGE ME.,4T8,RH

 1
85353-0F010B0

ZGR21,22..V

SILVER ME.,1D4,RH

 1
85353-0F010A0

ZGR21,22..V

WHITE PEARL CS.,070,RH

 1
85354-0F010B0

ZGR21,22..V

SILVER ME.,1D4,LH

 1
85354-0F010J0

ZGR21,22..V

DK.BLUE MC.,8S6,LH

 1
85353-0F010B1

ZGR21,22..V

GRAY ME.,1G3,RH

 1
85353-0F010D0

ZGR21..V

RED M.M.,3R3,RH

 1
85353-0F010C0

ZGR21,22..V

BLACK,202,RH

 1
85354-0F010E0

ZGR21,22..V

BEIGE ME.,4T8,LH

 1
85354-0F010A0

ZGR21,22..V

WHITE PEARL CS.,070,LH

 1
85354-0F010C1

ZGR21..V

ATTITUDE BLACK MC.,218,LH

 1
85353-0F010J0

ZGR21,22..V

DK.BLUE MC.,8S6,RH

 1
85354-0F010D0

ZGR21..V

RED M.M.,3R3,LH

 1
85354-0F010B1

ZGR21,22..V

GRAY ME.,1G3,LH

 1
85353-0F010C1

ZGR21..V

ATTITUDE BLACK MC.,218,RH

 1
85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE
85354-0F010C0

ZGR21,22..V

BLACK,202,LH

 1
85353-0F010E0

ZGR21,22..V

BEIGE ME.,4T8,RH

 1
85353-0F010B0

ZGR21,22..V

SILVER ME.,1D4,RH

 1
85353-0F010A0

ZGR21,22..V

WHITE PEARL CS.,070,RH

 1
85354-0F010B0

ZGR21,22..V

SILVER ME.,1D4,LH

 1
85354-0F010J0

ZGR21,22..V

DK.BLUE MC.,8S6,LH

 1
85353-0F010B1

ZGR21,22..V

GRAY ME.,1G3,RH

 1
85353-0F010D0

ZGR21..V

RED M.M.,3R3,RH

 1
85353-0F010C0

ZGR21,22..V

BLACK,202,RH

 1
85354-0F010E0

ZGR21,22..V

BEIGE ME.,4T8,LH

 1
85354-0F010A0

ZGR21,22..V

WHITE PEARL CS.,070,LH

 1
85354-0F010C1

ZGR21..V

ATTITUDE BLACK MC.,218,LH

 1
85353-0F010J0

ZGR21,22..V

DK.BLUE MC.,8S6,RH

 1
85354-0F010D0

ZGR21..V

RED M.M.,3R3,LH

 1
85354-0F010B1

ZGR21,22..V

GRAY ME.,1G3,LH

 1
85353-0F010C1

ZGR21..V

ATTITUDE BLACK MC.,218,RH

 1
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85278-0F030

ZGR21,22..V

 1
85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1
85278-0F031

ZGR21,22..V

 1
85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2
85279-0F030

ZGR21,22..V

 2
85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2
85279-0F030

ZGR21,22..V

 2
Common parts
90069-48011
90069-49006
90159-C0007
Linked diagrams
8401
8503
