ZGR21L-GWXEKC (2011)
Toyota E'Z
Production
Jun 2011
-
Dec 2016
Engine
2ZRFE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1106- )

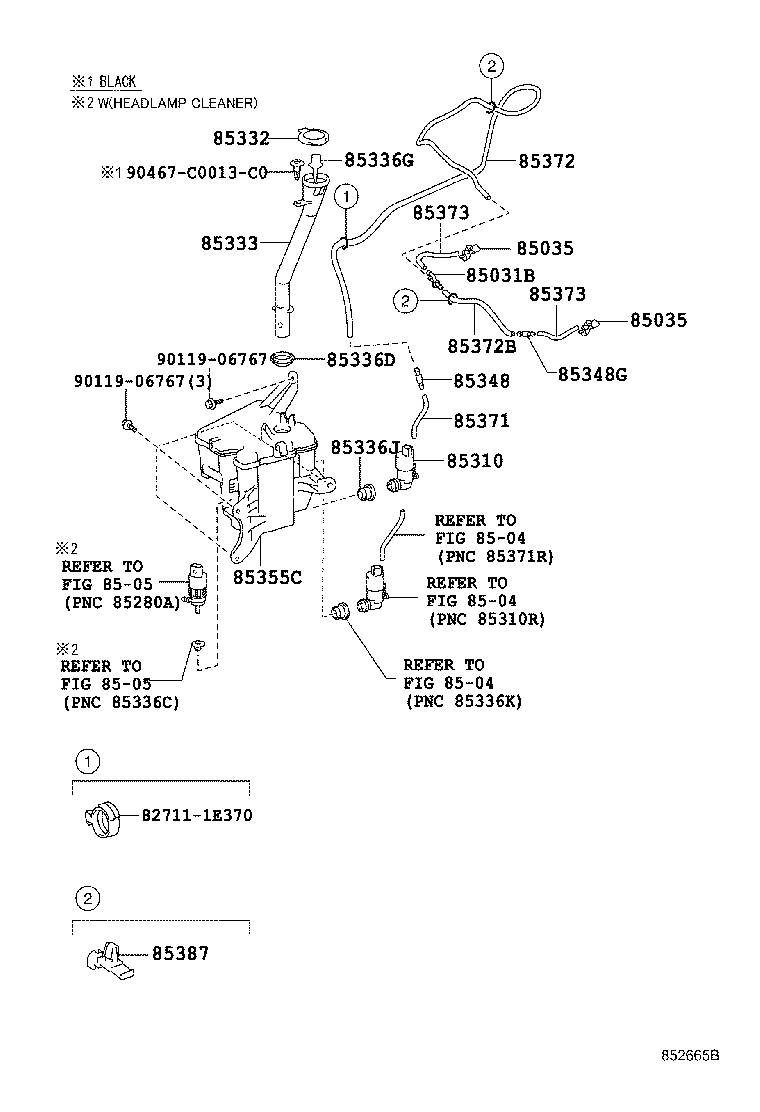

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031B - VALVE SUB-ASSY, WASHER | ||||
| 85376-0F040 |
ZGR2# |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30110 |
ZGR2# ANGLE 0 |
2 | ||
| 85381-30150 |
ZGR2# ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30110 |
ZGR2# ANGLE 0 |
2 | ||
| 85381-30150 |
ZGR2# ANGLE +2 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-0F010 |
ZGR2# |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85356-0F020 |
ZGR2#..E,G |
1 | ||
| 85356-0F020 |
ZGR21,22..V |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85359-0F020 |
ZGR21,22..V |
1 | ||
| 85359-0F030 |
ZGR2#..E,G |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85365-0F021 |
ZGR2#..E,G |
1 | ||
| 85365-0F021 |
ZGR21,22..V |
1 | ||
| 85336G - GAGE, WATER LEVEL | ||||
| 85313-0F010 |
ZGR2# |
1 | ||
| 85336J - PROTECTOR, WASHER JAR | ||||
| 85365-0F020 |
ZGR21,22..V |
1 | ||
| 85365-0F020 |
ZGR2#..E,G |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85357-0F020 |
ZGR2# |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85357-0F020 |
ZGR2# |
1 | ||
| 85355C - JAR, WASHER, C | ||||
| 85355-0F020 |
ZGR21,22..V |
1 | ||
| 85355-0F030 |
ZGR2#..E,G |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90069-46043 |
ZGR21,22..V L=120 |
1 | ||
| 90069-46043 |
ZGR2#..E,G L=120 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90069-46045 |
ZGR2# L=1820 |
1 | ||
| 90069-46066 |
ZGR2# L=1944 |
1 | ||
| 90069-46066 |
ZGR2# L=1944 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90069-46044 |
ZGR2# L=400 |
1 | ||
| 90069-46044 |
ZGR2# L=400 |
1 | ||
| 90069-46044 |
ZGR2# L=400 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
ZGR2# *H,L=170 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
ZGR2# *H,L=170 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 85387-0F040 |
ZGR2# |
1 | ||
| 85387-0F040 |
ZGR2# |
2 | ||
| Common parts | ||||
| 82711-1E370 | ||||
| 90119-06767 | ||||
| 90467-C0013C0 | ||||
| Linked diagrams | ||||
| 8504 | ||||
| 8505 | ||||
