ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1106- )

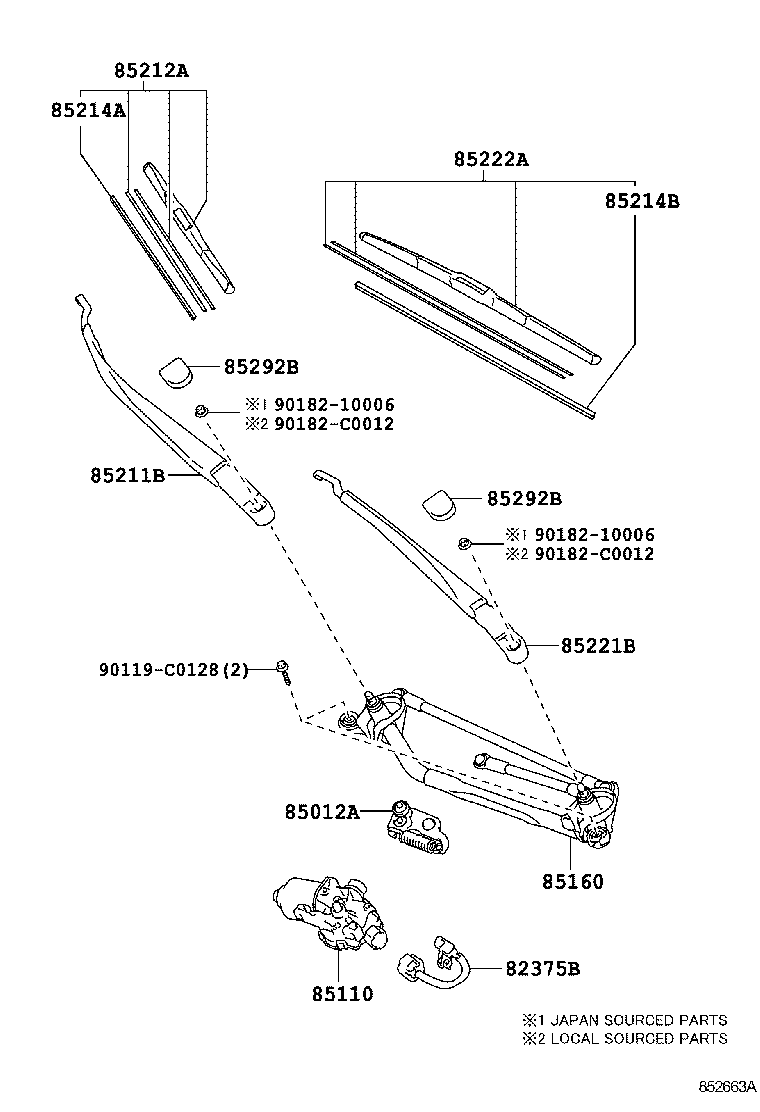

Click highlighted areas on diagram

diagram 82375B 85012A 85110 85160 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 90119C0128 9018210006 9018210006 90182C0012 90182C0012
Part # Description Qty Price
82375B - WIRE, WIPER MOTOR
82375-0F020

ZGR2#

 1
85012A - CRANK SUB-ASSY, FRONT WIPER
85012-58030

ZGR2#

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-0F070

ZGR2#

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-0F070

ZGR2#

 1
85211B - ARM, FRONT WIPER, RH
85211-0F050

ZGR2#

 1
85212A - BLADE, FR WIPER, RH
85212-0F040

ZGR2#

 1
85214A - RUBBER, WIPER, RH
85214-28090

ZGR2#

 1
85214B - RUBBER, WIPER, LH
85214-68020

ZGR2#

 1
85221B - ARM, FRONT WIPER, LH
85221-0F050

ZGR2#

 1
85222A - BLADE, FR WIPER, LH
85222-0F050

ZGR2#

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

ZGR2#

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

ZGR2#

 2
Common parts
90119-C0128
90182-10006
90182-C0012
