ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1106- )

Click highlighted areas on diagram

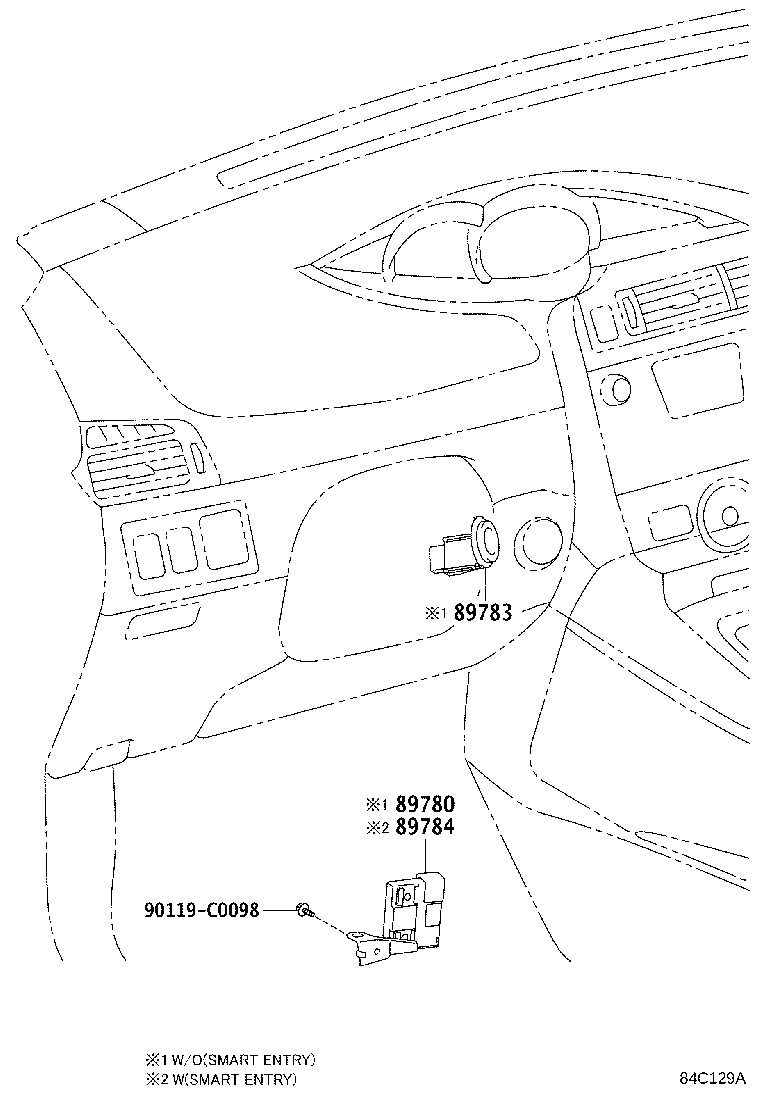

diagram 89780 89783 89784 90119C0098
Part # Description Qty Price
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-0F040

ZGR2#..E,G

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-02100

ZGR2#..E,G

 1
89784 - COMPUTER, IMMOBILIZER CODE
89784-0F020

ZGR21..CVFC..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
89784-0F020

ZGR21,22..V

 1
Common parts
90119-C0098
