ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1106- )E,G

Click highlighted areas on diagram

W/O(SMART ENTRY)

diagram 89741 90119C0208
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89740-0F040

ZGR21,22..V

 1
89741-0F050

ZGR21..CVFC..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
89740-0F040

ZGR21..CVFC..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
89741-0F050

ZGR2#..E,G

 1
89740-0F050

ZGR21,22..V

 1
Common parts
90119-C0208

(1106- )V ; (1309- )CVFC..G

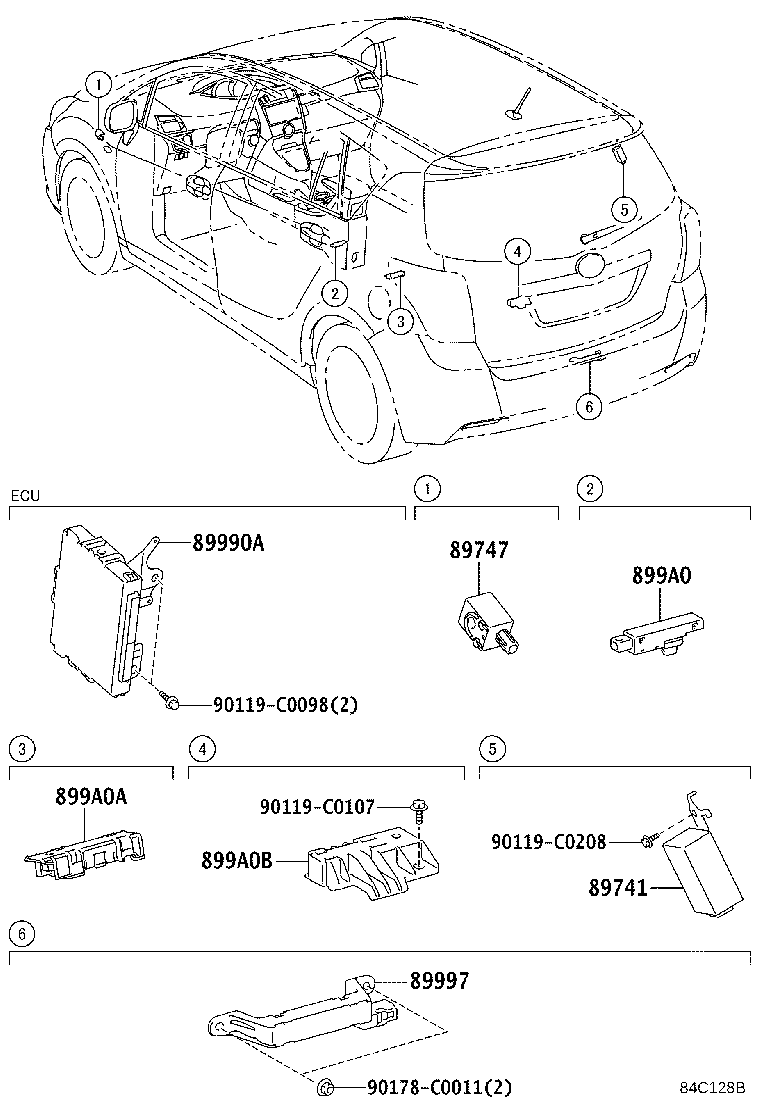

Click highlighted areas on diagram

W/(SMART ENTRY)

diagram 89741 89747 89990A 89997 899A0 899A0A 899A0B 90119C0098 90119C0107 90119C0208 90178C0011
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89740-0F040

ZGR21,22..V

 1
89741-0F050

ZGR21..CVFC..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
89740-0F040

ZGR21..CVFC..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
89741-0F050

ZGR2#..E,G

 1
89740-0F050

ZGR21,22..V

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

ZGR21..CVFC..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
89747-30040

ZGR21,22..V

 1
89990A - COMPUTER ASSY, SMART KEY
89990-0F030

ZGR21,22..V

 1
89990-0F030

ZGR21..CVFC..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-30070

ZGR21,22..V

 1
89997-30070

ZGR21..CVFC..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-0F010

ZGR21,22..V

 1
899A0-0F010

ZGR21..CVFC..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-0F020

ZGR21,22..V

 1
899A0-0F020

ZGR21..CVFC..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-0F030

ZGR21,22..V

 1
899A0-0F030

ZGR21..CVFC..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
Common parts
90119-C0098
90119-C0107
90119-C0208
90178-C0011
