ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1106- )

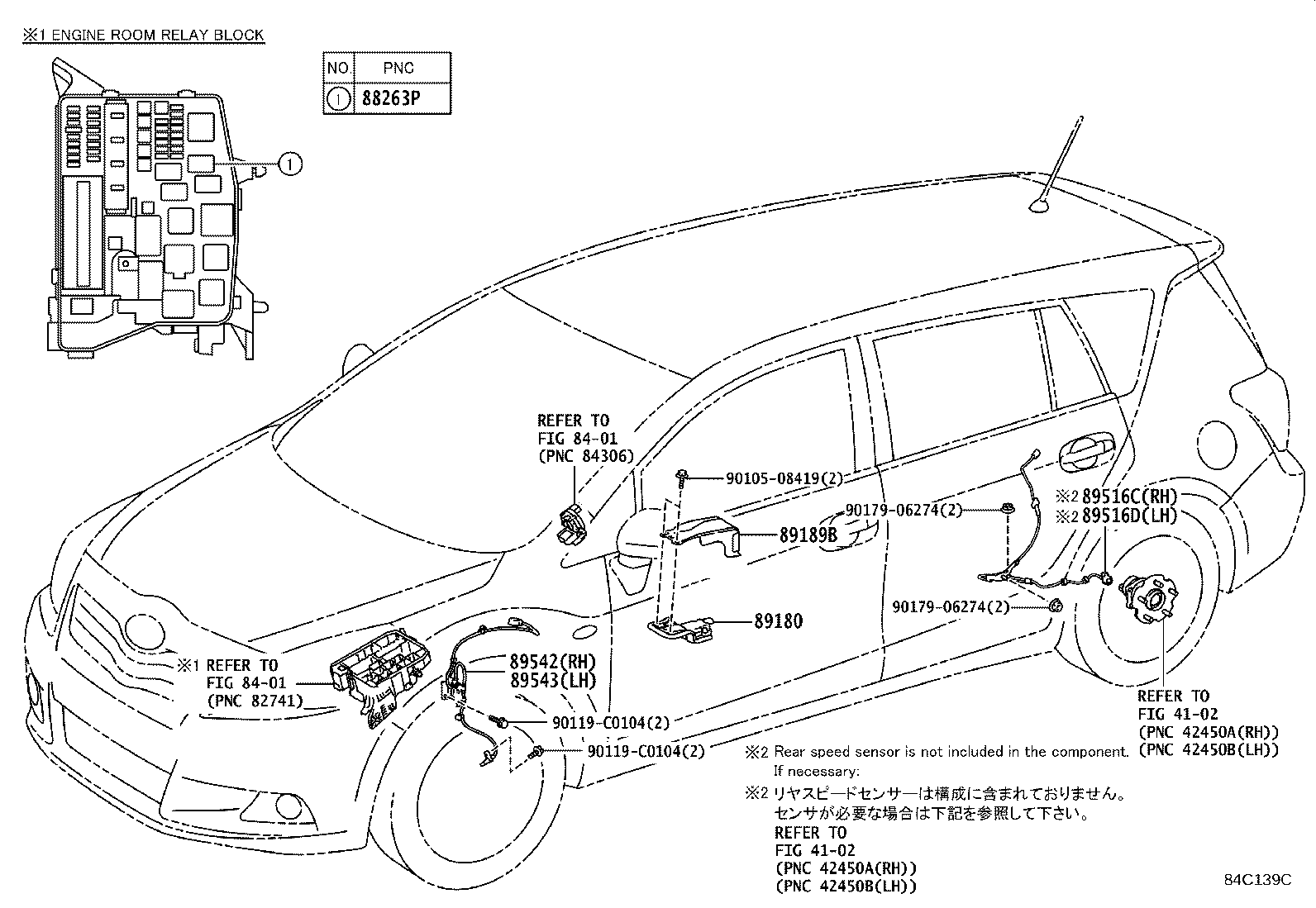

Click highlighted areas on diagram

diagram 4102 4102 8401 8401 88263P 89180 89189B 89516C 89516D 89542 89543 9010508419 90119C0104 90119C0104 9017906274 9017906274
Part # Description Qty Price
88263P - RELAY, STOP LAMP CONTROL
90987-04004

ZGR2#

 1
90987-T4001

ZGR2#

 1
89180 - SENSOR ASSY, YAWRATE
89180-12140

ZGR2#

 1
89189B - BRACKET, YAWRATE SENSOR
89189-0F010

ZGR2#

 1
89516C - WIRE, SKID CONTROL SENSOR, RH
89516-02250

ZGR2#

 1
89516D - WIRE, SKID CONTROL SENSOR, LH
89516-02260

ZGR2#

 1
89542 - SENSOR, SPEED, FRONT RH
89542-02080

ZGR2#

 1
89543 - SENSOR, SPEED, FRONT LH
89543-02080

ZGR2#

 1
Common parts
90105-08419
90119-C0104
90179-06274
Linked diagrams
4102
8401
