ZGR21L-GWXEKC (2011)
Toyota E'Z
Production
Jun 2011
-
Dec 2016
Engine
2ZRFE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1106- )

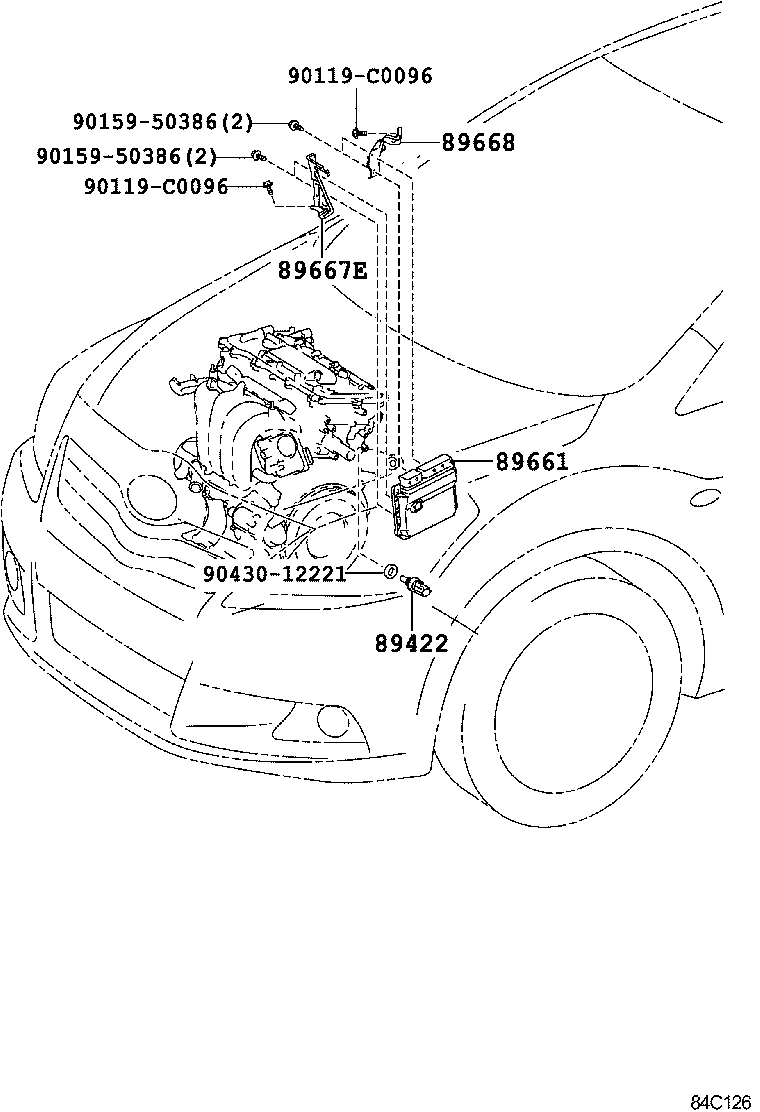

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-33030 |
ZGR21,22..CVFC (J) |
1 | ||
| 89422-0D010 |
ZGR21,22..CVFC (L) |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-0F280 |
ZGR21..CVFC |
1 | ||
| 89661-0F480 |
ZGR21..CVFC |
1 | ||
| 89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-02210 |
ZGR2# |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-02180 |
ZGR2# |
1 | ||
| Common parts | ||||
| 90119-C0096 | ||||
| 90159-50386 | ||||
| 90430-12221 | ||||
