ZGR21L-GWXEKC (2011)
Toyota E'Z

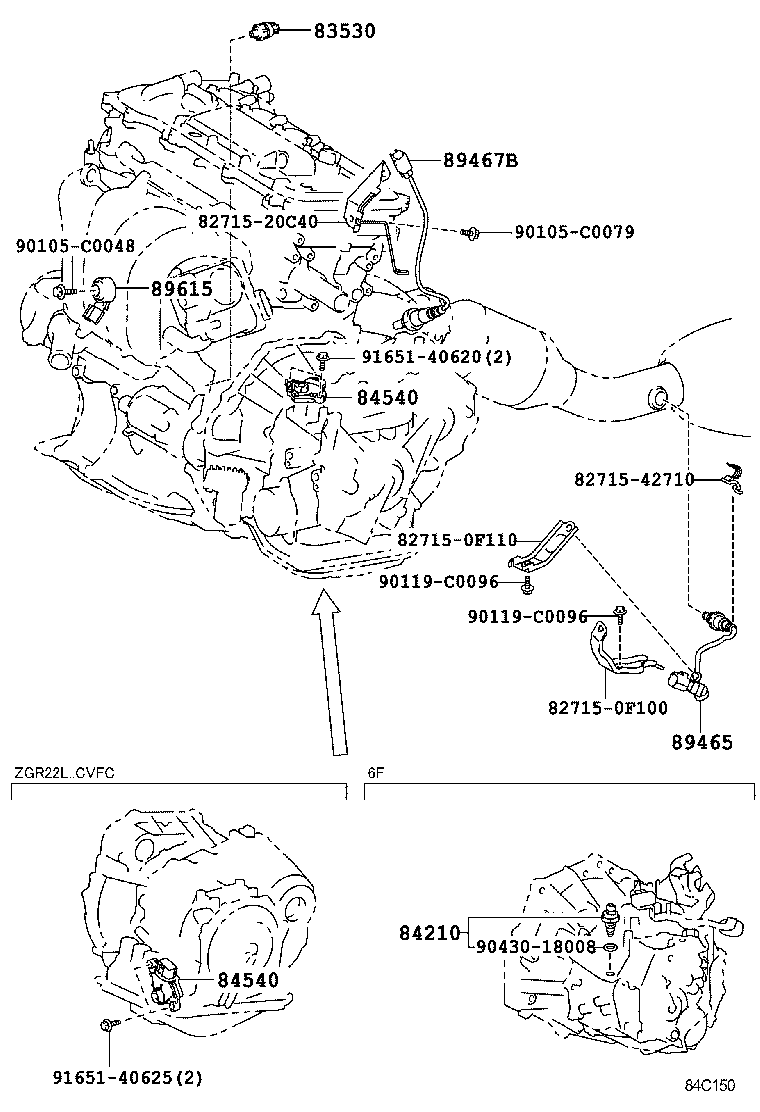

ILLUST NO. 1 OF 8(1106- )
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
ZGR2# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52070 |
ZGR21,22..CVFC |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52070 |
ZGR21,22..CVFC |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-02300 |
ZGR2# |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-0R070 |
ZGR2# |
1 | ||
| 89467-52060 |
ZGR2# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-02020 |
ZGR2# MARK 89615-02020 |
1 | ||
| 89615-20090 |
ZGR2# MARK 89615-20090 |
1 | ||
| Common parts | ||||
| 82715-0F100 | ||||
| 82715-0F110 | ||||
| 82715-20C40 | ||||
| 82715-42710 | ||||
| 90105-C0048 | ||||
| 90105-C0079 | ||||
| 90119-C0096 | ||||
| 90430-18008 | ||||
| 91651-40620 | ||||
| 91651-40625 | ||||

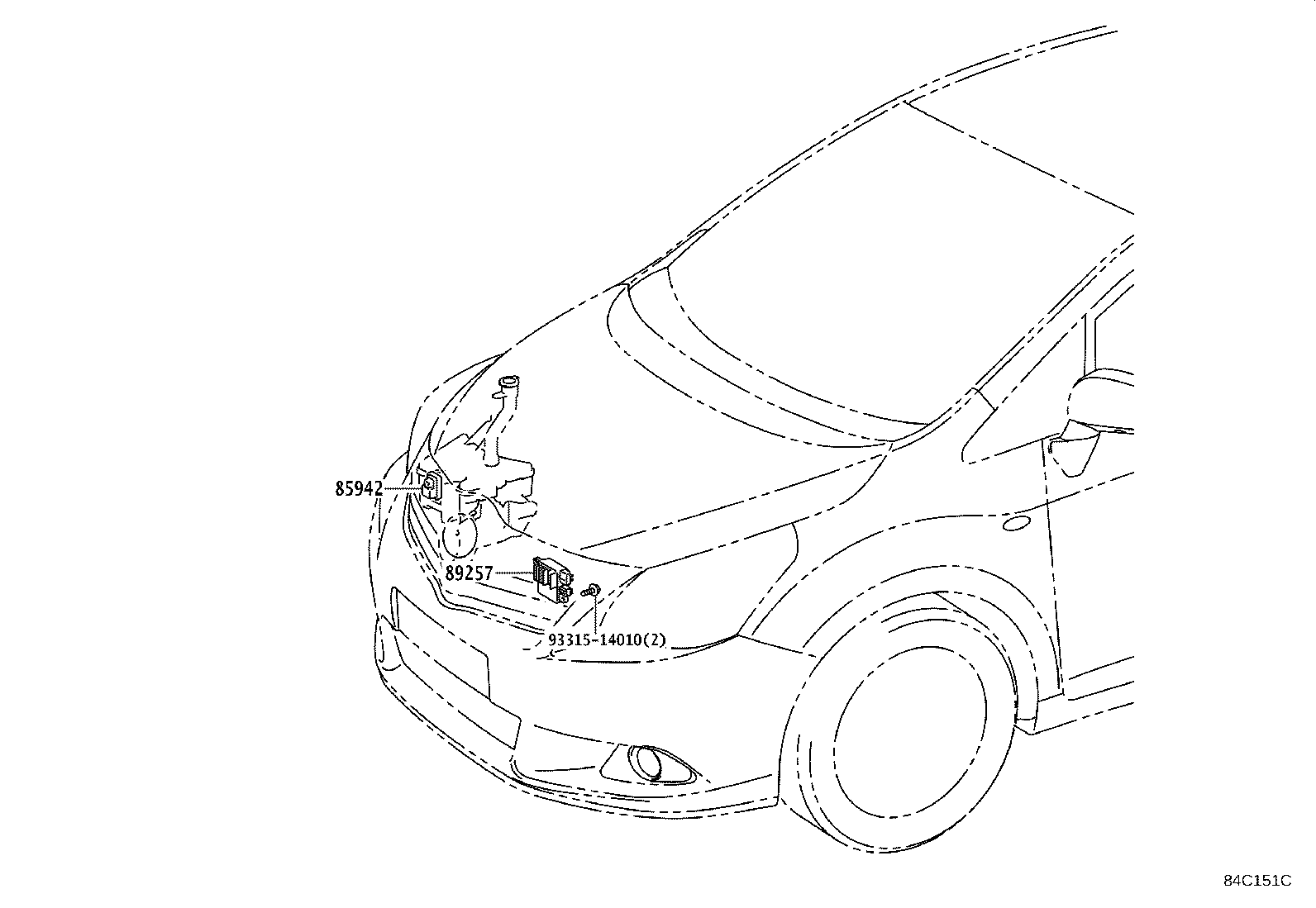

ILLUST NO. 2 OF 8(1106- )
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-20031 |
ZGR21,22..V |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-12020 |
ZGR2# |
1 | ||
| Common parts | ||||
| 93315-14010 | ||||

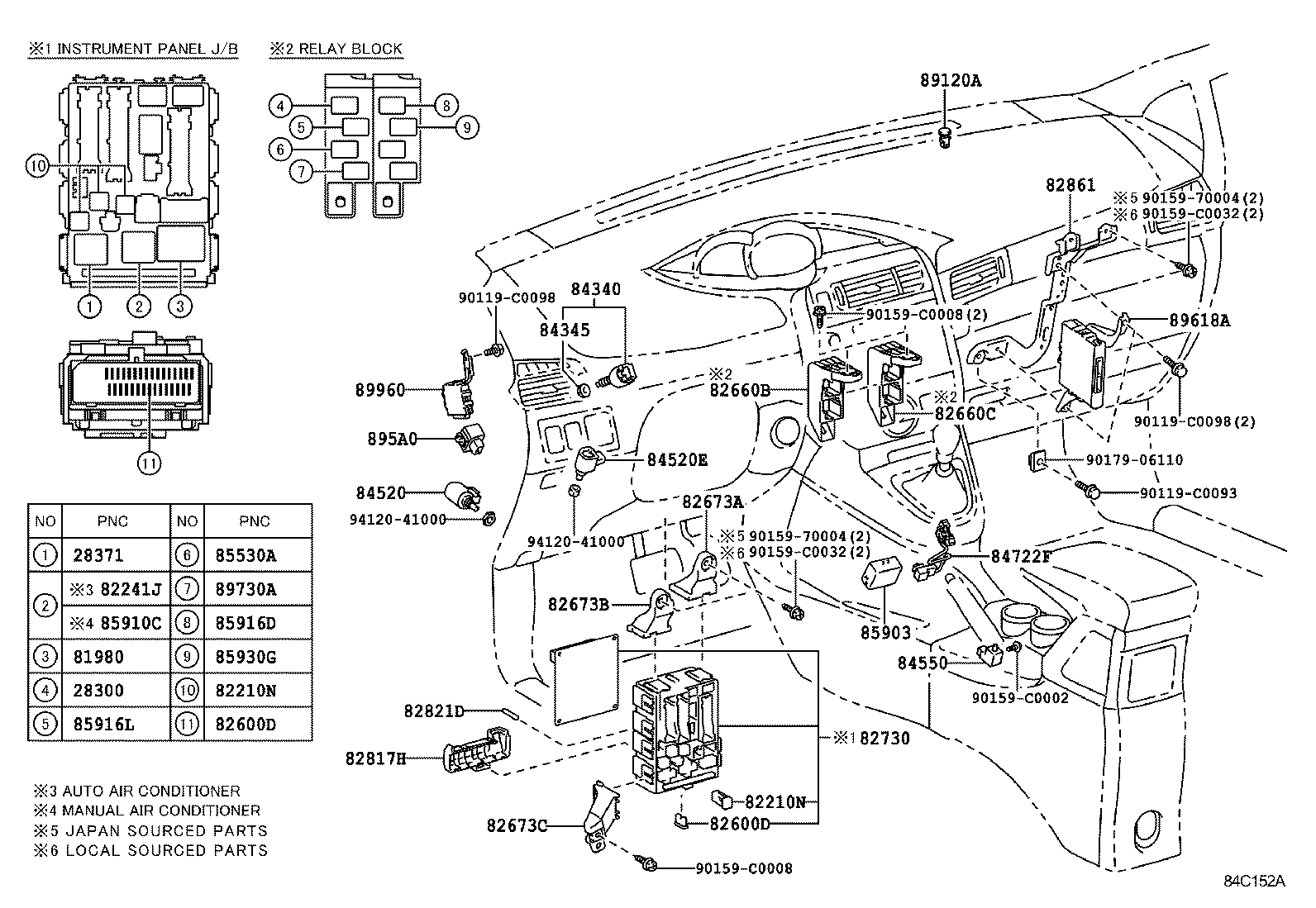

ILLUST NO. 4 OF 8(1106- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# |
1 | ||
| 28300-21020 |
1ZRFE,2ZRFE..ZGR2# |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-C2001 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-0D030 |
ZGR2# |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08295 |
ZGR2# 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08295 |
ZGR2# 30A,TERM.:FEMALE,PNK |
1 | ||
| 82241J - PIN, SHORT | ||||
| 82241-42010 |
ZGR2#..G,V |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
ZGR2# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ZGR2# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ZGR2# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
ZGR2# 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
ZGR2# 25A,MINI FUSE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
ZGR2# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ZGR2# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ZGR2# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
ZGR2# 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
ZGR2# 25A,MINI FUSE |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82755-12010 |
ZGR2# |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82755-12020 |
ZGR2# |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-12170 |
ZGR2# |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-12180 |
ZGR2# |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-12190 |
ZGR2# |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-0F260 |
ZGR21,22..CVFC..(E,G) |
1 | ||
| 82730-0F270 |
ZGR21,22..V |
1 | ||
| 82730-0F270 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-12B50 |
ZGR2# |
1 | ||
| 82817-12A80 |
ZGR2# ENGINE ROOM R/B |
1 | ||
| 82821D - COVER, CONNECTOR | ||||
| 82821-52020 |
ZGR2# |
1 | ||
| 82861 - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-12022 |
ZGR22;ZGR21..V |
1 | ||
| 82861-12022 |
ZGR20,21..G |
1 | ||
| 82861-12022 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69075 |
ZGR2# |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-0R010 |
ZGR2# |
1 | ||
| 84345-51010 |
ZGR2# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
ZGR2# |
1 | ||
| 84722F - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-0F010 |
ZGR21,22..CVFC |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-T2005 |
ZGR2# |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-06040 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 85903-06030 |
ZGR21,22..CVFC..(E,G) |
1 | ||
| 85903-06040 |
ZGR21,22..V |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-T4002 |
ZGR20,21..E |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-T2005 |
ZGR2#..G,V |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-T2005 |
ZGR2# |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-T2005 |
ZGR2# |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-0F030 |
ZGR2#..G,V |
1 | ||
| 89121-12010 |
ZGR2#..G,V |
1 | ||
| 895A0 - RELAY ASSY, STOP LAMP CONTROL | ||||
| 895A0-46020 |
ZGR2# |
1 | ||
| 89618A - COMPUTER, POWER SOURCE CONTROL | ||||
| 89670-64010 |
ZGR21,22..V |
1 | ||
| 89670-64011 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 89670-64011 |
ZGR21..V |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90987-T2005 |
ZGR2# |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-64050 |
ZGR21..05S..V |
1 | ||
| Common parts | ||||
| 90119-C0093 | ||||
| 90119-C0098 | ||||
| 90159-70004 | ||||
| 90159-C0002 | ||||
| 90159-C0008 | ||||
| 90159-C0032 | ||||
| 90179-06110 | ||||
| 94120-41000 | ||||

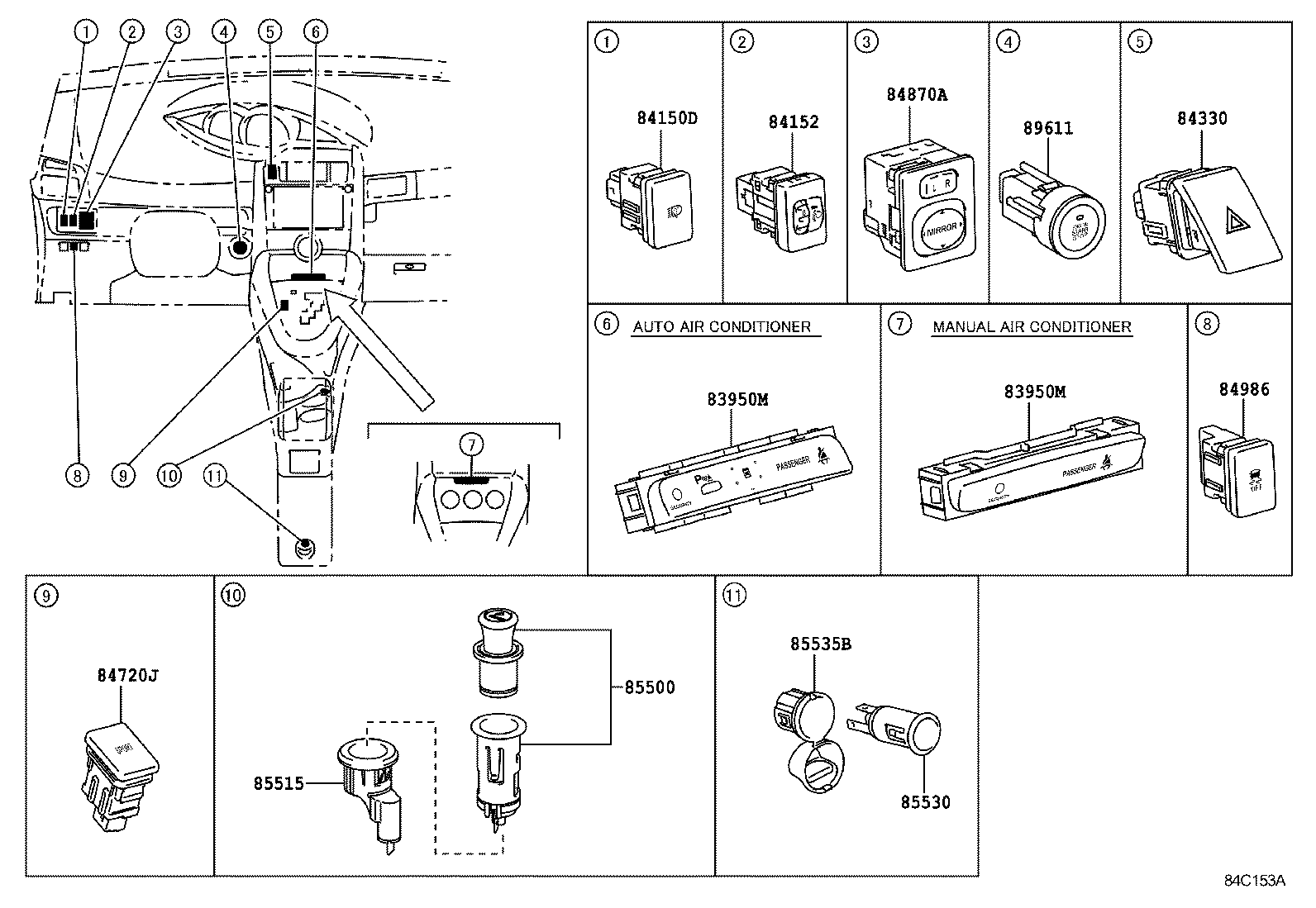

ILLUST NO. 5 OF 8(1106- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-0F110 |
ZGR2#..G |
1 | ||
| 83950-0F040 |
ZGR20,21..E |
1 | ||
| 83950-0F030 |
ZGR20,21..G |
1 | ||
| 83950-0F030 |
ZGR22;ZGR21..V |
1 | ||
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-0F110 |
ZGR2#..G |
1 | ||
| 83950-0F040 |
ZGR20,21..E |
1 | ||
| 83950-0F030 |
ZGR20,21..G |
1 | ||
| 83950-0F030 |
ZGR22;ZGR21..V |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-02050 |
ZGR21,22..V |
1 | ||
| 84150-02051 |
ZGR21..V |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-0F011 |
ZGR2#..E,G |
1 | ||
| 84152-0F010 |
ZGR2#..E,G |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-0F050 |
ZGR2# |
1 | ||
| 84332-0F051 |
ZGR2# |
1 | ||
| 84720J - SWITCH ASSY, PATTERN SELECT | ||||
| 84720-0F020 |
ZGR21,22..CVFC |
1 | ||
| 84720-0F021 |
ZGR21..CVFC |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-0D070 |
ZGR2#..E,G |
1 | ||
| 84870-0D060 |
ZGR21,22..V |
1 | ||
| 84986 - SWITCH, VEHICLE STABILITY CONTROL | ||||
| 84986-0F010 |
ZGR2# |
1 | ||
| 84986-0F011 |
ZGR2# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-02050 |
ZGR20,22;ZGR21..CVFC;ZGR21..6F..G |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-0F010 |
ZGR20,22;ZGR21..CVFC;ZGR21..6F..G |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0D021 |
ZGR2# |
1 | ||
| 85530-06040 |
ZGR2# |
1 | ||
| 85530-0D020 |
ZGR2# |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-02040 |
ZGR2# |
1 | ||
| 85535-0D040 |
ZGR2# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-0D022 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 89611-0D021 |
ZGR21,22..V |
1 | ||
| 89611-0D023 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 89611-0D023 |
ZGR21..V |
1 | ||
| 89611-0D022 |
ZGR21,22..V |
1 | ||

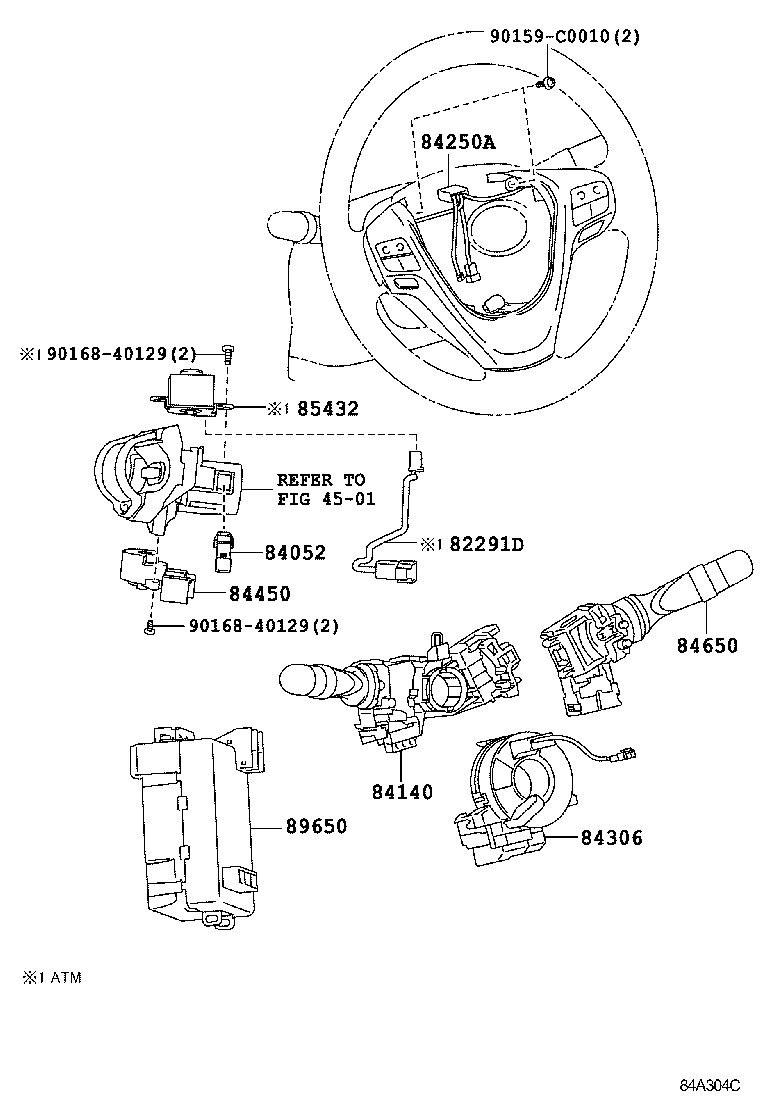

ILLUST NO. 6 OF 8(1106- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82291D - WIRE, TO SOLENOID | ||||
| 82291-02010 |
ZGR21,22..CVFC..(E,G) |
1 | ||
| 82291-02010 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-06010 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 84052-06010 |
ZGR2#..E,G |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0F020 |
ZGR20,21..E |
1 | ||
| 84140-0F010 |
ZGR2#..G,V |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-0F070 |
ZGR2# |
1 | ||
| 84250-0F090 |
ZGR21,22..CVFC..(G,V) AUDIO-NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84307-0F030 |
ZGR2# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 84450-12200 |
ZGR2#..E,G |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0F010 |
ZGR20,21..E |
1 | ||
| 84652-0E071 |
ZGR2#..G,V |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-71010 |
ZGR21..CVFC..(E,G) |
1 | ||
| 85432-71010 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 85432-02010 |
ZGR21,22..CVFC..(E,G) |
1 | ||
| 85432-02010 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-0F061 |
ZGR2# |
1 | ||
| 89650-0F060 |
ZGR2# |
1 | ||
| Common parts | ||||
| 90159-C0010 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||

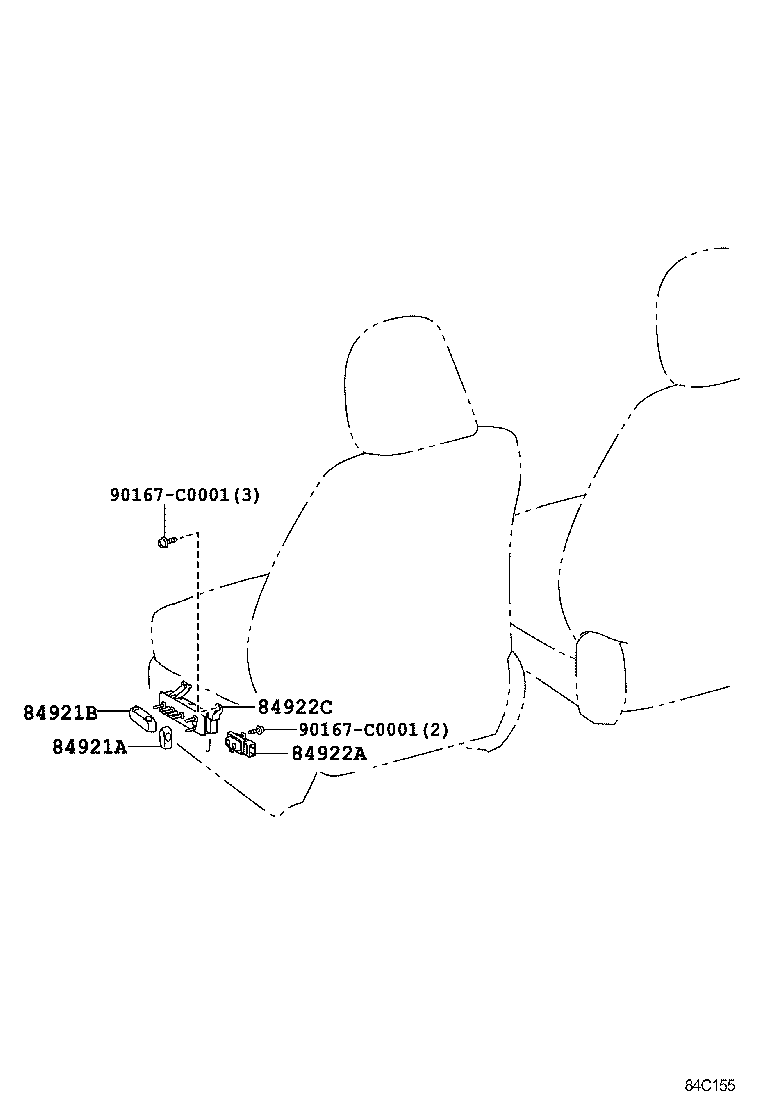

ILLUST NO. 7 OF 8(1106- )CVFC..G,V
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-02010E0 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 84921-02010E0 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-02020E0 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 84921-02020E0 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-06080E0 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 84920-06080E0 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-02010 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 84922-02010 |
ZGR21,22..V |
1 | ||
| Common parts | ||||
| 90167-C0001 | ||||

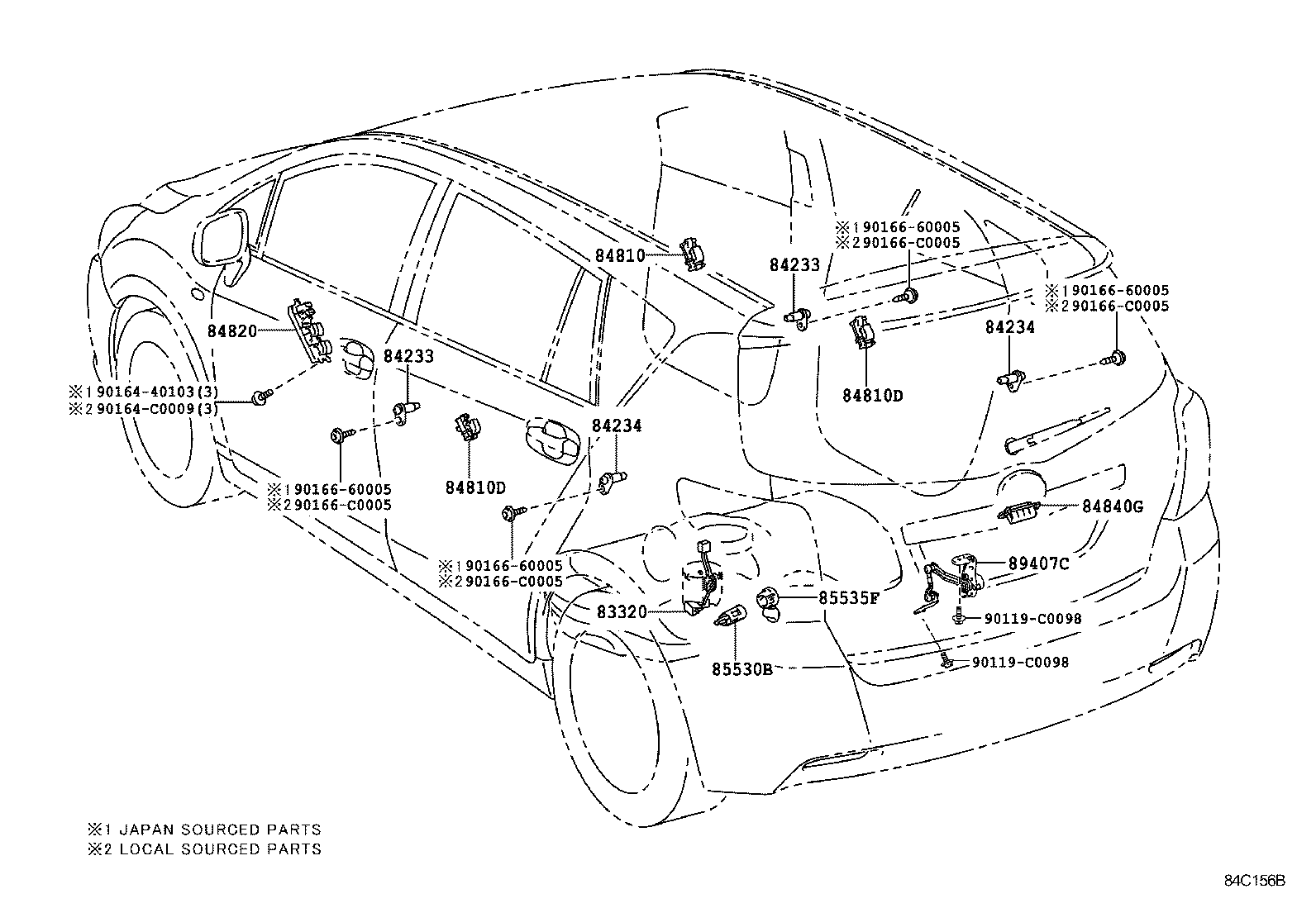

ILLUST NO. 8 OF 8(1106- )
DOOR,ROOF,FLOOR&BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0F040 |
ZGR2# |
1 | ||
| 83320-0F030 |
ZGR2# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-06020 |
ZGR2# |
2 | ||
| 84231-0R010 |
ZGR2# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-06020 |
ZGR2# |
2 | ||
| 84231-0R010 |
ZGR2# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0R010 |
ZGR2# |
2 | ||
| 84231-06020 |
ZGR2# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0R010 |
ZGR2# |
2 | ||
| 84231-06020 |
ZGR2# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0F020 |
ZGR2# |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0F020 |
ZGR2# |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0F020 |
ZGR2# |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-0F010 |
ZGR2# |
1 | ||
| 84040-0F011 |
ZGR2# |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-0E030 |
ZGR2#..E,G |
1 | ||
| 84840-0E040 |
ZGR21,22..V |
1 | ||
| 84840-0E040 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-06040 |
ZGR21,22..V |
1 | ||
| 85535F - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-0D040 |
ZGR21,22..V |
1 | ||
| 89407C - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR | ||||
| 89407-0F010 |
ZGR21,22..V |
1 | ||
| 89407-64010 |
ZGR21,22..V |
1 | ||
| 89407-64010 |
ZGR21,22..V |
1 | ||
| Common parts | ||||
| 90119-C0098 | ||||
| 90164-40103 | ||||
| 90164-C0009 | ||||
| 90166-60005 | ||||
| 90166-C0005 | ||||

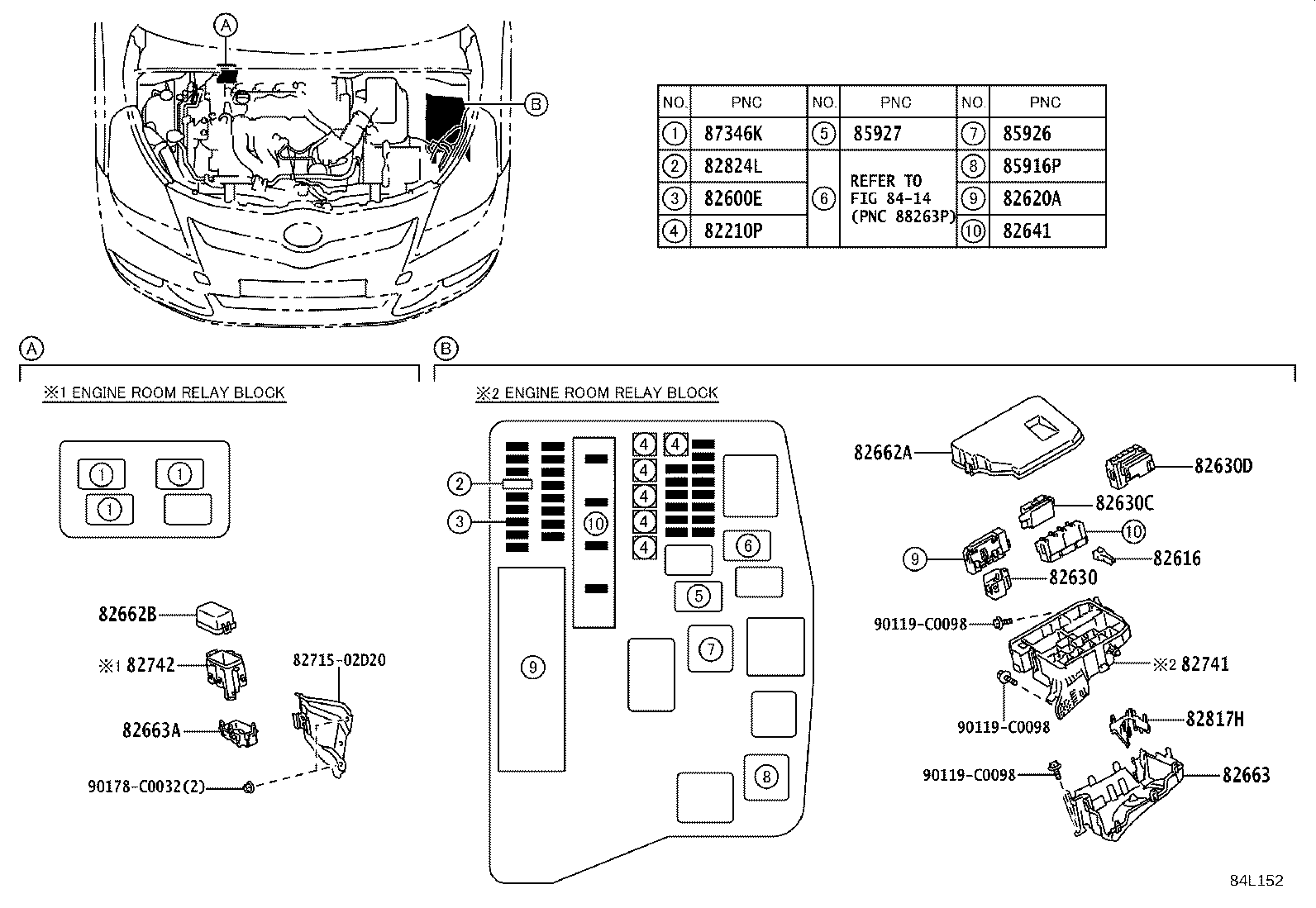

ILLUST NO. 3 OF 8(1106- )
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08295 |
ZGR2# 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09022 |
ZGR2# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
ZGR2# 25A,MINI FUSE |
1 | ||
| 90982-09021 |
ZGR2# 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
ZGR2# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
ZGR2# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ZGR2# 20A,MINI FUSE,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ZGR2# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-20190 |
ZGR2# |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-12010 |
ZGR2# |
1 | ||
| 82630C - HOLDER ASSY, FUSE | ||||
| 82631-12020 |
ZGR2# |
1 | ||
| 82630D - HOLDER, FUSE | ||||
| 82631-12030 |
ZGR2# |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47020 |
ZGR2# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-64020 |
ZGR2#..E,G |
1 | ||
| 82662-64030 |
ZGR21,22..V |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-12480 |
ZGR2# |
1 | ||
| 82662-12480 |
ZGR21..CVFC..G HEATER-WITH(PTC HEATER)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82662-12480 |
ZGR2# HEATER-WITH(PTC HEATER) |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-12060 |
ZGR2# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-12070 |
ZGR21..CVFC..G HEATER-WITH(PTC HEATER)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82663-12070 |
ZGR2# HEATER-WITH(PTC HEATER) |
1 | ||
| 82663-12070 |
ZGR2# |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12070 |
ZGR2# |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-12080 |
ZGR2# |
1 | ||
| 82741-12080 |
ZGR2# HEATER-WITH(PTC HEATER) |
1 | ||
| 82741-12080 |
ZGR21..CVFC..G HEATER-WITH(PTC HEATER)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-12B50 |
ZGR2# |
1 | ||
| 82817-12A80 |
ZGR2# ENGINE ROOM R/B |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
ZGR2# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-T2004 |
ZGR2# |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-T4002 |
ZGR2# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-T2005 |
ZGR2# (L) |
1 | ||
| 90987-02027 |
ZGR2# (J) |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-T2005 |
ZGR2# |
3 | ||
| 90987-T2005 |
ZGR2# HEATER-WITH(PTC HEATER) |
3 | ||
| Common parts | ||||
| 82715-02D20 | ||||
| 90119-C0098 | ||||
| 90178-C0032 | ||||
| Linked diagrams | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
