ZGR21L-GWXEKC (2011)
Toyota E'Z

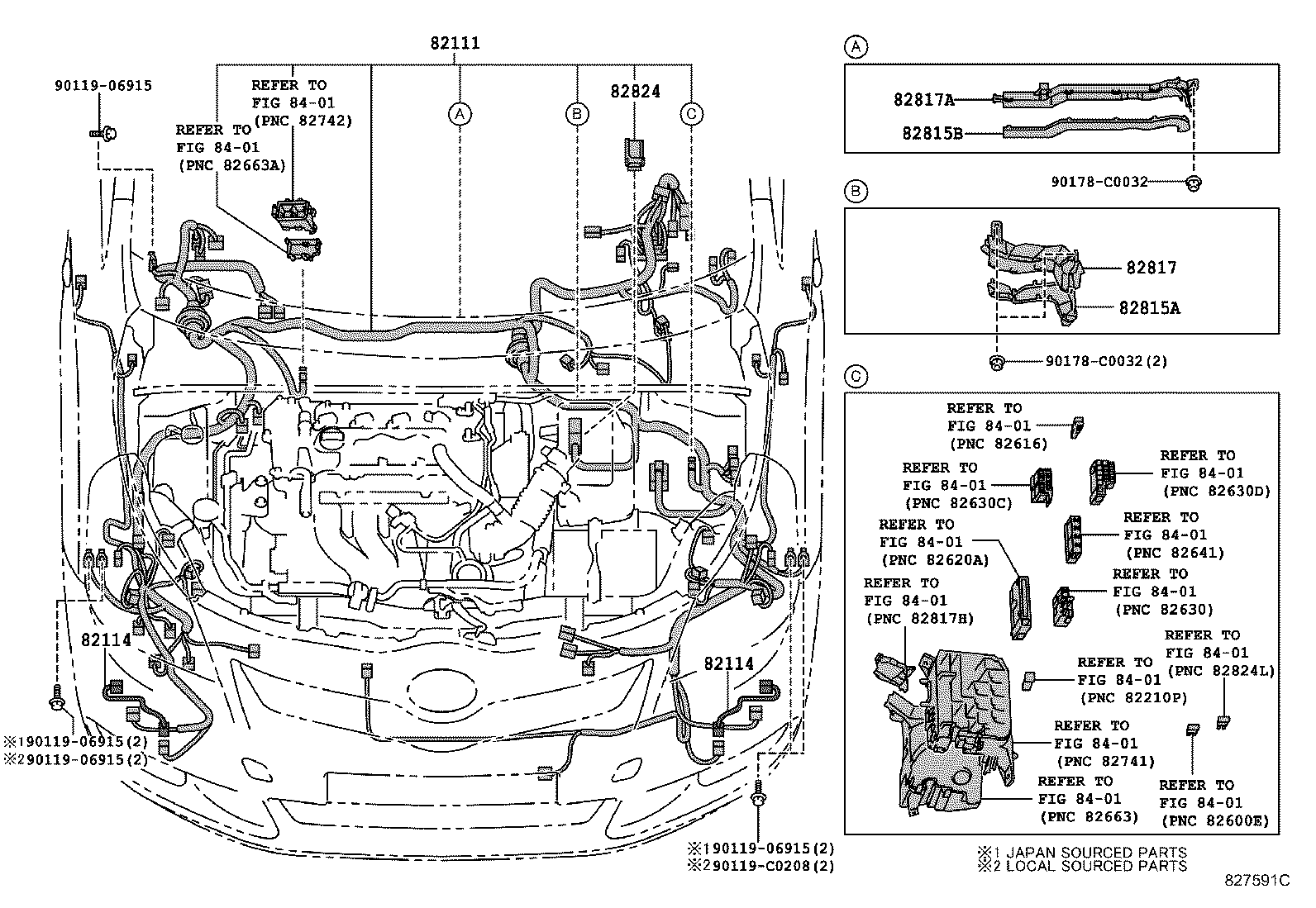

ILLUST NO. 1 OF10(1106- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-0FB30 |
ZGR21..CVFC..E |
1 | ||
| 82111-0FB40 |
ZGR21,22..V |
1 | ||
| 82111-0FB41 |
ZGR21,22..V |
1 | ||
| 82111-0FB31 |
ZGR21..CVFC..E |
1 | ||
| 82111-0FB21 |
ZGR21,22..CVFC..G |
1 | ||
| 82111-0FB22 |
ZGR21..CVFC..G |
1 | ||
| 82111-0FB20 |
ZGR21,22..CVFC..G |
1 | ||
| 82111-0FL90 |
ZGR21..CVFC..E |
1 | ||
| 82111-0FB42 |
ZGR21..V HEATER-WITH(PTC HEATER) |
1 | ||
| 82111-0FL80 |
ZGR21..CVFC..G HEATER-WITH(PTC HEATER) |
1 | ||
| 82111-0FM00 |
ZGR21..V |
1 | ||
| 82111-0FB32 |
ZGR21..CVFC..E HEATER-WITH(PTC HEATER) |
1 | ||
| 82111-0FM30 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82111-0FL70 |
ZGR21..CVFC..G HEATER-WITH(PTC HEATER)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-0F030 |
ZGR22;ZGR21..V |
2 | ||
| 82114-0F030 |
ZGR20,21..G |
2 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-0F030 |
ZGR22;ZGR21..V |
2 | ||
| 82114-0F030 |
ZGR20,21..G |
2 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12130 |
ZGR2# |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12140 |
ZGR2# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12A90 |
ZGR2# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12B00 |
ZGR2# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 90980-12461 |
ZGR2# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-C0208 | ||||
| 90178-C0032 | ||||
| Linked diagrams | ||||
| 8401 | ||||

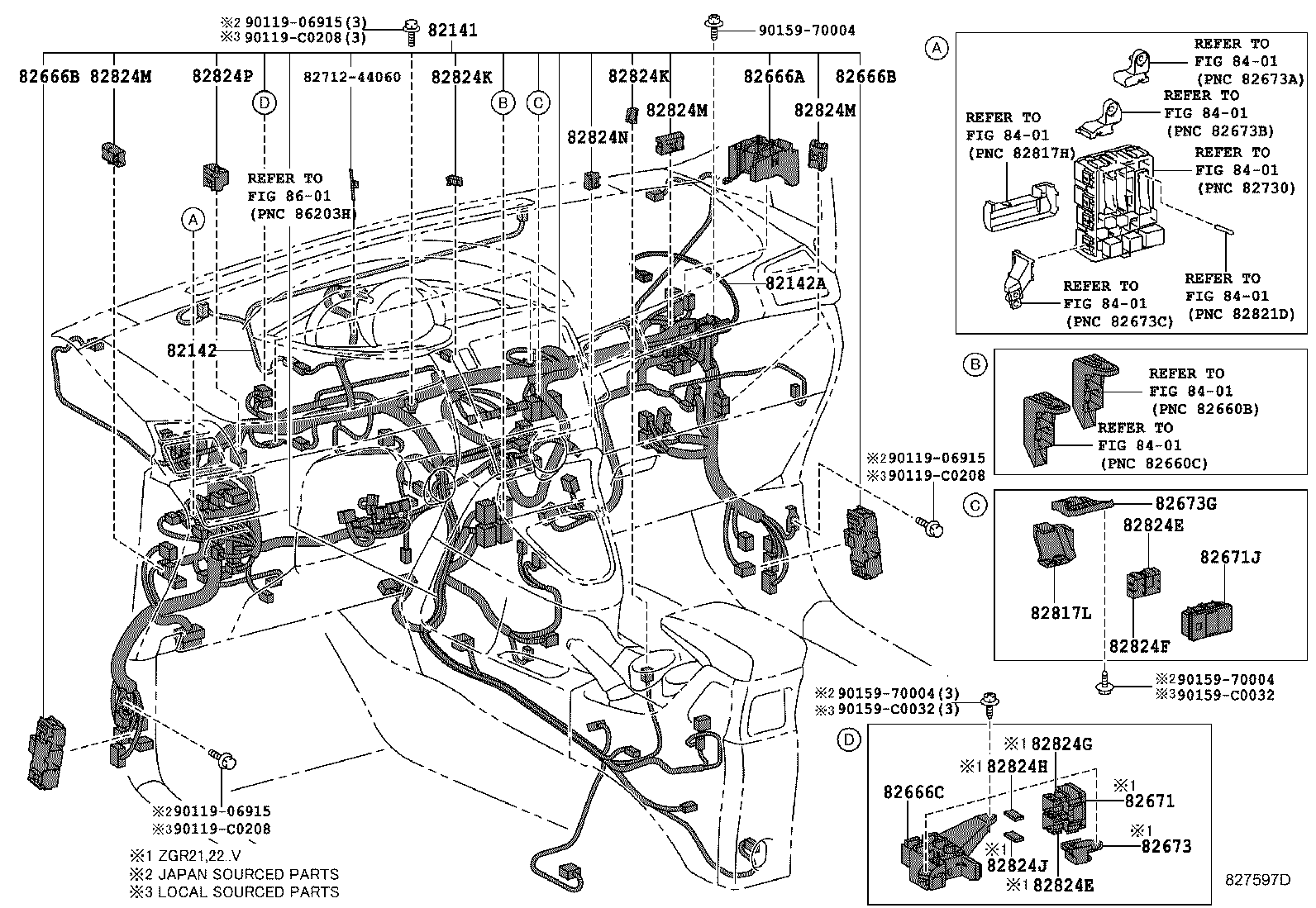

ILLUST NO. 3 OF10(1106- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82145-0FD40 |
ZGR21,22..V AUDIO-NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82145-0FD30 |
ZGR21,22..V |
1 | ||
| 82145-0FD50 |
ZGR21..CVFC..E |
1 | ||
| 82145-0FD20 |
ZGR21,22..CVFC..G AUDIO-NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82145-0FD80 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82145-0FD70 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82145-0FD01 |
ZGR21,22..CVFC..G |
1 | ||
| 82145-0FD21 |
ZGR21,22..CVFC..G AUDIO-NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82145-0FD81 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82145-0FD22 |
ZGR21..CVFC..G AUDIO-NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82145-0FD42 |
ZGR21..V AUDIO-NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82145-0FD02 |
ZGR21..CVFC..G |
1 | ||
| 82141-0FZ20 |
ZGR21..CVFC..E |
1 | ||
| 82145-0FD82 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82145-0FD00 |
ZGR21,22..CVFC..G |
1 | ||
| 82145-0FD72 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82145-0FD71 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82145-0FD51 |
ZGR21..CVFC..E |
1 | ||
| 82145-0FD31 |
ZGR21,22..V |
1 | ||
| 82145-0FD41 |
ZGR21,22..V AUDIO-NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82145-0FD32 |
ZGR21..V |
1 | ||
| 82145-0FD52 |
ZGR21..CVFC..E HEATER-WITH(PTC HEATER) |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-0F070 |
ZGR2#..G,V |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-0F010 |
ZGR2# |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-12350 |
ZGR2# |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-12360 |
ZGR2# |
2 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-12360 |
ZGR2# |
2 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-12380 |
ZGR2# |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-64010 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82671-64010 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82671-64010 |
ZGR21,22..V |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-64020 |
ZGR2# |
1 | ||
| 82673 - BRACKET, JUNCTION BLOCK | ||||
| 82673-0F010 |
ZGR21,22..V |
1 | ||
| 82673-0F010 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82673-0F010 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82673G - BRACKET, JUNCTION BLOCK | ||||
| 82673-12140 |
ZGR2# |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-12D10 |
ZGR2#..E,G |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-33250 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-NAVIGATION 6SPEAKER BLUETOOTH |
2 | ||
| 82824-33250 |
ZGR2#..E,G |
1 | ||
| 82824-33250 |
ZGR21,22..V |
2 | ||
| 82824-33250 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
2 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-33250 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-NAVIGATION 6SPEAKER BLUETOOTH |
2 | ||
| 82824-33250 |
ZGR2#..E,G |
1 | ||
| 82824-33250 |
ZGR21,22..V |
2 | ||
| 82824-33250 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
2 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-42180 |
ZGR2# |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-42190 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82824-42190 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82824-42190 |
ZGR21,22..V |
1 | ||
| 82824H - CONNECTOR, WIRING HARNESS | ||||
| 82824-42200 |
ZGR21,22..V |
1 | ||
| 82824-42200 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82824-42200 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82824J - CONNECTOR, WIRING HARNESS | ||||
| 82824-42210 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82824-42210 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82824-42210 |
ZGR21,22..V |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-21030 |
ZGR2# |
2 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-21030 |
ZGR2# |
2 | ||
| 82824M - CONNECTOR, WIRING HARNESS | ||||
| 82824-12220 |
ZGR2# |
3 | ||
| 82824M - CONNECTOR, WIRING HARNESS | ||||
| 82824-12220 |
ZGR2# |
3 | ||
| 82824M - CONNECTOR, WIRING HARNESS | ||||
| 82824-12220 |
ZGR2# |
3 | ||
| 82824N - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
ZGR2# |
1 | ||
| 82824P - CONNECTOR, WIRING HARNESS | ||||
| 82824-52080 |
ZGR2# |
1 | ||
| Common parts | ||||
| 82712-44060 | ||||
| 90119-06915 | ||||
| 90119-C0208 | ||||
| 90159-70004 | ||||
| 90159-C0032 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8601 | ||||
ILLUST NO. 4 OF10(1106- )

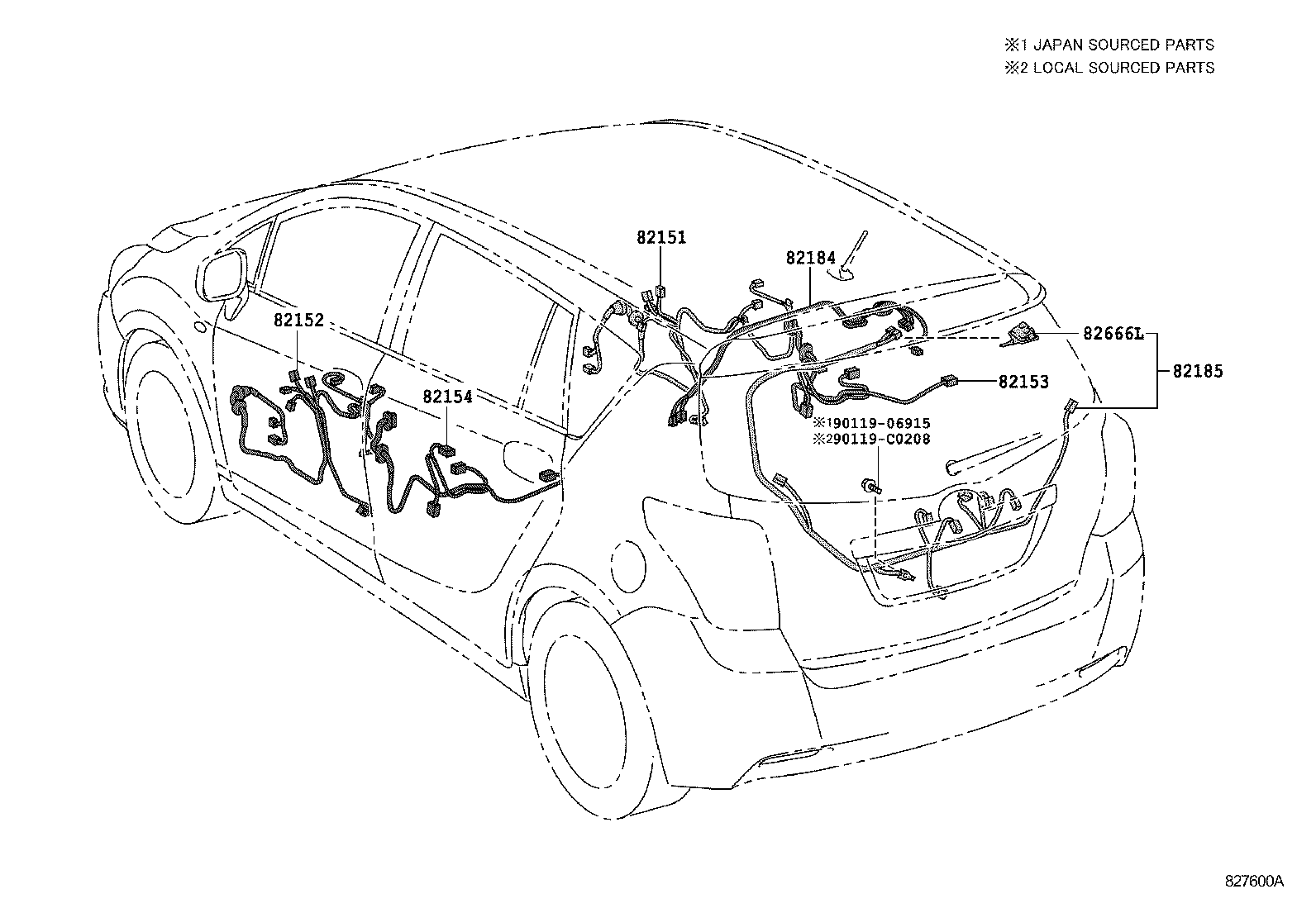

DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0F180 |
ZGR20,21..E |
1 | ||
| 82151-0F170 |
ZGR2#..G |
1 | ||
| 82151-0F260 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82151-0F190 |
ZGR21,22..V |
1 | ||
| 82151-0F180 |
ZGR2#..G |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0F160 |
ZGR2#..G |
1 | ||
| 82152-0F170 |
ZGR20,21..E |
1 | ||
| 82152-0F180 |
ZGR21,22..V |
1 | ||
| 82152-0F250 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82152-0F170 |
ZGR2#..G |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-0F090 |
ZGR2# |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-0F090 |
ZGR2# |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-0F060 |
ZGR2#..E,G |
1 | ||
| 82184-0F061 |
ZGR2#..E,G |
1 | ||
| 82184-0F070 |
ZGR21,22..CVFC..G AUDIO-NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82184-0F070 |
ZGR21,22..V |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-0F070 |
ZGR21,22..V |
1 | ||
| 82185-0F061 |
ZGR2#..E,G |
1 | ||
| 82185-0F060 |
ZGR2#..E,G |
1 | ||
| 82185-0F070 |
ZGR21,22..CVFC..G AUDIO-NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-12410 |
ZGR2# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-C0208 | ||||
ILLUST NO. 5 OF10(1106- )

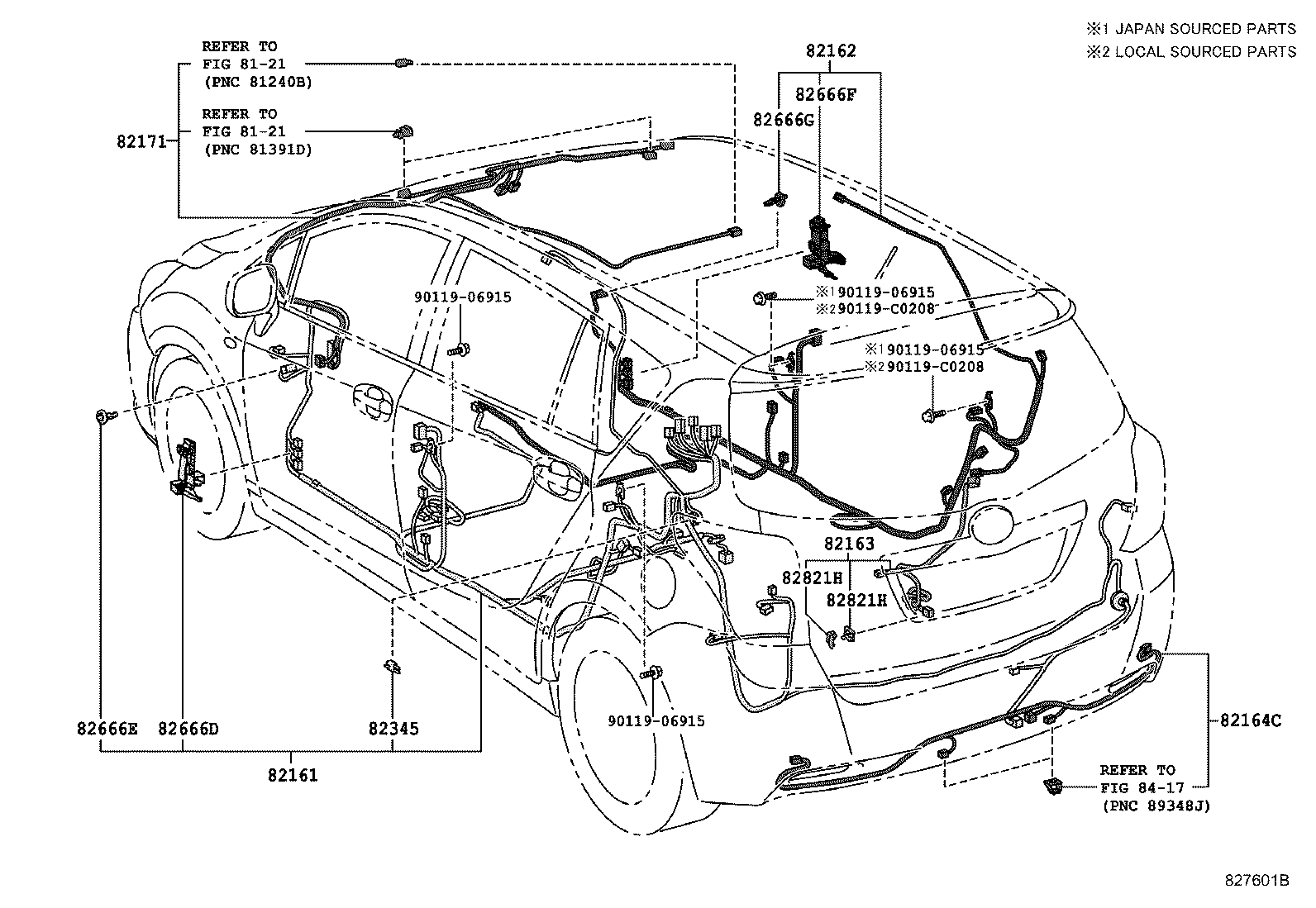

FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-0F110 |
ZGR20,21..E |
1 | ||
| 82161-0F290 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82161-0F100 |
ZGR21,22..CVFC..G AUDIO-NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82161-0F111 |
ZGR20,21..E |
1 | ||
| 82161-0F291 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82161-0F090 |
ZGR2#..G |
1 | ||
| 82161-0F102 |
ZGR21..CVFC..G AUDIO-NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82161-0F112 |
ZGR2#..E |
1 | ||
| 82161-0F302 |
ZGR21..V |
1 | ||
| 82161-0F290 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82161-0F301 |
ZGR21,22..V |
1 | ||
| 82161-0F292 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82161-0F292 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82161-0F291 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82161-0F101 |
ZGR21,22..CVFC..G AUDIO-NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82161-0F091 |
ZGR2#..G |
1 | ||
| 82161-0F300 |
ZGR21,22..V |
1 | ||
| 82161-0F092 |
ZGR2#..G |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-0F200 |
ZGR20,21..E |
1 | ||
| 82162-0F180 |
ZGR2#..G |
1 | ||
| 82162-0F270 |
ZGR21,22..V |
1 | ||
| 82162-0F410 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82162-0F201 |
ZGR2#..E |
1 | ||
| 82162-0F271 |
ZGR21..V |
1 | ||
| 82162-0F181 |
ZGR2#..G |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-0F050 |
ZGR21,22..V |
1 | ||
| 82163-0F110 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82164C - WIRE, FLOOR, NO.4 | ||||
| 82164-0F010 |
ZGR20,21..G |
1 | ||
| 82164-0F010 |
ZGR22;ZGR21..V |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-0F280 |
ZGR21,22..V AUDIO-NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82171-0F300 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82171-0F270 |
ZGR21..CVFC..G AUDIO-NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82171-0F250 |
ZGR21..E;ZGR20,22..E,G |
1 | ||
| 82171-0F260 |
ZGR21,22..CVFC..G AUDIO-NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82171-0F270 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82171-0F250 |
ZGR21..G |
1 | ||
| 82171-0F300 |
ZGR21..G |
1 | ||
| 82171-0F290 |
ZGR21,22..V |
1 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
ZGR2# |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-12400 |
ZGR2# |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-20280 |
ZGR2# |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-12370 |
ZGR2# |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-20280 |
ZGR2# |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-30600 |
ZGR21,22..V |
2 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-30600 |
ZGR21,22..V |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-C0208 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8417 | ||||

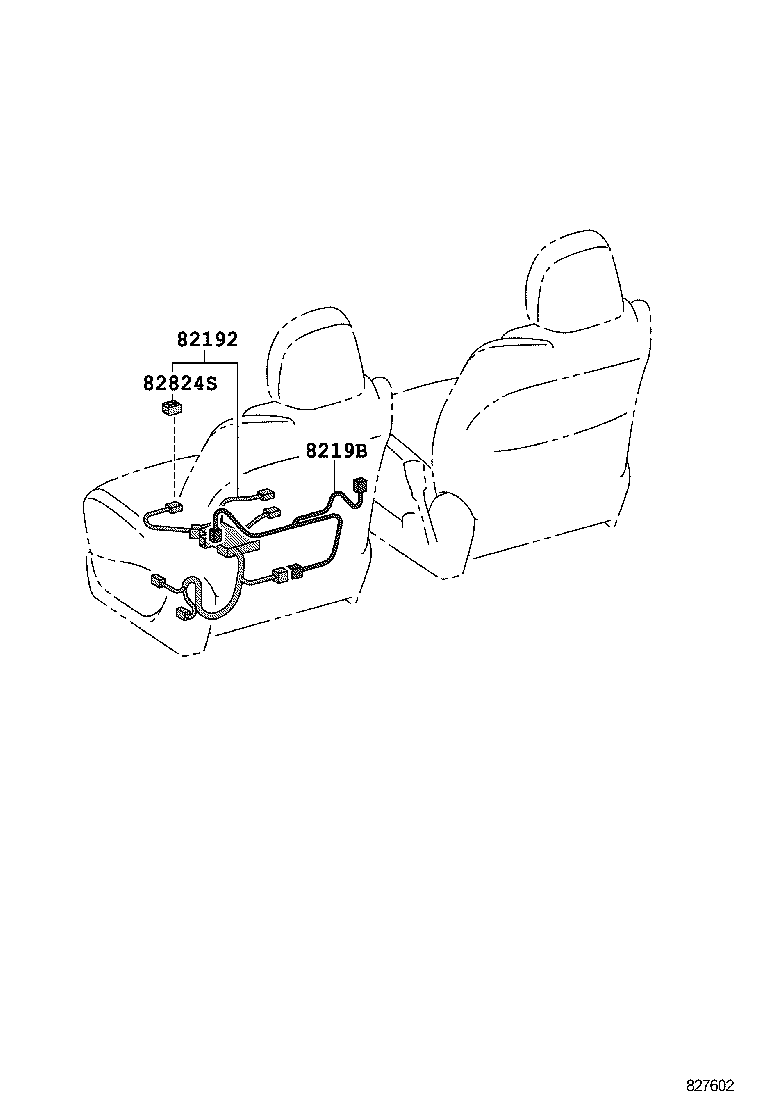

ILLUST NO. 6 OF10(1106- )CVFC..G,V
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-0F010 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82192-0F010 |
ZGR21,22..V |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-0E010 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 8219B-0E010 |
ZGR21,22..V |
1 | ||
| 82824S - CONNECTOR, WIRING HARNESS | ||||
| 82824-48100 |
ZGR21,22..V |
1 | ||
| 82824-48100 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||

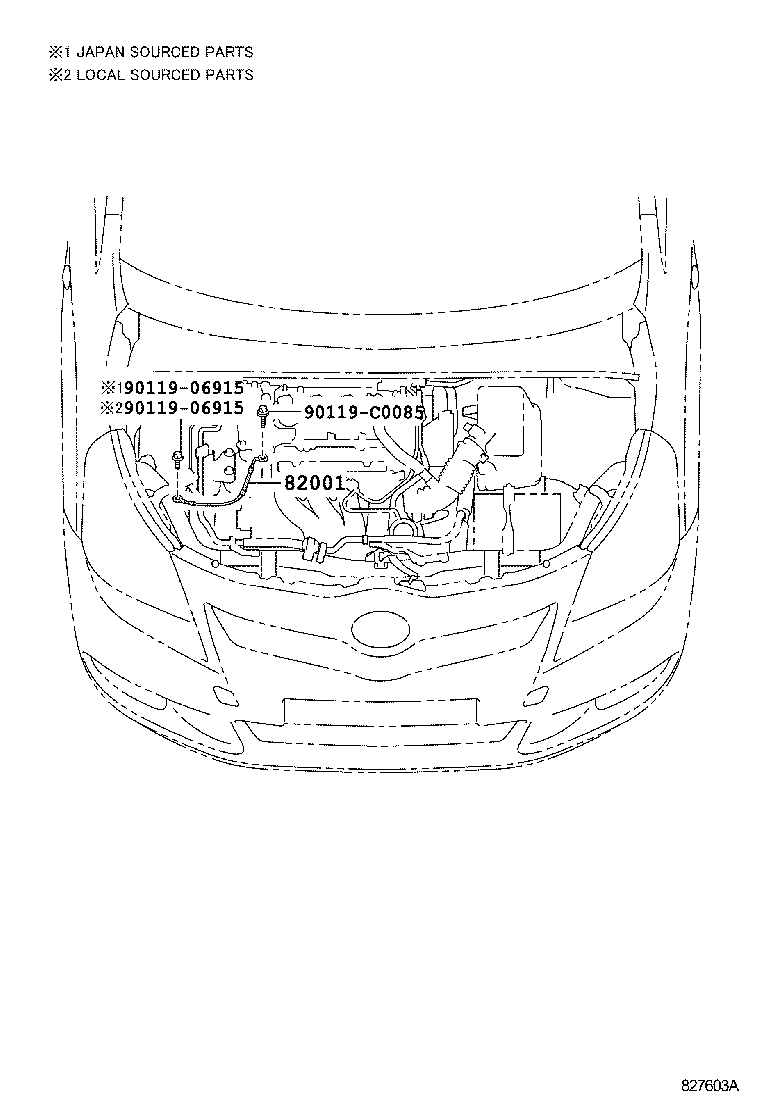

ILLUST NO. 8 OF10(1106- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-C7001 |
ZGR2# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-C0085 | ||||

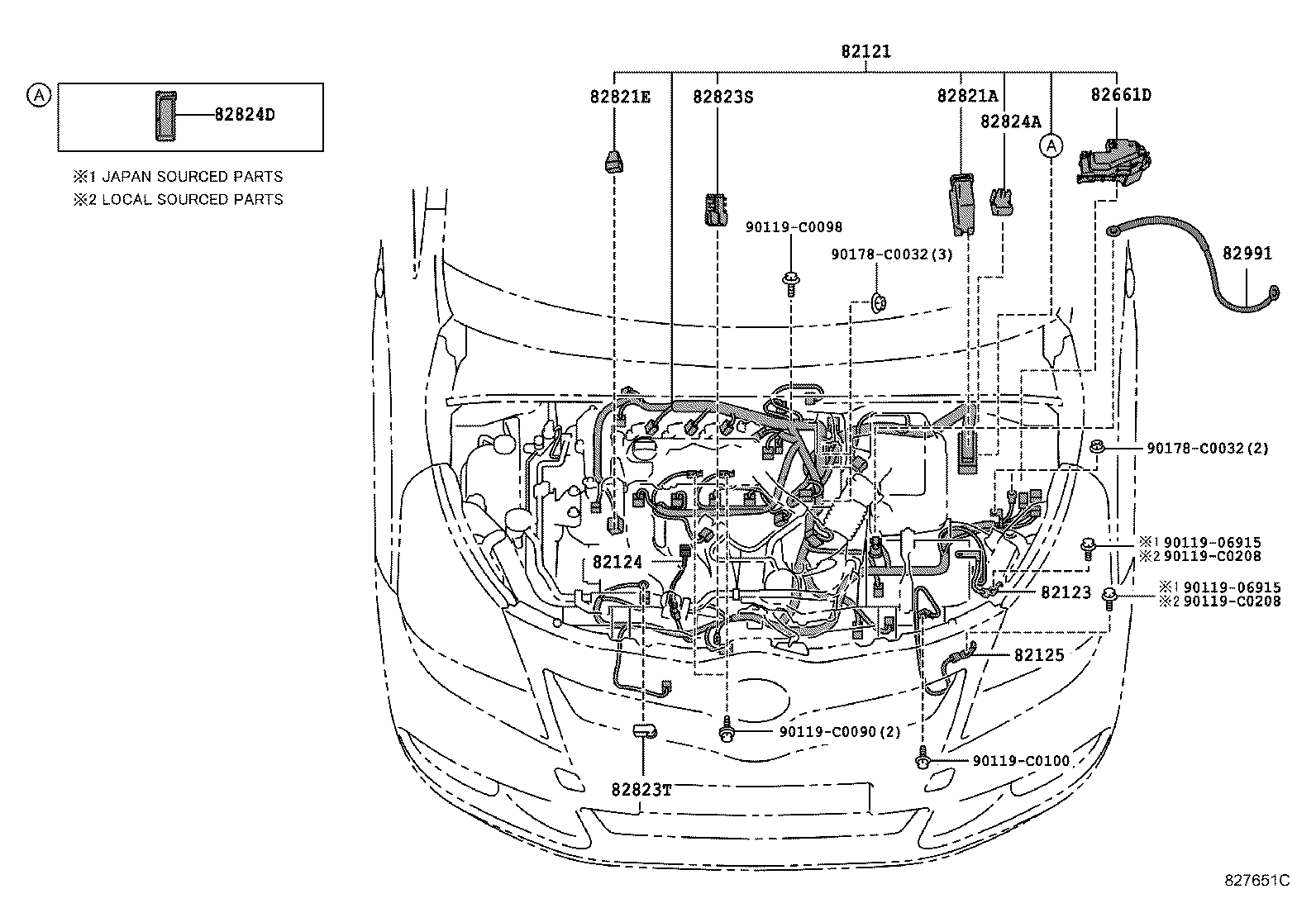

ILLUST NO. 2 OF10(1106- )ZGR21
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-0F250 |
ZGR21..CVFC |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-12460 |
ZGR2# |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-02100 |
ZGR20,21 |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-0F020 |
ZGR21..CVFC |
1 | ||
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-12280 |
ZGR2# |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12560 |
ZGR2# |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-20410 |
ZGR2# |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-12110 |
ZGR2# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
ZGR2# |
1 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 82824-34100 |
ZGR2# |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 90980-12398 |
ZGR2# |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12110 |
ZGR2# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-C0090 | ||||
| 90119-C0098 | ||||
| 90119-C0100 | ||||
| 90119-C0208 | ||||
| 90178-C0032 | ||||

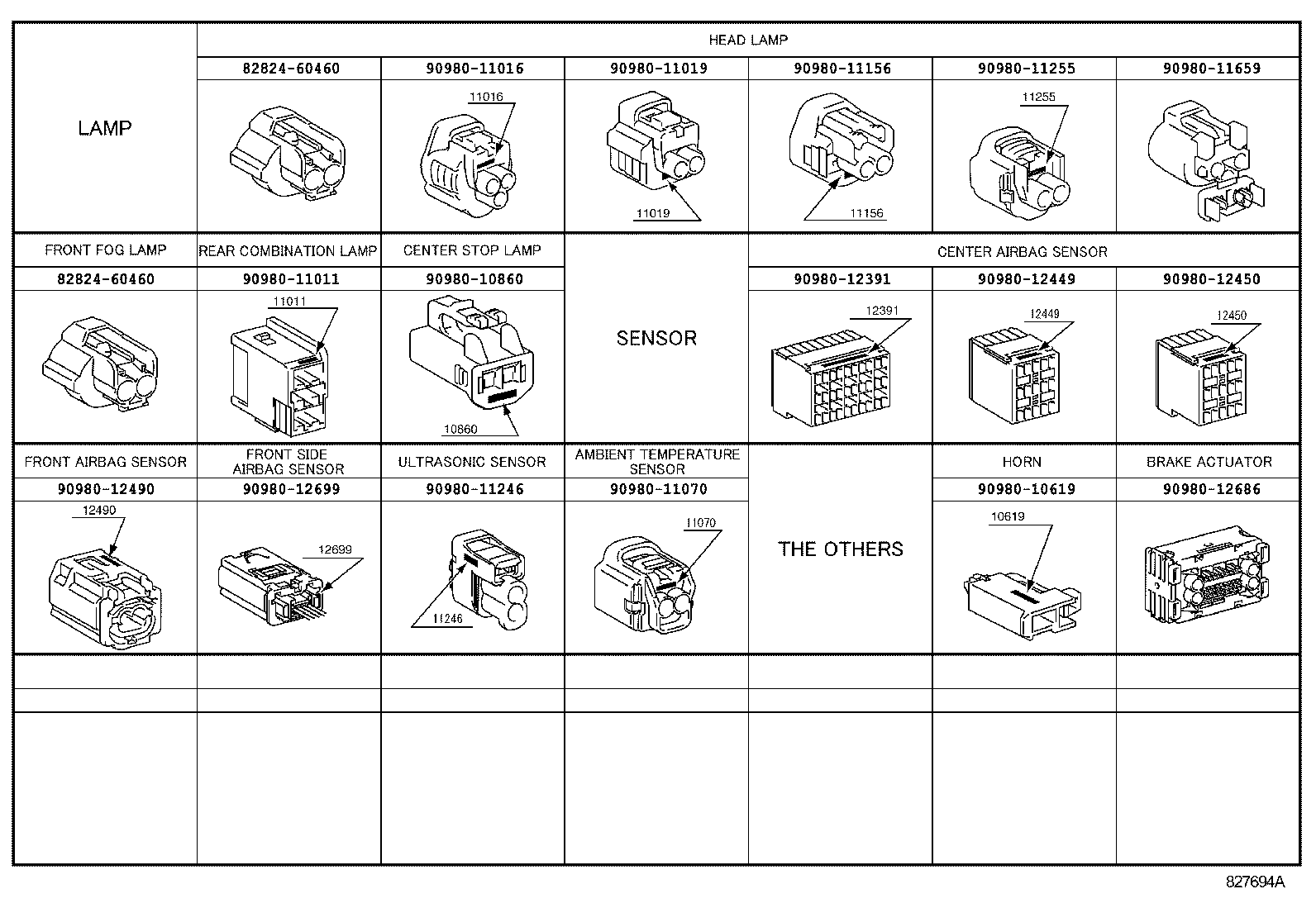

ILLUST NO. 9 OF10(1106- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10619 | ||||
| 90980-10860 | ||||
| 90980-11011 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11070 | ||||
| 90980-11156 | ||||
| 90980-11246 | ||||
| 90980-11255 | ||||
| 90980-11659 | ||||
| 90980-12391 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12490 | ||||
| 90980-12686 | ||||
| 90980-12699 | ||||

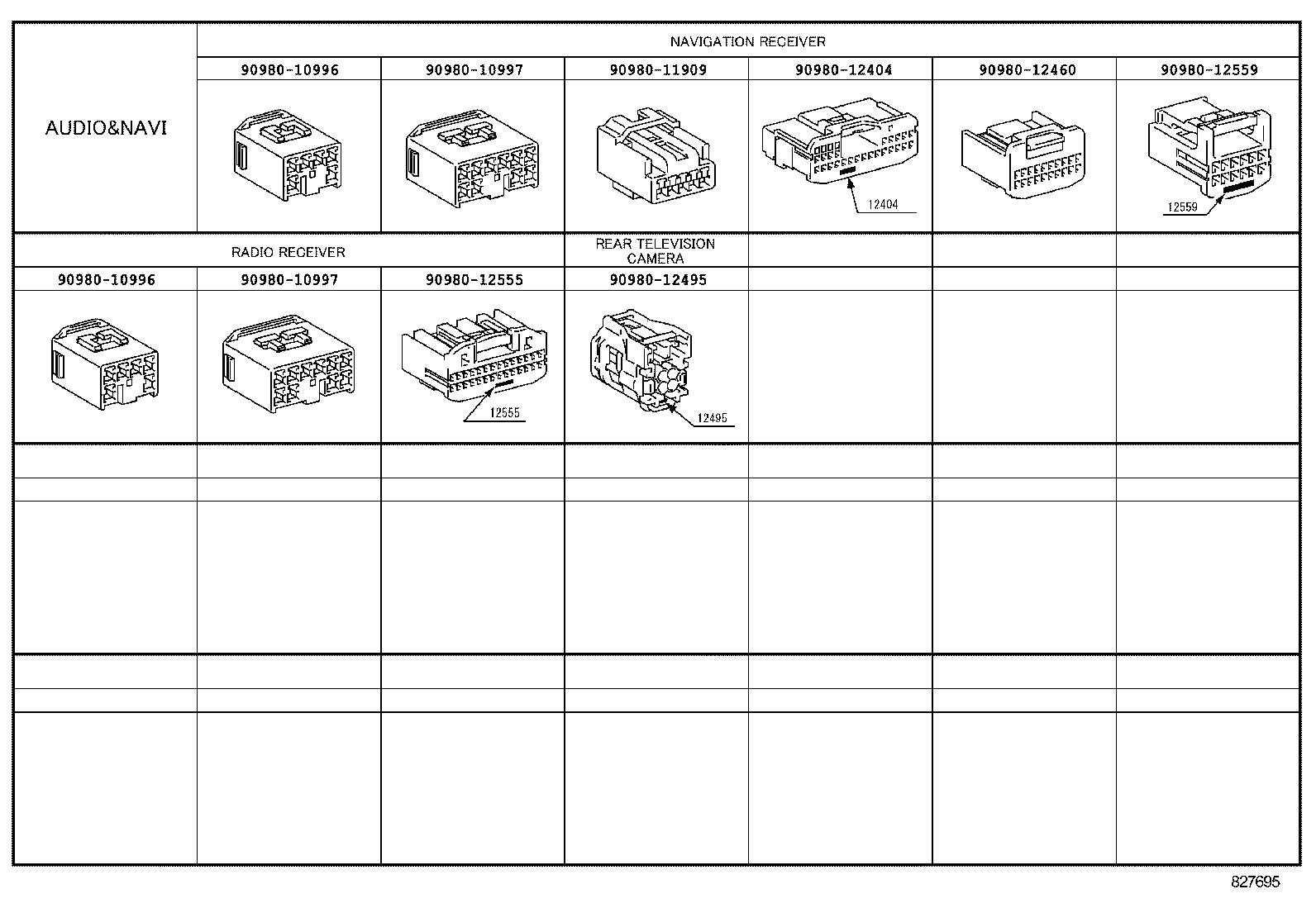

ILLUST NO.10 OF10(1106- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11909 | ||||
| 90980-12404 | ||||
| 90980-12460 | ||||
| 90980-12495 | ||||
| 90980-12555 | ||||
| 90980-12559 | ||||

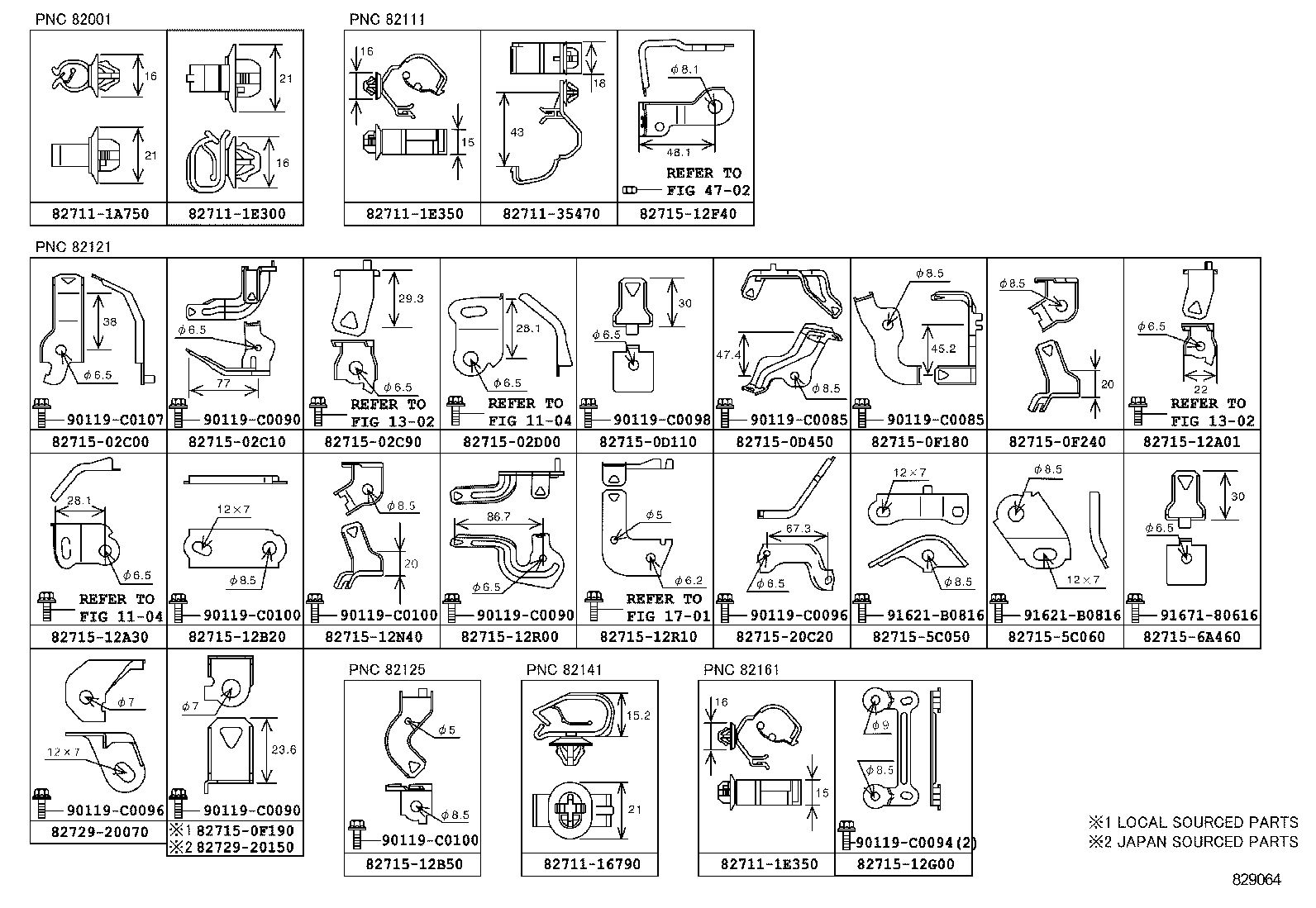

ILLUST NO. 7 OF10(1106- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16790 | ||||
| 82711-1A750 | ||||
| 82711-1E300 | ||||
| 82711-1E350 | ||||
| 82711-35470 | ||||
| 82715-02C00 | ||||
| 82715-02C10 | ||||
| 82715-02C90 | ||||
| 82715-02D00 | ||||
| 82715-0D110 | ||||
| 82715-0D450 | ||||
| 82715-0F180 | ||||
| 82715-0F190 | ||||
| 82715-0F240 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-12B20 | ||||
| 82715-12B50 | ||||
| 82715-12F40 | ||||
| 82715-12G00 | ||||
| 82715-12N40 | ||||
| 82715-12R00 | ||||
| 82715-12R10 | ||||
| 82715-20C20 | ||||
| 82715-5C050 | ||||
| 82715-5C060 | ||||
| 82715-6A460 | ||||
| 82729-20070 | ||||
| 82729-20150 | ||||
| 90119-C0085 | ||||
| 90119-C0090 | ||||
| 90119-C0094 | ||||
| 90119-C0096 | ||||
| 90119-C0098 | ||||
| 90119-C0100 | ||||
| 90119-C0107 | ||||
| 91621-B0816 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1302 | ||||
| 1701 | ||||
| 4702 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
