ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1106- )

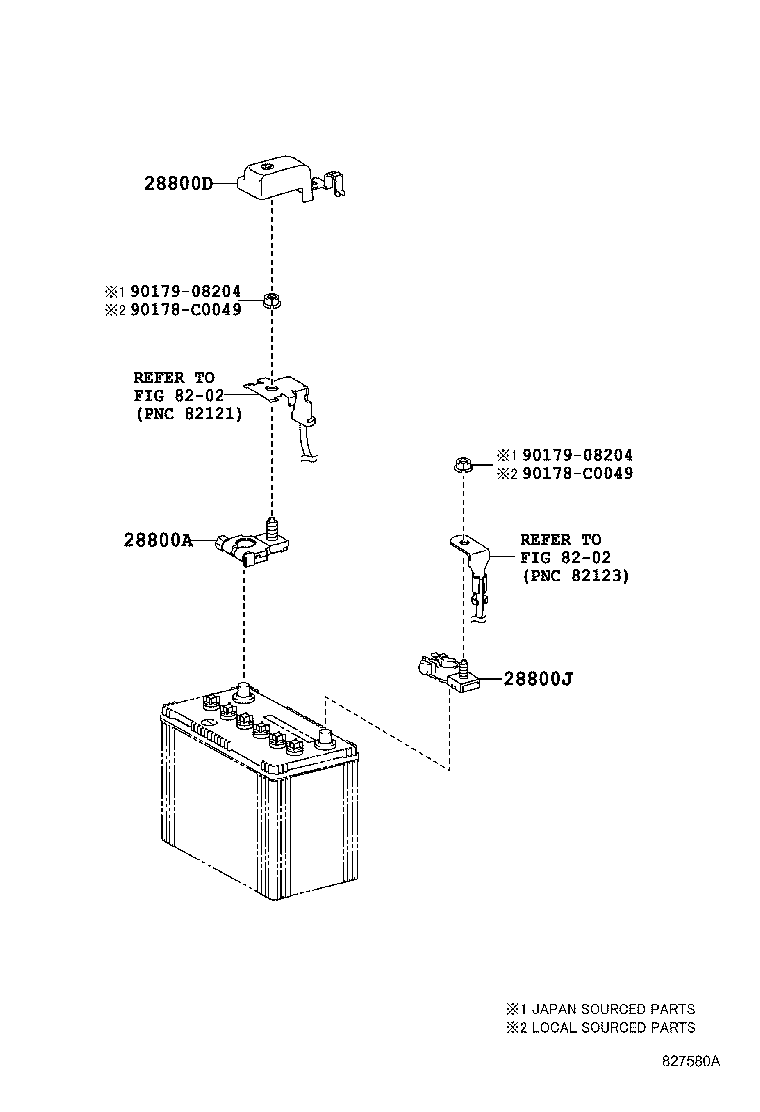

Click highlighted areas on diagram

diagram 28800A 28800D 28800J 8202 8202 90178C0049 90178C0049 9017908204 9017908204
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05054

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12490

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06070

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
Common parts
90178-C0049
90179-08204
Linked diagrams
8202
