ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

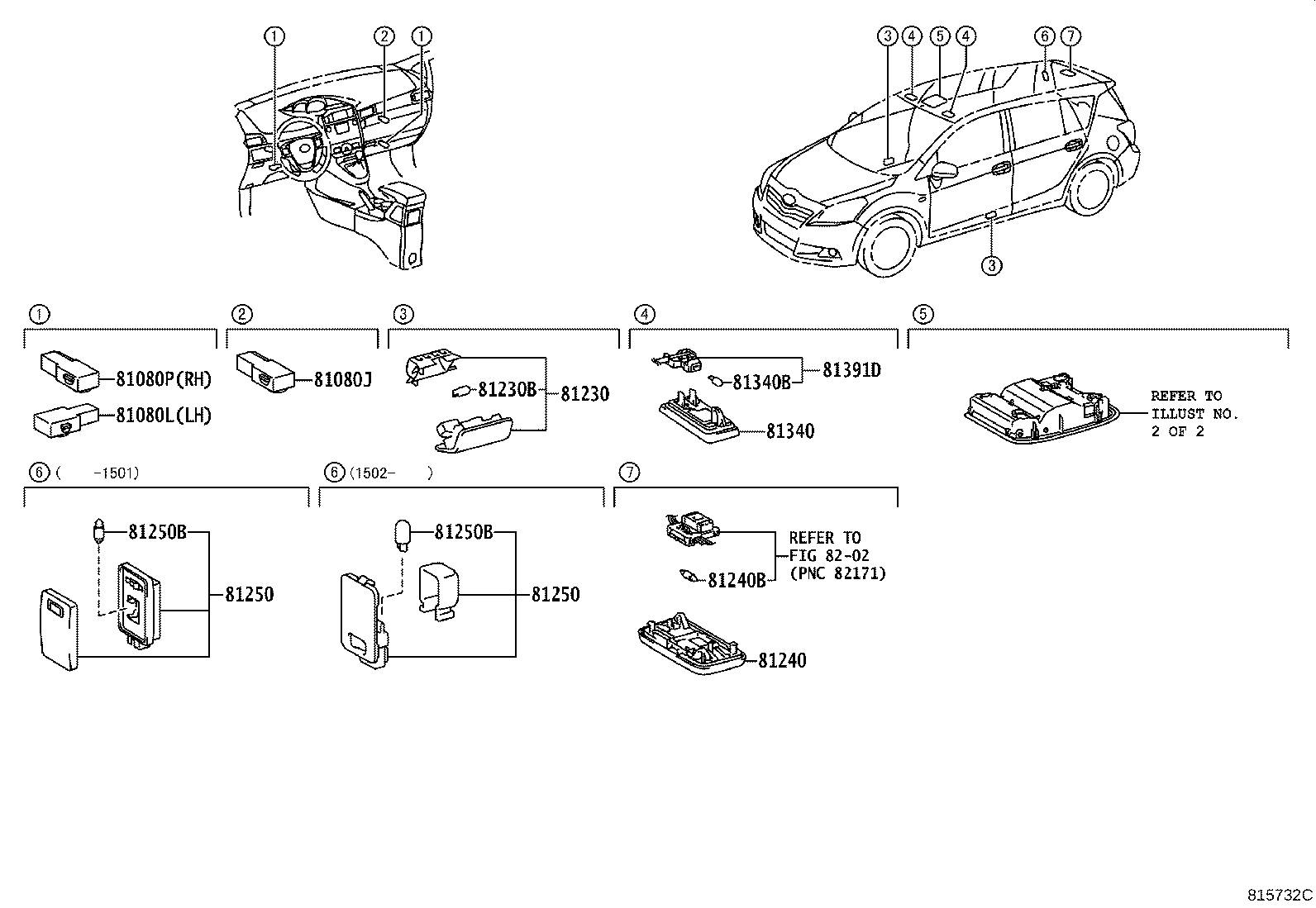

ILLUST NO. 1 OF 2(1106- )

Click highlighted areas on diagram

diagram 81080J 81080L 81080P 81230 81230B 81240 81240B 81250 81250 81250B 81250B 81340 81340B 81391D 8202
Part # Description Qty Price
81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-48010

ZGR2#

 1
81080L - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080-48010

ZGR2#

 1
81080P - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080-48010

ZGR2#

 1
81230 - LAMP ASSY, COURTESY
81230-06020

ZGR2#..G

 2
81230-06020

ZGR21,22..V

 2
81230B - BULB(FOR COURTESY LAMP)
90981-CC001

ZGR2#..G

12V 5W

 2
90981-CC001

ZGR21,22..V

12V 5W

 2
81240 - LAMP ASSY, ROOM, NO.1
81240-60060E1

ZGR2#

GREGE,TRIM4#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

ZGR2#

12V 8W

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-0F010

ZGR2#

 1
81330-58010

ZGR2#

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-0F010

ZGR2#

 1
81330-58010

ZGR2#

 1
81250B - BULB, ROOM LAMP, NO.2
99132-13050

ZGR2#

12V 5W

 1
99132-12050

ZGR2#

12V 5W

 1
81250B - BULB, ROOM LAMP, NO.2
99132-13050

ZGR2#

12V 5W

 1
99132-12050

ZGR2#

12V 5W

 1
81340 - LAMP ASSY, VANITY
81340-0F010

ZGR2#

 2
81340-30100E1

ZGR2#

GREGE,TRIM4#

 2
81340B - BULB (FOR VANITY LAMP)
90981-11062

ZGR2#

12V 8W

 2
81391D - HOLDER, LAMP BULB
81391-30010

ZGR2#

 2
Linked diagrams
8202

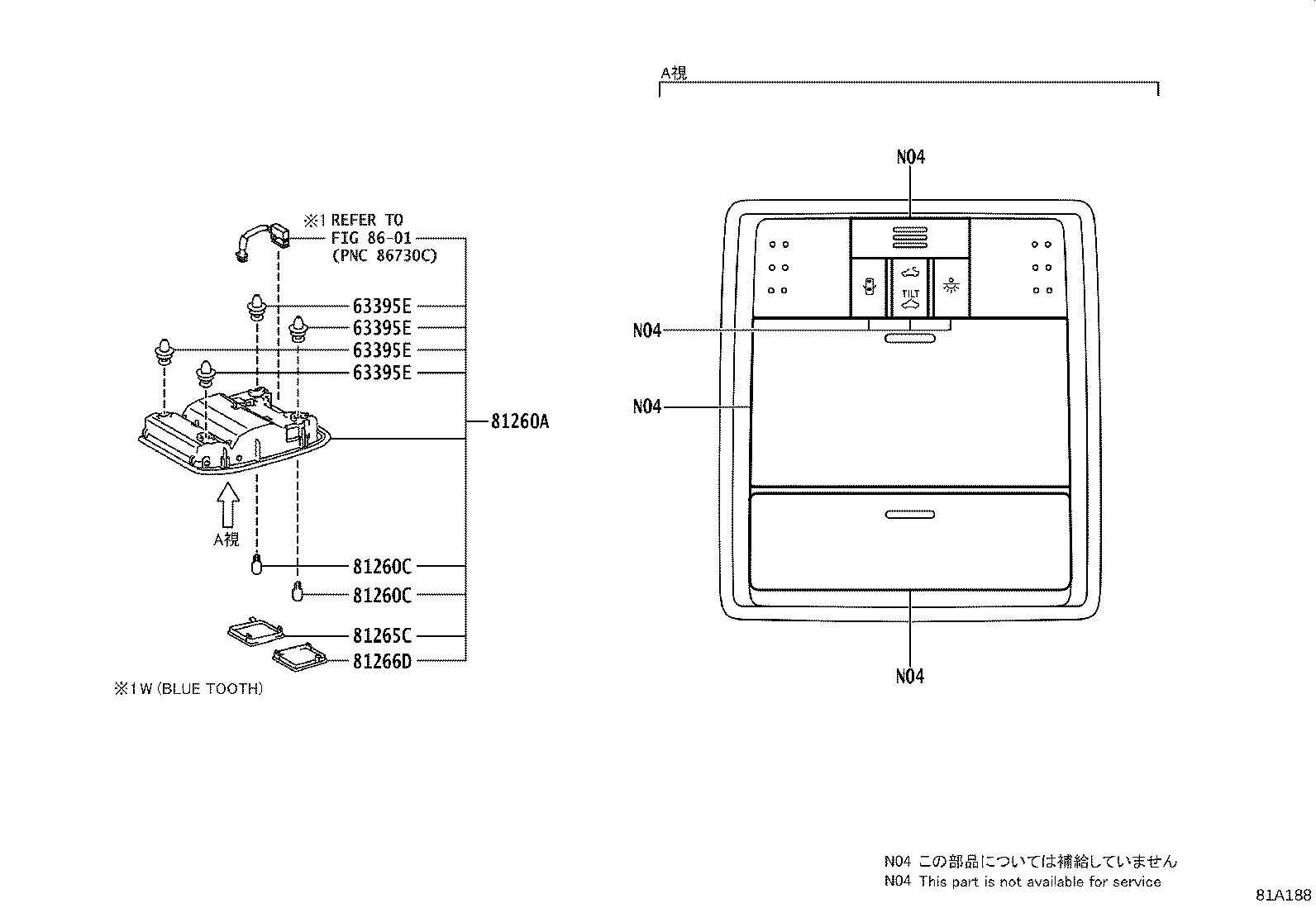

ILLUST NO. 2 OF 2(1106- )

Click highlighted areas on diagram

diagram 63395E 63395E 63395E 63395E 81260A 81260C 81260C 81265C 81266D 8601
Part # Description Qty Price
63395E - CLIP(FOR MAP LAMP)
90467-10161

ZGR2#

 4
63395E - CLIP(FOR MAP LAMP)
90467-10161

ZGR2#

 4
63395E - CLIP(FOR MAP LAMP)
90467-10161

ZGR2#

 4
63395E - CLIP(FOR MAP LAMP)
90467-10161

ZGR2#

 4
81260A - LAMP ASSY, MAP
81260-0F150E0

ZGR21,22..CVFC..G

SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#

 1
81260-0F180E0

ZGR21,22..CVFC..G

AUDIO-NAVIGATION 6SPEAKER BLUETOOTH,GREGE,TRIM4#

 1
81260-0F170E0

ZGR21..E;ZGR20,22..E,G

GREGE,TRIM4#

 1
81260-0F160E0

ZGR21,22..V

AUDIO-NAVIGATION 6SPEAKER BLUETOOTH,GREGE,TRIM4#

 1
81260-0F170E0

ZGR21..G

GREGE,TRIM4#

 1
81260-0F150E0

ZGR21,22..V

GREGE,TRIM4#

 1
81260-0F160E0

ZGR21,22..CVFC..G

SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-NAVIGATION 6SPEAKER BLUETOOTH,GREGE,TRIM4#

 1
81260-0F150E0

ZGR21..G

GREGE,TRIM4#

 1
81260-0F160E0

ZGR21..CVFC..G

AUDIO-NAVIGATION 6SPEAKER BLUETOOTH,GREGE,TRIM4#

 1
81260C - BULB(FOR MAP LAMP)
99132-12050

ZGR2#

12V 5W

 2
81260C - BULB(FOR MAP LAMP)
99132-12050

ZGR2#

12V 5W

 2
81265C - LENS, MAP LAMP, NO.1
81265-0F150

ZGR2#

 1
81266D - LENS, MAP LAMP, NO.2
81266-0F150

ZGR2#

 1
Linked diagrams
8601
