ZGR21L-GWXEKC (2011)
Toyota E'Z
Production
Jun 2011
-
Dec 2016
Engine
2ZRFE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1106- )

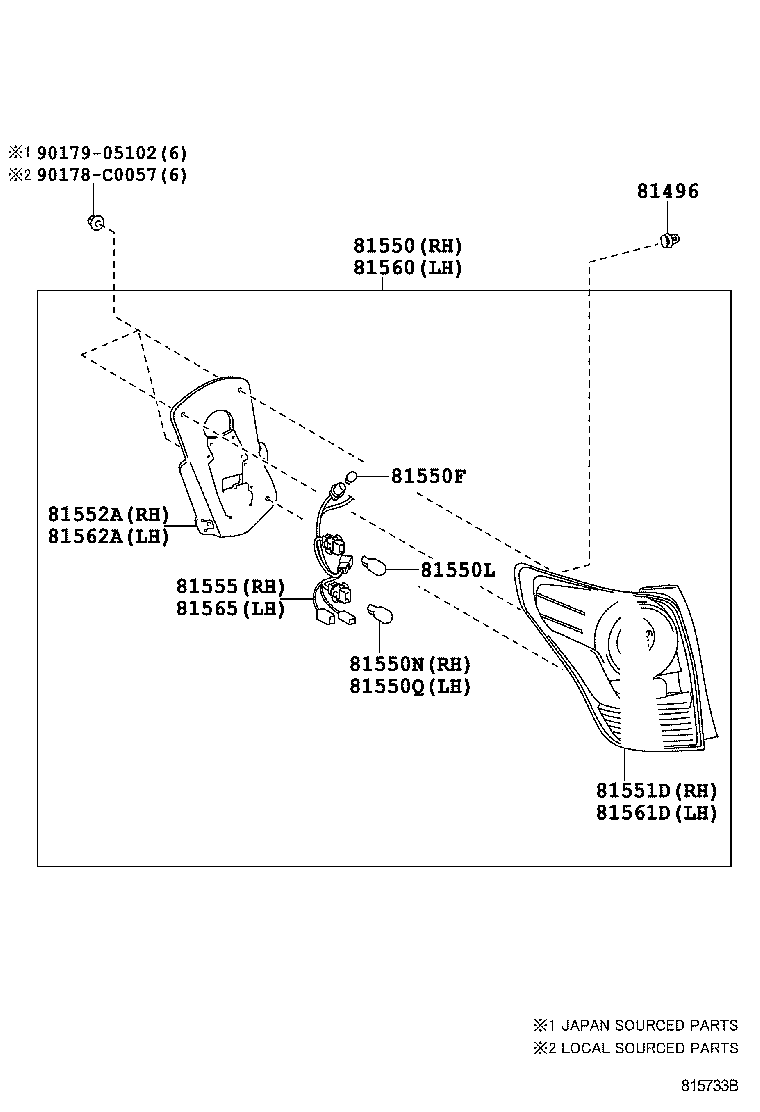

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-06010 |
ZGR2# |
2 | ||
| 81496-60010 |
ZGR2# |
2 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-0F110 |
ZGR2# |
1 | ||
| 81550-0F111 |
ZGR2# |
1 | ||
| 81550F - BULB, TAIL LAMP | ||||
| 99132-12050 |
ZGR2# |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15021 |
ZGR2# |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-13043 |
ZGR2# |
1 | ||
| 81550Q - BULB, REAR FOG LAMP, NO.1 | ||||
| 90981-13043 |
ZGR2# |
1 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-0F110 |
ZGR2# |
1 | ||
| 81551-0F111 |
ZGR2# |
1 | ||
| 81552A - GASKET, REAR COMBINATION LAMP, RH | ||||
| 81552-0F110 |
ZGR2# |
1 | ||
| 81554-0F110 |
ZGR2# |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-0F110 |
ZGR2# |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-0F111 |
ZGR2# |
1 | ||
| 81560-0F110 |
ZGR2# |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-0F111 |
ZGR2# |
1 | ||
| 81561-0F110 |
ZGR2# |
1 | ||
| 81562A - GASKET, REAR COMBINATION LAMP, LH | ||||
| 81554-0F110 |
ZGR2# |
1 | ||
| 81552-0F110 |
ZGR2# |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-0F110 |
ZGR2# |
1 | ||
| Common parts | ||||
| 90178-C0057 | ||||
| 90179-05102 | ||||
