ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1106- )E,G

Click highlighted areas on diagram

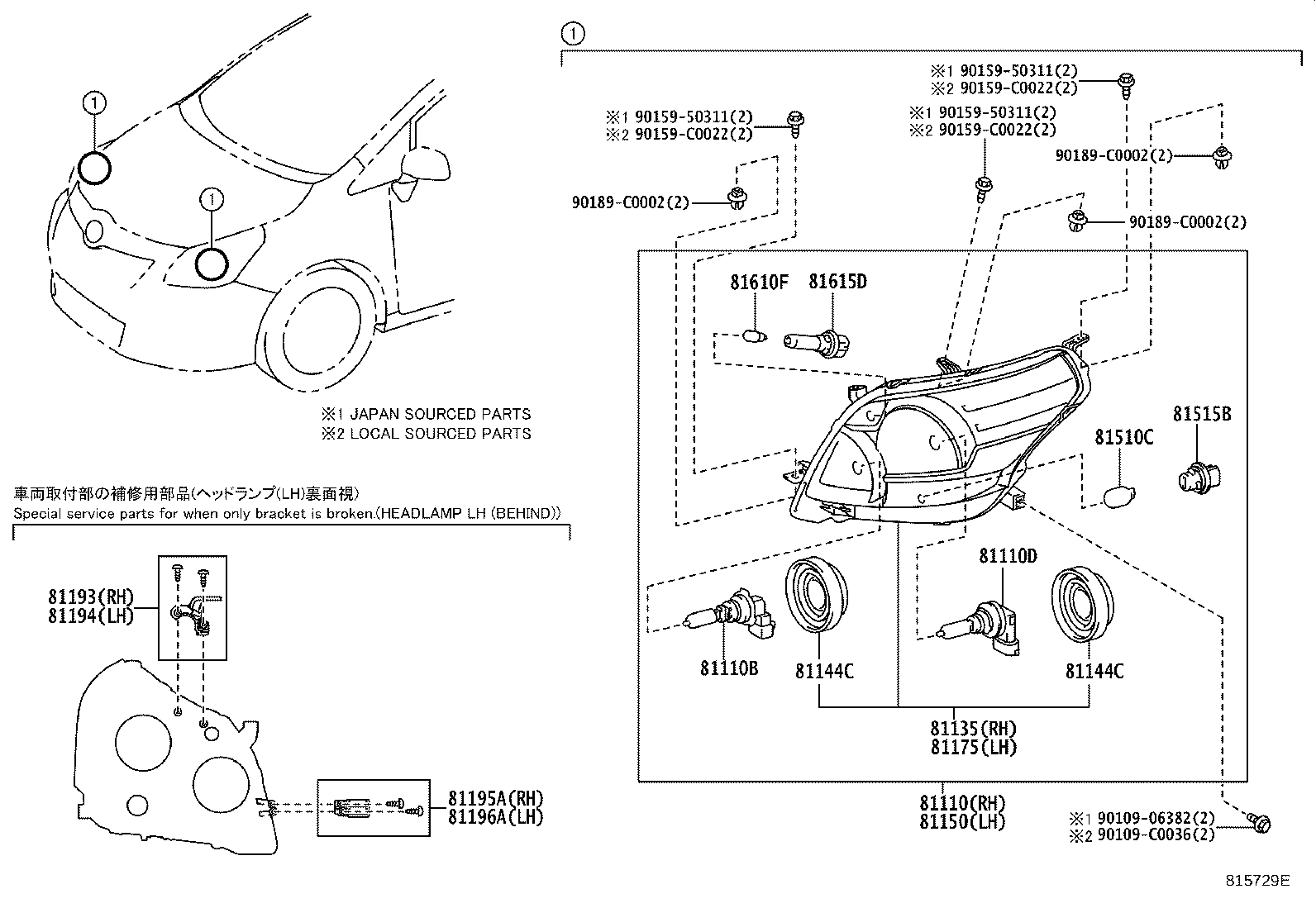

HALOGEN HEADLAMP

diagram 81110 81110B 81110D 81135 81144C 81144C 81150 81175 81193 81194 81195A 81196A 81510C 81515B 81610F 81615D 9010906382 90109C0036 9015950311 9015950311 9015950311 90159C0022 90159C0022 90159C0022 90189C0002 90189C0002 90189C0002
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-0F140

ZGR21,22..V

 1
81110-0F131

ZGR2#..E,G

 1
81110-0F130

ZGR2#..E,G

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046

ZGR2#

12V65W(SAE),60W(ECE)

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13075

ZGR2#..E,G

12V 55W,HALOGEN

 1
81135 - UNIT ASSY, HEADLAMP, RH
81145-0F140

ZGR21,22..V

 1
81130-0F131

ZGR2#..E,G

 1
81130-0F130

ZGR2#..E,G

 1
81144C - COVER, HEADLAMP SOCKET
90075-65006

ZGR21,22..V

 2
90075-65006

ZGR2#..E,G

 4
81144C - COVER, HEADLAMP SOCKET
90075-65006

ZGR21,22..V

 2
90075-65006

ZGR2#..E,G

 4
81150 - HEADLAMP ASSY, LH
81150-0F130

ZGR2#..E,G

 1
81150-0F140

ZGR21,22..V

 1
81150-0F131

ZGR2#..E,G

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-0F130

ZGR2#..E,G

 1
81170-0F131

ZGR2#..E,G

 1
81185-0F140

ZGR21,22..V

 1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-0F030

ZGR2#

 1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-0F030

ZGR2#

 1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-0F030

ZGR2#

 1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-0F030

ZGR2#

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021

ZGR2#

12V 21W,AMBER

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028

ZGR2#

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

ZGR2#

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60077

ZGR2#

 2
Common parts
90109-06382
90109-C0036
90159-50311
90159-C0022
90189-C0002

(1106- )V

Click highlighted areas on diagram

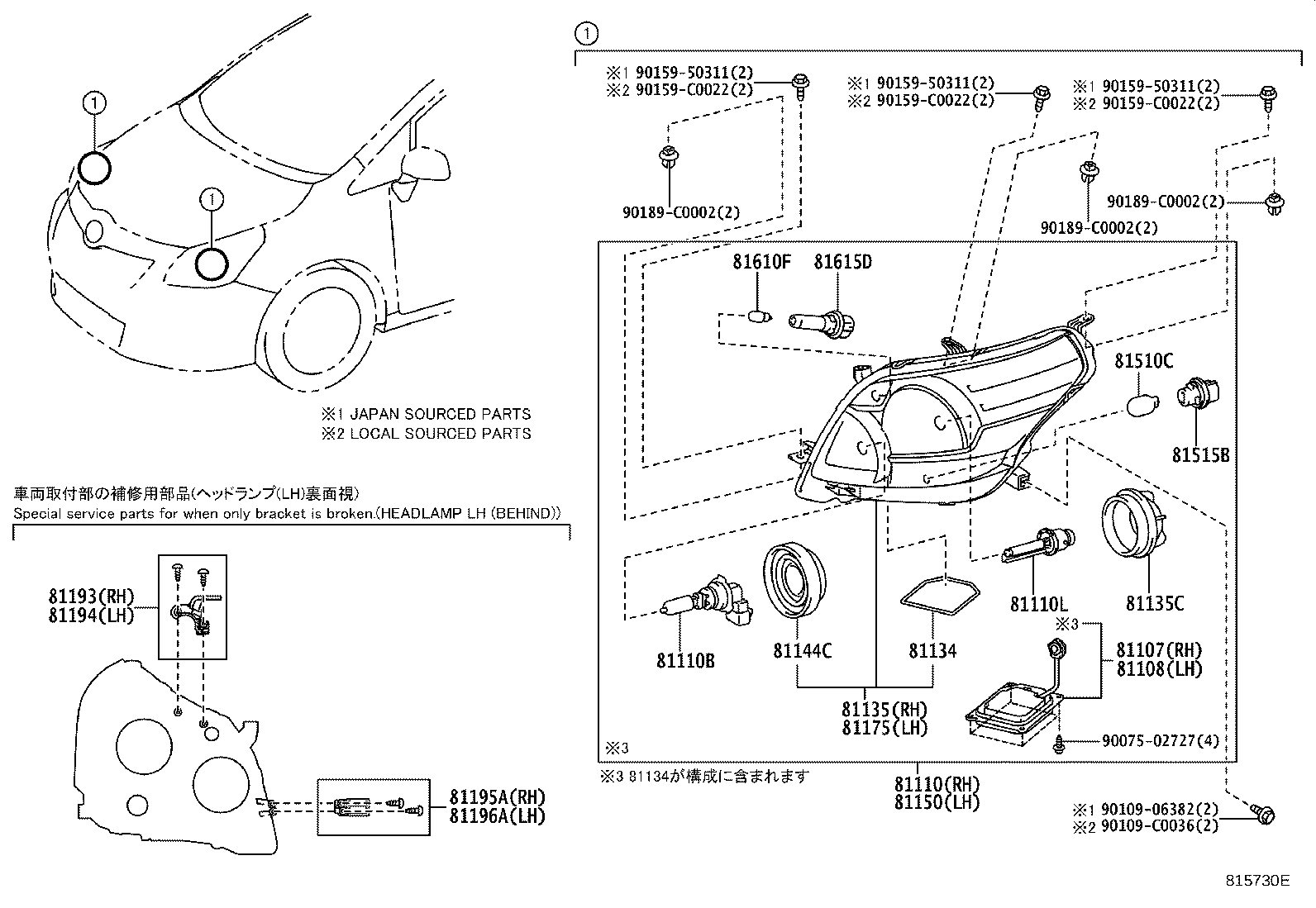

DISCHARGE HEADLAMP

diagram 81107 81108 81110 81110B 81110L 81134 81135 81135C 81144C 81150 81175 81193 81194 81195A 81196A 81510C 81515B 81610F 81615D 9007502727 9010906382 90109C0036 9015950311 9015950311 9015950311 90159C0022 90159C0022 90159C0022 90189C0002 90189C0002 90189C0002
Part # Description Qty Price
81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81107-06400

ZGR21,22..V

 1
81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81107-06400

ZGR21,22..V

 1
81110 - HEADLAMP ASSY, RH
81110-0F140

ZGR21,22..V

 1
81110-0F131

ZGR2#..E,G

 1
81110-0F130

ZGR2#..E,G

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046

ZGR2#

12V65W(SAE),60W(ECE)

 2
81110L - BULB, DISCHARGE HEADLAMP
90981-20029

ZGR21,22..V

43V 35W

 2
90981-20029

ZGR21,22..V

43V 35W

 1
81134 - GASKET, HEADLAMP
90075-68007

ZGR21,22..V

 1
81135 - UNIT ASSY, HEADLAMP, RH
81145-0F140

ZGR21,22..V

 1
81130-0F131

ZGR2#..E,G

 1
81130-0F130

ZGR2#..E,G

 1
81135C - COVER, HEADLAMP BACK, NO.1
81135-3A150

ZGR21,22..V

 2
81144C - COVER, HEADLAMP SOCKET
90075-65006

ZGR21,22..V

 2
90075-65006

ZGR2#..E,G

 4
81150 - HEADLAMP ASSY, LH
81150-0F130

ZGR2#..E,G

 1
81150-0F140

ZGR21,22..V

 1
81150-0F131

ZGR2#..E,G

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-0F130

ZGR2#..E,G

 1
81170-0F131

ZGR2#..E,G

 1
81185-0F140

ZGR21,22..V

 1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-0F030

ZGR2#

 1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-0F030

ZGR2#

 1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-0F030

ZGR2#

 1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-0F030

ZGR2#

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021

ZGR2#

12V 21W,AMBER

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028

ZGR2#

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

ZGR2#

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60077

ZGR2#

 2
Common parts
90075-02727
90109-06382
90109-C0036
90159-50311
90159-C0022
90189-C0002
