ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1106- )

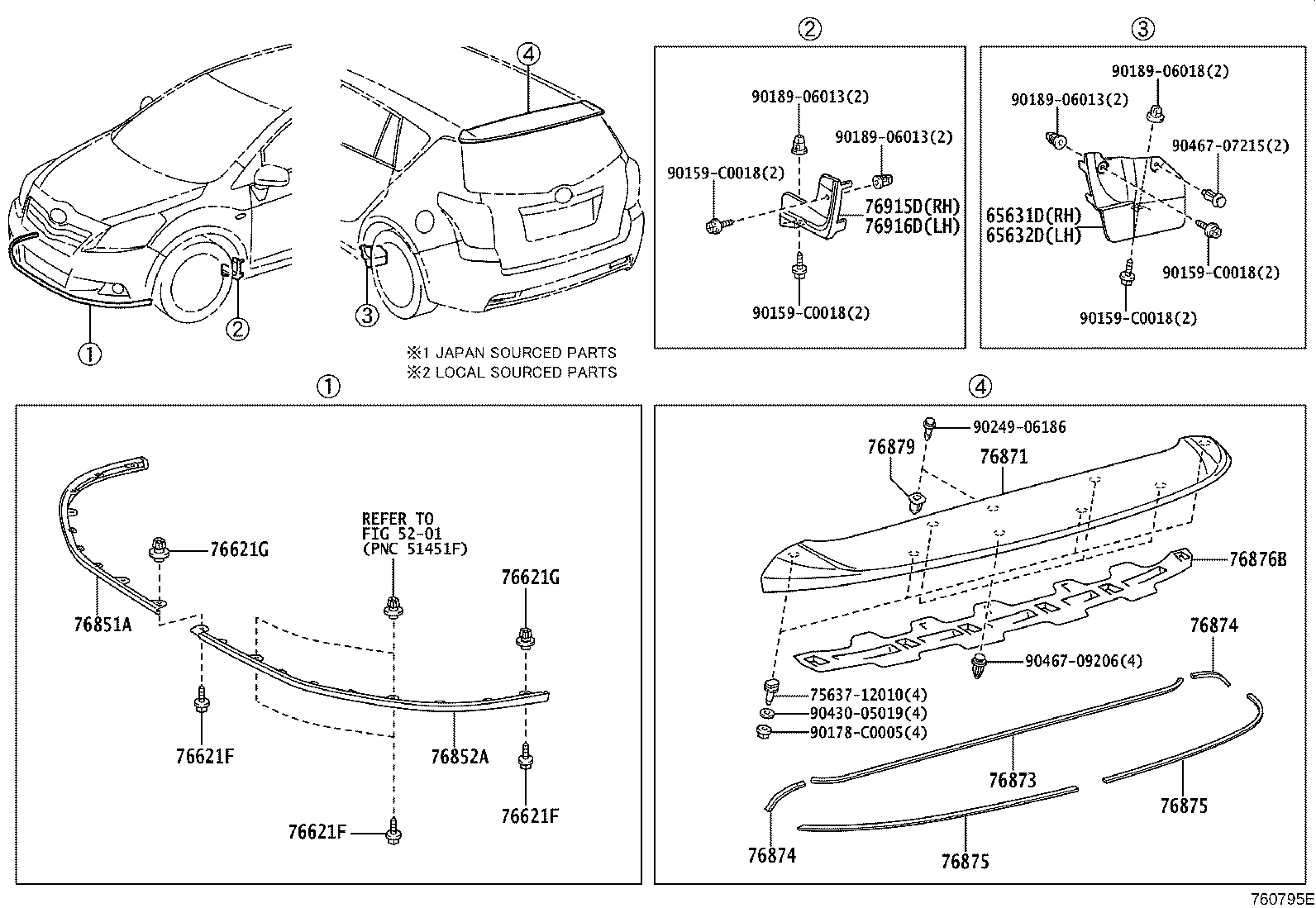

Click highlighted areas on diagram

diagram 5201 65631D 65632D 7563712010 76621F 76621F 76621F 76621G 76621G 76851A 76852A 76871 76873 76874 76874 76875 76875 76876B 76879 76915D 76916D 90159C0018 90159C0018 90159C0018 90159C0018 90178C0005 9018906013 9018906013 9018906013 9018906018 9024906186 9043005019 9046707215 9046709206
Part # Description Qty Price
65631D - PLATE, REAR WHEEL HOUSE, FRONT RH
65631-0F030

ZGR2#

 1
65632D - PLATE, REAR WHEEL HOUSE, FRONT LH
65632-0F030

ZGR2#

 1
76621F - SCREW, NO.1
90159-60488

ZGR2#

 7
90159-C0012

ZGR2#

(L)

 7
90159-60488

ZGR2#

(J)

 7
76621F - SCREW, NO.1
90159-60488

ZGR2#

 7
90159-C0012

ZGR2#

(L)

 7
90159-60488

ZGR2#

(J)

 7
76621F - SCREW, NO.1
90159-60488

ZGR2#

 7
90159-C0012

ZGR2#

(L)

 7
90159-60488

ZGR2#

(J)

 7
76621G - GROMMET, NO.1
90189-05144

ZGR2#

 3
76621G - GROMMET, NO.1
90189-05144

ZGR2#

 3
76851A - COVER, FRONT SPOILER, RH
76851-0F904

ZGR2#

 1
76852A - COVER, FRONT SPOILER, LH
76852-0F904

ZGR2#

 1
76871 - SPOILER, REAR
76871-0F902

ZGR2#

 1
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-0F020

ZGR2#

 1
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-0F020

ZGR2#

 2
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-0F020

ZGR2#

 2
76875 - PROTECTOR, REAR SPOILER, NO.4
76875-0F020

ZGR2#

 2
76875 - PROTECTOR, REAR SPOILER, NO.4
76875-0F020

ZGR2#

 2
76876B - INSERT, REAR SPOILER
76876-0F030

ZGR2#

 1
76879 - CLIP, REAR SPOILER, NO.1
90467-09075

ZGR2#

 1
76915D - MUDGUARD, SIDE, FRONT RH
76915-0F030

ZGR2#

 1
76916D - MUDGUARD, SIDE, FRONT LH
76916-0F030

ZGR2#

 1
Common parts
75637-12010
90159-C0018
90178-C0005
90189-06013
90189-06018
90249-06186
90430-05019
90467-07215
90467-09206
Linked diagrams
5201
