ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1110- )

Click highlighted areas on diagram

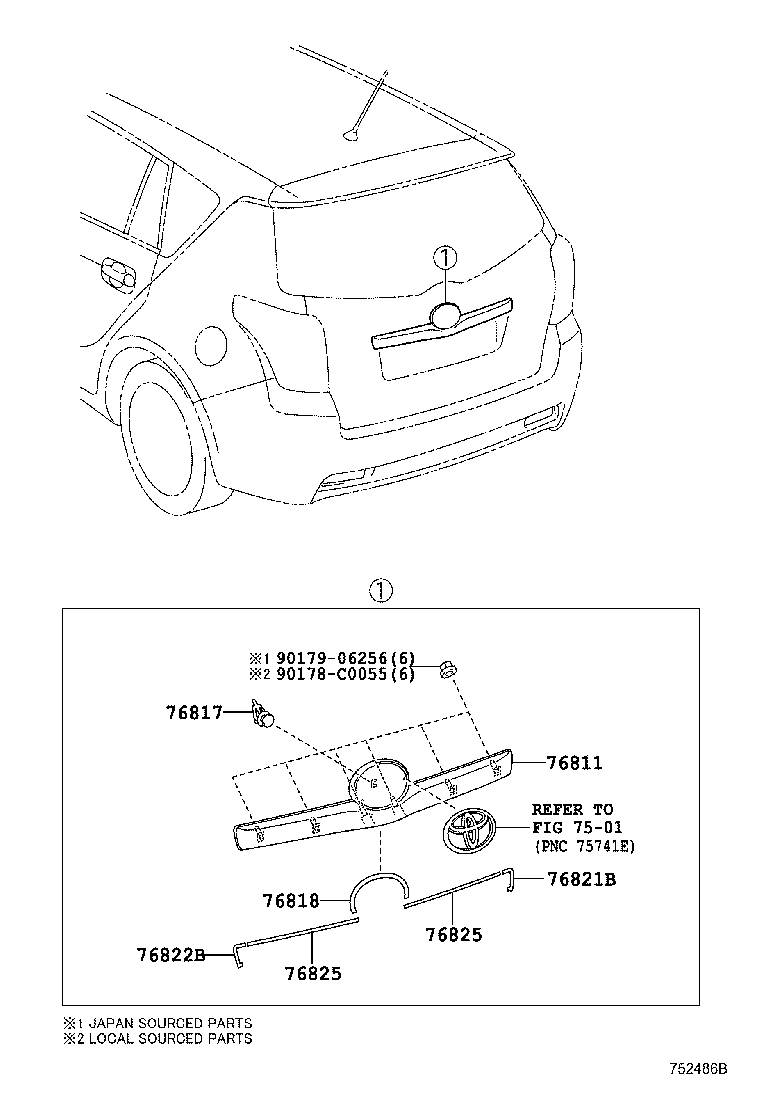

diagram 7501 76811 76817 76818 76821B 76822B 76825 76825 90178C0055 9017906256
Part # Description Qty Price
76811 - GARNISH, BACK DOOR, OUTSIDE
76811-0F070

ZGR21,22..CVFC..G

AUDIO-NAVIGATION 6SPEAKER BLUETOOTH

 1
76811-0F070

ZGR21,22..V

 1
76811-0F080

ZGR2#..E,G

 1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-0D010

ZGR2#

 1
76818 - PAD, BACK DOOR OUTSIDE GARNISH
76818-0F030

ZGR2#

 1
76821B - PROTECTOR, BACK DOOR GARNISH SIDE, RH
76821-0F020

ZGR2#

 1
76822B - PROTECTOR, BACK DOOR GARNISH SIDE, LH
76822-0F020

ZGR2#

 1
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-0F040

ZGR2#

 2
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-0F040

ZGR2#

 2
Common parts
90178-C0055
90179-06256
Linked diagrams
7501

(1106-1110)

Click highlighted areas on diagram

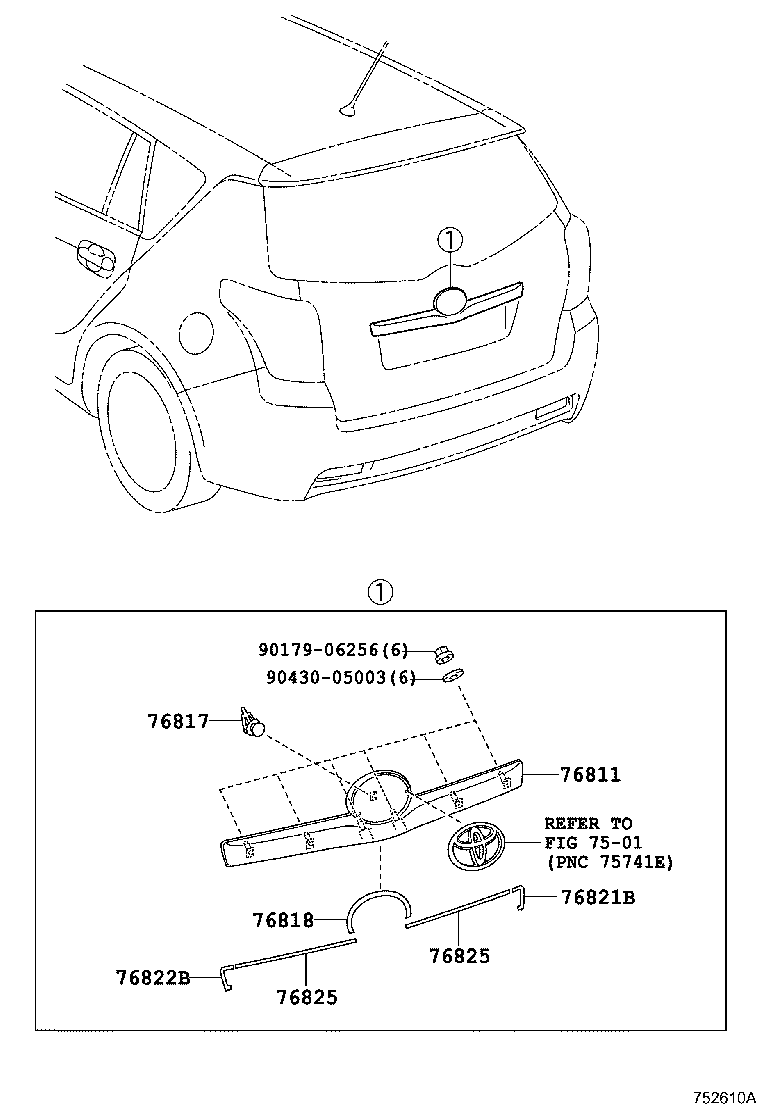

diagram 7501 76811 76817 76818 76821B 76822B 76825 76825 9017906256 9043005003
Part # Description Qty Price
76811 - GARNISH, BACK DOOR, OUTSIDE
76811-0F070

ZGR21,22..CVFC..G

AUDIO-NAVIGATION 6SPEAKER BLUETOOTH

 1
76811-0F070

ZGR21,22..V

 1
76811-0F080

ZGR2#..E,G

 1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-0D010

ZGR2#

 1
76818 - PAD, BACK DOOR OUTSIDE GARNISH
76818-0F030

ZGR2#

 1
76821B - PROTECTOR, BACK DOOR GARNISH SIDE, RH
76821-0F020

ZGR2#

 1
76822B - PROTECTOR, BACK DOOR GARNISH SIDE, LH
76822-0F020

ZGR2#

 1
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-0F040

ZGR2#

 2
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-0F040

ZGR2#

 2
Common parts
90179-06256
90430-05003
Linked diagrams
7501
