ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1106- )

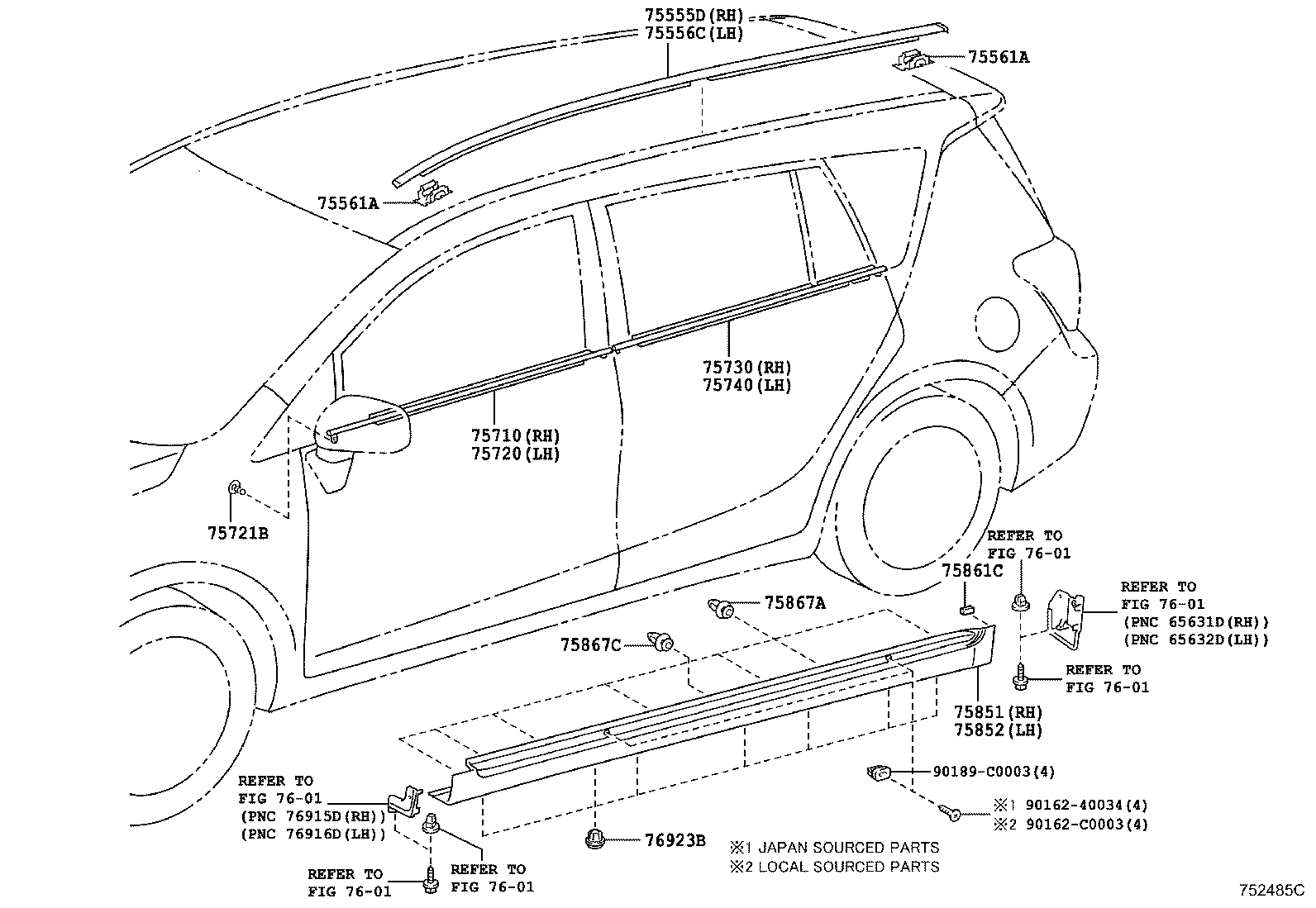

Click highlighted areas on diagram

diagram 75555D 75556C 75561A 75561A 75710 75720 75721B 75730 75740 75851 75852 75861C 75867A 75867C 7601 7601 7601 7601 7601 7601 76923B 9016240034 90162C0003 90189C0003
Part # Description Qty Price
75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75555-0F040

ZGR2#

 1
75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75556-0F040

ZGR2#

 1
75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING
75561-52040

ZGR2#

 4
75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING
75561-52040

ZGR2#

 4
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
75710-0F030

ZGR2#

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
75720-0F030

ZGR2#

 1
75721B - CLIP(FOR FRONT DOOR BELT MOULDING SET)
90467-0504522

ZGR2#

BLACK

 2
75730 - MOULDING ASSY, REAR DOOR BELT, RH
75730-0F030

ZGR2#

 1
75740 - MOULDING ASSY, REAR DOOR BELT, LH
75740-0F030

ZGR2#

 1
75851 - MOULDING, ROCKER PANEL, RH
75851-0F901

ZGR2#

 1
75852 - MOULDING, ROCKER PANEL, LH
75852-0F901

ZGR2#

 1
75861C - PAD, ROCKER PANEL MOULDING
75861-0F020

ZGR2#

 2
75867A - CLIP, ROCKER PANEL MOULDING
75867-0F010

ZGR2#

 14
75867C - CLIP, ROCKER PANEL MOULDING
75868-33020

ZGR2#

 2
76923B - RETAINER, SIDE MUDGUARD
76923-0F010

ZGR2#

 14
Common parts
90162-40034
90162-C0003
90189-C0003
Linked diagrams
7601
