ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1106- )

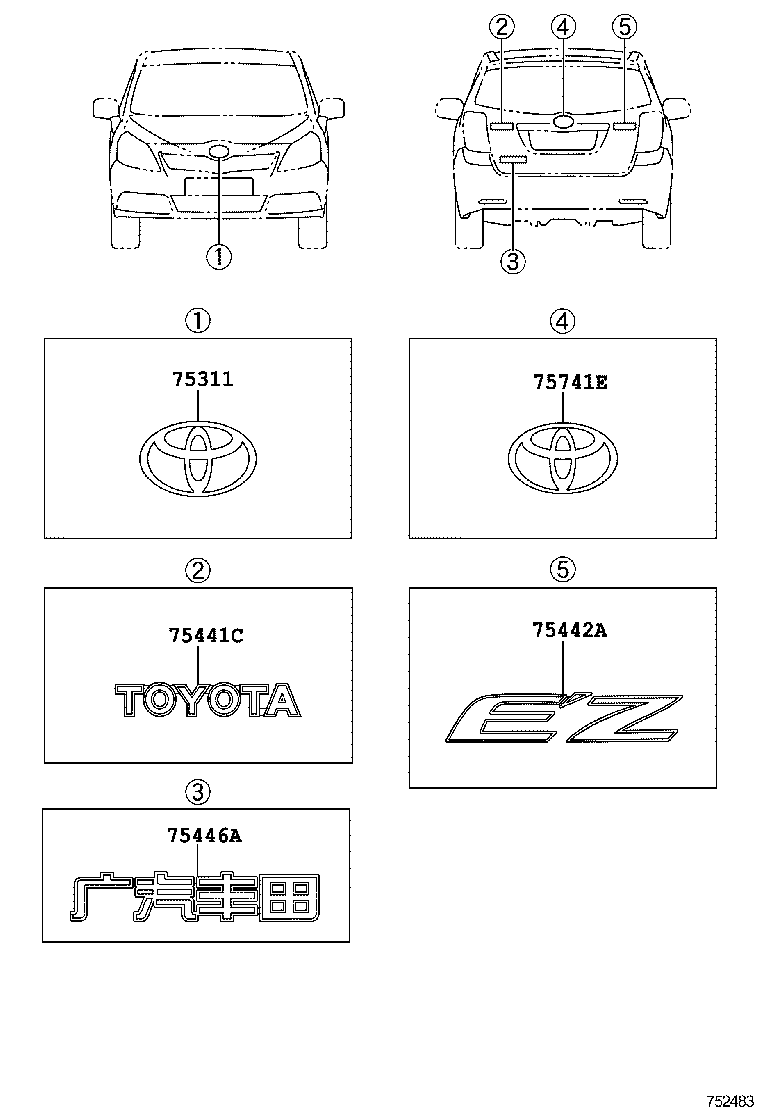

Click highlighted areas on diagram

diagram 75311 75441C 75442A 75446A 75741E
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-0F020

ZGR2#

 1
75441C - PLATE, BACK DOOR NAME
75441-0F040

ZGR2#

TOYOTA

 1
75442A - PLATE, BACK DOOR NAME, NO.2
75442-0F040

ZGR2#

E'Z

 1
75446A - PLATE, BACK DOOR NAME, NO.6
75446-0F010

ZGR2#

 1
75741E - EMBLEM, SYMBOL
90975-02086

ZGR2#

 1
90975-C2011

ZGR2#

 1
