ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1106- )

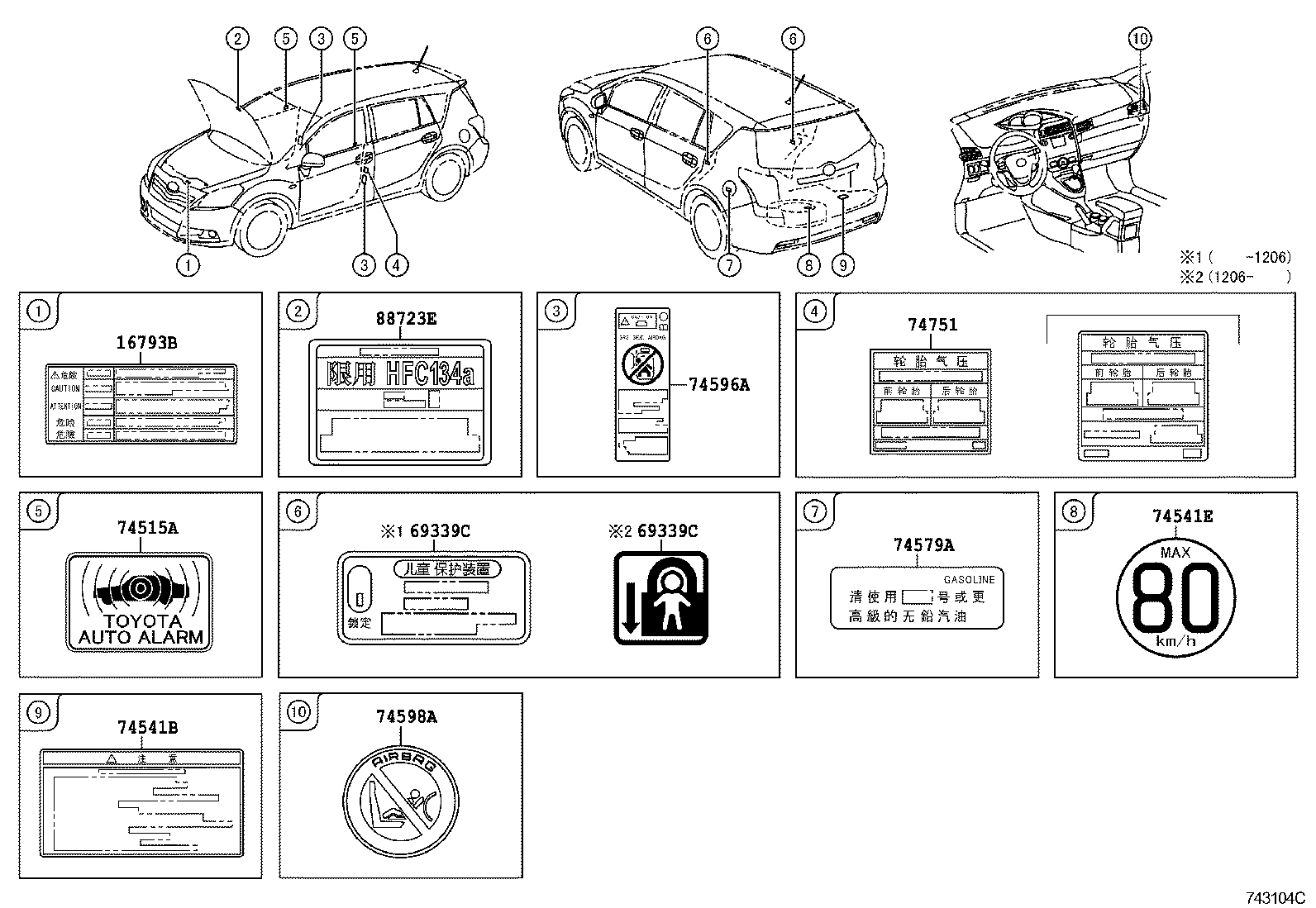

Click highlighted areas on diagram

diagram 16793B 69339C 69339C 74515A 74541B 74541E 74579A 74596A 74598A 74751 88723E
Part # Description Qty Price
16793B - LABEL, COOLING FAN INFORMATION
16793-28020

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-06030

ZGR2#

 2
69339-06080

ZGR2#

 2
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-06030

ZGR2#

 2
69339-06080

ZGR2#

 2
74515A - PLATE, THEFT WARNING
74515-06020

ZGR2#

 2
74579A - LABEL, UNLEADED FUEL INFORMATION
74579-64011

ZGR2#

 1
74579-64010

ZGR2#

 1
74596A - LABEL, SIDE AIR BAG CAUTION
74596-53020

ZGR2#

 2
74598A - LABEL, PASSENGER AIR BAG CAUTION
74598-06040

ZGR2#

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-0F160

ZGR20,21..05S

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-0D020

ZGR2#

 1
