ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

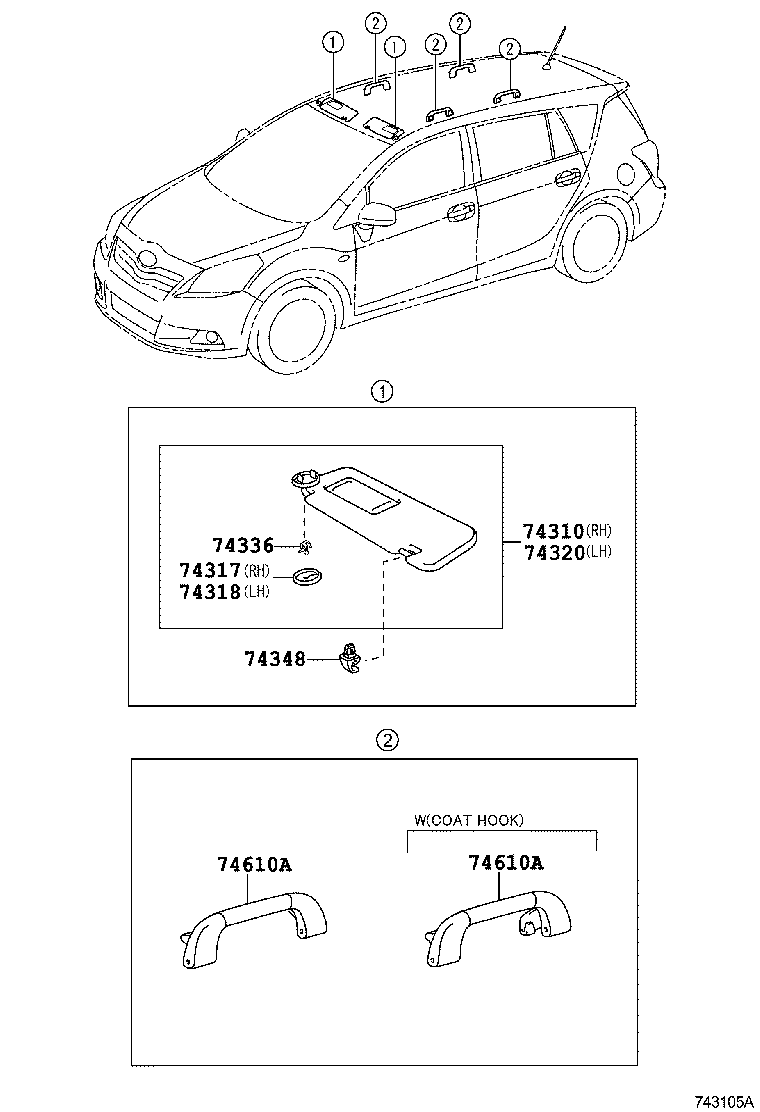

ILLUST NO. 2 OF 2(1106- )

Click highlighted areas on diagram

VISOR & ASSIST GRIP

diagram 74310 74317 74318 74320 74336 74348 74610A 74610A
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-0F130E0

ZGR2#

GREGE,TRIM4#

 1
74310-0F200E0

ZGR2#

GREGE,TRIM4#

 1
74310-0F201E0

ZGR2#

GREGE,TRIM4#

 1
74317 - COVER, VISOR BRACKET, RH
74317-06040E0

ZGR2#

GREGE,TRIM4#

 1
74318 - COVER, VISOR BRACKET, LH
74318-06020E0

ZGR2#

GREGE,TRIM4#

 1
74320 - VISOR ASSY, LH
74320-0F090E0

ZGR2#

GREGE,TRIM4#

 1
74320-0F091E0

ZGR2#

GREGE,TRIM4#

 1
74336 - CLIP, VISOR ARM SET
74336-52010

ZGR2#

 4
74348 - HOLDER, VISOR
74348-33040E0

ZGR2#

GREGE,TRIM4#

 2
74348-0D140E0

ZGR2#

GREGE,TRIM4#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-52020E0

ZGR2#

GREGE,TRIM4#,W/O(COAT HOOK)

 2
74610-52020E0

ZGR2#

GREGE,TRIM4#,W/O(COAT HOOK)

 3
74610-52030E0

ZGR2#

GREGE,TRIM4#,W(COAT HOOK)

 1
74610-52030E0

ZGR2#

GREGE,TRIM4#,W(COAT HOOK)

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-52020E0

ZGR2#

GREGE,TRIM4#,W/O(COAT HOOK)

 2
74610-52020E0

ZGR2#

GREGE,TRIM4#,W/O(COAT HOOK)

 3
74610-52030E0

ZGR2#

GREGE,TRIM4#,W(COAT HOOK)

 1
74610-52030E0

ZGR2#

GREGE,TRIM4#,W(COAT HOOK)

 2

ILLUST NO. 1 OF 2(1106- )

Click highlighted areas on diagram

ARMREST

diagram 67741A 67742A 74231 74232 74271A 74272A 9046710203 9046710203 9046712080 9046712080
Part # Description Qty Price
67741A - MOULDING, FRONT DOOR TRIM, RH
67741-0F040

ZGR2#

 2
67742A - MOULDING, FRONT DOOR TRIM, LH
67742-0F030

ZGR2#

 2
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-0F070E0

ZGR2#

ASH BROWN,TRIM4#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-0F070E0

ZGR2#

ASH BROWN,TRIM4#

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-0F030E0

ZGR2#

ASH BROWN,TRIM4#

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-0F030E0

ZGR2#

ASH BROWN,TRIM4#

 1
Common parts
90467-10203
90467-12080
