ZGR21L-GWXEKC (2011)
Toyota E'Z
(1106- )

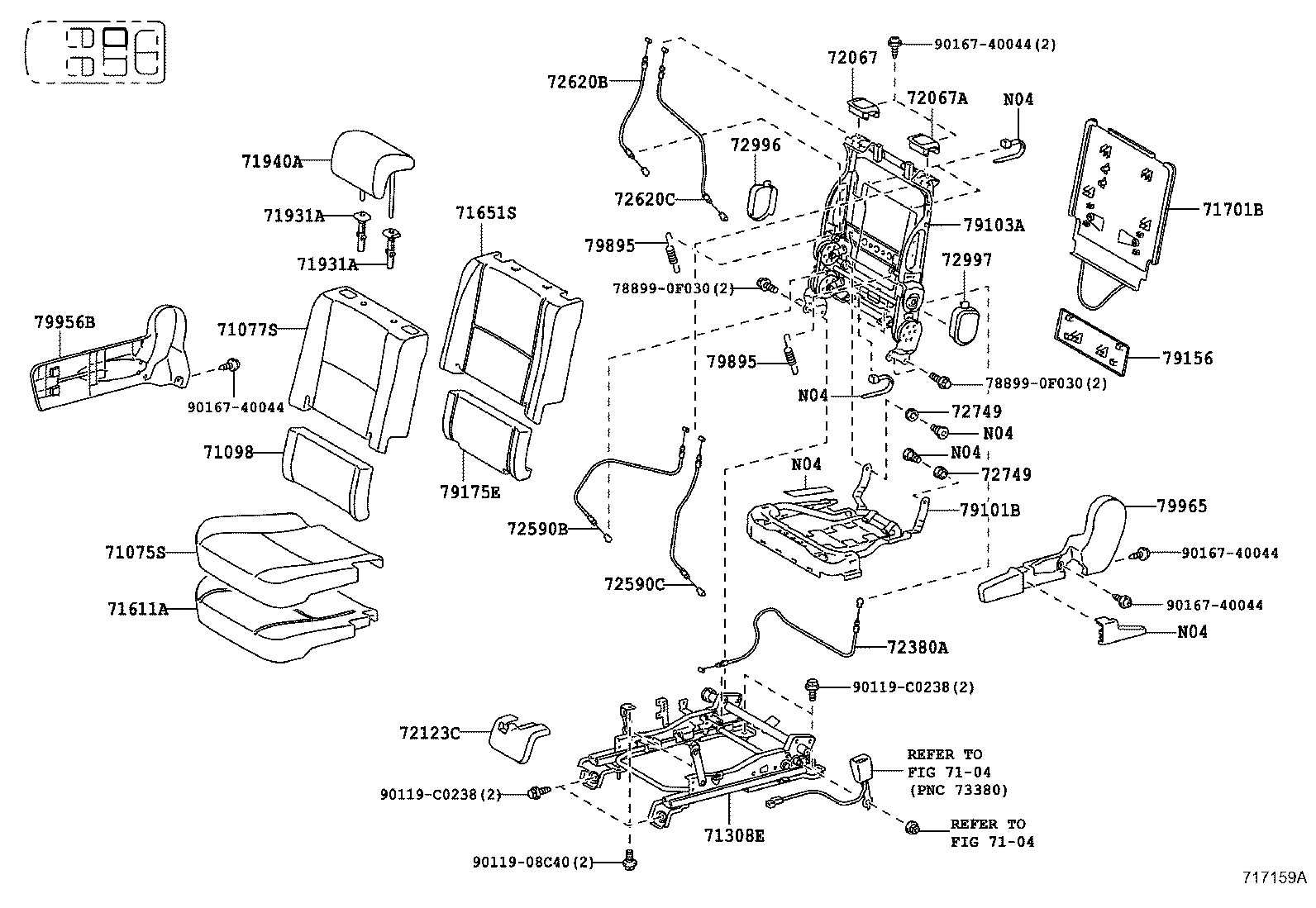

REAR NO.1 SEAT(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-0F090E0 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71075-0F091E1 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71075-0F100E1 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71075-0F100E1 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-0F090E0 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71077-0F100E1 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71077-0F100E1 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71077-0F091E0 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71098 - COVER SUB-ASSY, REAR SEAT BACK, LOWER RH | ||||
| 71098-0F040E1 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71098-0F050E1 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71098-0F040E0 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71098-0F050E1 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71308E - LEG SUB-ASSY, REAR SEAT, RH | ||||
| 71308-0F020 |
ZGR2# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-0F060 |
ZGR2# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-0F030 |
ZGR2# |
1 | ||
| 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-0F060E1 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020E0 |
ZGR2# W(LOCK),GREGE,TRIM4# |
3 | ||
| 71931-47010E4 |
ZGR2# W/O(LOCK),GREGE,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020E0 |
ZGR2# W(LOCK),GREGE,TRIM4# |
3 | ||
| 71931-47010E4 |
ZGR2# W/O(LOCK),GREGE,TRIM4# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0F050E1 |
ZGR21,22..V GREGE,TRIM4# |
2 | ||
| 71940-0F050E1 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
2 | ||
| 71940-0F041E0 |
ZGR2#..E,G GREGE,TRIM4# |
2 | ||
| 71940-0F110E0 |
ZGR21..V GREGE,TRIM4# |
2 | ||
| 71940-0F040E0 |
ZGR2#..E,G GREGE,TRIM4# |
2 | ||
| 71940-0F110E0 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
2 | ||
| 72067 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH | ||||
| 72067-0F090E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 72067A - LEVER, REAR BACK LOCK CONTROL, CENTER | ||||
| 72067-0F100E0 |
ZGR2# GREGE,TRIM4# |
3 | ||
| 72123C - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-0F070E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 72380A - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 | ||||
| 72380-0F020 |
ZGR2# FITTING(WHITE) |
2 | ||
| 72590B - CABLE ASSY, RECLINING REMOTE CONTROL | ||||
| 72590-0F030 |
ZGR2# FITTING(YELLOW) |
2 | ||
| 72590C - CABLE ASSY, RECLINING REMOTE CONTROL | ||||
| 72590-0F040 |
ZGR2# FITTING(BLUE) |
2 | ||
| 72620B - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-0F030 |
ZGR2# FITTING(RED) |
2 | ||
| 72620C - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-0F050 |
ZGR2# FITTING(GREEN) |
2 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
ZGR2# |
6 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
ZGR2# |
6 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-0F020 |
ZGR2# |
1 | ||
| 72996-0F020E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 72997 - COVER, REAR SEAT BACK, LH | ||||
| 72997-0F020 |
ZGR2# |
1 | ||
| 72997-0F020E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 79101B - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79101-0F020 |
ZGR2# |
1 | ||
| 79103A - FRAME SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79103-0F020 |
ZGR2# |
1 | ||
| 79156 - BOARD, REAR NO.1 SEAT BACK | ||||
| 79156-0F020 |
ZGR2# |
2 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-0F020 |
ZGR2# |
1 | ||
| 79895 - SPRING, REAR NO.1 SEAT BACK | ||||
| 79895-0F020 |
ZGR2# |
4 | ||
| 79895 - SPRING, REAR NO.1 SEAT BACK | ||||
| 79895-0F020 |
ZGR2# |
4 | ||
| 79956B - COVER, REAR SEAT LEG SIDE, RH | ||||
| 79956-0F060E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 79965 - COVER, REAR SEAT LEG SIDE, NO.2 | ||||
| 79965-0F060E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 78899-0F030 | ||||
| 90119-08C40 | ||||
| 90119-C0238 | ||||
| 90167-40044 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1106- )

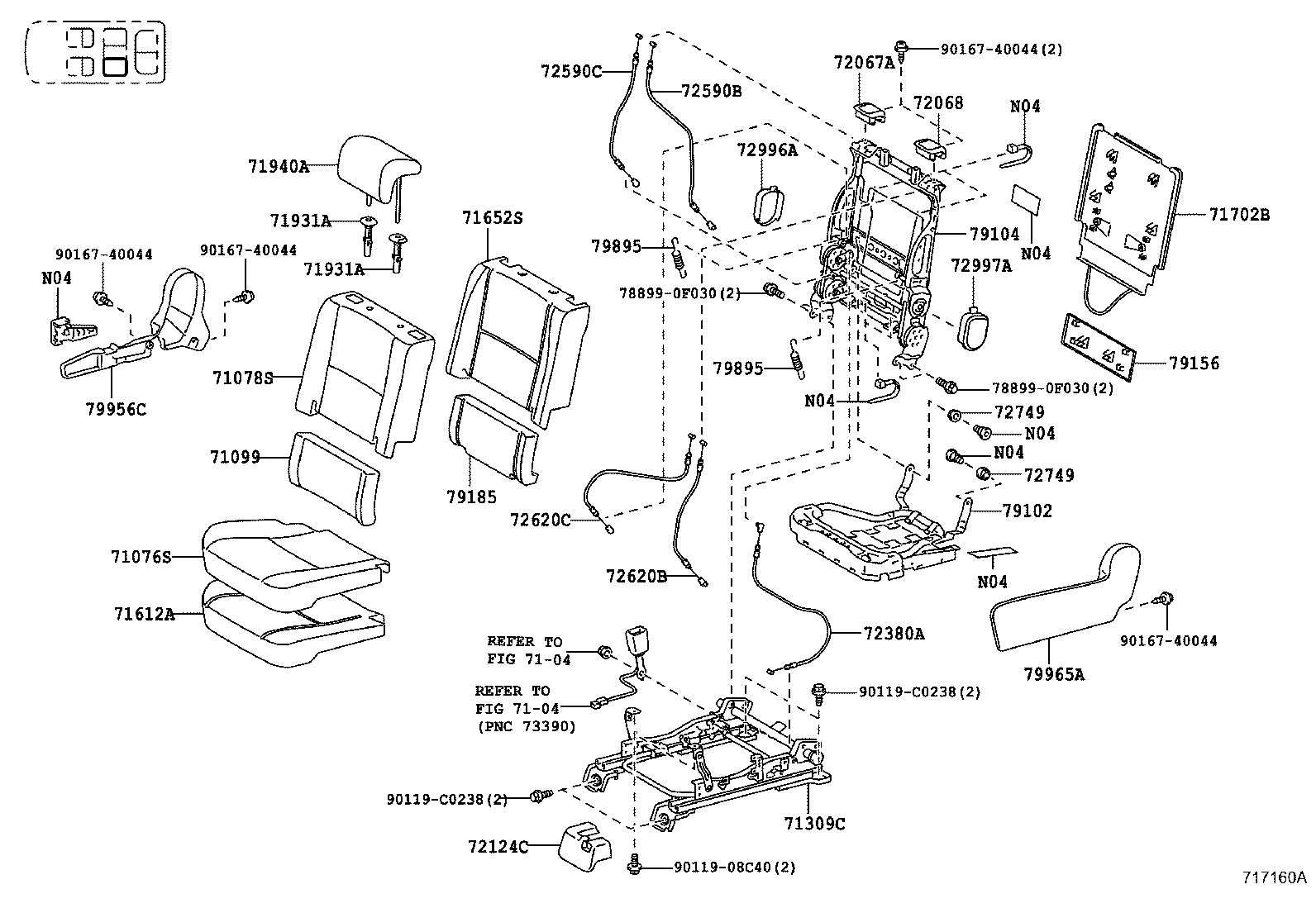

REAR NO.1 SEAT(LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-0F100E1 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71076-0F090E0 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71076-0F100E1 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71076-0F091E1 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-0F100E1 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71078-0F100E1 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71078-0F091E0 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71078-0F090E0 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71099 - COVER SUB-ASSY, REAR SEAT BACK, LOWER LH | ||||
| 71099-0F050E1 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71099-0F050E1 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71099-0F040E1 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71099-0F040E0 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71309C - LEG SUB-ASSY, REAR SEAT, REAR LH | ||||
| 71309-0F020 |
ZGR2# |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-0F060 |
ZGR2# |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-0F030 |
ZGR2# |
1 | ||
| 71702B - BOARD SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71702-0F070E1 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020E0 |
ZGR2# W(LOCK),GREGE,TRIM4# |
3 | ||
| 71931-47010E4 |
ZGR2# W/O(LOCK),GREGE,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020E0 |
ZGR2# W(LOCK),GREGE,TRIM4# |
3 | ||
| 71931-47010E4 |
ZGR2# W/O(LOCK),GREGE,TRIM4# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0F050E1 |
ZGR21,22..V GREGE,TRIM4# |
2 | ||
| 71940-0F050E1 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
2 | ||
| 71940-0F041E0 |
ZGR2#..E,G GREGE,TRIM4# |
2 | ||
| 71940-0F110E0 |
ZGR21..V GREGE,TRIM4# |
2 | ||
| 71940-0F040E0 |
ZGR2#..E,G GREGE,TRIM4# |
2 | ||
| 71940-0F110E0 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
2 | ||
| 72067A - LEVER, REAR BACK LOCK CONTROL, CENTER | ||||
| 72067-0F100E0 |
ZGR2# GREGE,TRIM4# |
3 | ||
| 72068 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH | ||||
| 72067-0F110E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 72124C - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-0F060E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 72380A - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 | ||||
| 72380-0F020 |
ZGR2# FITTING(WHITE) |
2 | ||
| 72590B - CABLE ASSY, RECLINING REMOTE CONTROL | ||||
| 72590-0F030 |
ZGR2# FITTING(YELLOW) |
2 | ||
| 72590C - CABLE ASSY, RECLINING REMOTE CONTROL | ||||
| 72590-0F040 |
ZGR2# FITTING(BLUE) |
2 | ||
| 72620B - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-0F030 |
ZGR2# FITTING(RED) |
2 | ||
| 72620C - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-0F050 |
ZGR2# FITTING(GREEN) |
2 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
ZGR2# |
6 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
ZGR2# |
6 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-0F020 |
ZGR2# |
1 | ||
| 72996-0F020E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 72997A - COVER, REAR SEAT BACK, INNER LH | ||||
| 72997-0F020E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 72997-0F020 |
ZGR2# |
1 | ||
| 79102 - FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79102-0F020 |
ZGR2# |
1 | ||
| 79104 - FRAME SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79104-0F020 |
ZGR2# |
1 | ||
| 79156 - BOARD, REAR NO.1 SEAT BACK | ||||
| 79156-0F020 |
ZGR2# |
2 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79185-0F020 |
ZGR2# |
1 | ||
| 79895 - SPRING, REAR NO.1 SEAT BACK | ||||
| 79895-0F020 |
ZGR2# |
4 | ||
| 79895 - SPRING, REAR NO.1 SEAT BACK | ||||
| 79895-0F020 |
ZGR2# |
4 | ||
| 79956C - COVER, REAR SEAT LEG SIDE, LH | ||||
| 79956-0F070E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 79965A - COVER, REAR SEAT LEG SIDE, NO.2 | ||||
| 79965-0F070E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 78899-0F030 | ||||
| 90119-08C40 | ||||
| 90119-C0238 | ||||
| 90167-40044 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1106- )

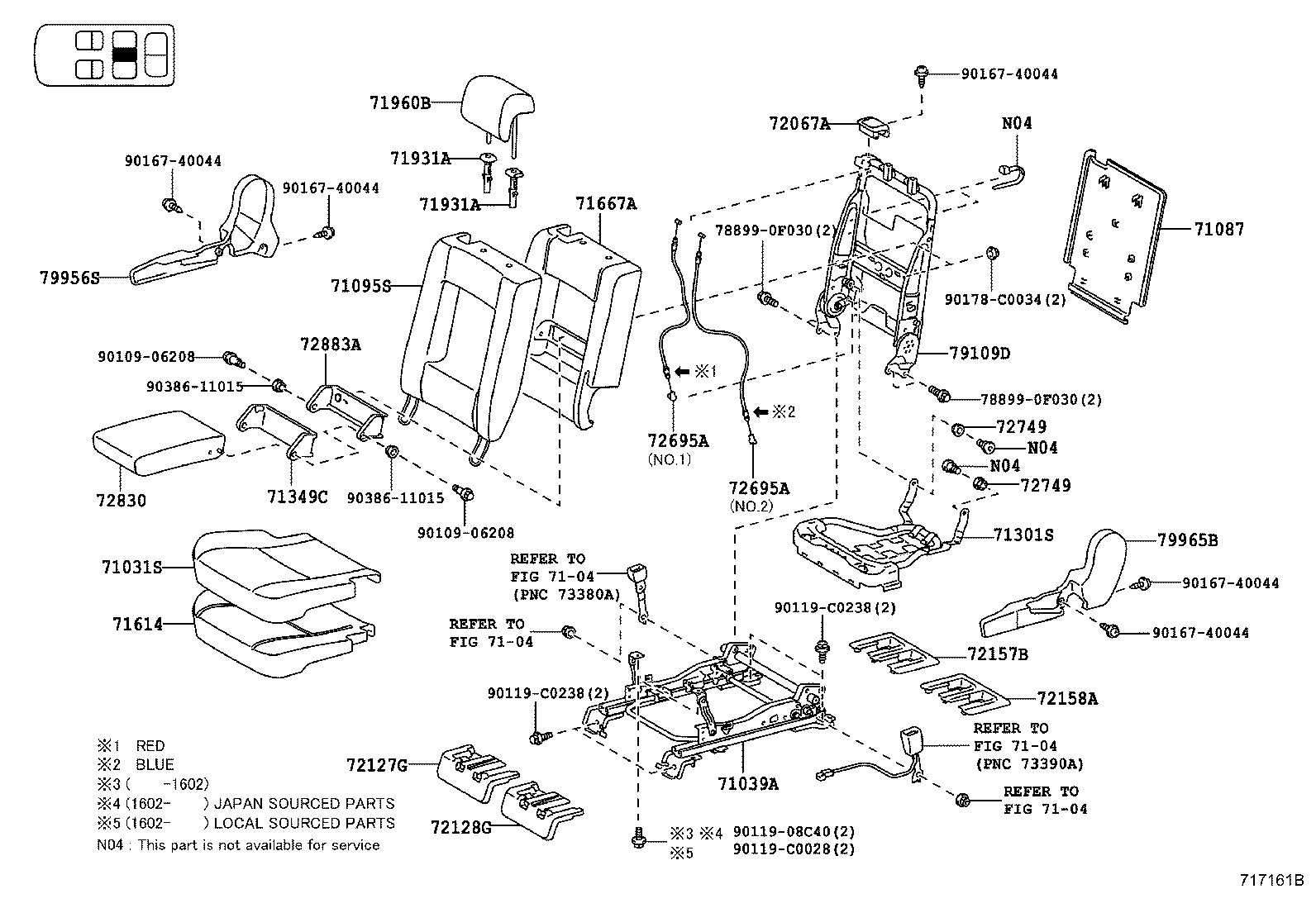

REAR NO.1 SEAT(CENTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71031S - COVER SUB-ASSY, CENTER SEAT CUSHION | ||||
| 71097-0F100E1 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71097-0F091E1 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71097-0F100E1 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71097-0F090E0 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71039A - LEG SUB-ASSY, CENTER SEAT | ||||
| 71039-0F020 |
ZGR2# |
1 | ||
| 71087 - BOARD SUB-ASSY, REAR SEAT BACK | ||||
| 71087-0F020E1 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 71095S - COVER SUB-ASSY, CENTER SEAT BACK | ||||
| 71095-0F090E0 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71095-0F100E1 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71095-0F100E1 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71095-0F091E1 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71301S - FRAME SUB-ASSY, CENTER SEAT CUSHION | ||||
| 71031-0F040 |
ZGR2# |
1 | ||
| 71349C - COVER, REAR SEAT BACK HINGE | ||||
| 71349-0F030E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 71614 - PAD, REAR SEAT CUSHION, CENTER | ||||
| 71614-0F030 |
ZGR2# |
1 | ||
| 71667A - PAD, REAR SEAT BACK, CENTER A | ||||
| 71667-0F020 |
ZGR2# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020E0 |
ZGR2# W(LOCK),GREGE,TRIM4# |
3 | ||
| 71931-47010E4 |
ZGR2# W/O(LOCK),GREGE,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020E0 |
ZGR2# W(LOCK),GREGE,TRIM4# |
3 | ||
| 71931-47010E4 |
ZGR2# W/O(LOCK),GREGE,TRIM4# |
3 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71940-0F040E0 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71940-0F110E0 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71940-0F050E1 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71940-0F041E0 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71940-0F050E1 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71940-0F110E0 |
ZGR21..V GREGE,TRIM4# |
1 | ||
| 72067A - LEVER, REAR BACK LOCK CONTROL, CENTER | ||||
| 72067-0F100E0 |
ZGR2# GREGE,TRIM4# |
3 | ||
| 72127G - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-0F030E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 72128G - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-0F020E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 72157B - COVER, REAR SEAT TRACK BRACKET, INNER RH | ||||
| 72157-0F060E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 72158A - COVER, REAR SEAT TRACK BRACKET, INNER LH | ||||
| 72157-0F060E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 72695A - CABLE, REAR SEAT LOCK CONTROL | ||||
| 72695-0F040 |
ZGR2# NO.2 |
1 | ||
| 72695-0F030 |
ZGR2# NO.1 |
1 | ||
| 72695A - CABLE, REAR SEAT LOCK CONTROL | ||||
| 72695-0F040 |
ZGR2# NO.2 |
1 | ||
| 72695-0F030 |
ZGR2# NO.1 |
1 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
ZGR2# |
6 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
ZGR2# |
6 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-0F040E0 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 72830-0F050E0 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 72830-0F041E1 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 72830-0F050E0 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 72883A - BRACKET, REAR SEAT CENTER ARMREST, NO.1 | ||||
| 72883-0F020 |
ZGR2# |
1 | ||
| 79109D - FRAME SUB-ASSY, REAR NO.1 SEAT BACK, CENTER | ||||
| 79109-0F020 |
ZGR2# |
1 | ||
| 79956S - COVER, REAR SEAT LEG SIDE | ||||
| 79956-0F080E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 79965B - COVER, REAR SEAT LEG SIDE, NO.2 | ||||
| 79965-0F080E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 78899-0F030 | ||||
| 90109-06208 | ||||
| 90119-08C40 | ||||
| 90119-C0028 | ||||
| 90119-C0238 | ||||
| 90167-40044 | ||||
| 90178-C0034 | ||||
| 90386-11015 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
