ZGR21L-GWXEKC (2011)
Toyota E'Z
(1106- )E,G

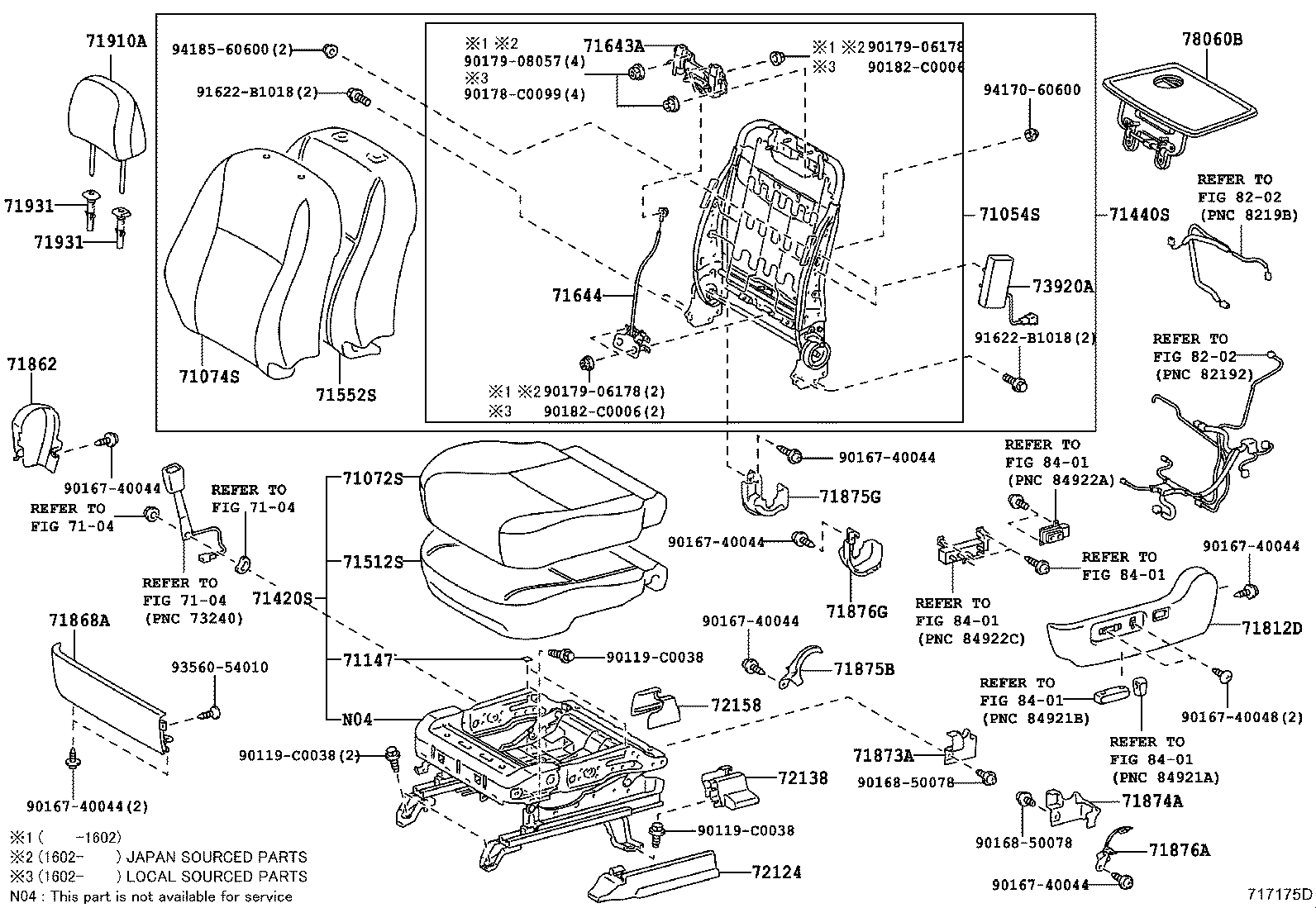

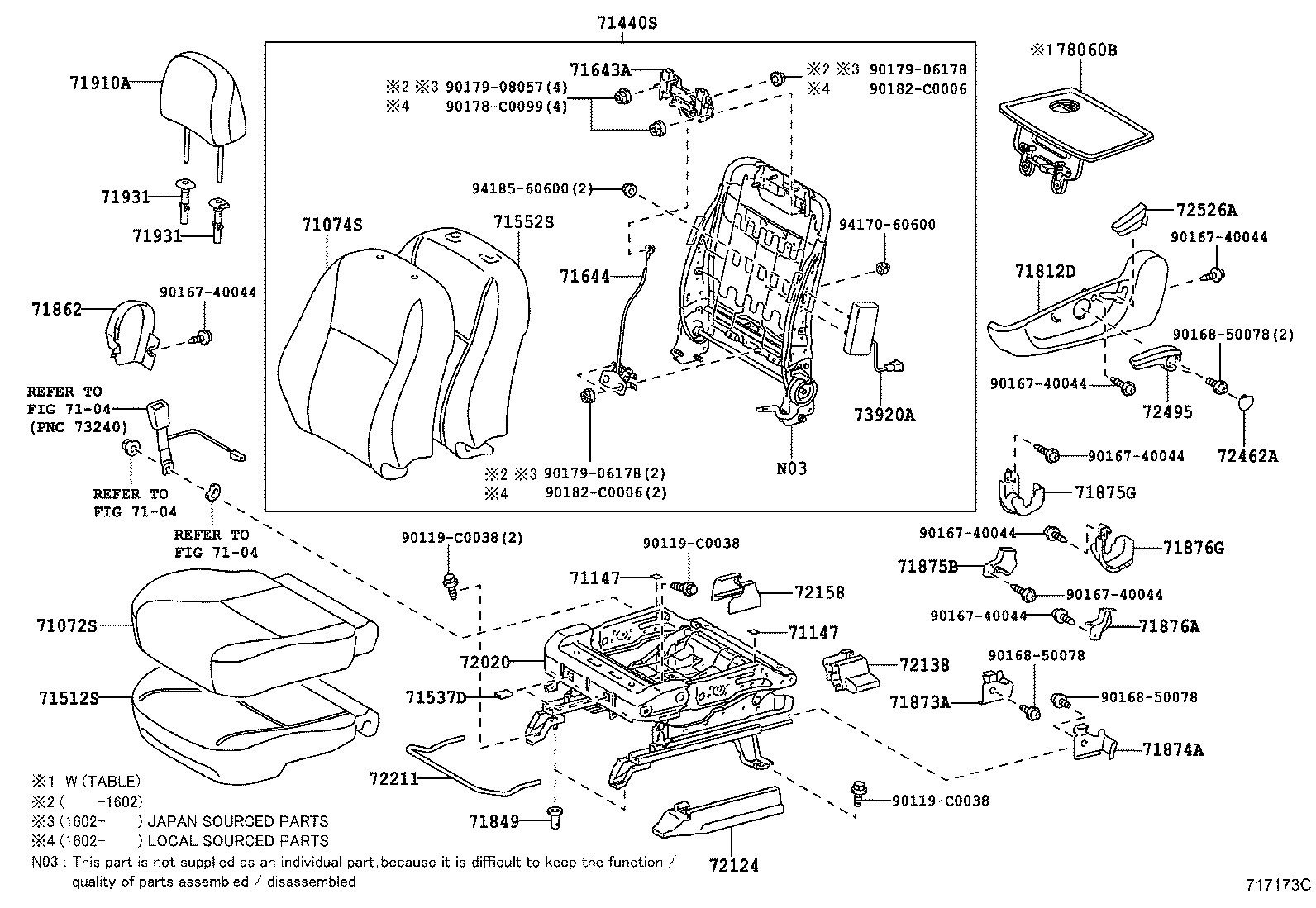

DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0F200E1 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71072-0F191E1 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71072-0F200E1 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71072-0F190E0 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0F270E0 |
ZGR20,21..E GREGE,TRIM4# |
1 | ||
| 71074-0F280E0 |
ZGR2#..G GREGE,TRIM4# |
1 | ||
| 71074-0F390E0 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71074-0F290E1 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71074-0F271E1 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71074-0F290E1 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-0F040 |
ZGR2# |
4 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-0F040 |
ZGR2# |
4 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-0F290E1 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71440-0F270E0 |
ZGR20,21..E GREGE,TRIM4# |
1 | ||
| 71440-0F270E1 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71440-0F290E1 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71440-0F381E0 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71440-0F280E0 |
ZGR2#..G GREGE,TRIM4# |
1 | ||
| 71440-0F380E0 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71440-0F291E0 |
ZGR21..V GREGE,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0F030 |
ZGR2#..E,G |
1 | ||
| 71512-0F040 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71512-0F040 |
ZGR21,22..V |
1 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-26010 |
ZGR2#..E,G |
2 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-0F090 |
ZGR21,22..V |
1 | ||
| 71552-0F090 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71552-0F080 |
ZGR2#..E,G |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ZGR21..V |
2 | ||
| 71643-12011 |
ZGR21,22..V |
2 | ||
| 71643-12011 |
ZGR2#..E,G |
2 | ||
| 71643-12011 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ZGR21..V |
2 | ||
| 71644-12030 |
ZGR21,22..V |
2 | ||
| 71644-12030 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
2 | ||
| 71644-12030 |
ZGR2#..E,G |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0F040E0 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71812-0F030E0 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71812-0F040E0 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-33010 |
ZGR2#..E,G |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0F040E0 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71862-0F050E0 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71862-0F050E0 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-0F040E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-0F050E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-06220E0 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71875-06240E0 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71875-06240E0 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-06340 |
ZGR2# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06270E0 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71876-06340E0 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71876-06270E0 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-06231 |
ZGR21..V |
1 | ||
| 71876-06230 |
ZGR21,22..V |
1 | ||
| 71876-06230 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71876-06370 |
ZGR2#..E,G |
1 | ||
| 71876-06231 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0F060E0 |
ZGR2#..E,G GREGE,TRIM4# |
2 | ||
| 71910-0F070E1 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
2 | ||
| 71910-0F061E0 |
ZGR2#..E,G GREGE,TRIM4# |
2 | ||
| 71910-0F070E1 |
ZGR21,22..V GREGE,TRIM4# |
2 | ||
| 71910-0F130E0 |
ZGR21..V GREGE,TRIM4# |
2 | ||
| 71910-0F130E0 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010E4 |
ZGR2# W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-44020E0 |
ZGR2# W(LOCK),GREGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010E4 |
ZGR2# W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-44020E0 |
ZGR2# W(LOCK),GREGE,TRIM4# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-0F061 |
ZGR2#..E,G |
1 | ||
| 72020-0F060 |
ZGR2#..E,G |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-0F040E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-0F060E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-0F050E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-0F010 |
ZGR21,22..V |
1 | ||
| 72211-0F010 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 72211-0F010 |
ZGR2#..E,G |
2 | ||
| 72462A - COVER, VERTICAL ADJUSTER LH | ||||
| 72462-06050E0 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72494-06060E0 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-06050E0 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-0F030 |
ZGR21,22..V |
1 | ||
| 73920-0F020 |
ZGR2#..E,G |
1 | ||
| 73920-0F030 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 78060B - TABLE ASSY, FRONT SEAT BACK, LH | ||||
| 78060-0F020E0 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 78060-0F020E0 |
ZGR2#..G GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-C0038 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90178-C0099 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 90182-C0006 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1106- )

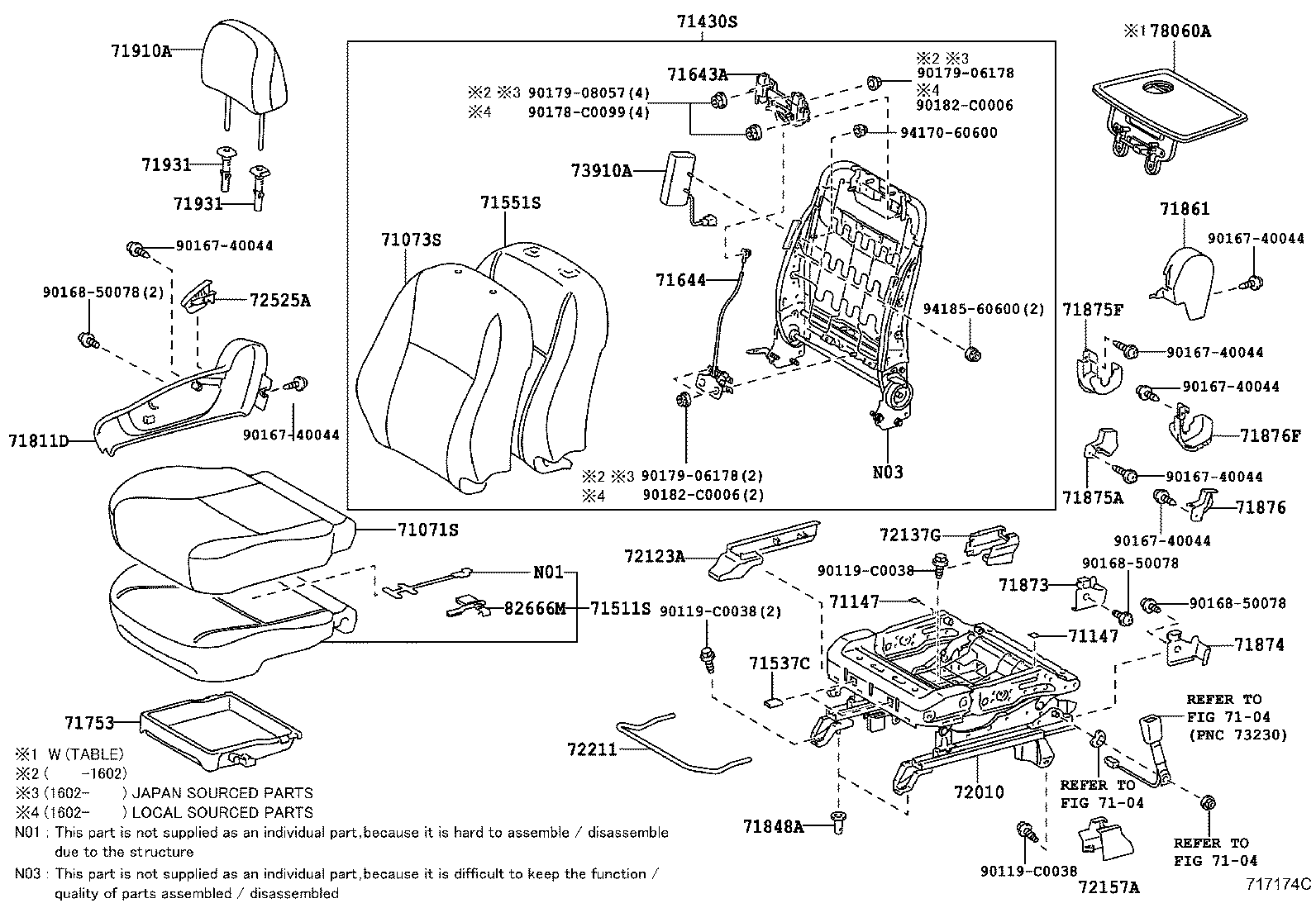

PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0F090E0 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71071-0F091E1 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71071-0F100E1 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71071-0F100E1 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0F340E1 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71073-0F171E1 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71073-0F170E0 |
ZGR20,21..E GREGE,TRIM4# |
1 | ||
| 71073-0F440E0 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71073-0F330E0 |
ZGR2#..G GRERE,TRIM4# |
1 | ||
| 71073-0F340E1 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-0F040 |
ZGR2# |
4 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-0F040 |
ZGR2# |
4 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-0F330E0 |
ZGR2#..G GREGE,TRIM4# |
1 | ||
| 71430-0F320E1 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71430-0F340E1 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71430-0F320E0 |
ZGR20,21..E GREGE,TRIM4# |
1 | ||
| 71430-0F340E1 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71430-0F430E0 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-0F020 |
ZGR2# |
1 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-26010 |
ZGR2# |
2 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0F080 |
ZGR2# |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ZGR21..V |
2 | ||
| 71643-12011 |
ZGR21,22..V |
2 | ||
| 71643-12011 |
ZGR2#..E,G |
2 | ||
| 71643-12011 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ZGR21..V |
2 | ||
| 71644-12030 |
ZGR21,22..V |
2 | ||
| 71644-12030 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
2 | ||
| 71644-12030 |
ZGR2#..E,G |
2 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-0F010E0 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71753-0F010E0 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0F030E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-33010 |
ZGR2# |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0F050E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-0F040E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-0F050E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-06220E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-06340 |
ZGR2# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06340E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-06370 |
ZGR2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0F060E0 |
ZGR2#..E,G GREGE,TRIM4# |
2 | ||
| 71910-0F070E1 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
2 | ||
| 71910-0F061E0 |
ZGR2#..E,G GREGE,TRIM4# |
2 | ||
| 71910-0F070E1 |
ZGR21,22..V GREGE,TRIM4# |
2 | ||
| 71910-0F130E0 |
ZGR21..V GREGE,TRIM4# |
2 | ||
| 71910-0F130E0 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010E4 |
ZGR2# W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-44020E0 |
ZGR2# W(LOCK),GREGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010E4 |
ZGR2# W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-44020E0 |
ZGR2# W(LOCK),GREGE,TRIM4# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-0F070 |
ZGR21,22..V |
1 | ||
| 72010-0F071 |
ZGR21,22..V |
1 | ||
| 72010-0F060 |
ZGR2#..E,G |
1 | ||
| 72010-0F071 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 72010-0F061 |
ZGR2#..E,G |
1 | ||
| 72010-0F070 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-0F060E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 72137G - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-0F070E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-0F050E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-0F010 |
ZGR21,22..V |
1 | ||
| 72211-0F010 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 72211-0F010 |
ZGR2#..E,G |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-06050E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-0F020 |
ZGR2# |
1 | ||
| 78060A - TABLE ASSY, FRONT SEAT BACK, RH | ||||
| 78060-0F020E0 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 78060-0F020E0 |
ZGR2#..G GREGE,TRIM4# |
1 | ||
| 82666M - HOLDER, CONNECTOR | ||||
| 82666-02300 |
ZGR2# |
1 | ||
| Common parts | ||||
| 90119-C0038 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90178-C0099 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 90182-C0006 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1106- )ZGR21,22..G,V
DRIVER SEAT-W(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71054-0F040 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71054-0F020 |
ZGR21,22..V |
1 | ||
| 71054-0F020 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71054-0F041 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71054-0F021 |
ZGR21..V |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0F200E1 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71072-0F191E1 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71072-0F200E1 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71072-0F190E0 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0F270E0 |
ZGR20,21..E GREGE,TRIM4# |
1 | ||
| 71074-0F280E0 |
ZGR2#..G GREGE,TRIM4# |
1 | ||
| 71074-0F390E0 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71074-0F290E1 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71074-0F271E1 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71074-0F290E1 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-0F040 |
ZGR2# |
4 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-0F011E0 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71420-0F010E1 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71420-0F011E0 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71420-0F010E1 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-0F290E1 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71440-0F270E0 |
ZGR20,21..E GREGE,TRIM4# |
1 | ||
| 71440-0F270E1 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71440-0F290E1 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71440-0F381E0 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71440-0F280E0 |
ZGR2#..G GREGE,TRIM4# |
1 | ||
| 71440-0F380E0 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71440-0F291E0 |
ZGR21..V GREGE,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0F030 |
ZGR2#..E,G |
1 | ||
| 71512-0F040 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71512-0F040 |
ZGR21,22..V |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-0F090 |
ZGR21,22..V |
1 | ||
| 71552-0F090 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71552-0F080 |
ZGR2#..E,G |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ZGR21..V |
2 | ||
| 71643-12011 |
ZGR21,22..V |
2 | ||
| 71643-12011 |
ZGR2#..E,G |
2 | ||
| 71643-12011 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ZGR21..V |
2 | ||
| 71644-12030 |
ZGR21,22..V |
2 | ||
| 71644-12030 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
2 | ||
| 71644-12030 |
ZGR2#..E,G |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0F040E0 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71812-0F030E0 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71812-0F040E0 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0F040E0 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71862-0F050E0 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71862-0F050E0 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-0F010E0 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71868-0F010E0 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-0F040E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-0F050E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-06220E0 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71875-06240E0 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71875-06240E0 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-06340 |
ZGR2# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06270E0 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71876-06340E0 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 71876-06270E0 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-06231 |
ZGR21..V |
1 | ||
| 71876-06230 |
ZGR21,22..V |
1 | ||
| 71876-06230 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71876-06370 |
ZGR2#..E,G |
1 | ||
| 71876-06231 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0F060E0 |
ZGR2#..E,G GREGE,TRIM4# |
2 | ||
| 71910-0F070E1 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
2 | ||
| 71910-0F061E0 |
ZGR2#..E,G GREGE,TRIM4# |
2 | ||
| 71910-0F070E1 |
ZGR21,22..V GREGE,TRIM4# |
2 | ||
| 71910-0F130E0 |
ZGR21..V GREGE,TRIM4# |
2 | ||
| 71910-0F130E0 |
ZGR21..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010E4 |
ZGR2# W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-44020E0 |
ZGR2# W(LOCK),GREGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010E4 |
ZGR2# W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-44020E0 |
ZGR2# W(LOCK),GREGE,TRIM4# |
2 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-0F040E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-0F060E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-0F050E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-0F030 |
ZGR21,22..V |
1 | ||
| 73920-0F020 |
ZGR2#..E,G |
1 | ||
| 73920-0F030 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 78060B - TABLE ASSY, FRONT SEAT BACK, LH | ||||
| 78060-0F020E0 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 78060-0F020E0 |
ZGR2#..G GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-C0038 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90168-50078 | ||||
| 90178-C0099 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 90182-C0006 | ||||
| 91622-B1018 | ||||
| 93560-54010 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
