ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

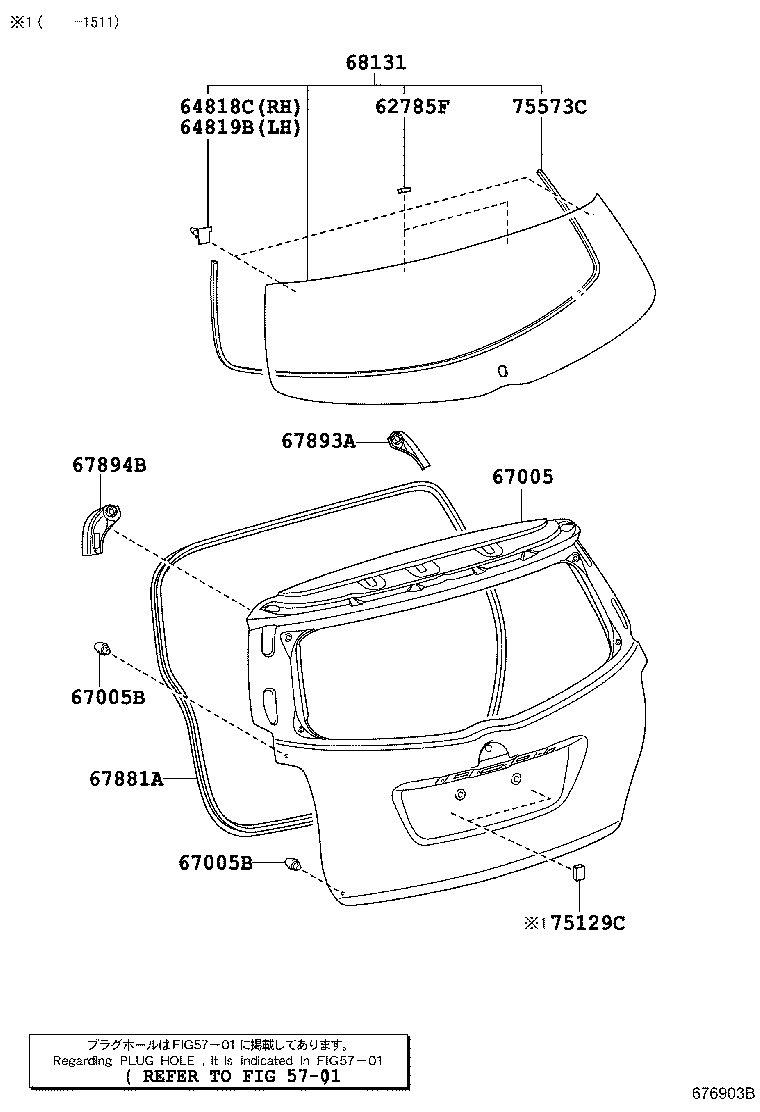

ILLUST NO. 1 OF 2(1106- )

Click highlighted areas on diagram

DOOR PANEL

diagram 5701 62785F 64818C 64819B 67005 67005B 67005B 67881A 67893A 67894B 68131 75129C 75573C
Part # Description Qty Price
62785F - SPACER, BACK DOOR GLASS
62785-0F020

ZGR2#

 2
64818C - SPACER, BACK WINDOW GLASS, NO.1
64818-0F020

ZGR2#

 1
64819B - SPACER, BACK WINDOW GLASS, NO.2
64819-0F020

ZGR2#

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-0F050

ZGR2#..E,G

 1
67005-0F061

ZGR21..V

 1
67005-0F060

ZGR21,22..V

 1
67005-0F051

ZGR2#..E,G

 1
67005-0F060

ZGR21,22..CVFC..G

AUDIO-NAVIGATION 6SPEAKER BLUETOOTH

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-C0002

ZGR2#

 4
90541-09142

ZGR2#

 4
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-C0002

ZGR2#

 4
90541-09142

ZGR2#

 4
67881A - WEATHERSTRIP, BACK DOOR
67881-0F030

ZGR2#

 1
67893A - PROTECTOR, BACK DOOR PANEL, NO.1
67893-0F020

ZGR2#

 1
67894B - PROTECTOR, BACK DOOR PANEL, NO.2
67894-0F020

ZGR2#

 1
68131 - GLASS, BACK DOOR
68105-0F090

ZGR2#

*EHT,T=3.1,GREEN

 1
75129C - CUSHION, REAR LICENCE PLATE
75129-0E020

ZGR2#

 2
75573C - MOULDING, BACK WINDOW, OUTSIDE
75573-0F020

ZGR2#

 1
Linked diagrams
5701

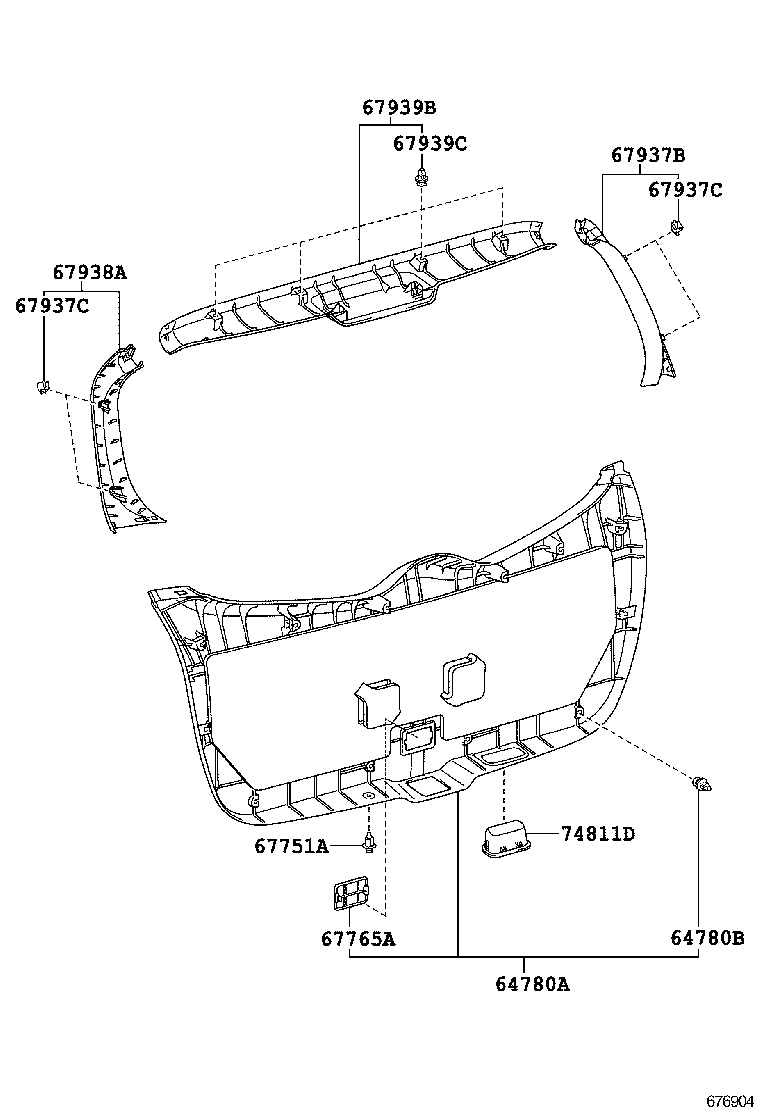

ILLUST NO. 2 OF 2(1106- )

Click highlighted areas on diagram

DOOR TRIM

diagram 64780A 64780B 67751A 67765A 67937B 67937C 67937C 67938A 67939B 67939C 74811D
Part # Description Qty Price
64780A - PANEL ASSY, BACK DOOR TRIM
64780-0F020E0

ZGR2#

ASH BROWN,TRIM4#

 1
64780B - CLIP(FOR BACK DOOR TRIM PANEL)
90467-10161

ZGR2#

 12
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-07076E8

ZGR2#

ASH BROWN,TRIM4#

 1
90467-C0013E0

ZGR2#

ASH BROWN,TRIM4#

 1
67765A - COVER, BACK DOOR SERVICE HOLE, NO.1
67765-0F030E0

ZGR2#

ASH BROWN,TRIM4#

 1
67937B - GARNISH, BACK DOOR SIDE, RH
67937-0F030E1

ZGR2#

ASH BROWN,TRIM4#

 1
67937C - CLIP(FOR BACK DOOR SIDE GARNISH)
67771-58010

ZGR2#

 4
67937C - CLIP(FOR BACK DOOR SIDE GARNISH)
67771-58010

ZGR2#

 4
67938A - GARNISH, BACK DOOR SIDE, LH
67938-0F030E1

ZGR2#

ASH BROWN,TRIM4#

 1
67939B - GARNISH, BACK DOOR, CENTER
67939-0F031E1

ZGR2#

ASH BROWN,TRIM4#

 1
67939-0F030E1

ZGR2#

ASH BROWN,TRIM4#

 1
67939C - CLIP(FOR BACK DOOR CENTER GARNISH)
90467-10161

ZGR2#

 4
74811D - HANDLE, DOOR PULL
74811-0F030E0

ZGR2#

ASH BROWN,TRIM4#

 1
