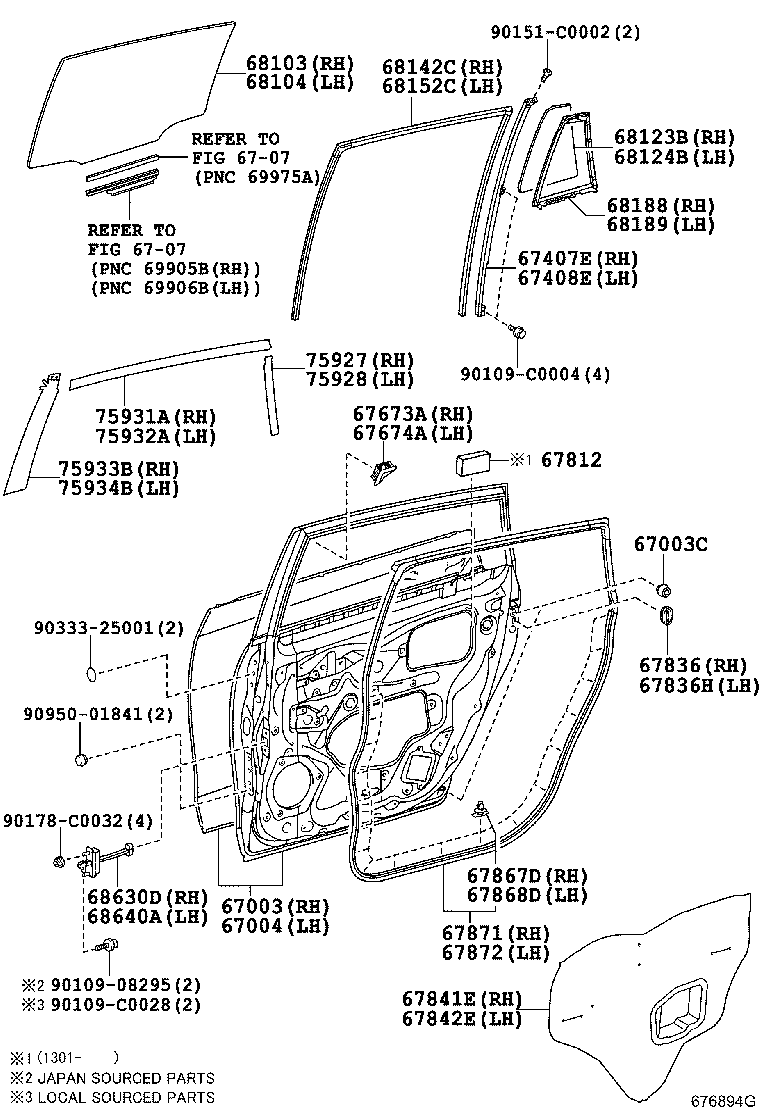

Toyota E'z ZGR21 REAR DOOR PANEL & GLASS

Part #	Description	Period	Qty
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-0F030	ZGR2#	06/2011 - 02/2013	1
67003-0F031	ZGR2#	02/2013 - 12/2999	1
67003C - CUSHION, REAR DOOR PANEL
90541-09124	ZGR2#	06/2011 - 01/2015	4
90541-C0003	ZGR2#	02/2015 - 12/2999	4
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-0F030	ZGR2#	06/2011 - 02/2013	1
67004-0F031	ZGR2#	02/2013 - 12/2999	1
67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-0F030	ZGR2#	06/2011 - 12/2999	1
67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-0F030	ZGR2#	06/2011 - 12/2999	1
67673A - GARNISH, REAR DOOR FRAME, RH
67673-0E030	ZGR2#	06/2011 - 12/2999	1
67674A - GARNISH, REAR DOOR FRAME, LH
67674-0E030	ZGR2#	06/2011 - 12/2999	1
67812 - PAD, REAR DOOR SILENCER
67811-33040	ZGR2#	02/2013 - 04/2013	2
67811-06050	ZGR2#	05/2013 - 12/2999	2
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-06020	ZGR2#	06/2011 - 12/2999	1
67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH
67836-06020	ZGR2#	06/2011 - 12/2999	1
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-0F030	ZGR2#	06/2011 - 12/2999	1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-0F030	ZGR2#	06/2011 - 12/2999	1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-12150	ZGR2#	06/2011 - 12/2999	18
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-12150	ZGR2#	06/2011 - 12/2999	18
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-0F030	ZGR2#	06/2011 - 12/2999	1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-0F030	ZGR2#	06/2011 - 12/2999	1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-0F050	ZGR2# *TEM,T=3.1,GREEN	06/2011 - 12/2999	1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68114-0F050	ZGR2# *TEM,T=3.1,GREEN	06/2011 - 12/2999	1
68123B - GLASS, REAR DOOR QUARTER WINDOW, RH
68123-0F030	ZGR2# *TEM,T=3.1,GREEN	06/2011 - 12/2999	1
68124B - GLASS, REAR DOOR QUARTER WINDOW, LH
68124-0F030	ZGR2# *TEM,T=3.1,GREEN	06/2011 - 12/2999	1
68142C - RUN, REAR DOOR GLASS, RH
68142-0F030	ZGR2#	06/2011 - 12/2999	1
68152C - RUN, REAR DOOR GLASS, LH
68152-0F030	ZGR2#	06/2011 - 12/2999	1
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-0F020	ZGR2#	06/2011 - 12/2999	1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-0F020	ZGR2#	06/2011 - 12/2999	1
68630D - CHECK ASSY, REAR DOOR, RH
68630-0F020	ZGR2#	06/2011 - 12/2011	1
68630-0F021	ZGR2#	12/2011 - 12/2999	1
68640A - CHECK ASSY, REAR DOOR, LH
68630-0F020	ZGR2#	06/2011 - 12/2011	1
68630-0F021	ZGR2#	12/2011 - 12/2999	1
75927 - TAPE, BLACK OUT, NO.4 RH
75927-0F020	ZGR2#	06/2011 - 12/2999	1
75928 - TAPE, BLACK OUT, NO.4 LH
75928-0F020	ZGR2#	06/2011 - 12/2999	1
75931A - TAPE, BLACK OUT, OUTER UPPER RH
75931-0F010	ZGR2#	06/2011 - 12/2999	1
75932A - TAPE, BLACK OUT, OUTER UPPER LH
75932-0F010	ZGR2#	06/2011 - 12/2999	1
75933B - TAPE, BLACK OUT, OUTER FRONT RH
75933-0F010	ZGR2#	06/2011 - 12/2999	1
75934B - TAPE, BLACK OUT, OUTER FRONT LH
75934-0F010	ZGR2#	06/2011 - 12/2999	1
Common parts
90109-08295
90109-C0004
90109-C0028
90151-C0002
90178-C0032
90333-25001
90950-01841
Linked diagrams

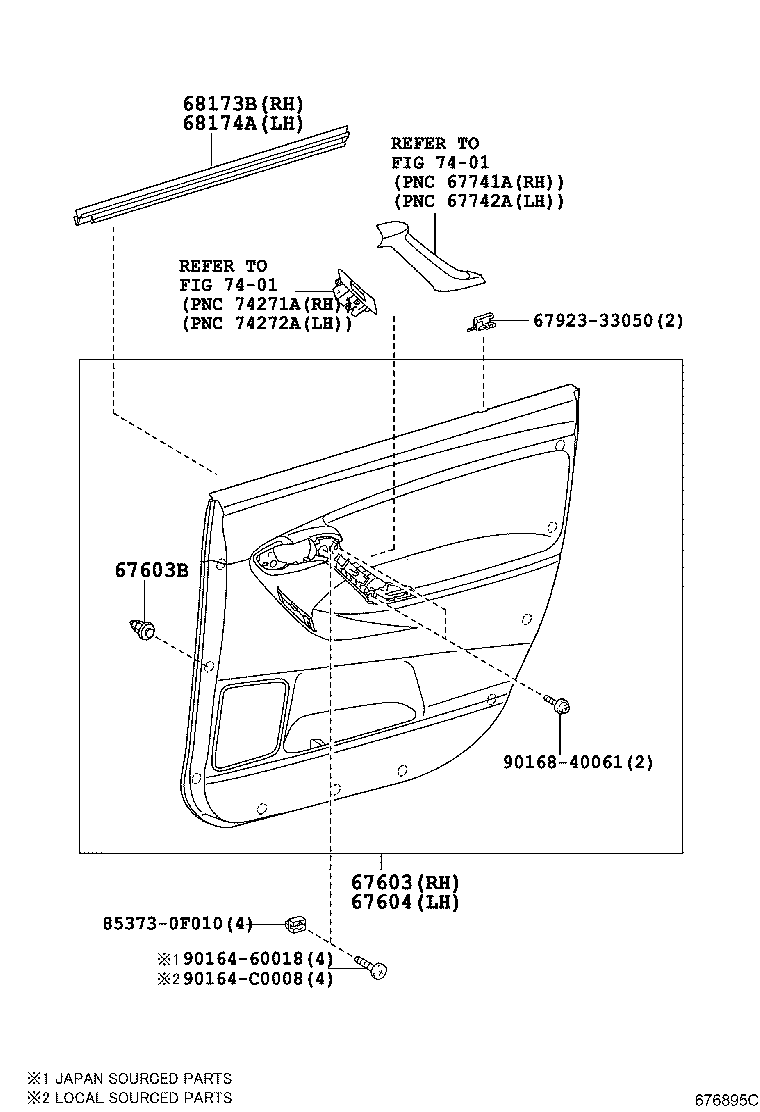

6707

Part #	Description	Period	Qty
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-0F060E0	ZGR2# ASH BROWN,TRIM4#	06/2011 - 12/2016	1
67603B - CLIP(FOR REAR DOOR TRIM BOARD)
90467-09206	ZGR2#	06/2011 - 12/2999	20
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-0F060E0	ZGR2# ASH BROWN,TRIM4#	06/2011 - 12/2016	1
68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH
68173-0F030	ZGR2#	06/2011 - 12/2999	1
68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68174-0F030	ZGR2#	06/2011 - 12/2999	1
Common parts
67923-33050
85373-0F010
90164-60018
90164-C0008
90168-40061
Linked diagrams
7401

ZGR21L-GWXEKC (2011)

ILLUST NO. 1 OF 2(1106- )

ILLUST NO. 2 OF 2(1106- )
