ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1106- )

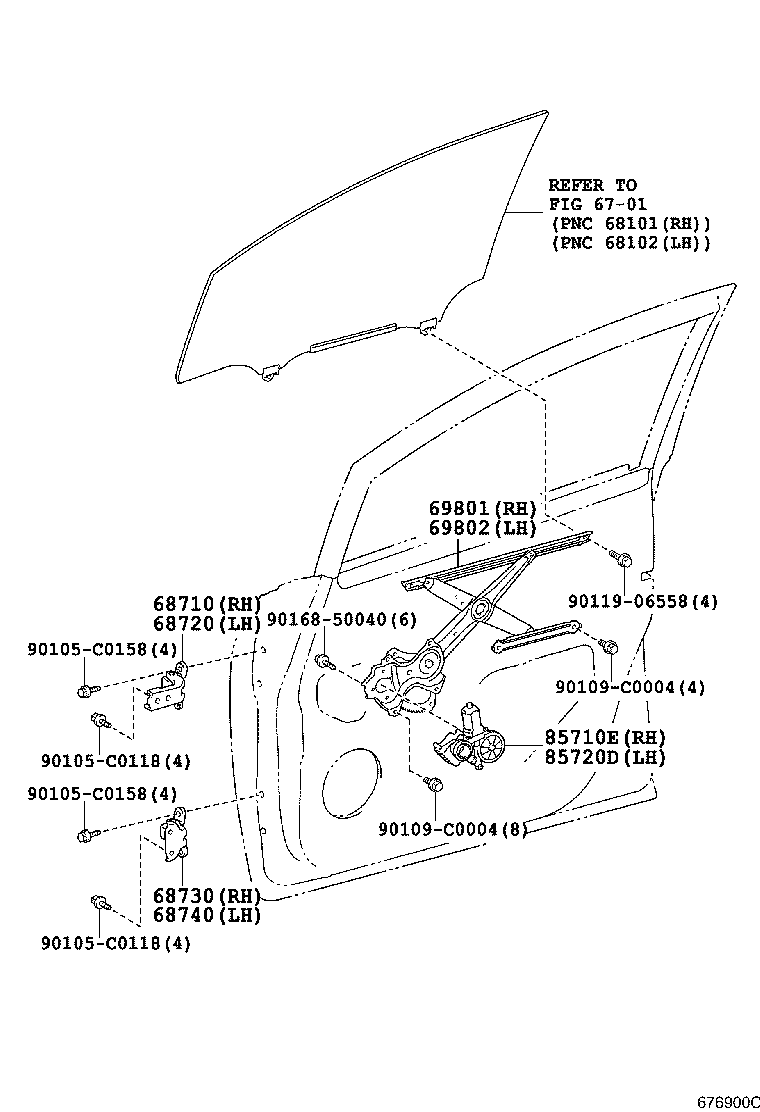

Click highlighted areas on diagram

diagram 6701 68710 68720 68730 68740 69801 69802 85710E 85720D 90105C0118 90105C0118 90105C0158 90105C0158 90109C0004 90109C0004 9011906558 9016850040
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-02031

ZGR2#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-02031

ZGR2#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-02061

ZGR2#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-02061

ZGR2#

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-0F030

ZGR2#

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-0F030

ZGR2#

 1
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-0F050

ZGR2#

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-0F050

ZGR2#

 1
Common parts
90105-C0118
90105-C0158
90109-C0004
90119-06558
90168-50040
Linked diagrams
6701
