ZGR21L-GWXEKC (2011)
Toyota E'Z

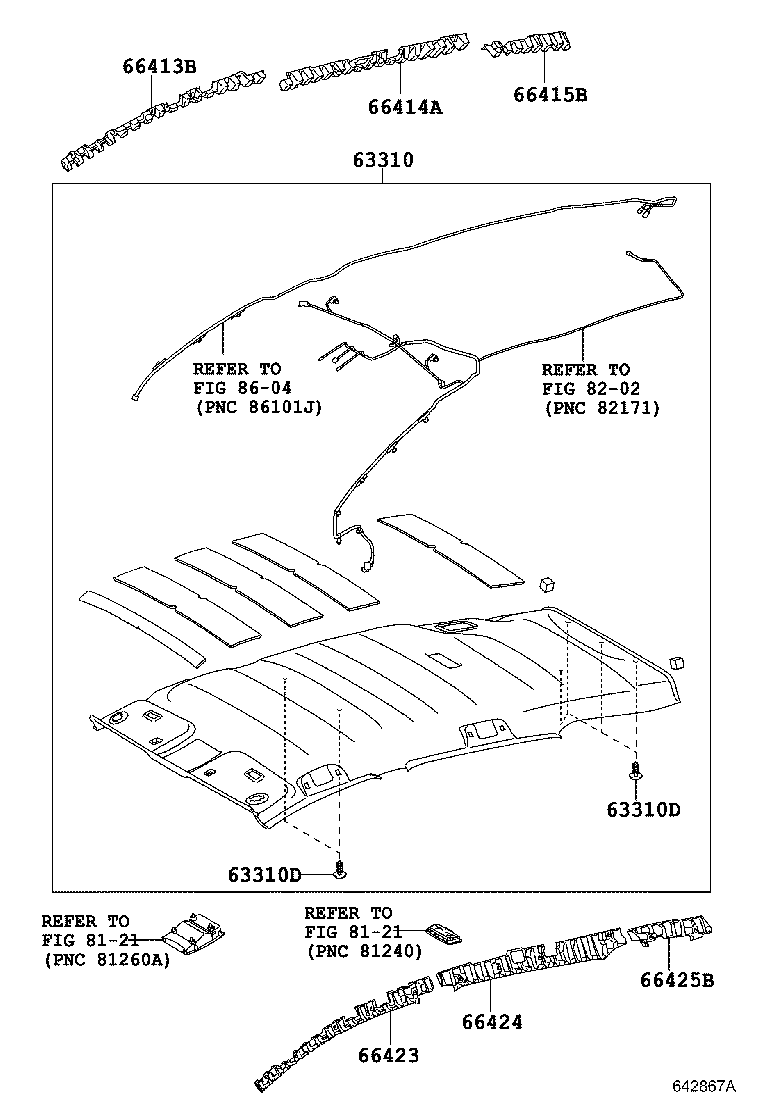

(1106- )E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-0F090E2 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 63310-0F120E2 |
ZGR21,22..CVFC..G AUDIO-NAVIGATION 6SPEAKER BLUETOOTH,GREGE,TRIM4# |
1 | ||
| 63310-0F170E1 |
ZGR21..CVFC..G AUDIO-NAVIGATION 6SPEAKER BLUETOOTH,GREGE,TRIM4# |
1 | ||
| 63310-0F110E2 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-NAVIGATION 6SPEAKER BLUETOOTH,GREGE,TRIM4# |
1 | ||
| 63310-0F130E2 |
ZGR21,22..V AUDIO-NAVIGATION 6SPEAKER BLUETOOTH,GREGE,TRIM4# |
1 | ||
| 63310-0F190E1 |
ZGR21..V GREGE,TRIM4# |
1 | ||
| 63310-0F180E1 |
ZGR21..V AUDIO-NAVIGATION 6SPEAKER BLUETOOTH,GREGE,TRIM4# |
1 | ||
| 63310-0F140E2 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 63310-0F160E1 |
ZGR20;ZGR21..E GREGE,TRIM4# |
1 | ||
| 63310-0F200E1 |
ZGR21..G GREGE,TRIM4# |
1 | ||
| 63310-0F150E2 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05164E2 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
4 | ||
| 90467-05164E2 |
ZGR21,22..V GREGE,TRIM4# |
4 | ||
| 90467-05164E2 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-NAVIGATION 6SPEAKER BLUETOOTH,GREGE,TRIM4# |
4 | ||
| 90467-05164E2 |
ZGR21..E;ZGR20,22..E,G GREGE,TRIM4# |
6 | ||
| 90467-05164E2 |
ZGR21..G GREGE,TRIM4# |
4 | ||
| 90467-05164E2 |
ZGR21..G GREGE,TRIM4# |
6 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05164E2 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
4 | ||
| 90467-05164E2 |
ZGR21,22..V GREGE,TRIM4# |
4 | ||
| 90467-05164E2 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-NAVIGATION 6SPEAKER BLUETOOTH,GREGE,TRIM4# |
4 | ||
| 90467-05164E2 |
ZGR21..E;ZGR20,22..E,G GREGE,TRIM4# |
6 | ||
| 90467-05164E2 |
ZGR21..G GREGE,TRIM4# |
4 | ||
| 90467-05164E2 |
ZGR21..G GREGE,TRIM4# |
6 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-0F030 |
ZGR20,21..E |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-0F030 |
ZGR20,21..E |
1 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-0F030 |
ZGR20,21..05S;ZGR21..07S..E |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-0F030 |
ZGR20,21..E |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-0F030 |
ZGR20,21..E |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-0F030 |
ZGR20,21..05S;ZGR21..07S..E |
1 | ||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
| 8604 | ||||

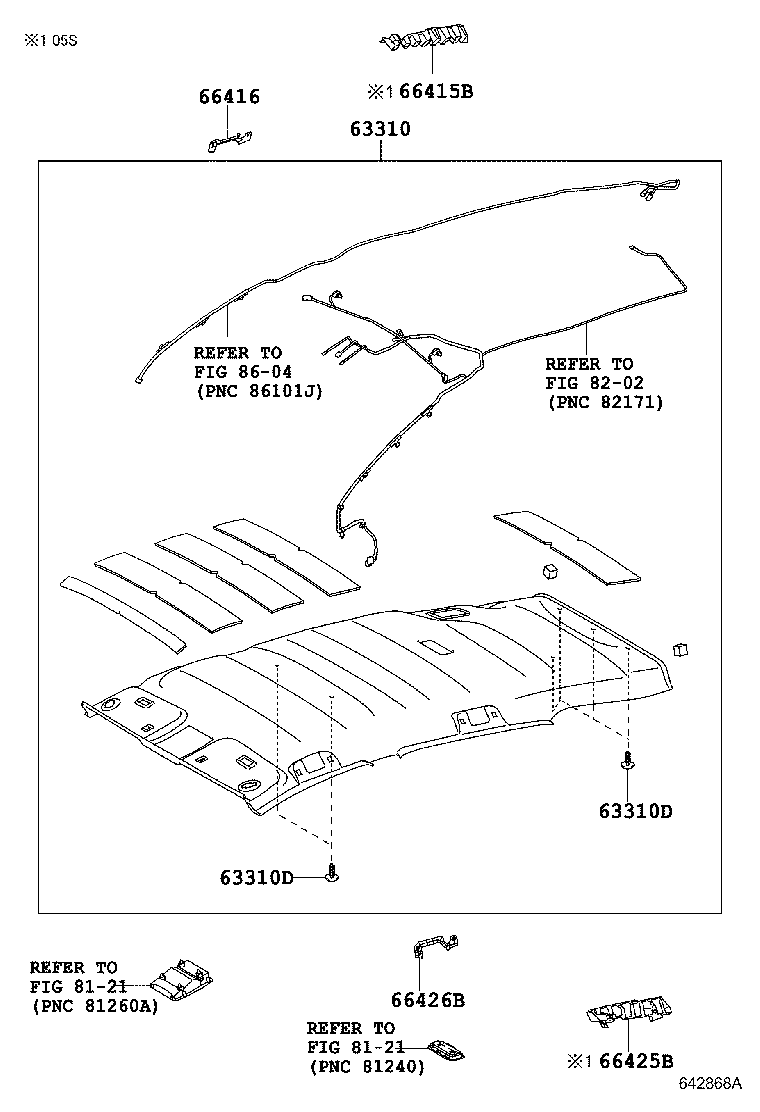

(1106- )G,V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-0F090E2 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 63310-0F120E2 |
ZGR21,22..CVFC..G AUDIO-NAVIGATION 6SPEAKER BLUETOOTH,GREGE,TRIM4# |
1 | ||
| 63310-0F170E1 |
ZGR21..CVFC..G AUDIO-NAVIGATION 6SPEAKER BLUETOOTH,GREGE,TRIM4# |
1 | ||
| 63310-0F110E2 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-NAVIGATION 6SPEAKER BLUETOOTH,GREGE,TRIM4# |
1 | ||
| 63310-0F130E2 |
ZGR21,22..V AUDIO-NAVIGATION 6SPEAKER BLUETOOTH,GREGE,TRIM4# |
1 | ||
| 63310-0F190E1 |
ZGR21..V GREGE,TRIM4# |
1 | ||
| 63310-0F180E1 |
ZGR21..V AUDIO-NAVIGATION 6SPEAKER BLUETOOTH,GREGE,TRIM4# |
1 | ||
| 63310-0F140E2 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 63310-0F160E1 |
ZGR20;ZGR21..E GREGE,TRIM4# |
1 | ||
| 63310-0F200E1 |
ZGR21..G GREGE,TRIM4# |
1 | ||
| 63310-0F150E2 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05164E2 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
4 | ||
| 90467-05164E2 |
ZGR21,22..V GREGE,TRIM4# |
4 | ||
| 90467-05164E2 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-NAVIGATION 6SPEAKER BLUETOOTH,GREGE,TRIM4# |
4 | ||
| 90467-05164E2 |
ZGR21..E;ZGR20,22..E,G GREGE,TRIM4# |
6 | ||
| 90467-05164E2 |
ZGR21..G GREGE,TRIM4# |
4 | ||
| 90467-05164E2 |
ZGR21..G GREGE,TRIM4# |
6 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05164E2 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
4 | ||
| 90467-05164E2 |
ZGR21,22..V GREGE,TRIM4# |
4 | ||
| 90467-05164E2 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-NAVIGATION 6SPEAKER BLUETOOTH,GREGE,TRIM4# |
4 | ||
| 90467-05164E2 |
ZGR21..E;ZGR20,22..E,G GREGE,TRIM4# |
6 | ||
| 90467-05164E2 |
ZGR21..G GREGE,TRIM4# |
4 | ||
| 90467-05164E2 |
ZGR21..G GREGE,TRIM4# |
6 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-0F030 |
ZGR20,21..05S;ZGR21..07S..E |
1 | ||
| 66416 - SPACER, SIDE RAIL, REAR NO.3 RH | ||||
| 66416-0F020 |
ZGR2#..G,V |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-0F030 |
ZGR20,21..05S;ZGR21..07S..E |
1 | ||
| 66426B - SPACER, SIDE RAIL, REAR NO.3 LH | ||||
| 66426-0F020 |
ZGR2#..G,V |
1 | ||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
| 8604 | ||||

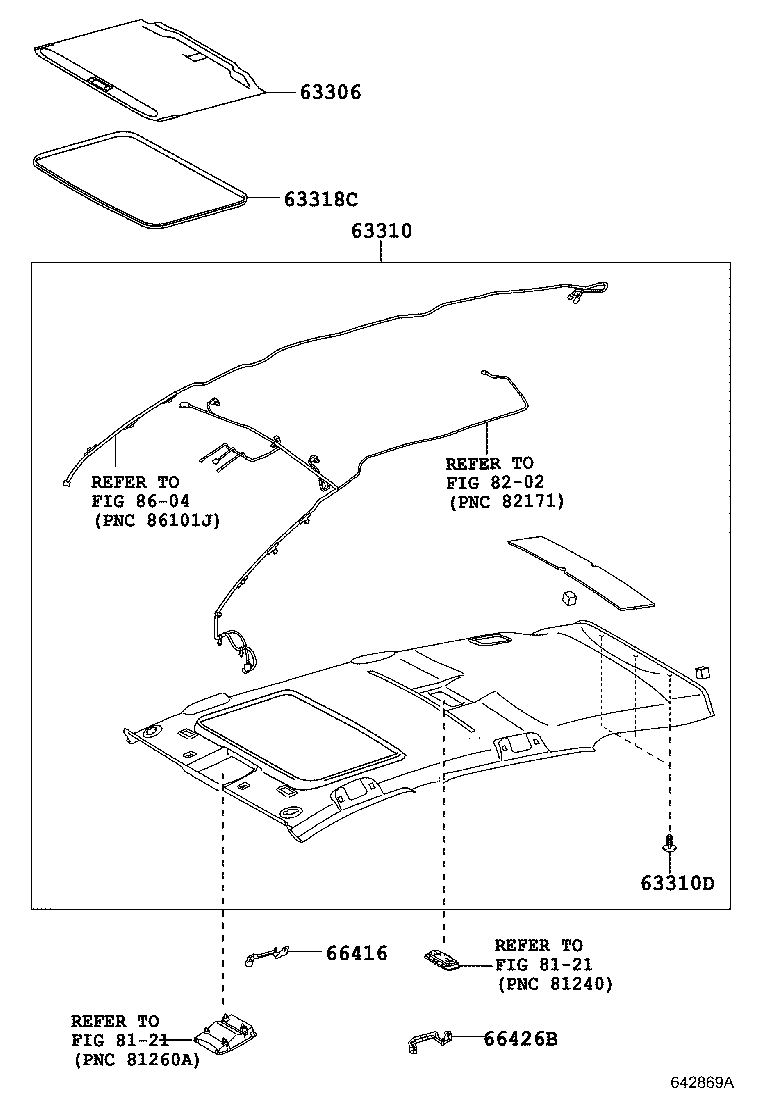

(1106- )CVFC..G,V ; (1309- )ZGR21..6F..G
W(MOON ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-06051E1 |
ZGR21..G GREGE,TRIM4# |
1 | ||
| 63306-06051E1 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 63306-06051E1 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-0F090E2 |
ZGR2#..E,G GREGE,TRIM4# |
1 | ||
| 63310-0F120E2 |
ZGR21,22..CVFC..G AUDIO-NAVIGATION 6SPEAKER BLUETOOTH,GREGE,TRIM4# |
1 | ||
| 63310-0F170E1 |
ZGR21..CVFC..G AUDIO-NAVIGATION 6SPEAKER BLUETOOTH,GREGE,TRIM4# |
1 | ||
| 63310-0F110E2 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-NAVIGATION 6SPEAKER BLUETOOTH,GREGE,TRIM4# |
1 | ||
| 63310-0F130E2 |
ZGR21,22..V AUDIO-NAVIGATION 6SPEAKER BLUETOOTH,GREGE,TRIM4# |
1 | ||
| 63310-0F190E1 |
ZGR21..V GREGE,TRIM4# |
1 | ||
| 63310-0F180E1 |
ZGR21..V AUDIO-NAVIGATION 6SPEAKER BLUETOOTH,GREGE,TRIM4# |
1 | ||
| 63310-0F140E2 |
ZGR21,22..V GREGE,TRIM4# |
1 | ||
| 63310-0F160E1 |
ZGR20;ZGR21..E GREGE,TRIM4# |
1 | ||
| 63310-0F200E1 |
ZGR21..G GREGE,TRIM4# |
1 | ||
| 63310-0F150E2 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05164E2 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
4 | ||
| 90467-05164E2 |
ZGR21,22..V GREGE,TRIM4# |
4 | ||
| 90467-05164E2 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-NAVIGATION 6SPEAKER BLUETOOTH,GREGE,TRIM4# |
4 | ||
| 90467-05164E2 |
ZGR21..E;ZGR20,22..E,G GREGE,TRIM4# |
6 | ||
| 90467-05164E2 |
ZGR21..G GREGE,TRIM4# |
4 | ||
| 90467-05164E2 |
ZGR21..G GREGE,TRIM4# |
6 | ||
| 63318C - MOULDING, SUN ROOF OPENING TRIM | ||||
| 63318-06070E1 |
ZGR21,22..V L=2375,GREGE,TRIM4# |
1 | ||
| 63318-06070E1 |
ZGR21,22..CVFC..G L=2375,SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-NAVIGATION 6SPEAKER BLUETOOTH,GREGE,TRIM4# |
1 | ||
| 63318-06070E1 |
ZGR21,22..CVFC..G L=2375,SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 63318-06070E1 |
ZGR21..G L=2375,GREGE,TRIM4# |
1 | ||
| 63318-06070E1 |
ZGR21,22..V L=2375,AUDIO-NAVIGATION 6SPEAKER BLUETOOTH,GREGE,TRIM4# |
1 | ||
| 63318-06070E1 |
ZGR21..CVFC..G L=2375,AUDIO-NAVIGATION 6SPEAKER BLUETOOTH,GREGE,TRIM4# |
1 | ||
| 66416 - SPACER, SIDE RAIL, REAR NO.3 RH | ||||
| 66416-0F020 |
ZGR2#..G,V |
1 | ||
| 66426B - SPACER, SIDE RAIL, REAR NO.3 LH | ||||
| 66426-0F020 |
ZGR2#..G,V |
1 | ||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
| 8604 | ||||
