ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1106- )

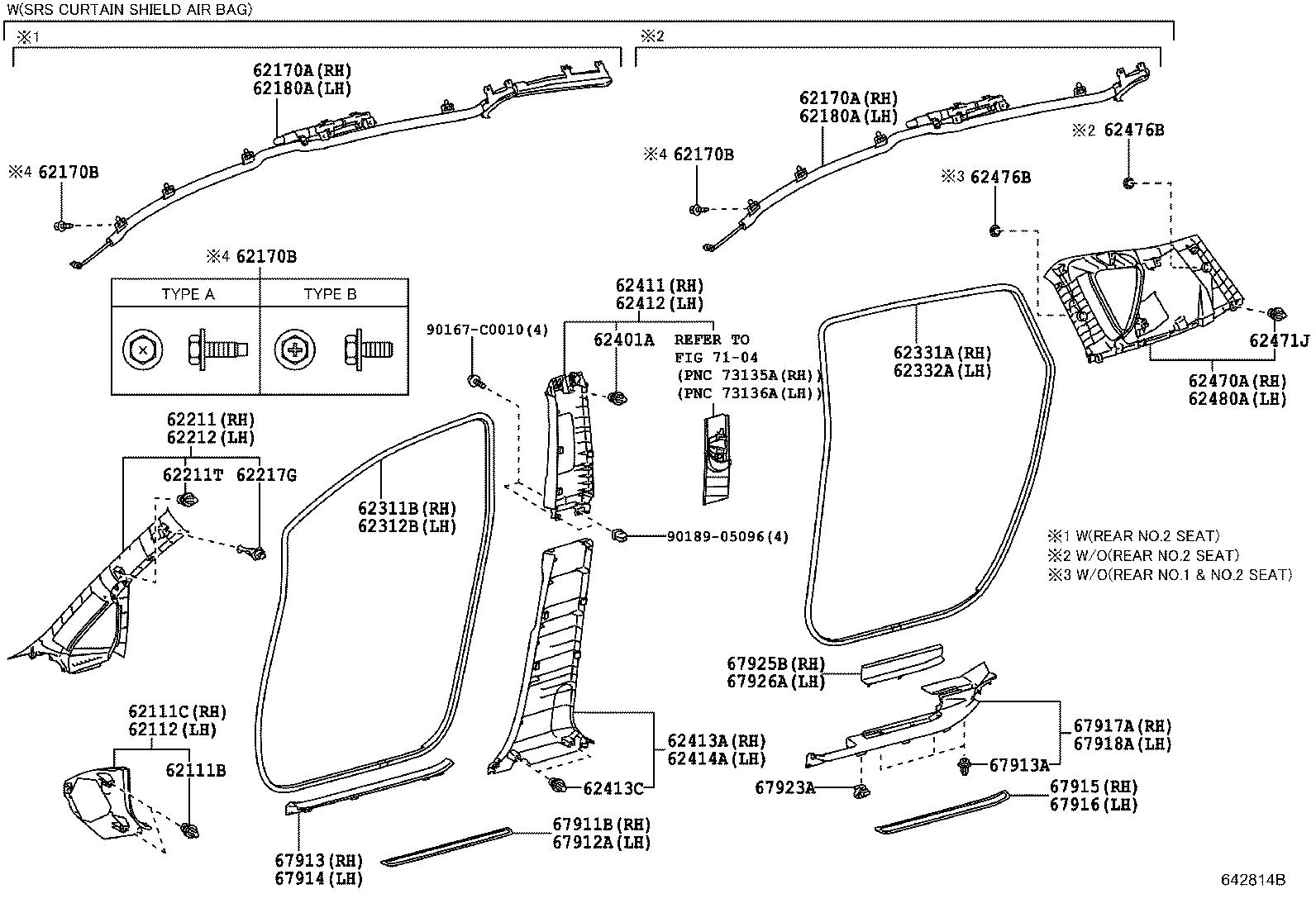

Click highlighted areas on diagram

diagram 62111B 62111C 62112 62170A 62170A 62170B 62170B 62170B 62180A 62180A 62211 62211T 62212 62217G 62311B 62312B 62331A 62332A 62401A 62411 62412 62413A 62413C 62414A 62470A 62471J 62476B 62476B 62480A 67911B 67912A 67913 67913A 67914 67915 67916 67917A 67918A 67923A 67925B 67926A 7104 90167C0010 9018905096
Part # Description Qty Price
62111B - CLIP(FOR COWL SIDE TRIM)
90467-10161

ZGR2#

 4
62111C - BOARD, COWL SIDE TRIM, RH
62111-0F050E0

ZGR2#

ASH BROWN,TRIM4#

 1
62112 - BOARD, COWL SIDE TRIM, LH
62112-0F050E0

ZGR2#

ASH BROWN,TRIM4#

 1
62170A - AIR BAG ASSY, CURTAIN SHIELD, RH
62170-0F050

ZGR20,21..05S..(G,V)

 1
62170A - AIR BAG ASSY, CURTAIN SHIELD, RH
62170-0F050

ZGR20,21..05S..(G,V)

 1
62170B - BOLT, W/WASHER
90119-06869

ZGR20,21..05S..(G,V)

TYPE A:REFER ILLUST.

 18
90159-06001

ZGR20,21..05S..(G,V)

TYPE B:REFER ILLUST.

 18
62170B - BOLT, W/WASHER
90119-06869

ZGR20,21..05S..(G,V)

TYPE A:REFER ILLUST.

 18
90159-06001

ZGR20,21..05S..(G,V)

TYPE B:REFER ILLUST.

 18
62170B - BOLT, W/WASHER
90119-06869

ZGR20,21..05S..(G,V)

TYPE A:REFER ILLUST.

 18
90159-06001

ZGR20,21..05S..(G,V)

TYPE B:REFER ILLUST.

 18
62180A - AIR BAG ASSY, CURTAIN SHIELD, LH
62180-0F050

ZGR20,21..05S..(G,V)

 1
62180A - AIR BAG ASSY, CURTAIN SHIELD, LH
62180-0F050

ZGR20,21..05S..(G,V)

 1
62211 - GARNISH, FRONT PILLAR, RH
62210-0F030E1

ZGR2#..G,V

GREGE,TRIM4#

 1
62210-0F040E1

ZGR20,21..E

GREGE,TRIM4#

 1
62210-0F041E1

ZGR2#..E

GREGE,TRIM4#

 1
62210-0F031E1

ZGR2#..G,V

GREGE,TRIM4#

 1
62211T - CLIP(FOR FRONT PILLAR GARNISH)
90467-10161

ZGR2#

 2
62212 - GARNISH, FRONT PILLAR, LH
62220-0F040E1

ZGR20,21..E

GREGE,TRIM4#

 1
62220-0F041E1

ZGR2#..E

GREGE,TRIM4#

 1
62220-0F030E1

ZGR2#..G,V

GREGE,TRIM4#

 1
62220-0F031E1

ZGR2#..G,V

GREGE,TRIM4#

 1
62217G - CLIP, FRONT PILLAR GARNISH
62217-33031

ZGR2#

 2
62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-0F030B0

ZGR2#

DK.GRAY,TRIM4#

 1
62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-0F030B0

ZGR2#

DK.GRAY,TRIM4#

 1
62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62331-0F030B0

ZGR2#

DK.GRAY,TRIM4#

 1
62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62332-0F030B0

ZGR2#

DK.GRAY,TRIM4#

 1
62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62217-13010

ZGR2#

 2
62411 - GARNISH, CENTER PILLAR, RH
62410-0F021E0

ZGR2#

GREGE,TRIM4#

 1
62410-0F020E0

ZGR2#

GREGE,TRIM4#

 1
62412 - GARNISH, CENTER PILLAR, LH
62420-0F021E0

ZGR2#

GREGE,TRIM4#

 1
62420-0F020E0

ZGR2#

GREGE,TRIM4#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-0F030E0

ZGR2#

ASH BROWN,TRIM4#

 1
62413C - CLIP (FOR CENTER LOWER GARNISH)
90467-10161

ZGR2#

 4
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-0F030E0

ZGR2#

ASH BROWN,TRIM4#

 1
62470A - GARNISH ASSY, ROOF SIDE, INNER RH
62470-0F060E0

ZGR20,21..E

GREGE,TRIM4#

 1
62470-0F050E0

ZGR2#..G,V

GREGE,TRIM4#

 1
62471J - CLIP (FOR ROOF SIDE GARNISH)
90467-10161

ZGR2#

 14
62476B - CAP, ROOF SIDE INNER GARNISH, NO.1
62476-0F020E0

ZGR20,21..05S

GREGE,TRIM4#

 2
62476B - CAP, ROOF SIDE INNER GARNISH, NO.1
62476-0F020E0

ZGR20,21..05S

GREGE,TRIM4#

 2
62480A - GARNISH ASSY, ROOF SIDE, INNER LH
62480-0F050E0

ZGR2#..G,V

GREGE,TRIM4#

 1
62480-0F060E0

ZGR20,21..E

GREGE,TRIM4#

 1
67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67911-0F020E0

ZGR2#

ASH BROWN,TRIM4#

 1
67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67911-0F020E0

ZGR2#

ASH BROWN,TRIM4#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-0F030E0

ZGR2#

ASH BROWN,TRIM4#

 1
67913A - CLIP(FOR SCUFF PLATE)
90467-10161

ZGR2#

 6
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-0F030E0

ZGR2#

ASH BROWN,TRIM4#

 1
67915 - PLATE, REAR DOOR SCUFF, OUTSIDE RH
67915-0F020E0

ZGR2#

ASH BROWN,TRIM4#

 1
67916 - PLATE, REAR DOOR SCUFF, OUTSIDE LH
67916-0F020E0

ZGR2#

ASH BROWN,TRIM4#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-0F030E0

ZGR2#

ASH BROWN,TRIM4#

 1
67917-0F031E0

ZGR2#

ASH BROWN,TRIM4#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-0F030E0

ZGR2#

ASH BROWN,TRIM4#

 1
67918-0F031E0

ZGR2#

ASH BROWN,TRIM4#

 1
67923A - CLAMP, DOOR SCUFF PLATE, NO.1
67923-47030

ZGR2#

 2
67925B - PANEL, REAR DOOR SCUFF, RH
67925-0F020E0

ZGR2#

ASH BROWN,TRIM4#

 1
67926A - PANEL, REAR DOOR SCUFF, LH
67926-0F020E0

ZGR2#

ASH BROWN,TRIM4#

 1
Common parts
90167-C0010
90189-05096
Linked diagrams
7104
