ZGR21L-GWXEKC (2011)
Toyota E'Z

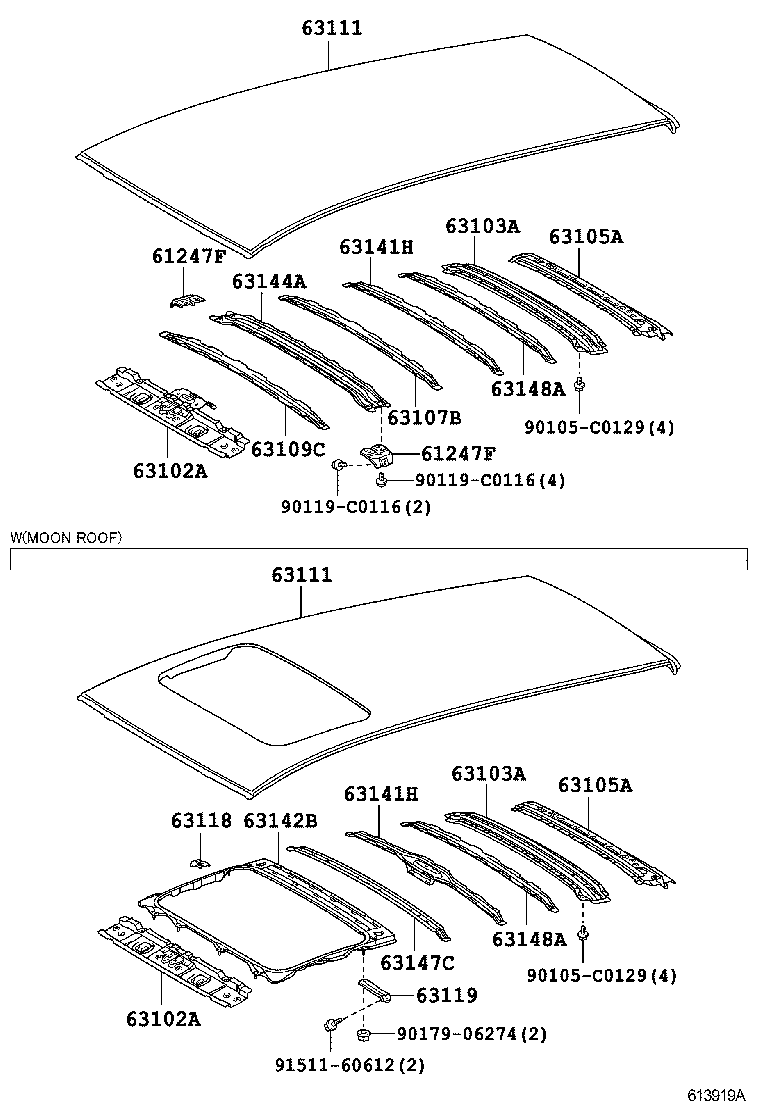

ILLUST NO. 1 OF 2(1106- )
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61247F - REINFORCEMENT, ROOF SIDE RAIL, INNER | ||||
| 61247-0F040 |
ZGR21..G |
2 | ||
| 61247-0F040 |
ZGR21..E;ZGR20,22..E,G |
2 | ||
| 61247F - REINFORCEMENT, ROOF SIDE RAIL, INNER | ||||
| 61247-0F040 |
ZGR21..G |
2 | ||
| 61247-0F040 |
ZGR21..E;ZGR20,22..E,G |
2 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-0F900 |
ZGR21..E;ZGR20,22..E,G |
1 | ||
| 63102-0F901 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 63102-0F901 |
ZGR21..G |
1 | ||
| 63102-0F900 |
ZGR21..G |
1 | ||
| 63102-0F901 |
ZGR21,22..V |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-0F900 |
ZGR21..E;ZGR20,22..E,G |
1 | ||
| 63102-0F901 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 63102-0F901 |
ZGR21..G |
1 | ||
| 63102-0F900 |
ZGR21..G |
1 | ||
| 63102-0F901 |
ZGR21,22..V |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-0F030 |
ZGR2# |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-0F030 |
ZGR2# |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-0F030 |
ZGR2# |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-0F030 |
ZGR2# |
1 | ||
| 63107B - REINFORCEMENT SUB-ASSY, ROOF PANEL, RH | ||||
| 63107-0F020 |
ZGR21..G |
1 | ||
| 63107-0F020 |
ZGR21..E;ZGR20,22..E,G |
1 | ||
| 63109C - RETAINER SUB-ASSY, ROOF REINFORCEMENT | ||||
| 63109-0F020 |
ZGR21..G |
1 | ||
| 63109-0F020 |
ZGR21..E;ZGR20,22..E,G |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-0F070 |
ZGR21..G |
1 | ||
| 63111-0F080 |
ZGR21,22..V |
1 | ||
| 63111-0F080 |
ZGR21..G |
1 | ||
| 63111-0F070 |
ZGR21..E;ZGR20,22..E,G |
1 | ||
| 63111-0F080 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-0F070 |
ZGR21..G |
1 | ||
| 63111-0F080 |
ZGR21,22..V |
1 | ||
| 63111-0F080 |
ZGR21..G |
1 | ||
| 63111-0F070 |
ZGR21..E;ZGR20,22..E,G |
1 | ||
| 63111-0F080 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-0F030 |
ZGR21..G |
1 | ||
| 63118-0F030 |
ZGR21,22..V |
1 | ||
| 63118-0F030 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63119-0F030 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 63119-0F030 |
ZGR21,22..V |
1 | ||
| 63119-0F030 |
ZGR21..G |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-0F030 |
ZGR21..E;ZGR20,22..E,G |
1 | ||
| 63106-0F030 |
ZGR21..G |
1 | ||
| 63106-0F030 |
ZGR21,22..V |
1 | ||
| 63106-0F030 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 63141-0F030 |
ZGR21..G |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-0F030 |
ZGR21..E;ZGR20,22..E,G |
1 | ||
| 63106-0F030 |
ZGR21..G |
1 | ||
| 63106-0F030 |
ZGR21,22..V |
1 | ||
| 63106-0F030 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 63141-0F030 |
ZGR21..G |
1 | ||
| 63142B - REINFORCEMENT, ROOF PANEL, REAR | ||||
| 63142-0F900 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 63142-0F900 |
ZGR21,22..V |
1 | ||
| 63142-0F900 |
ZGR21..G |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-0F030 |
ZGR21..E;ZGR20,22..E,G |
1 | ||
| 63144-0F030 |
ZGR21..G |
1 | ||
| 63147C - REINFORCEMENT, BACK DOOR OPENING FRAME, UPPER CENTER | ||||
| 63147-0F040 |
ZGR21,22..V |
1 | ||
| 63147-0F040 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 63147-0F040 |
ZGR21..G |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-0F030 |
ZGR2# |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-0F030 |
ZGR2# |
1 | ||
| Common parts | ||||
| 90105-C0129 | ||||
| 90119-C0116 | ||||
| 90179-06274 | ||||
| 91511-60612 | ||||

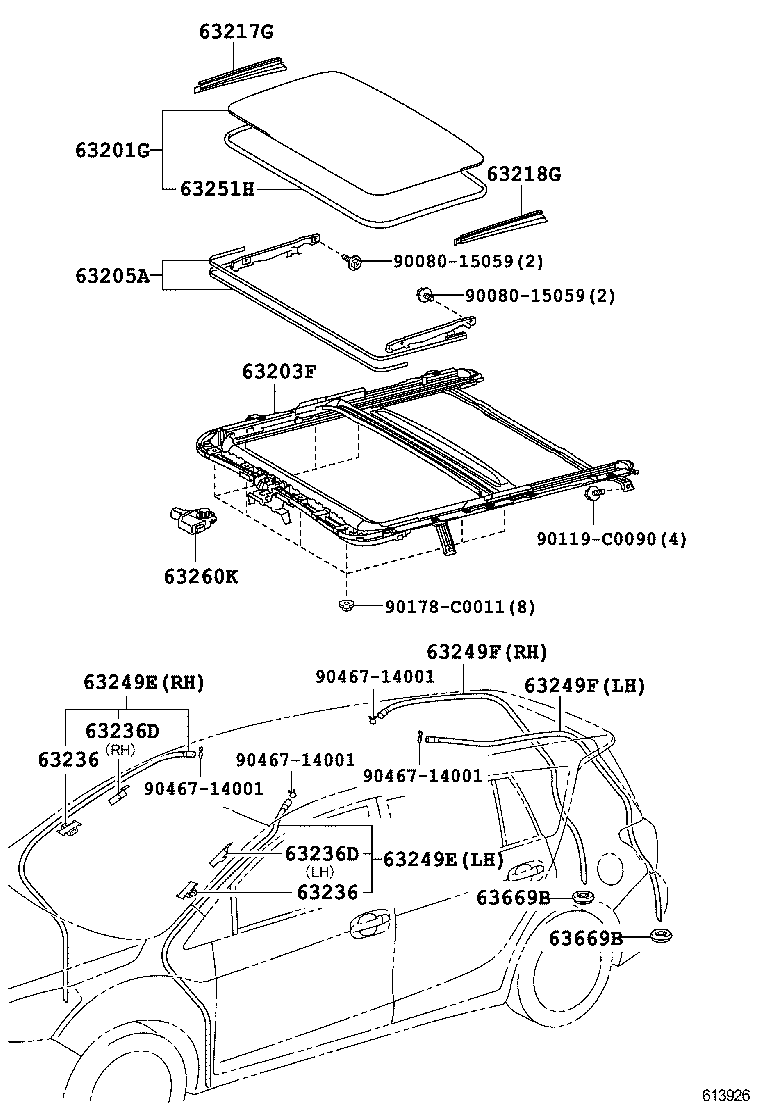

ILLUST NO. 2 OF 2(1106- )ZGR21,22..G,V
SLIDING ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-0F040 |
ZGR21,22..CVFC..G *TEM,T=4.0,DARK GRAY,SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 63201-0F040 |
ZGR21,22..V *TEM,T=4.0,DARK GRAY |
1 | ||
| 63201-0F040 |
ZGR21..G *TEM,T=4.0,DARK GRAY |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-0F030 |
ZGR21..G |
1 | ||
| 63203-0F030 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 63203-0F030 |
ZGR21,22..V |
1 | ||
| 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63205-0N010 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 63205-0N010 |
ZGR21,22..V |
1 | ||
| 63205-0N010 |
ZGR21..G |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-0N010 |
ZGR21,22..V |
1 | ||
| 63217-0N010 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 63217-0N010 |
ZGR21..G |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-0N010 |
ZGR21,22..V |
1 | ||
| 63218-0N010 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 63218-0N010 |
ZGR21..G |
1 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-0F040 |
ZGR21,22..V |
2 | ||
| 63236-0F040 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
2 | ||
| 63236-0F040 |
ZGR21..G |
2 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-0F040 |
ZGR21,22..V |
2 | ||
| 63236-0F040 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
2 | ||
| 63236-0F040 |
ZGR21..G |
2 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-0F020 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,RH |
1 | ||
| 63236-0F030 |
ZGR21,22..V LH |
1 | ||
| 63236-0F030 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,LH |
1 | ||
| 63236-0F020 |
ZGR21..G RH |
1 | ||
| 63236-0F020 |
ZGR21,22..V RH |
1 | ||
| 63236-0F030 |
ZGR21..G LH |
1 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-0F020 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,RH |
1 | ||
| 63236-0F030 |
ZGR21,22..V LH |
1 | ||
| 63236-0F030 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,LH |
1 | ||
| 63236-0F020 |
ZGR21..G RH |
1 | ||
| 63236-0F020 |
ZGR21,22..V RH |
1 | ||
| 63236-0F030 |
ZGR21..G LH |
1 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-0F050 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,RH |
1 | ||
| 63249-0F050 |
ZGR21,22..V RH |
1 | ||
| 63249-0F060 |
ZGR21..G LH |
1 | ||
| 63249-0F060 |
ZGR21,22..V LH |
1 | ||
| 63249-0F060 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,LH |
1 | ||
| 63249-0F050 |
ZGR21..G RH |
1 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-0F050 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,RH |
1 | ||
| 63249-0F050 |
ZGR21,22..V RH |
1 | ||
| 63249-0F060 |
ZGR21..G LH |
1 | ||
| 63249-0F060 |
ZGR21,22..V LH |
1 | ||
| 63249-0F060 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,LH |
1 | ||
| 63249-0F050 |
ZGR21..G RH |
1 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-0F070 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,RH |
1 | ||
| 63249-0F080 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,LH |
1 | ||
| 63249-0F070 |
ZGR21..G RH |
1 | ||
| 63249-0F080 |
ZGR21,22..V LH |
1 | ||
| 63249-0F080 |
ZGR21..G LH |
1 | ||
| 63249-0F070 |
ZGR21,22..V RH |
1 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-0F070 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,RH |
1 | ||
| 63249-0F080 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER,LH |
1 | ||
| 63249-0F070 |
ZGR21..G RH |
1 | ||
| 63249-0F080 |
ZGR21,22..V LH |
1 | ||
| 63249-0F080 |
ZGR21..G LH |
1 | ||
| 63249-0F070 |
ZGR21,22..V RH |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-0N010 |
ZGR21,22..V |
1 | ||
| 63251-0N010 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 63251-0N010 |
ZGR21..G |
1 | ||
| 63260K - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-0F010 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 63260-0F010 |
ZGR21..G |
1 | ||
| 63260-0F010 |
ZGR21,22..V |
1 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 90480-26020 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
2 | ||
| 90480-26020 |
ZGR21..G |
2 | ||
| 90480-26020 |
ZGR21,22..V |
2 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 90480-26020 |
ZGR21,22..CVFC..G SEAT COVER MATERIAL-NATURAL LEATHER |
2 | ||
| 90480-26020 |
ZGR21..G |
2 | ||
| 90480-26020 |
ZGR21,22..V |
2 | ||
| Common parts | ||||
| 90080-15059 | ||||
| 90119-C0090 | ||||
| 90178-C0011 | ||||
| 90467-14001 | ||||
