ZGR21L-GWXEKC (2011)
Toyota E'Z
Production
Jun 2011
-
Dec 2016
Engine
2ZRFE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

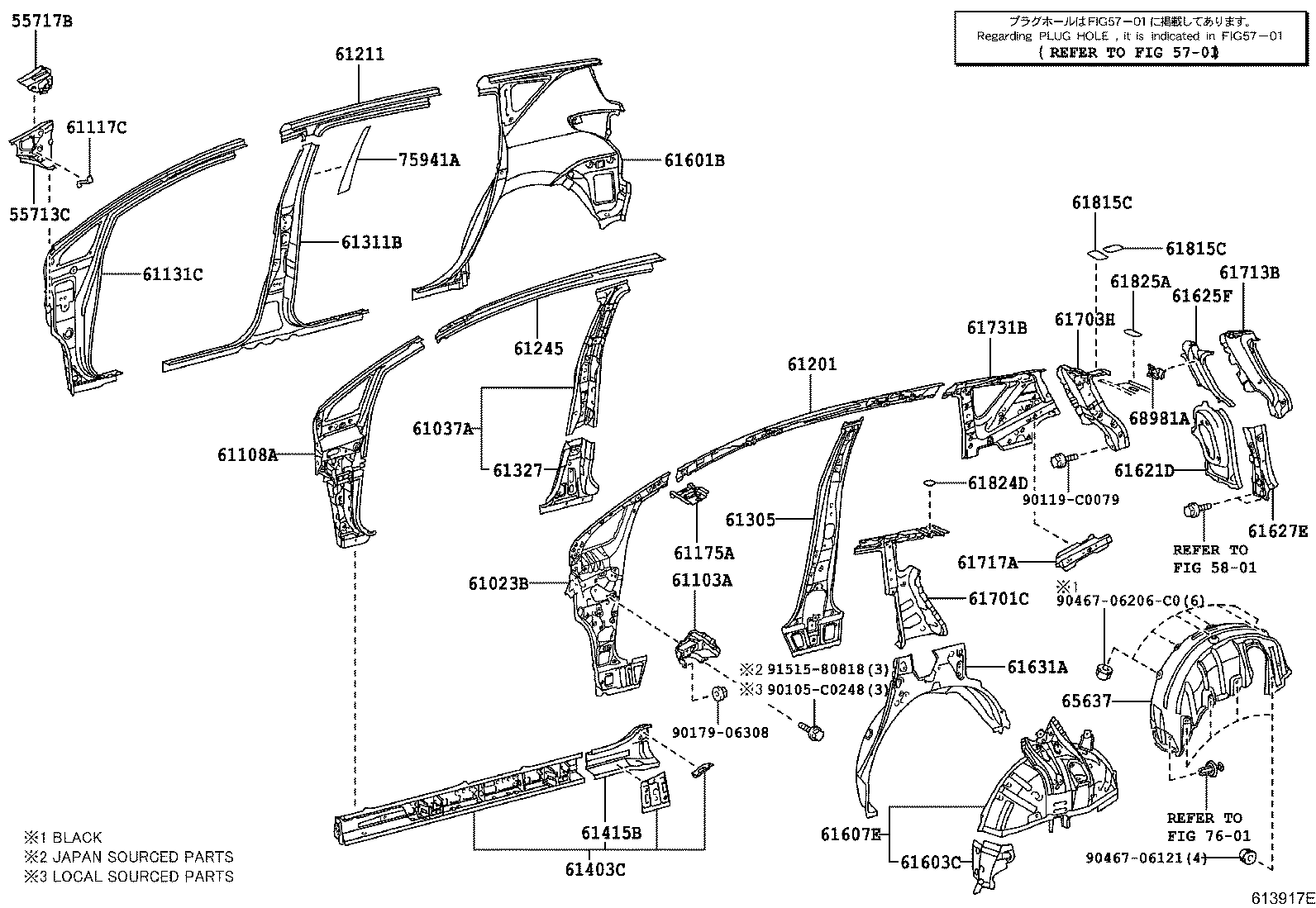

ILLUST NO. 1 OF 2(1106- )
Click highlighted areas on diagram
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55713C - PANEL, COWL TOP SIDE, RH | ||||
| 55713-0F030 |
ZGR2# |
1 | ||
| 55717B - PANEL, COWL TOP SIDE, INNER RH | ||||
| 55717-0F030 |
ZGR2# |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-0F030 |
ZGR2# |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-0F030 |
ZGR2# |
1 | ||
| 61103A - REINFORCEMENT SUB-ASSY, COWL SIDE, RH | ||||
| 61103-0F030 |
ZGR2# |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-0F900 |
ZGR2# |
1 | ||
| 61117C - GUSSET, SIDE PANEL TO COWL, RH | ||||
| 61117-0F020 |
ZGR2# |
1 | ||
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61131-0F030 |
ZGR2# |
1 | ||
| 61175A - REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH | ||||
| 61175-0F030 |
ZGR2# |
1 | ||
| 61201 - RAIL SUB-ASSY, ROOF SIDE, RH | ||||
| 61201-0F020 |
ZGR2# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-0F030 |
ZGR2# |
1 | ||
| 61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH | ||||
| 61245-0F030 |
ZGR2# |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-0F020 |
ZGR2# |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-0F030 |
ZGR2# |
1 | ||
| 61327 - REINFORCEMENT, CENTER BODY PILLAR, OUTER RH | ||||
| 61327-0F030 |
ZGR2# |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-0F900 |
ZGR2# |
1 | ||
| 61415B - EXTENSION, ROCKER, OUTER RH | ||||
| 61415-0F030 |
ZGR2# |
1 | ||
| 61601B - PANEL SUB-ASSY, QUARTER, RH | ||||
| 61601-0F030 |
ZGR2# |
1 | ||
| 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61603-0F020 |
ZGR2# |
1 | ||
| 61607E - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-0F040 |
ZGR2# |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-0F030 |
ZGR2# |
1 | ||
| 61625F - EXTENSION, QUARTER PANEL, UPPER RH | ||||
| 61625-0F030 |
ZGR2# |
1 | ||
| 61627E - EXTENSION, QUARTER PANEL, REAR LOWER RH | ||||
| 61627-0F030 |
ZGR2# |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-0F030 |
ZGR2# |
1 | ||
| 61701C - PANEL SUB-ASSY, ROOF SIDE, OUTER RH | ||||
| 61701-0F030 |
ZGR2# |
1 | ||
| 61703H - REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61703-0F030 |
ZGR2# |
1 | ||
| 61713B - REINFORCE, ROOF SIDE, OUTER RH | ||||
| 61713-0F030 |
ZGR2# |
1 | ||
| 61717A - REINFORCEMENT, QUARTER PANEL EXTENSION, RH | ||||
| 61717-0F020 |
ZGR2# |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-0F030 |
ZGR2# |
1 | ||
| 61815C - COVER, ROOF SIDE, INNER UPPER | ||||
| 61815-0F010 |
ZGR2# |
4 | ||
| 61815C - COVER, ROOF SIDE, INNER UPPER | ||||
| 61815-0F010 |
ZGR2# |
4 | ||
| 61824D - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-0F010 |
ZGR2# |
2 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-0F010 |
ZGR2# |
2 | ||
| 65637 - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-0F030 |
ZGR2# |
1 | ||
| 68981A - RETAINER, BACK DOOR STAY, RH | ||||
| 68981-0F030 |
ZGR2# |
1 | ||
| 75941A - STRIPE, CENTER PILLAR, RH | ||||
| 75941-0F020 |
ZGR2# |
1 | ||
| Common parts | ||||
| 90105-C0248 | ||||
| 90119-C0079 | ||||
| 90179-06308 | ||||
| 90467-06121 | ||||
| 90467-06206C0 | ||||
| 91515-80818 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 5801 | ||||
| 7601 | ||||
ILLUST NO. 2 OF 2(1106- )
Click highlighted areas on diagram
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55714C - PANEL, COWL TOP SIDE, LH | ||||
| 55714-0F030 |
ZGR2# |
1 | ||
| 55718G - PANEL, COWL TOP SIDE, INNER LH | ||||
| 55718-0F030 |
ZGR2# |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-0F030 |
ZGR2# |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-0F030 |
ZGR2# |
1 | ||
| 61044C - EXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER LH | ||||
| 61043-0F020 |
ZGR2# |
1 | ||
| 61104B - REINFORCEMENT SUB-ASSY, COWL SIDE, LH | ||||
| 61104-0F030 |
ZGR2# |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-0F900 |
ZGR2# |
1 | ||
| 61118D - GUSSET, SIDE PANEL TO COWL, LH | ||||
| 61118-0F020 |
ZGR2# |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-0F030 |
ZGR2# |
1 | ||
| 61176D - REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH | ||||
| 61176-0F030 |
ZGR2# |
1 | ||
| 61202 - RAIL SUB-ASSY, ROOF SIDE, LH | ||||
| 61202-0F020 |
ZGR2# |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-0F030 |
ZGR2# |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61246-0F030 |
ZGR2# |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-0F020 |
ZGR2# |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-0F030 |
ZGR2# |
1 | ||
| 61328 - REINFORCEMENT, CENTER BODY PILLAR, OUTER LH | ||||
| 61328-0F030 |
ZGR2# |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-0F900 |
ZGR2# |
1 | ||
| 61416B - EXTENSION, ROCKER, OUTER LH | ||||
| 61416-0F030 |
ZGR2# |
1 | ||
| 61602C - PANEL SUB-ASSY, QUARTER, LH | ||||
| 61602-0F030 |
ZGR2# |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61604-0F020 |
ZGR2# |
1 | ||
| 61608D - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-0F040 |
ZGR2# |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-0F030 |
ZGR2# |
1 | ||
| 61626F - EXTENSION, QUARTER PANEL, UPPER LH | ||||
| 61626-0F030 |
ZGR2# |
1 | ||
| 61628D - EXTENSION, QUARTER PANEL, REAR LOWER LH | ||||
| 61628-0F030 |
ZGR2# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-0F030 |
ZGR2# |
1 | ||
| 61702C - PANEL SUB-ASSY, ROOF SIDE, OUTER LH | ||||
| 61702-0F030 |
ZGR2# |
1 | ||
| 61704J - REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61704-0F030 |
ZGR2# |
1 | ||
| 61714B - REINFORCE, ROOF SIDE, OUTER LH | ||||
| 61714-0F030 |
ZGR2# |
1 | ||
| 61718A - REINFORCEMENT, QUARTER PANEL EXTENSION, LH | ||||
| 61718-0F020 |
ZGR2# |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61725-0F020 |
ZGR2# |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-0F030 |
ZGR2# |
1 | ||
| 61815C - COVER, ROOF SIDE, INNER UPPER | ||||
| 61815-0F010 |
ZGR2# |
4 | ||
| 61815C - COVER, ROOF SIDE, INNER UPPER | ||||
| 61815-0F010 |
ZGR2# |
4 | ||
| 61824D - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-0F010 |
ZGR2# |
2 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-0F010 |
ZGR2# |
2 | ||
| 65638 - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-0F030 |
ZGR2# |
1 | ||
| 68982A - RETAINER, BACK DOOR STAY, LH | ||||
| 68982-0F030 |
ZGR2# |
1 | ||
| 75942B - STRIPE, CENTER PILLAR, LH | ||||
| 75942-0F020 |
ZGR2# |
1 | ||
| Common parts | ||||
| 90105-C0027 | ||||
| 90119-C0079 | ||||
| 90179-06308 | ||||
| 90467-06206C0 | ||||
| 90467-07215 | ||||
| 91515-80818 | ||||
| 91551-80614 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 5801 | ||||
| 7601 | ||||
