ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

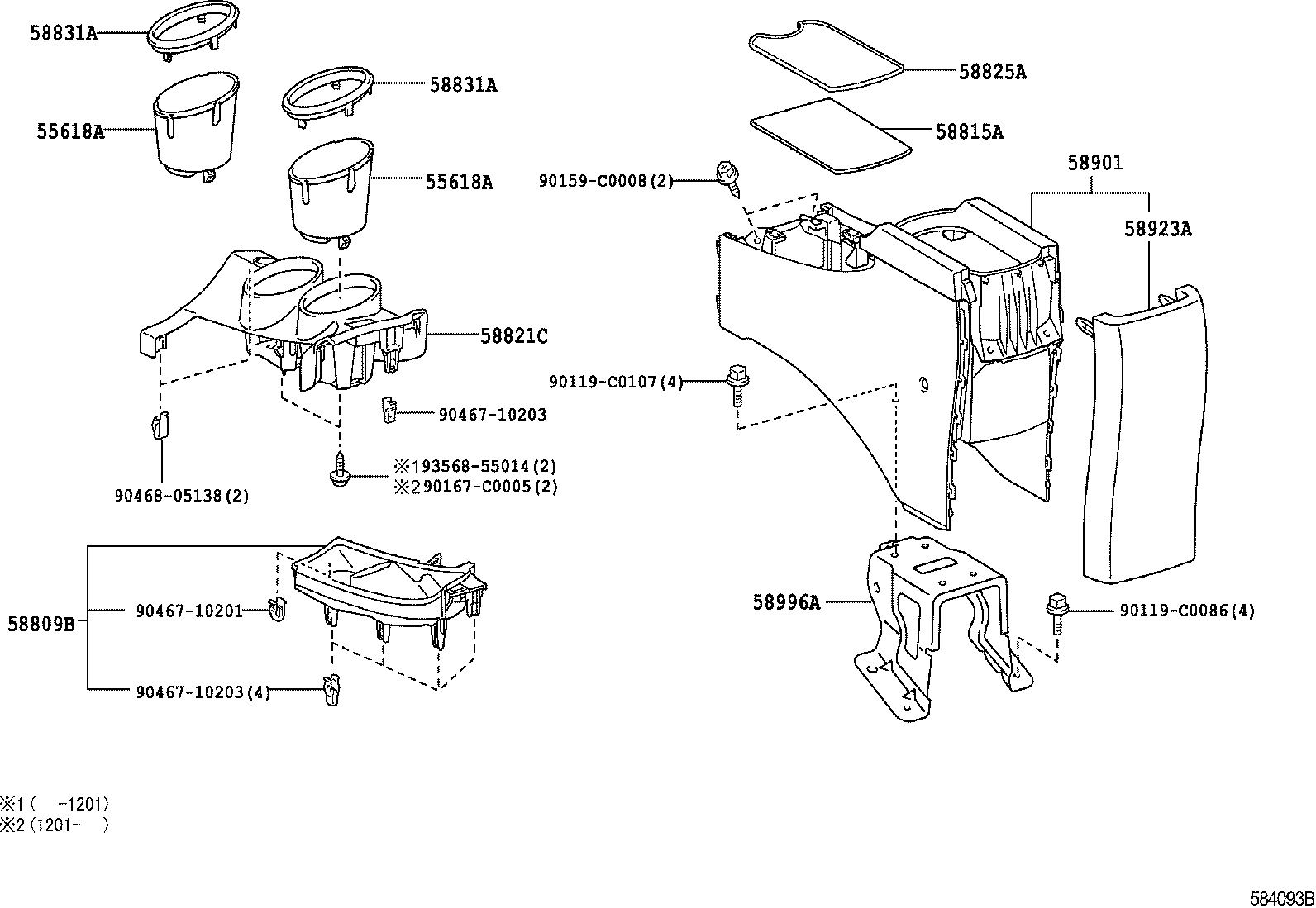

(1106-1204)G ; (1106-1309)E

Click highlighted areas on diagram

diagram 55618A 55618A 58809B 58815A 58821C 58825A 58831A 58831A 58901 58923A 58996A 90119C0086 90119C0107 90159C0008 90167C0005 9046710201 9046710203 9046710203 9046805138 9356855014
Part # Description Qty Price
55618A - HOLDER, CONSOLE BOX CUP
55618-0F040E0

ZGR2#

GREGE,TRIM4#

 2
55618A - HOLDER, CONSOLE BOX CUP
55618-0F040E0

ZGR2#

GREGE,TRIM4#

 2
58809B - COVER SUB-ASSY, PARKING BRAKE HOLE
58809-0F030E0

ZGR2#

ASH BROWN,TRIM4#

 1
58815A - CARPET, CONSOLE BOX
58815-0F040

ZGR2#

 1
58821C - PANEL, CONSOLE, UPPER
58821-0F060E0

ZGR2#

GREGE,TRIM4#

 1
58825A - POCKET, CONSOLE BOX
58825-0F020E0

ZGR2#

GREGE,TRIM4#

 1
58831A - GARNISH, CONSOLE UPPER PANEL, FRONT
58831-0F020

ZGR2#

 2
58831A - GARNISH, CONSOLE UPPER PANEL, FRONT
58831-0F020

ZGR2#

 2
58901 - PANEL SUB-ASSY, BOX
58901-0F080E0

ZGR20,21..E

GREGE,TRIM4#

 1
58901-0F090E0

ZGR21,22..V

GREGE,TRIM4#

 1
58901-0F091E0

ZGR2#

GREGE,TRIM4#

 1
58901-0F080E0

ZGR2#..G

GREGE,TRIM4#

 1
58901-0F090E0

ZGR2#..G

GREGE,TRIM4#

 1
58901-0F090E0

ZGR2#..E

GREGE,TRIM4#

 1
58923A - PANEL, CONSOLE REAR END
58923-0F060E0

ZGR2#..G,V

GREGE,TRIM4#

 1
58923-0F050E0

ZGR21,22..V

GREGE,TRIM4#

 1
58923-0F040E0

ZGR2#..G

GREGE,TRIM4#

 1
58923-0F040E0

ZGR20,21..E

GREGE,TRIM4#

 1
58923-0F060E0

ZGR2#..E

GREGE,TRIM4#

 1
58923-0F061E0

ZGR2#

GREGE,TRIM4#

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-0F040

ZGR2#

 1
Common parts
90119-C0086
90119-C0107
90159-C0008
90167-C0005
90467-10201
90467-10203
90468-05138
93568-55014

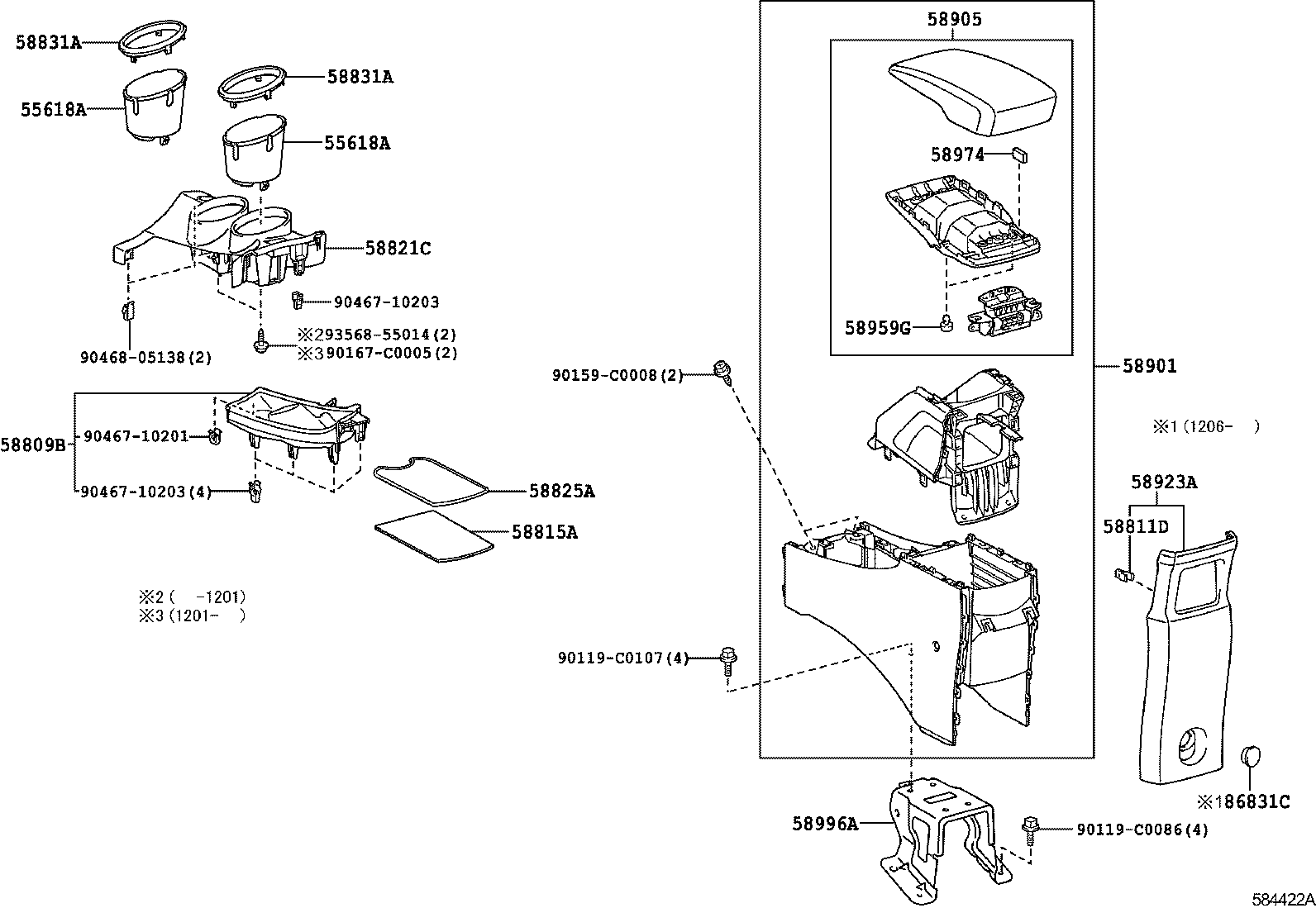

(1106- )V ; (1204- )G ; (1309- )E

Click highlighted areas on diagram

diagram 55618A 55618A 58809B 58811D 58815A 58821C 58825A 58831A 58831A 58901 58905 58923A 58959G 58974 58996A 86831C 90119C0086 90119C0107 90159C0008 90167C0005 9046710201 9046710203 9046710203 9046805138 9356855014
Part # Description Qty Price
55618A - HOLDER, CONSOLE BOX CUP
55618-0F040E0

ZGR2#

GREGE,TRIM4#

 2
55618A - HOLDER, CONSOLE BOX CUP
55618-0F040E0

ZGR2#

GREGE,TRIM4#

 2
58809B - COVER SUB-ASSY, PARKING BRAKE HOLE
58809-0F030E0

ZGR2#

ASH BROWN,TRIM4#

 1
58811D - CLIP(FOR CONSOLE BOX)
90467-10203

ZGR21,22..V

 2
90467-10203

ZGR2#..E

 2
90467-10203

ZGR2#..G

 2
58815A - CARPET, CONSOLE BOX
58815-0F040

ZGR2#

 1
58821C - PANEL, CONSOLE, UPPER
58821-0F060E0

ZGR2#

GREGE,TRIM4#

 1
58825A - POCKET, CONSOLE BOX
58825-0F020E0

ZGR2#

GREGE,TRIM4#

 1
58831A - GARNISH, CONSOLE UPPER PANEL, FRONT
58831-0F020

ZGR2#

 2
58831A - GARNISH, CONSOLE UPPER PANEL, FRONT
58831-0F020

ZGR2#

 2
58901 - PANEL SUB-ASSY, BOX
58901-0F080E0

ZGR20,21..E

GREGE,TRIM4#

 1
58901-0F090E0

ZGR21,22..V

GREGE,TRIM4#

 1
58901-0F091E0

ZGR2#

GREGE,TRIM4#

 1
58901-0F080E0

ZGR2#..G

GREGE,TRIM4#

 1
58901-0F090E0

ZGR2#..G

GREGE,TRIM4#

 1
58901-0F090E0

ZGR2#..E

GREGE,TRIM4#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-0F030E0

ZGR2#..E

GREGE,TRIM4#

 1
58905-0F030E0

ZGR2#..G

GREGE,TRIM4#

 1
58905-0F030E0

ZGR21,22..V

GREGE,TRIM4#

 1
58923A - PANEL, CONSOLE REAR END
58923-0F060E0

ZGR2#..G,V

GREGE,TRIM4#

 1
58923-0F050E0

ZGR21,22..V

GREGE,TRIM4#

 1
58923-0F040E0

ZGR2#..G

GREGE,TRIM4#

 1
58923-0F040E0

ZGR20,21..E

GREGE,TRIM4#

 1
58923-0F060E0

ZGR2#..E

GREGE,TRIM4#

 1
58923-0F061E0

ZGR2#

GREGE,TRIM4#

 1
58959G - CUSHION, CONSOLE COMPARTMENT DOOR
58959-60060

ZGR21,22..V

 2
58959-60060

ZGR2#..G

 2
58959-60060

ZGR2#..E

 2
58974 - PLATE, CONSOLE COMPARTMENT DOOR LOCK
58974-64010

ZGR2#..G

 2
58974-64010

ZGR21,22..V

 2
58974-64010

ZGR2#..E

 2
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-0F040

ZGR2#

 1
86831C - COVER, ACCESSORY SOCKET
86831-0F010E1

ZGR2#..G,V

GREGE,TRIM4#

 1
86831-0F010E1

ZGR2#..E

GREGE,TRIM4#

 1
Common parts
90119-C0086
90119-C0107
90159-C0008
90167-C0005
90467-10201
90467-10203
90468-05138
93568-55014
