ZGR21L-GWXEKC (2011)
Toyota E'Z
Production
Jun 2011
-
Dec 2016
Engine
2ZRFE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1106- )

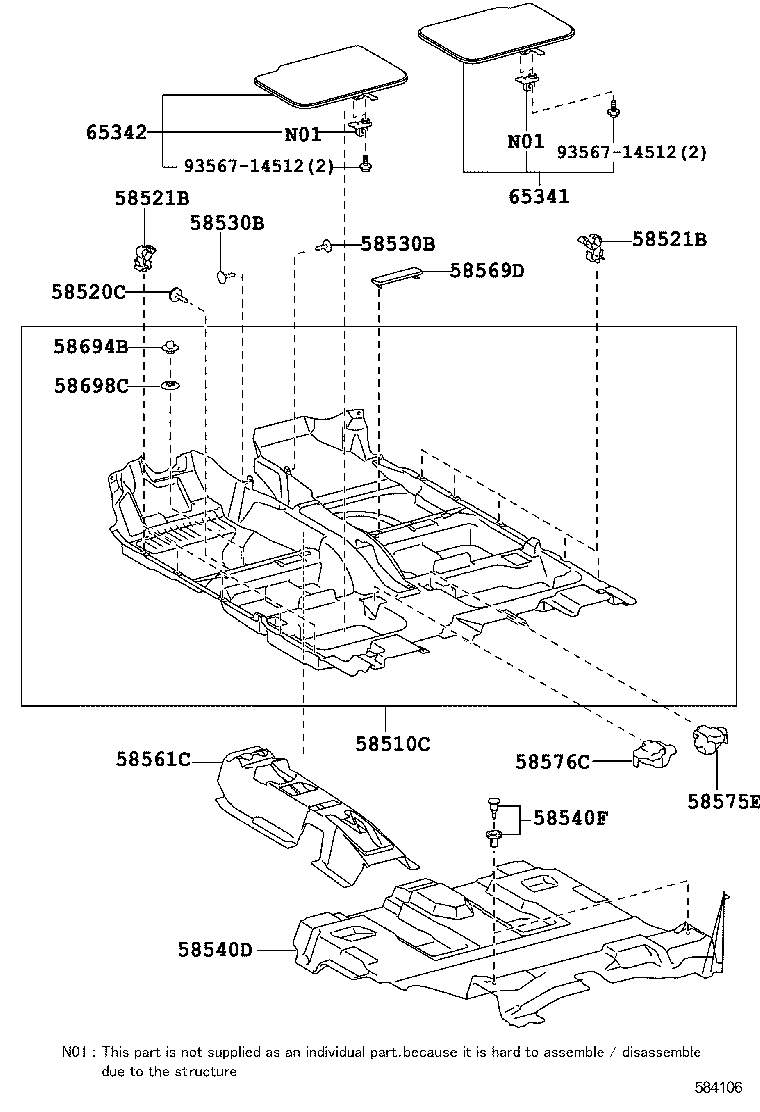

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58510C - CARPET ASSY, FRONT FLOOR, FRONT | ||||
| 58510-0F070E0 |
ZGR20,21..05S GREGE,TRIM4# |
1 | ||
| 58510-0F140E0 |
ZGR2#..05S GREGE,TRIM4# |
1 | ||
| 58520C - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-07049B7 |
ZGR2# DK.GRAY |
1 | ||
| 58521B - HOOK, FLOOR CARPET | ||||
| 58521-0F020 |
ZGR2# |
10 | ||
| 58521B - HOOK, FLOOR CARPET | ||||
| 58521-0F020 |
ZGR2# |
10 | ||
| 58530B - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-05164B2 |
ZGR2# DK.GRAY |
2 | ||
| 58530B - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-05164B2 |
ZGR2# DK.GRAY |
2 | ||
| 58540D - CARPET ASSY, FLOOR, REAR | ||||
| 58581-0F060E0 |
ZGR20,21..05S GREGE,TRIM4# |
1 | ||
| 58540F - CLIP(FOR REAR FLOOR CARPET) | ||||
| 90467-10210 |
ZGR2# |
2 | ||
| 58561C - SILENCER, FRONT FLOOR, NO.1 | ||||
| 58561-0F030 |
ZGR2# |
1 | ||
| 58569D - COVER, FRONT FLOOR CAUTION PLATE | ||||
| 58569-0F020E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 58569-0F010 |
ZGR2# |
1 | ||
| 58575E - PAD, FRONT FLOOR, REAR NO.1 | ||||
| 58575-0F020E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 58576C - PAD, FRONT FLOOR, REAR NO.2 | ||||
| 58576-0F020E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 58694B - PLATE, MAT SET, UPPER | ||||
| 58694-76010 |
ZGR2# |
2 | ||
| 58698C - PLATE, MAT SET, LOWER | ||||
| 58698-76010 |
ZGR2# |
2 | ||
| 65341 - BOARD, FLOOR, NO.1 | ||||
| 65341-0F020E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 65341-0F021E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 65342 - BOARD, FLOOR, NO.2 | ||||
| 65342-0F020E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| 65342-0F021E0 |
ZGR2# GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 93567-14512 | ||||
