ZGR21L-GWXEKC (2011)
Toyota E'Z
Production
Jun 2011
-
Dec 2016
Engine
2ZRFE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

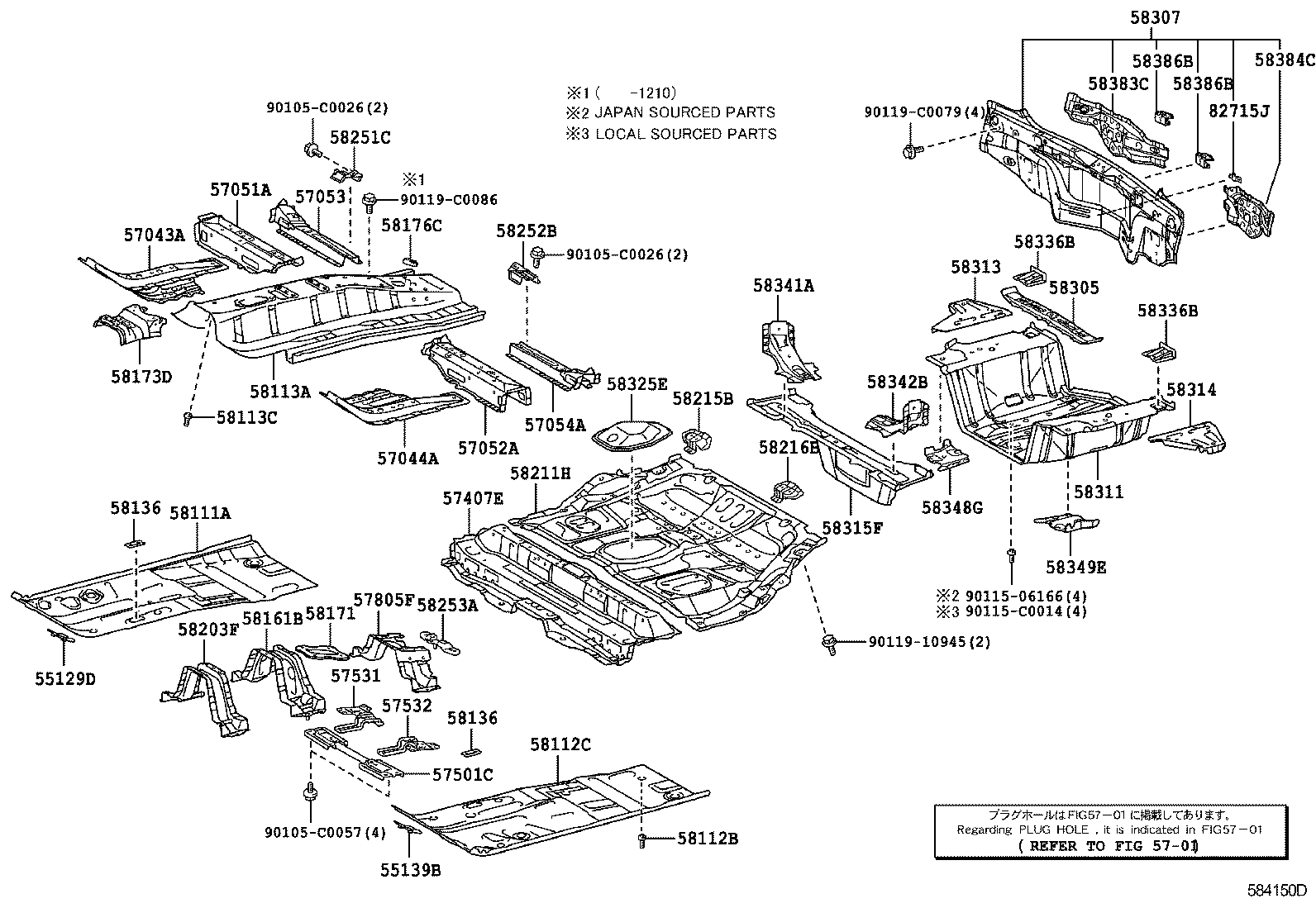

ILLUST NO. 1 OF 2(1106- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55129D - COVER, DASH PANEL HOLE, RH | ||||
| 55129-02040 |
ZGR2# |
1 | ||
| 55139B - COVER, DASH PANEL HOLE, LH | ||||
| 55139-02030 |
ZGR2# |
1 | ||
| 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-02020 |
ZGR2# |
1 | ||
| 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-02020 |
ZGR2# |
1 | ||
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-02040 |
ZGR2# |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-02030 |
ZGR2# |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-0F010 |
ZGR2# |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-0F010 |
ZGR2# |
1 | ||
| 57407E - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-0F030 |
ZGR2# |
1 | ||
| 57501C - BRACE SUB-ASSY, FRONT FLOOR, CENTER | ||||
| 57501-0F010 |
ZGR2# |
1 | ||
| 57531 - BRACKET, FRONT FLOOR CENTER BRACE, RH | ||||
| 57531-02020 |
ZGR2# |
1 | ||
| 57532 - BRACKET, FRONT FLOOR CENTER BRACE, LH | ||||
| 57532-02020 |
ZGR2# |
1 | ||
| 57805F - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 | ||||
| 57805-0F010 |
ZGR2# |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-0F040 |
ZGR2# |
1 | ||
| 58112B - BOLT, WELD(FOR FRONT FLOOR PAN, LH) | ||||
| 90115-C0006 |
ZGR2# (L) |
3 | ||
| 90115-06219 |
ZGR2# |
3 | ||
| 90115-06219 |
ZGR2# (J) |
3 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-0F902 |
ZGR2# |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-0F902 |
ZGR2# |
1 | ||
| 58113-0F903 |
ZGR2# |
1 | ||
| 58113C - BOLT, WELD(FOR FRONT FLOOR PANEL, CENTER) | ||||
| 90115-06166 |
ZGR2# (J) |
4 | ||
| 90115-06166 |
ZGR2# |
4 | ||
| 90115-C0014 |
ZGR2# (L) |
4 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-0F020 |
ZGR2# |
2 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-0F020 |
ZGR2# |
2 | ||
| 58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN | ||||
| 58161-0F020 |
ZGR2# |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-02070 |
ZGR2# |
1 | ||
| 58171-02071 |
ZGR2# |
1 | ||
| 58173D - BRACKET, COMPUTER MOUNTING, NO.4 | ||||
| 58173-0F010 |
ZGR2# |
1 | ||
| 58176C - REINFORCEMENT, PARKING BRAKE BASE, NO.2 | ||||
| 58176-02030 |
ZGR2# |
1 | ||
| 58203F - BRACKET SUB-ASSY, EXHAUST PIPE MOUNTING | ||||
| 58203-0F020 |
ZGR2# |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-0F030 |
ZGR2# |
1 | ||
| 58215B - BRACKET, REAR SEAT MOUNTING, RH | ||||
| 58215-0F020 |
ZGR2# |
1 | ||
| 58216B - BRACKET, REAR SEAT MOUNTING, LH | ||||
| 58216-0F020 |
ZGR2# |
1 | ||
| 58251C - BRACE, FLOOR PANEL, FRONT RH | ||||
| 58251-02040 |
ZGR2# |
1 | ||
| 58252B - BRACE, FLOOR PANEL, FRONT LH | ||||
| 58252-02020 |
ZGR2# |
1 | ||
| 58253A - BRACKET, PARKING CABLE CLAMP | ||||
| 58253-0F020 |
ZGR2# |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-0F020 |
ZGR2# |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-0F030 |
ZGR2# |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-0F906 |
ZGR2# |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-0F010 |
ZGR2# |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-0F010 |
ZGR2# |
1 | ||
| 58315F - EXTENSION, REAR FLOOR SIDE PANEL, FRONT | ||||
| 58315-0F030 |
ZGR2# |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-0F030 |
ZGR2# |
1 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-0F010 |
ZGR2# |
2 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-0F010 |
ZGR2# |
2 | ||
| 58341A - BRACKET, REAR ABSORBER MOUNTING, RH | ||||
| 58341-0F040 |
ZGR2# |
1 | ||
| 58342B - BRACKET, REAR ABSORBER MOUNTING, LH | ||||
| 58342-0F040 |
ZGR2# |
1 | ||
| 58348G - PLATE, REAR FLOOR SIDE, RH | ||||
| 58348-0F020 |
ZGR2# |
1 | ||
| 58349E - PLATE, REAR FLOOR SIDE, LH | ||||
| 58349-0F020 |
ZGR2# |
1 | ||
| 58383C - REINFORCEMENT, BODY LOWER BACK PANEL, INNER | ||||
| 58383-0F030 |
ZGR2# |
1 | ||
| 58384C - REINFORCEMENT, BODY LOWER BACK, NO.2 LH | ||||
| 58384-0F030 |
ZGR2# |
1 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-0F020 |
ZGR2# |
2 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-0F020 |
ZGR2# |
2 | ||
| 82715J - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-0F140 |
ZGR2# |
1 | ||
| Common parts | ||||
| 90105-C0026 | ||||
| 90105-C0057 | ||||
| 90115-06166 | ||||
| 90115-C0014 | ||||
| 90119-10945 | ||||
| 90119-C0079 | ||||
| 90119-C0086 | ||||
| Linked diagrams | ||||
| 5701 | ||||

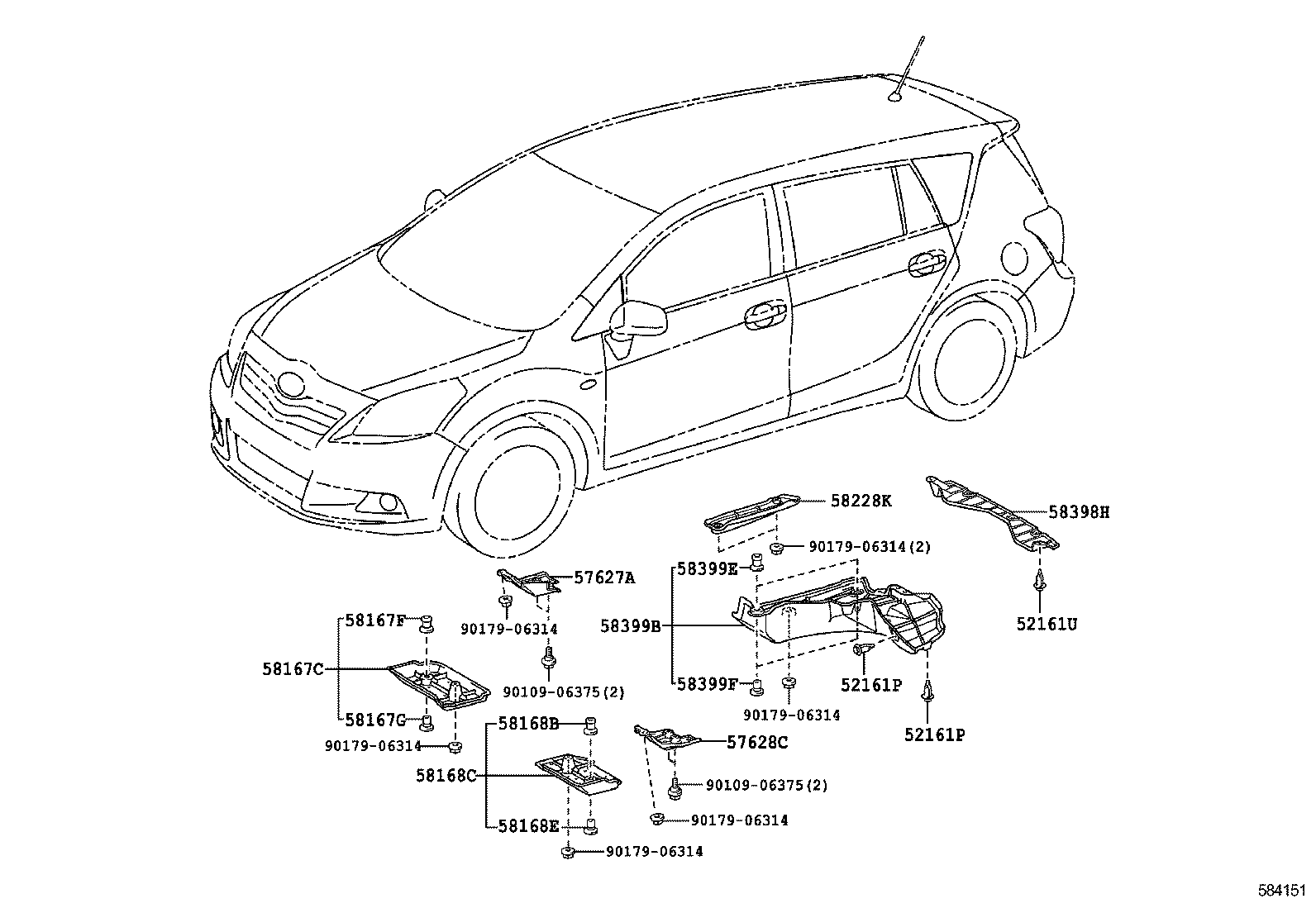

ILLUST NO. 2 OF 2(1106- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161P - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZGR2# |
2 | ||
| 52161P - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZGR2# |
2 | ||
| 52161U - PIECE, REAR BUMPER | ||||
| 52161-02040 |
ZGR2# (L) |
5 | ||
| 52161-16010 |
ZGR2# |
5 | ||
| 52161-16010 |
ZGR2# (J) |
5 | ||
| 57627A - COVER, REAR FLOOR SIDE MEMBER, RH | ||||
| 57627-0F020 |
ZGR2# |
1 | ||
| 57628C - COVER, REAR FLOOR SIDE MEMBER, LH | ||||
| 57628-0F020 |
ZGR2# |
1 | ||
| 58167C - COVER, FRONT FLOOR, CENTER RH | ||||
| 58167-0F020 |
ZGR2# |
1 | ||
| 58167F - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-17026A0 |
ZGR2# SUPER WHITE 2 |
1 | ||
| 90467-17024A0 |
ZGR2# SUPER WHITE 2 |
1 | ||
| 58167G - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-17025C0 |
ZGR2# BLACK |
1 | ||
| 90467-17027C0 |
ZGR2# BLACK |
1 | ||
| 58168B - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-17026A0 |
ZGR2# SUPER WHITE 2 |
1 | ||
| 90467-17024A0 |
ZGR2# SUPER WHITE 2 |
1 | ||
| 58168C - COVER, FRONT FLOOR, CENTER LH | ||||
| 58168-0F020 |
ZGR2# |
1 | ||
| 58168E - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-17025C0 |
ZGR2# BLACK |
1 | ||
| 90467-17027C0 |
ZGR2# BLACK |
1 | ||
| 58228K - PLATE, AIR GUIDE, RH | ||||
| 58228-0F020 |
ZGR2# |
1 | ||
| 58398H - COVER, FLOOR UNDER, NO.1 | ||||
| 58398-0F030 |
ZGR2# |
1 | ||
| 58399B - COVER, FLOOR UNDER, NO.2 | ||||
| 58399-0F020 |
ZGR2# |
1 | ||
| 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-17026A0 |
ZGR2# SUPER WHITE 2 |
2 | ||
| 90467-17024A0 |
ZGR2# SUPER WHITE 2 |
2 | ||
| 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-17027C0 |
ZGR2# BLACK |
2 | ||
| 90467-17025C0 |
ZGR2# BLACK |
2 | ||
| Common parts | ||||
| 90109-06375 | ||||
| 90179-06314 | ||||
