ZGR21L-GWXEKC (2011)
Toyota E'Z
Production
Jun 2011
-
Dec 2016
Engine
2ZRFE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1106- )

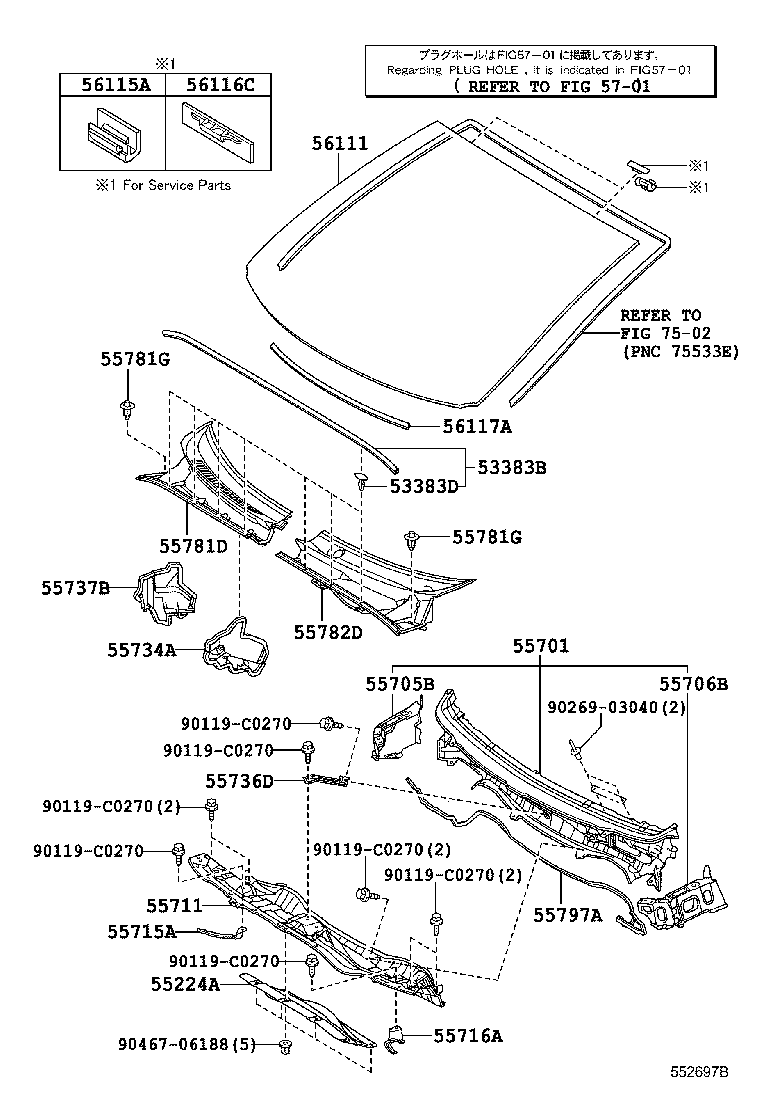

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383B - SEAL, HOOD TO COWL TOP | ||||
| 53383-0F030 |
ZGR2# |
1 | ||
| 53383D - CLIP(FOR HOOD TO COWL TOP SEAL) | ||||
| 67867-0F010 |
ZGR2# |
7 | ||
| 55224A - INSULATOR, DASH PANEL, OUTER NO.2 | ||||
| 55224-0F030 |
ZGR2# |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-0F050 |
ZGR2# |
1 | ||
| 55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH | ||||
| 55705-0F020 |
ZGR2# |
1 | ||
| 55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-0F020 |
ZGR2# |
1 | ||
| 55711 - PANEL, COWL TOP, OUTER | ||||
| 55701-0F030 |
ZGR2# |
1 | ||
| 55715A - BRACE, COWL TOP TO APRON, RH | ||||
| 53715-0F020 |
ZGR2# |
1 | ||
| 55716A - BRACE, COWL TOP TO APRON, LH | ||||
| 53716-0F020 |
ZGR2# |
1 | ||
| 55734A - PLATE, WATER GUARD, RH | ||||
| 55734-0F030 |
ZGR2# |
1 | ||
| 55736D - REINFORCEMENT, COWL BODY MOUNTING, LH | ||||
| 55736-0F020 |
ZGR2# |
1 | ||
| 55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1 | ||||
| 55737-0F030 |
ZGR2# |
1 | ||
| 55781D - LOUVER, COWL TOP VENTILATOR, RH | ||||
| 55708-0F080 |
ZGR2# |
1 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-C0013C0 |
ZGR2# BLACK |
2 | ||
| 90467-07076C0 |
ZGR2# BLACK |
2 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-C0013C0 |
ZGR2# BLACK |
2 | ||
| 90467-07076C0 |
ZGR2# BLACK |
2 | ||
| 55782D - LOUVER, COWL TOP VENTILATOR, LH | ||||
| 55709-0F070 |
ZGR2# |
1 | ||
| 55797A - SEAL, COWL WATER EXTRACT | ||||
| 55797-0F030 |
ZGR2# |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-0F904 |
ZGR21,22..V *LAM,T=4.56,GREEN |
1 | ||
| 56101-0F901 |
ZGR2#..G *HSEAL,T=4.56,GREEN |
1 | ||
| 56101-0F902 |
ZGR21,22..V *HSEAL,T=4.56,GREEN |
1 | ||
| 56101-0F900 |
ZGR2#..G *LAM,T=4.56,GREEN |
1 | ||
| 56101-0F900 |
ZGR20,21..E *LAM,T=4.56,GREEN |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30120 |
ZGR2# |
1 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
ZGR2# |
2 | ||
| 56117A - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-0F030 |
ZGR2# L=1063 |
1 | ||
| Common parts | ||||
| 90119-C0270 | ||||
| 90269-03040 | ||||
| 90467-06188 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 7502 | ||||
